Filtro Flangiato per Gas Metano
Serie FM e FGM flangiata, a 2 e/o 6 bar di funzionamento
CONFORMI ALLA NORMA EN 126 E ALLA DIRETTIVA PED 2014/68/UE
sku | modello | prezzo | |
---|---|---|---|
00000004447 | FILTRO PER GAS METANO - attacchi DN 32 - 2 bar - 50 µm | €153,41 IVA esclusa | Richiedi Informazioni |
00000004448 | FILTRO PER GAS METANO - attacchi DN 40 - 2 bar - 50 µm | €147,84 IVA esclusa | Richiedi Informazioni |
00000004467 | FILTRO PER GAS METANO - attacchi DN 65 - 2 bar - 50 µm | €296,63 IVA esclusa | Richiedi Informazioni |
00000004468 | FILTRO PER GAS METANO - attacchi DN 80 - 2 bar - 50 µm | €318,68 IVA esclusa | Richiedi Informazioni |
00000004469 | FILTRO PER GAS METANO - attacchi DN 100 - 2 bar - 50 µm | €519,02 IVA esclusa | Richiedi Informazioni |
00000004470 | FILTRO PER GAS METANO - attacchi DN 125 - 2 bar - 50 µm | €1.169,28 IVA esclusa | Richiedi Informazioni |
00000004488 | FILTRO PER GAS METANO - attacchi DN 50 - 2 bar - 50 µm | €156,45 IVA esclusa | Richiedi Informazioni |
0000004470A | FILTRO PER GAS METANO - attacchi DN 150 - 2 bar - 10 µm | €1.169,28 IVA esclusa | Richiedi Informazioni |
0000004470B | FILTRO PER GAS METANO - attacchi DN 200 - 2 bar - 10 µm | €3.286,50 IVA esclusa | Richiedi Informazioni |
0000004470C | FILTRO PER GAS METANO - attacchi DN 300 - 2 bar - 10 µm | €5.384,72 IVA esclusa | Richiedi Informazioni |
000004447/6 | FILTRO PER GAS METANO - attacchi DN 32 - 6 bar - 50 µm | €154,77 IVA esclusa | Richiedi Informazioni |
000004448/6 | FILTRO PER GAS METANO - attacchi DN 40 - 6 bar - 50 µm | €154,77 IVA esclusa | Richiedi Informazioni |
000004467/6 | FILTRO PER GAS METANO - attacchi DN 65 - 6 bar - 50 µm | €323,93 IVA esclusa | Richiedi Informazioni |
000004468/6 | FILTRO PER GAS METANO - attacchi DN 80 - 6 bar - 50 µm | €351,23 IVA esclusa | Richiedi Informazioni |
000004469/6 | FILTRO PER GAS METANO - attacchi DN 100 - 6 bar - 50 µm | €585,27 IVA esclusa | Richiedi Informazioni |
000004470/6 | FILTRO PER GAS METANO - attacchi DN 125 - 6 bar - 10 µm | €1.427,06 IVA esclusa | Richiedi Informazioni |
000004488/6 | FILTRO PER GAS METANO - attacchi DN 50 - 6 bar - 50 µm | €163,38 IVA esclusa | Richiedi Informazioni |
00004470A/6 | FILTRO PER GAS METANO - attacchi DN 150 - 6 bar - 10 µm | €1.427,06 IVA esclusa | Richiedi Informazioni |
00004470B/6 | FILTRO PER GAS METANO - attacchi DN 200 - 6 bar - 10 µm | €3.805,20 IVA esclusa | Richiedi Informazioni |
00004470C/6 | FILTRO PER GAS METANO - attacchi DN 300 - 6 bar - 10 µm | €6.195,32 IVA esclusa | Richiedi Informazioni |
0000004470D | FILTRO PER GAS METANO - attacchi DN 250 - 2 bar - 10 µm | a richiesta | Richiedi Informazioni |
00004470D/6 | FILTRO PER GAS METANO - attacchi DN 250 - 6 bar - 10 µm | a richiesta | Richiedi Informazioni |
Informazioni sul prodotto

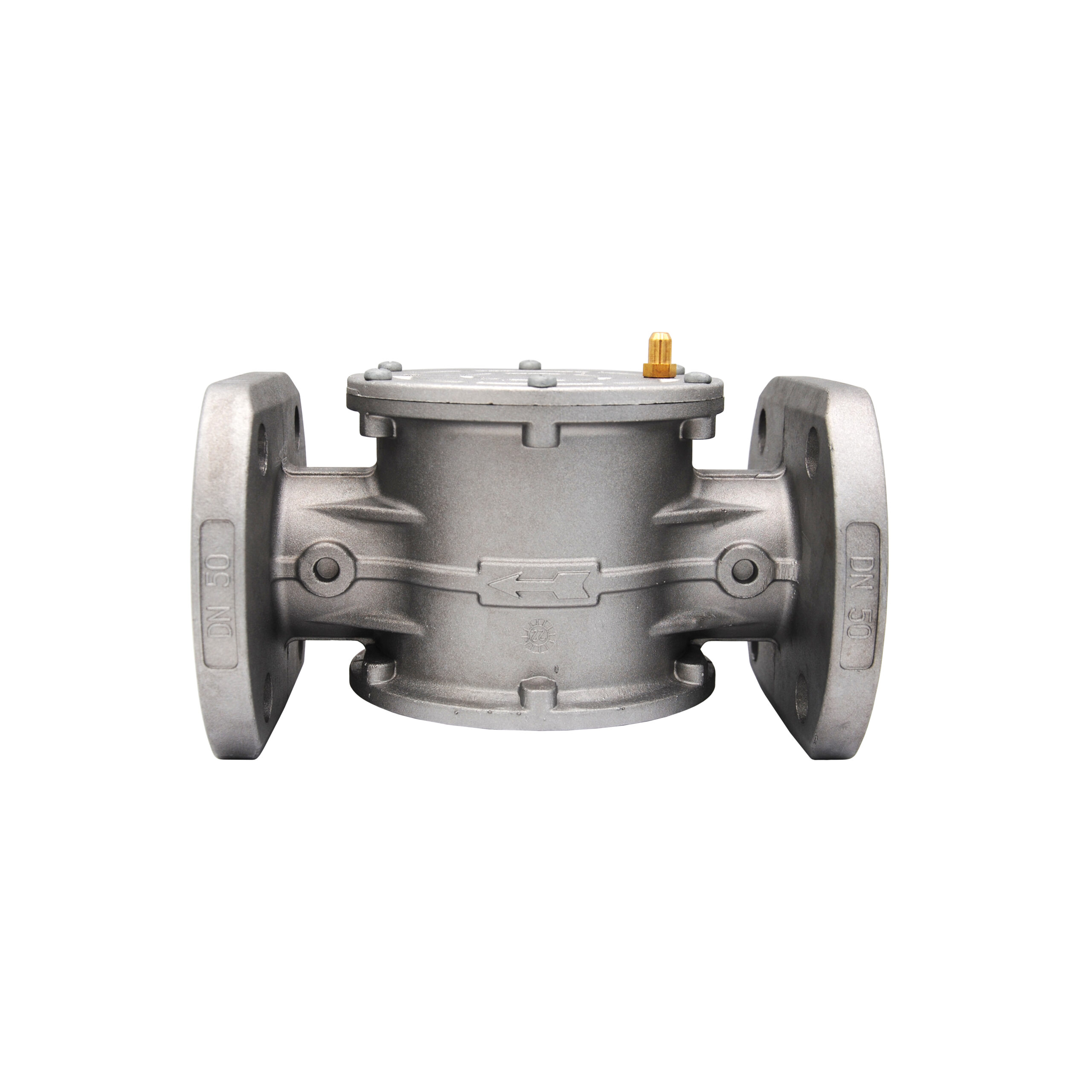

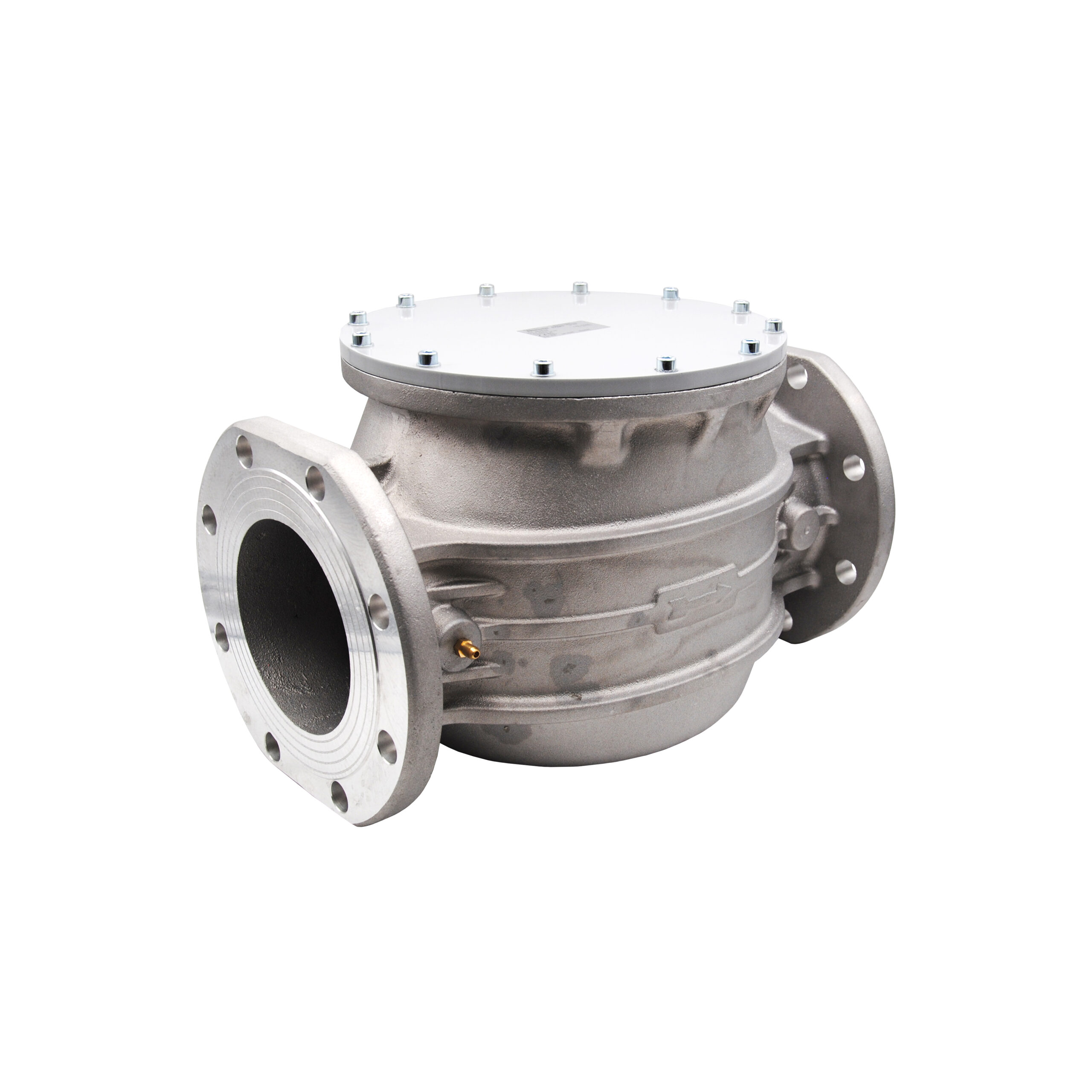

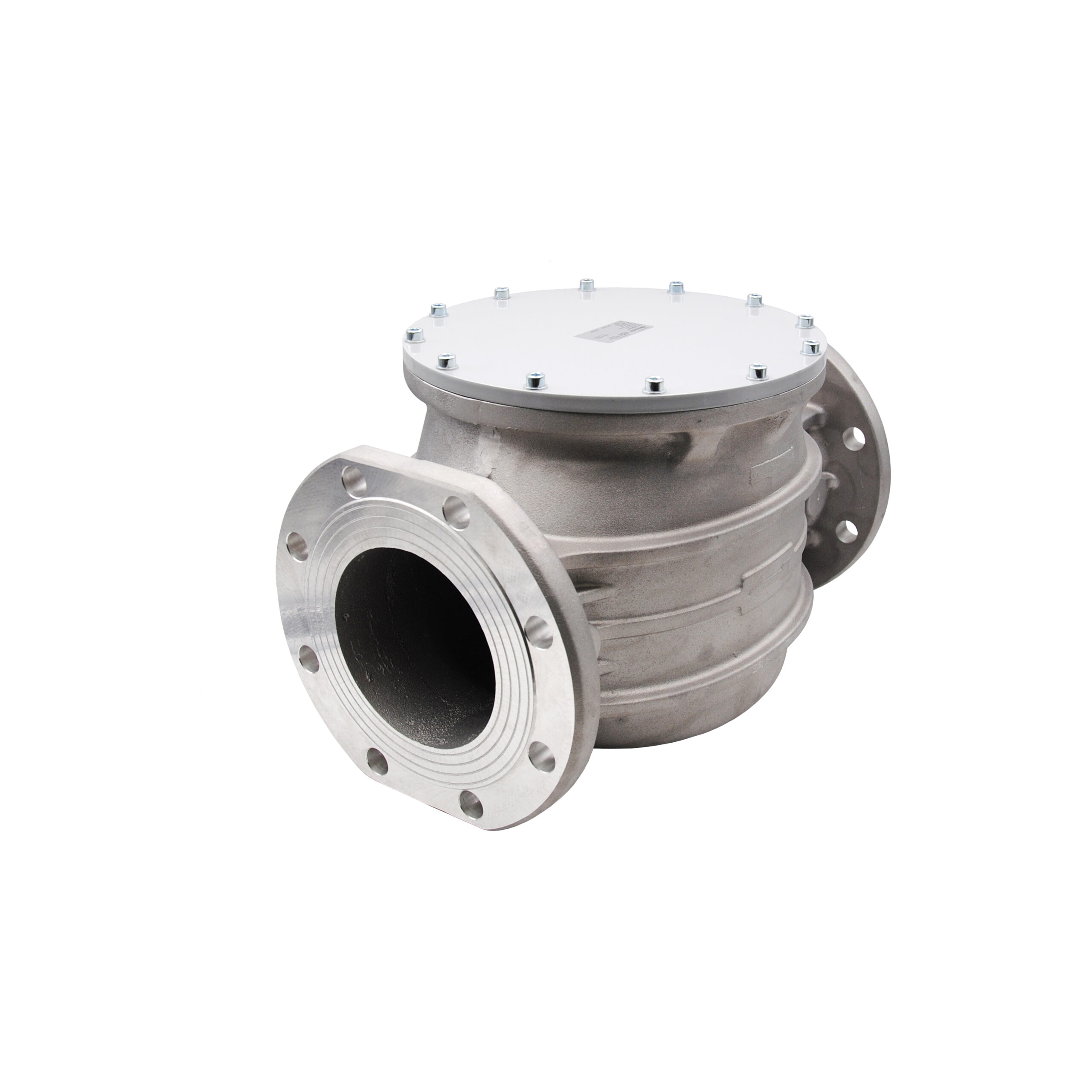

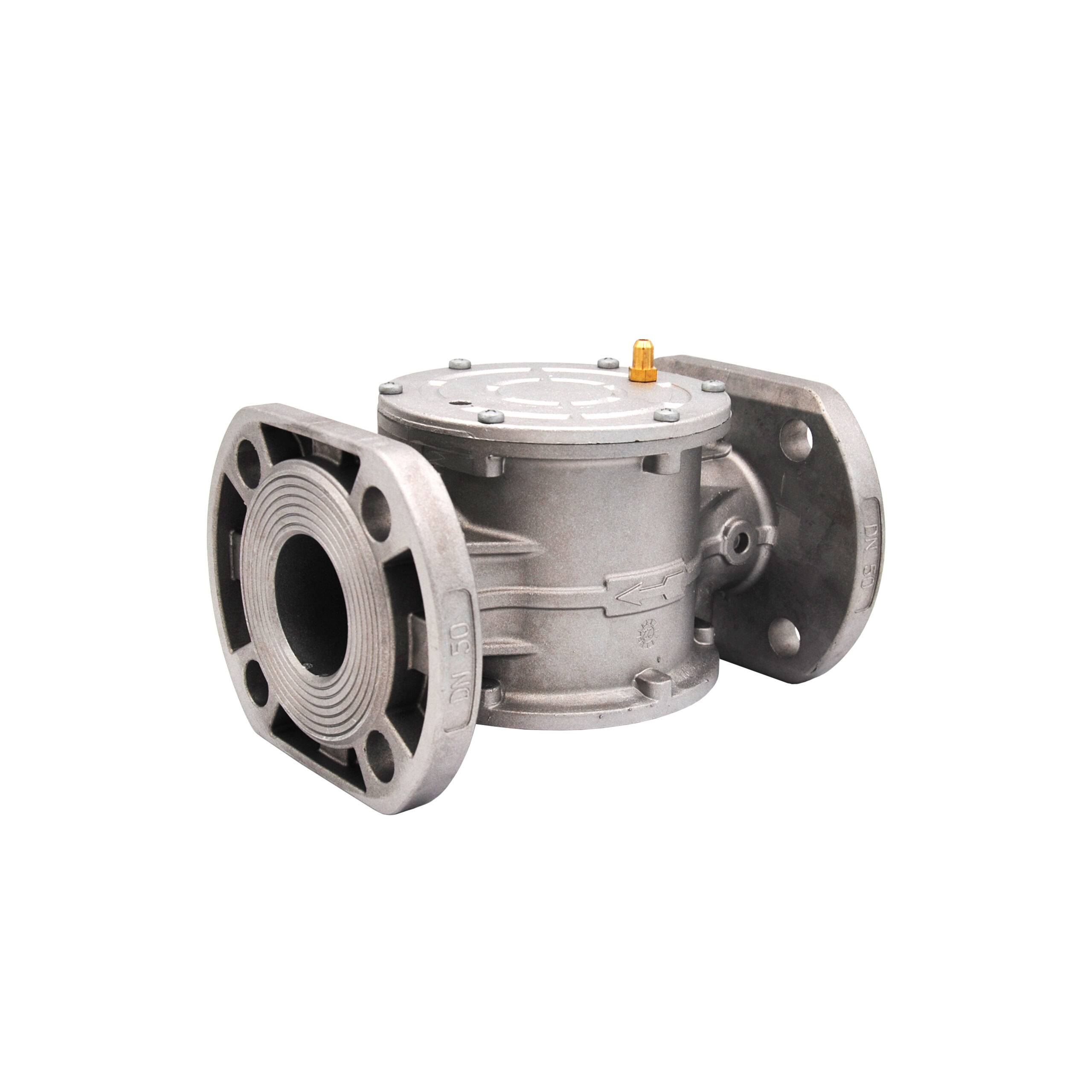

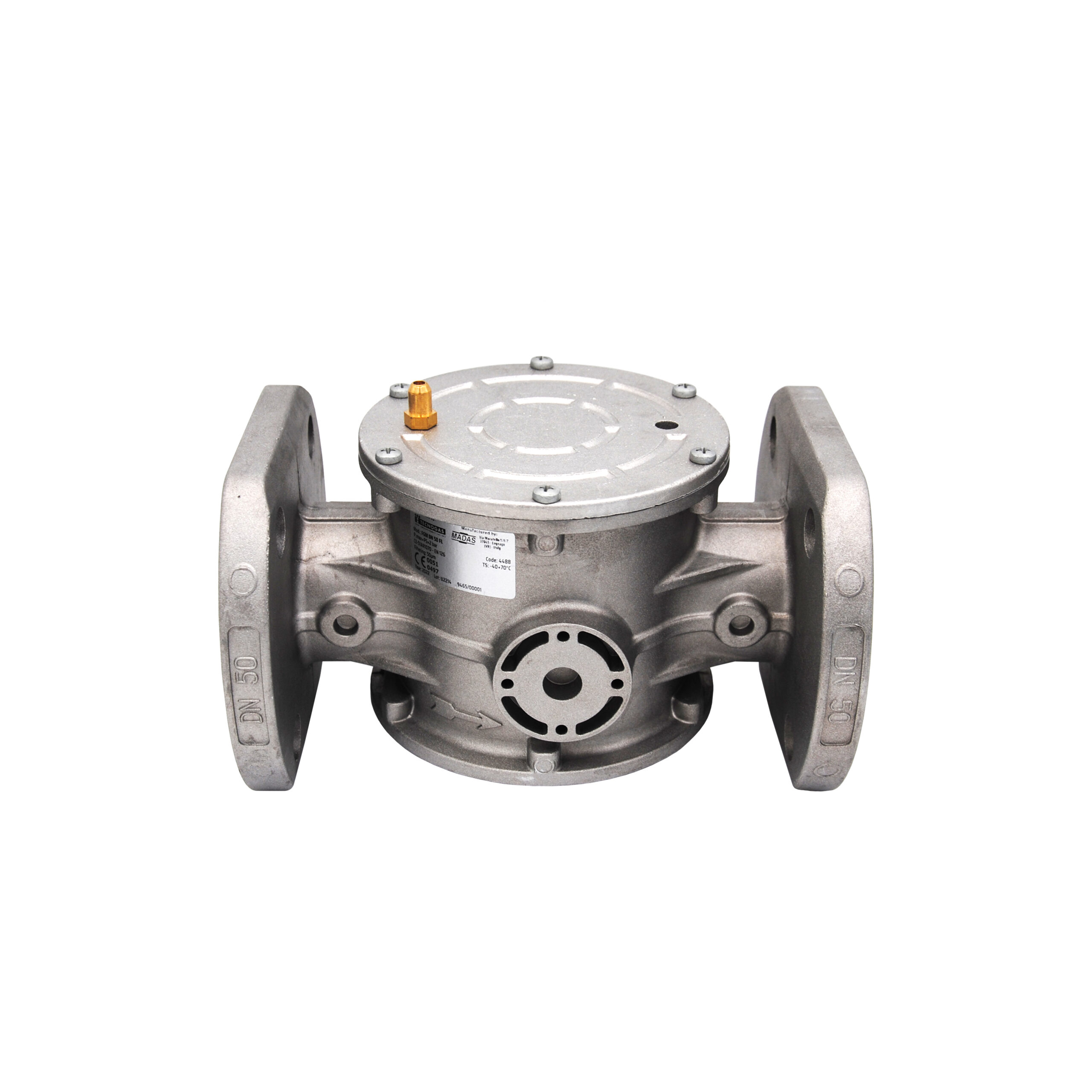

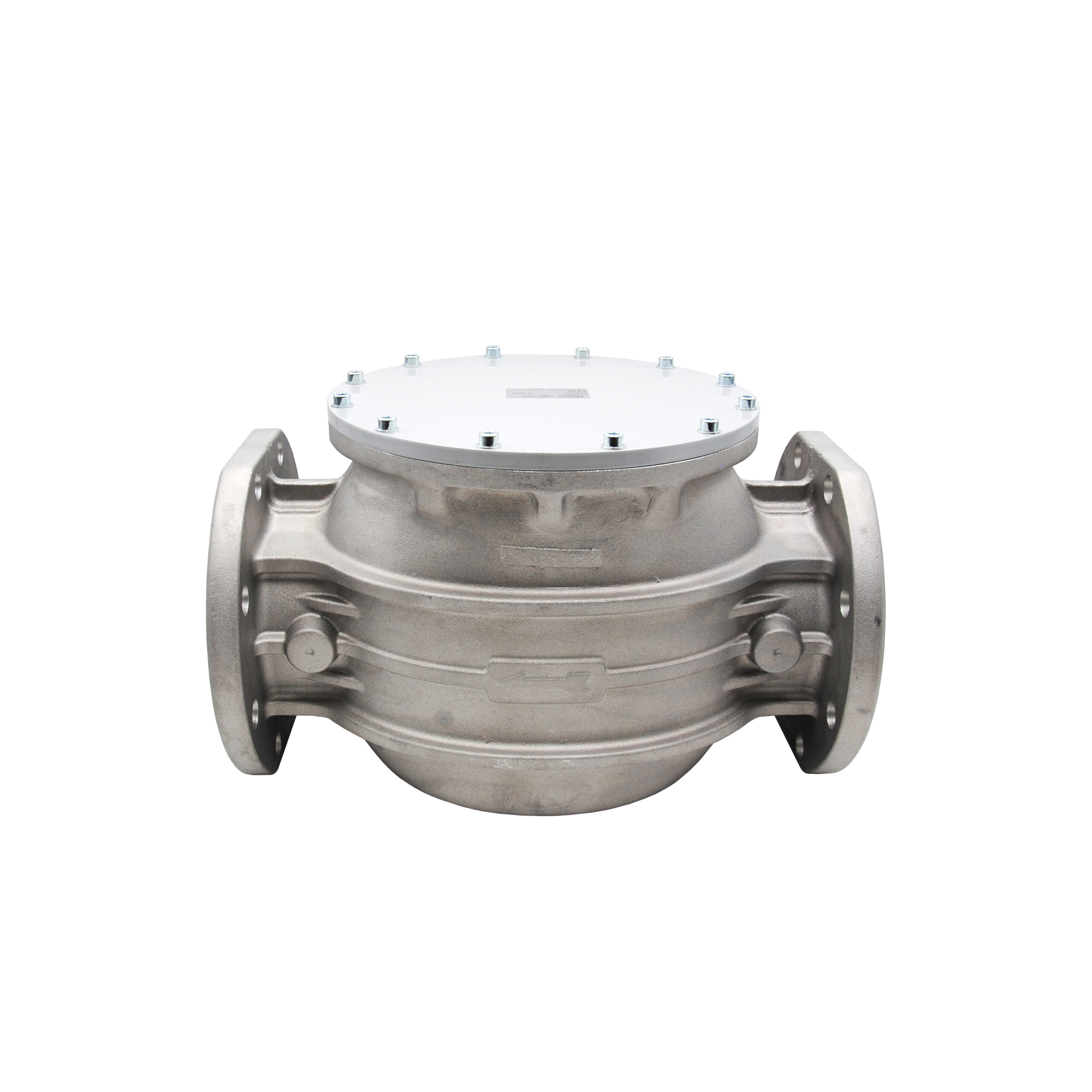

Filtro per gas metano, composto da una cartuccia filtrante realizzata in materiale sintetico lavabile e completamente estraibile per una totale ispezione, pulizia e/o sostituzione; questo dispositivo trattiene le particelle di polvere trasportate dal gas e protegge l'intero sistema da possibili intasamenti. Dotato di presa di pressione per il controllo della pressione.
Disponibile anche la versione per Biogas.
Caratteristiche Tecniche
IMPIEGO | gas non aggressivi delle tre famiglie (gas secchi) |
---|---|
PORTATA | vedi diagramma presente nei download sottostanti all'interno della sezione "Altri" |
RESISTENZA MECCANICA | gruppo 2 (secondo EN 13166) |
TEMPERATURA DI ESERCIZIO | - 20°C ÷ + 70°C |
MATERIALI | corpo in alluminio |

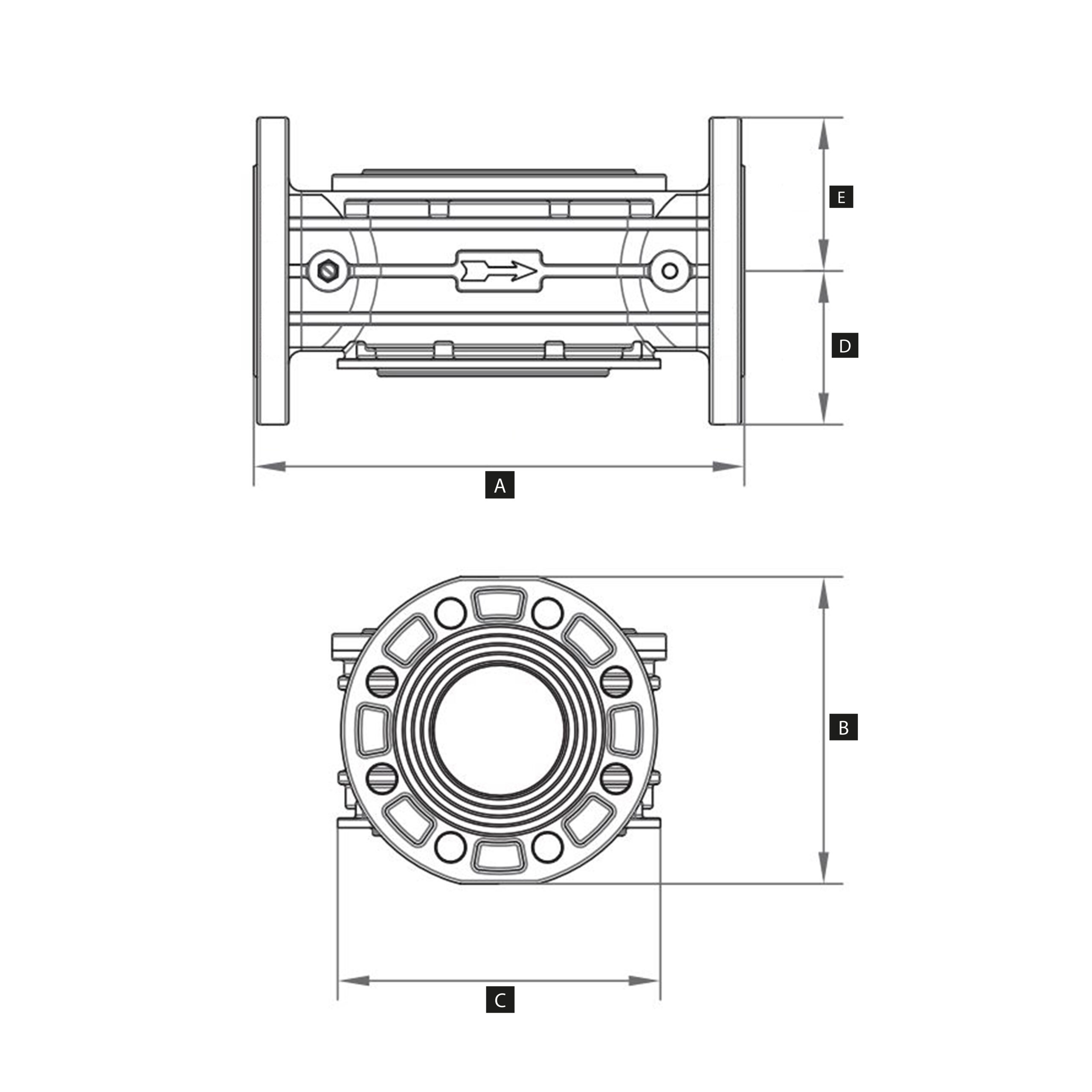

DIMENSIONI INGOMBRO | |||||||||
---|---|---|---|---|---|---|---|---|---|
SKU | ATTACCHI | PRESSIONE MAX DI ESERCIZIO | GRADO DI FILTRAGGIO (su richiesta disponibile anche 20 µm) | FORI | A | B | C | D | E |
4470 | DN 32 flangiati PN 16 | 2 bar | 50 µm | 4 | 230 mm | 152 mm | 165 mm | 67,5 mm | 84,5 mm |
4448 | DN 40 flangiati PN 16 | 2 bar | 50 µm | 4 | 230 mm | 152 mm | 165 mm | 67,5 mm | 84,5 mm |
4488 | DN 50 flangiati PN 16 | 2 bar | 50 µm | 4 | 230 mm | 152 mm | 165 mm | 67,5 mm | 84,5 mm |
4467 | DN 65 flangiati PN 16 | 2 bar | 50 µm | 4 | 290 mm | 180 mm | 211 mm | 90 mm | 90 mm |
4468 | DN 80 flangiati PN 16 | 2 bar | 50 µm | 8 | 310 mm | 194 mm | 211 mm | 97 mm | 97 mm |
4469 | DN 100 flangiati PN 16 | 2 bar | 50 µm | 8 | 350 mm | 210 mm | 260 mm | 105 mm | 105 mm |
4470 | DN 125 flangiati PN 16 | 2 bar | 10 µm | 8 | 480 mm | 305 mm | 328 mm | 126 mm | 179 mm |
4470a | DN 150 flangiati PN 16 | 2 bar | 10 µm | 8 | 480 mm | 309 mm | 328 mm | 130 mm | 179 mm |
4470B | DN 200 flangiati PN 16 | 2 bar | 10 µm | 12 | 600 mm | 382 mm | 450 mm | 165 mm | 217 mm |
4470d | DN 250 flangiati PN16 | 2 bar | 10 µm | 12 | 673 mm | 457 mm | 510 mm | 198 mm | 259 mm |
4470C | DN 300 flangiati PN 16 | 2 bar | 10 µm | 12 | 737 mm | 504 mm | 557 mm | 220 mm | 284 mm |
4447/6 | DN 32 flangiati PN 16 | 6 bar | 50 µm | 4 | 230 mm | 152 mm | 165 mm | 67,5 mm | 84,5 mm |
4448/6 | DN 40 flangiati PN 16 | 6 bar | 50 µm | 4 | 230 mm | 152 mm | 165 mm | 67,5 mm | 84,5 mm |
4488/6 | DN 50 flangiati PN 16 | 6 bar | 50 µm | 4 | 230 mm | 152 mm | 165 mm | 67,5 mm | 84,5 mm |
4467/6 | DN 65 flangiati PN 16 | 6 bar | 50 µm | 4 | 290 mm | 180 mm | 211 mm | 90 mm | 90 mm |
4468/6 | DN 80 flangiati PN 16 | 6 bar | 50 µm | 8 | 310 mm | 194 mm | 211 mm | 97 mm | 97 mm |
4469/6 | DN 100 flangiati PN 16 | 6 bar | 50 µm | 8 | 350 mm | 210 mm | 260 mm | 105 mm | 105 mm |
4470/6 | DN 125 flangiati PN 16 | 6 bar | 10 µm | 8 | 480 mm | 305 mm | 328 mm | 126 mm | 179 mm |
4470A/6 | DN 150 flangiati PN 16 | 6 bar | 10 µm | 8 | 480 mm | 309 mm | 328 mm | 130 mm | 179 mm |
4470B/6 | DN 200 flangiati PN 16 | 6 bar | 10 µm | 12 | 600 mm | 382 mm | 450 mm | 165 mm | 217 mm |
4470d/6 | DN 250 flangiati PN 16 | 6 bar | 10 µm | 12 | 673 mm | 457 mm | 510 mm | 198 mm | 259 mm |
4470C/6 | DN 300 flangiati PN 16 | 6 bar | 10 µm | 12 | 737 mm | 504 mm | 557 mm | 220 mm | 284 mm |
