Download Product Data Sheet

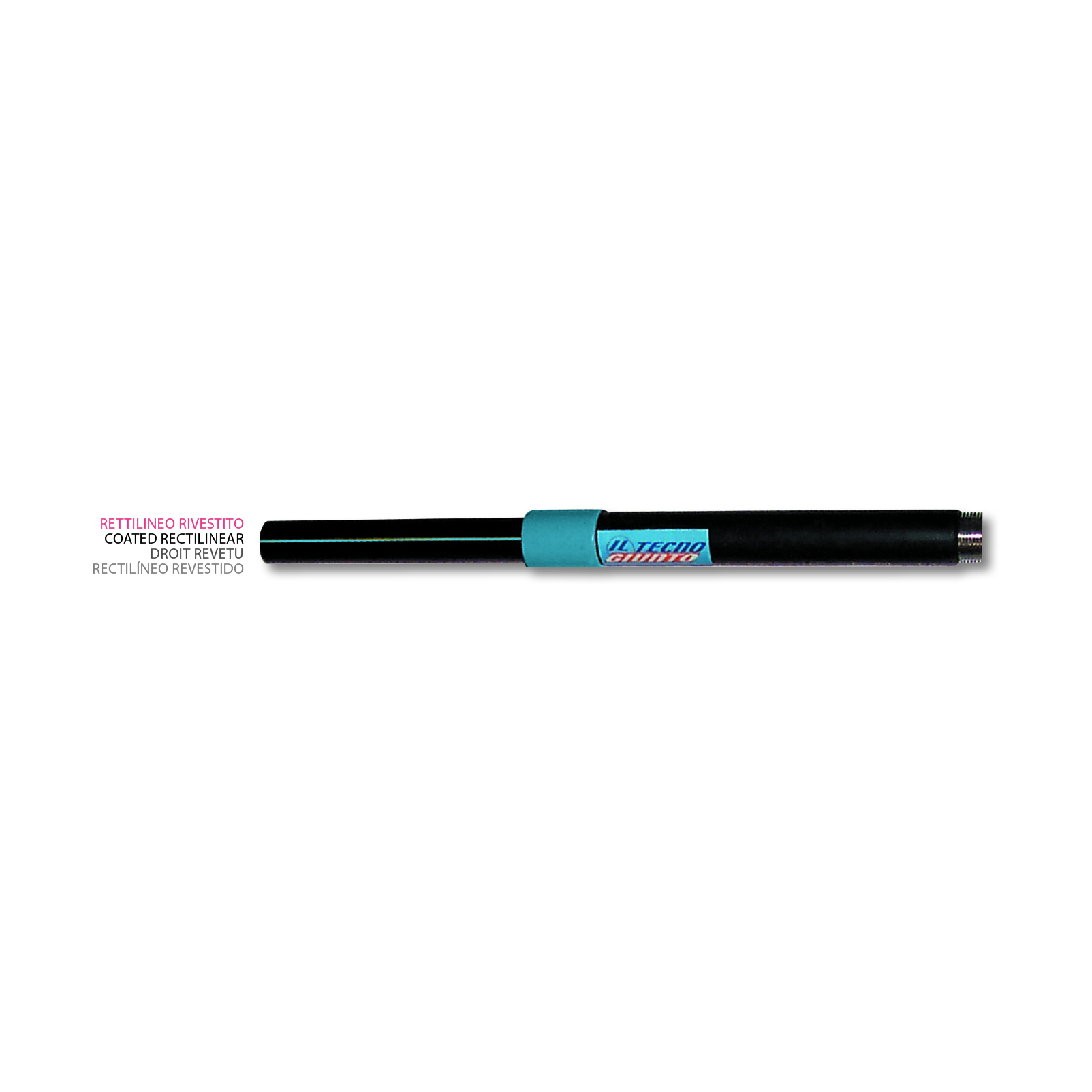

Rectilinear Threaded and Coated Transition Fitting for Water

Threaded and coated version

DG - 7521BU0225 AND ISO 9001:2015 CERTIFICATES

sku model price info add to cart

00000020450

THREADED STRAIGHT TRANSITION FITTING - DN 3/4" - PE-D 25 mm - polycoat coated

€37,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
4 × 4 × 51 cm

Volume:
0.001 m3

Weight:
0,64 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020451

THREADED STRAIGHT TRANSITION FITTING - DN 1" - PE-D 32 mm - polycoat coated

€41,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
4 × 4 × 47 cm

Volume:
0.0008 m3

Weight:
0,90 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020452

THREADED STRAIGHT TRANSITION FITTING - DN 1" 1/4 - PE-D 40 mm - polycoat coated

€45,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
51 × 5 × 5 cm

Volume:
0.0013 m3

Weight:
1,02 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020453

THREADED STRAIGHT TRANSITION FITTING - DN 1" 1/2 - PE-D 50 mm - polycoat coated

€47,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
60 × 7 × 7 cm

Volume:
0.0029 m3

Weight:
1,15 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020454

THREADED STRAIGHT TRANSITION FITTING - DN 2" - PE-D 63 mm - polycoat coated

€68,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
52 × 7 × 7 cm

Volume:
0.0025 m3

Weight:
2,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020455

THREADED STRAIGHT TRANSITION FITTING - DN 2" 1/2 - PE-D 75 mm - PE coated

€126,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
9 × 9 × 53 cm

Volume:
0.0043 m3

Weight:
3,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020456

THREADED STRAIGHT TRANSITION FITTING - DN 3" - 90 mm - PE-D PE coated

€159,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
51 × 9 × 9 cm

Volume:
0.0041 m3

Weight:
3,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020457

THREADED STRAIGHT TRANSITION FITTING - DN 4" - 110 mm - PE-D PE coated

€244,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
60 × 15 × 15 cm

Volume:
0.0135 m3

Weight:
6,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020458

THREADED STRAIGHT TRANSITION FITTING - DN 4" - 125 mm - PE-D PE coated

€317,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 14 × 52 cm

Volume:
0.0103 m3

Weight:
6,35 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

Product informations

Transition fitting designed to allow the transition from a plastic (polyethylene) system to a metal one, to allow water distribution systems to exit the ground. The joints of polyethylene pipes to metal pipes are made by means of a threaded connection for the conveyance of pressurized water, drainage and sewers.

Joints with different diameters are supplied on request.

Technical Features

MATERIALS
  • steel pipe compliant with the UNI EN 10255 standard, coated according to UNI 9099 - polycoat (from D. 25 to D. 63)
  • steel pipe compliant with the UNI EN 10255 standard, coated in PE (from D. 75 to D. 125)
  • PE100 shank SDR 11 (PN16)
THREADING external thread (taper male), according to EN10226-1 (R)
NORMATIVE REQUIREMENTS
  • UNI EN 12201-3: plastic piping systems for water distribution, sewage and pressurized sewage - polyethylene (PE)
  • UNI 9736: fittings manufactured with mixed metal-polyethylene joint for use in combustion of combustible gases, water and other fluids under pressure and metal-polypropylene for use in conducts for water and other fluids under pressure
  • ISO 17885: plastic piping systems - mechanical fittings for pressure piping systems
OPERATING TEMPERATURE 20°C



SKU PE DIAMETER DN COATING KG (single piece) PACKAGING
" mm
20450 25 mm 3/4" 26,6 polycoat 0,60 24 pcs.
20451 32 mm 1" 33,7 polycoat 0,90 15 pcs.
20452 40 mm 1" 1/4 42,4 polycoat 1,10 12 pcs.
20453 50 mm 1" 1/2 48,3 polycoat 1,40 8 pcs.
20454 63 mm 2" 60,3 polycoat 2,20 6 pcs.
20455 75 mm 2" 1/2 76,1 polyethylene (PE) 3,10 4 pcs.
20456 90 mm 3" 88,9 polyethylene (PE) 3,60 3 pcs.
20457 110 mm 4" 114,3 polyethylene (PE) 5,60 2 pcs.
20458 125 mm 4" 114,3 polyethylene (PE) 6,00 2 pcs.
