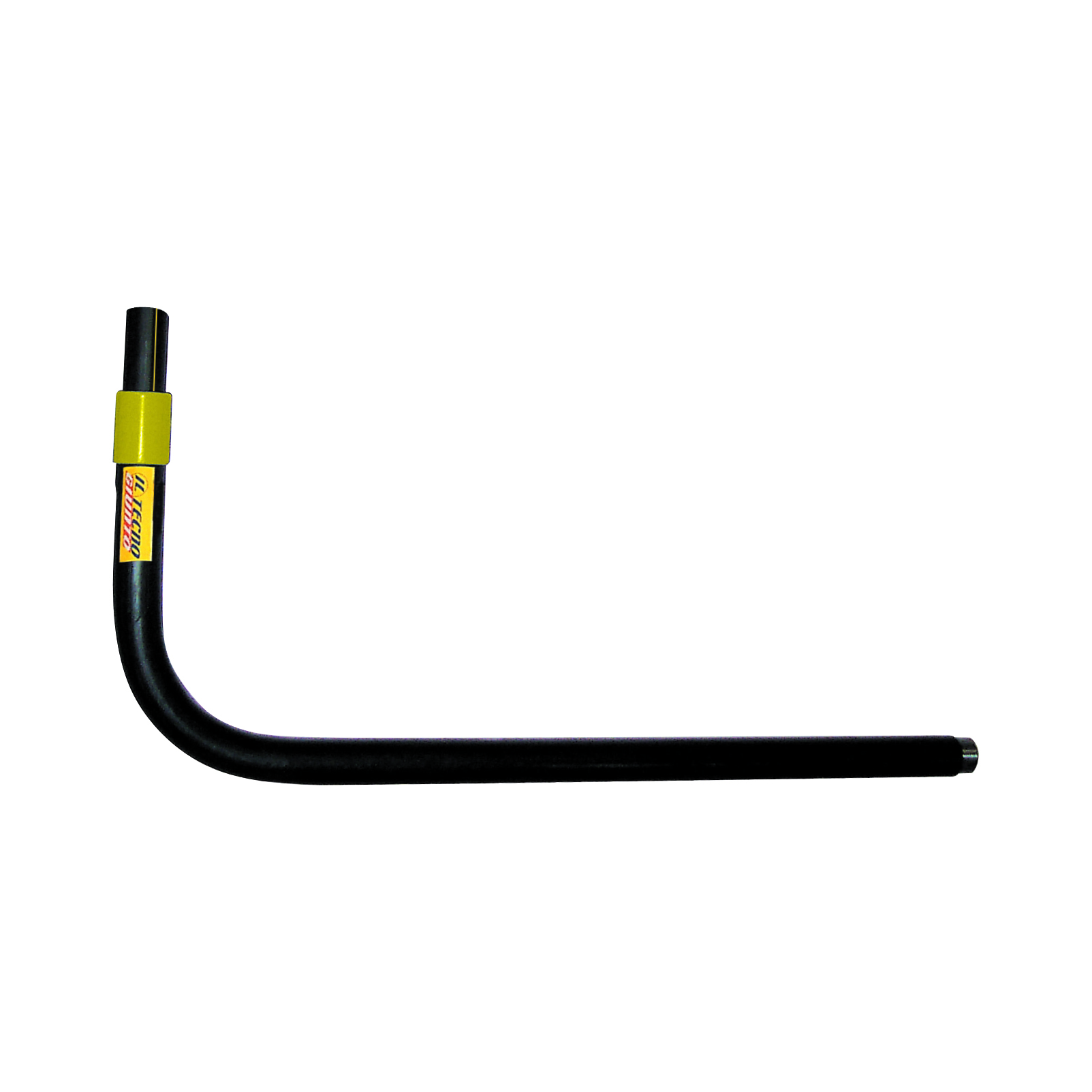

Curved Coated Transition Fitting

Threaded version

DG - 7521BU0225 AND ISO 9001:2015 CERTIFICATES

sku model price info add to cart

00000020400

COATED CURVED TRANSITION FITTING - DN 3/4" - PE-D 25 mm

€61,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
75 × 4 × 48 cm

Volume:
0.0162 m3

Weight:
2,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020401

COATED CURVED TRANSITION FITTING - DN 1" - PE-D 32 mm

€67,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
75 × 5 × 48 cm

Volume:
0.018 m3

Weight:
2,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020402

COATED CURVED TRANSITION FITTING - DN 1" 1/4 - PE-D 40 mm

€77,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
70 × 54 × 4 cm

Volume:
0.017 m3

Weight:
3,18 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020403

COATED CURVED TRANSITION FITTING - DN 1" 1/2 - PE-D 50 mm

€93,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
90 × 6 × 60 cm

Volume:
0.0324 m3

Weight:
4,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020404

COATED CURVED TRANSITION FITTING - DN 2" - PE-D 63 mm

€120,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
73 × 6 × 90 cm

Volume:
0.0394 m3

Weight:
6,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

Product informations

Transition fitting designed to allow the passage from a plant in plastic material (polyethylene) to a metal one, to allow fuel gas distribution plants to exit the ground. The joints of polyethylene pipes to metal pipes are made by means of a threaded connection for the conveyance of combustible gases under pressure.

Technical Features

MATERIALS
  • UNI EN 10255 steel tube coated according to UNI 9099 - polycoat
  • PE100 shank S5 SDR 11 (PN15)
THREADING external thread (taper male) according to EN 10226-1 (R)
NORMATIVE REQUIREMENTS
  • UNI EN 1555-3: plastic piping systems for the distribution of combustible gases - polyethylene (PE)
  • UNI 9736: fittings manufactured with mixed metal-polyethylene joint for use in combustion of combustible gases, water and other fluids under pressure and metal-polypropylene for use in conducts for water and other fluids under pressure
  • ISO 17885: plastic piping systems - mechanical fittings for pressure piping systems
  • UNI 9034: gas distribution conducts with maximum working pressure less than or equal to 0,5 MPa (5 bar) - jointing materials and systems
OPERATING TEMPERATURE 20°C



SKU PE DIAMETER DN KG (single piece) PACKAGING
" mm
20400 25 mm 3/4" 26,9 1,9 12 pcs.
20401 32 mm 1" 33,7 2,9 10 pcs.
20402 40 mm 1" 1/4 42,4 3,6 8 pcs.
20403 50 mm 1" 1/2 48,3 4,9 6 pcs.
20404 63 mm 2" 60,3 6,9 6 pcs.
