Flanged Transition Fitting for Water

Fixed flange version

DG - 7521BU0225 AND ISO 9001:2015 CERTIFICATES

sku model price info add to cart

00000020560

FIXED FLANGE TRANSITION FITTING - DN 2" - PE-D 63 mm

€117,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 15 × 28 cm

Volume:
0.0063 m3

Weight:
3,06 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020561

FIXED FLANGE TRANSITION FITTING - DN 2" 1/2 - PE-D 75 mm

€144,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020562

FIXED FLANGE TRANSITION FITTING - DN 3" - PE-D 90 mm

€184,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
20 × 20 × 39 cm

Volume:
0.0156 m3

Weight:
5,69 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020563

FIXED FLANGE TRANSITION FITTING - DN 4" - PE-D 110 mm

€204,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
21 × 21 × 35 cm

Volume:
0.0154 m3

Weight:
8,05 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020564

FIXED FLANGE TRANSITION FITTING - DN 4" - PE-D 125 mm

€227,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
22 × 22 × 32 cm

Volume:
0.0155 m3

Weight:
7,94 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020565

FIXED FLANGE TRANSITION FITTING - DN 5" - PE-D 140 mm

€292,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020566

FIXED FLANGE TRANSITION FITTING - DN 6" - PE-D 160 mm

€334,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
29 × 29 × 42 cm

Volume:
0.0353 m3

Weight:
15,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020567

FIXED FLANGE TRANSITION FITTING - DN 6" - PE-D 180 mm

€284,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020568

FIXED FLANGE TRANSITION FITTING - DN 8" - PE-D 200 mm

€409,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020569

FIXED FLANGE TRANSITION FITTING - DN 8" - PE-D 225 mm

€511,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

00000020570

FIXED FLANGE TRANSITION FITTING - DN 10" - PE-D 250 mm

€698,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
54 × 25 × 42 cm

Volume:
0.0567 m3

Weight:
35,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000
Buy
Info Request

Product informations

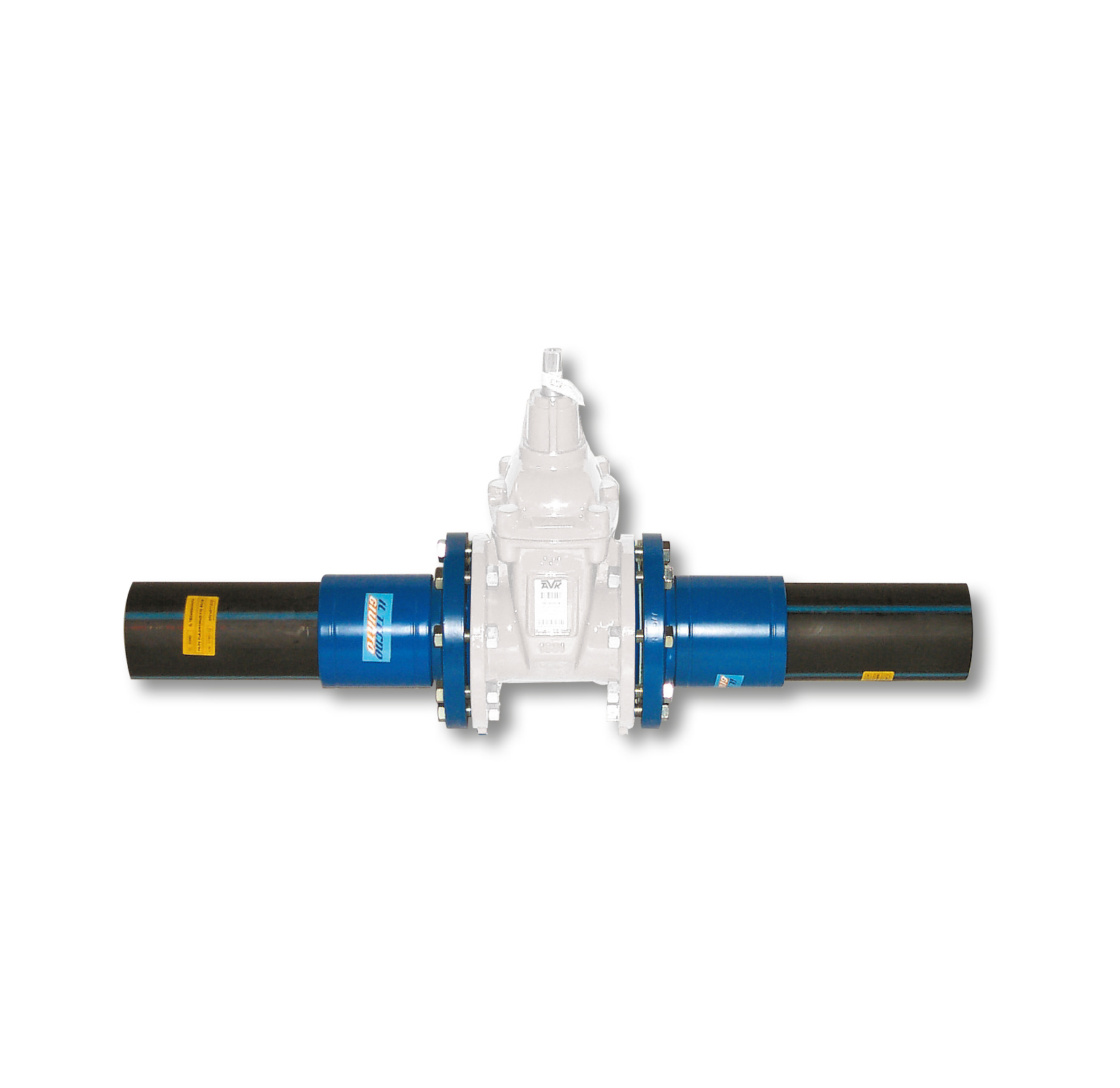

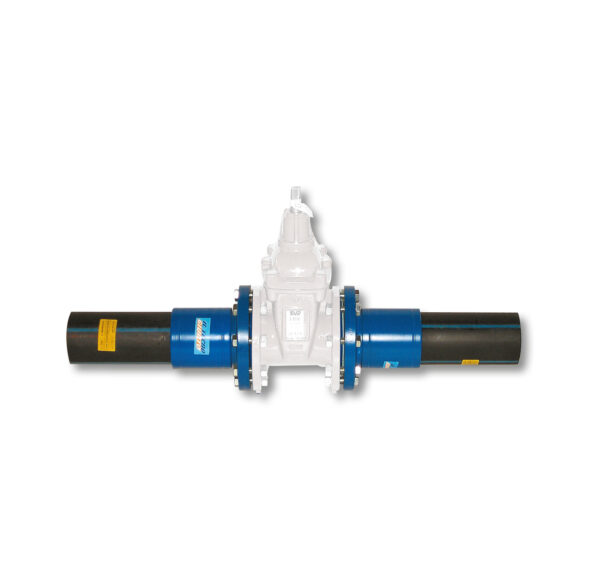

Transition fitting designed to allow the passage from a plant in plastic material (polyethylene) to a metal one, to allow water distribution systems to exit the ground. The joints of polyethylene pipes to metal pipes are made by means of a fixed flange connection for the conveyance of water, drainage and sewage under pressure.

Joints with different diameters are supplied on request.

Technical Features

MATERIALS
  • steel tube compliant with the UNI EN 10255 standard
  • PE100 shank SDR 11 (PN16)
TYPE OF FLANGE flange compliant with the UNI EN 1092 PN10 or PN16 standard (PPA571 powder coated)
NORMATIVE REQUIREMENTS
  • UNI EN 12201-3: plastic piping systems for water distribution, sewage and pressurized sewage - polyethylene (PE)
  • UNI 9736: fittings manufactured with mixed metal-polyethylene joint for use in combustion of combustible gases, water and other fluids under pressure and metal-polypropylene for use in conducts for water and other fluids under pressure
  • ISO 17885: plastic piping systems - mechanical fittings for pressure piping systems
OPERATING TEMPERATURE 20°C



SKU PE DIAMETER DN FLANGE KG (single piece) PACKAGING
" mm
20560 63 mm 2" 60,3 PN10/16 2,4 2 pcs.
20561 75 mm 2" 1/2 76,1 PN10/16 3,4 2 pcs.
20562 90 mm 3" 88,9 PN10/16 4,0 2 pcs.
20563 110 mm 4" 114,3 PN10/16 6,2 2 pcs.
20564 125 mm 4" 114,3 PN10/16 6,6 2 pcs.
20565 140 mm 5" 139,7 PN10/16 10,5 2 pcs.
20566 160 mm 6" 168,3 PN10/16 13,4 2 pcs.
20567 180 mm 6" 168,3 PN10/16 13,8 2 pcs.
20568 200 mm 8" 219,1 PN10 21,9 2 pcs.
20569 225 mm 8" 219,1 PN10 23,5 2 pcs.
20570 250 mm 10" 273,0 PN10 32,7 2 pcs.
