PN 40 – ANSI 300 Flanged Filter for Methane Gas
TRM 1 – TRM 1,5 – TRM 2 model
ON REQUEST, AVAILABLE IN OTHER DIMENSIONS
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004515 |
FLANGED FILTER FOR METHANE GAS Mod TRM 1 - DN 40 x DN 50 connections |
€5.852,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004518 |
FLANGED FILTER FOR METHANE GAS Mod TRM 1,5 - DN 50 x DN 80 connections |
€7.334,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004521 |
FLANGED FILTER FOR METHANE GAS Mod TRM 2 - DN 65 x DN 100 connections |
€12.654,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

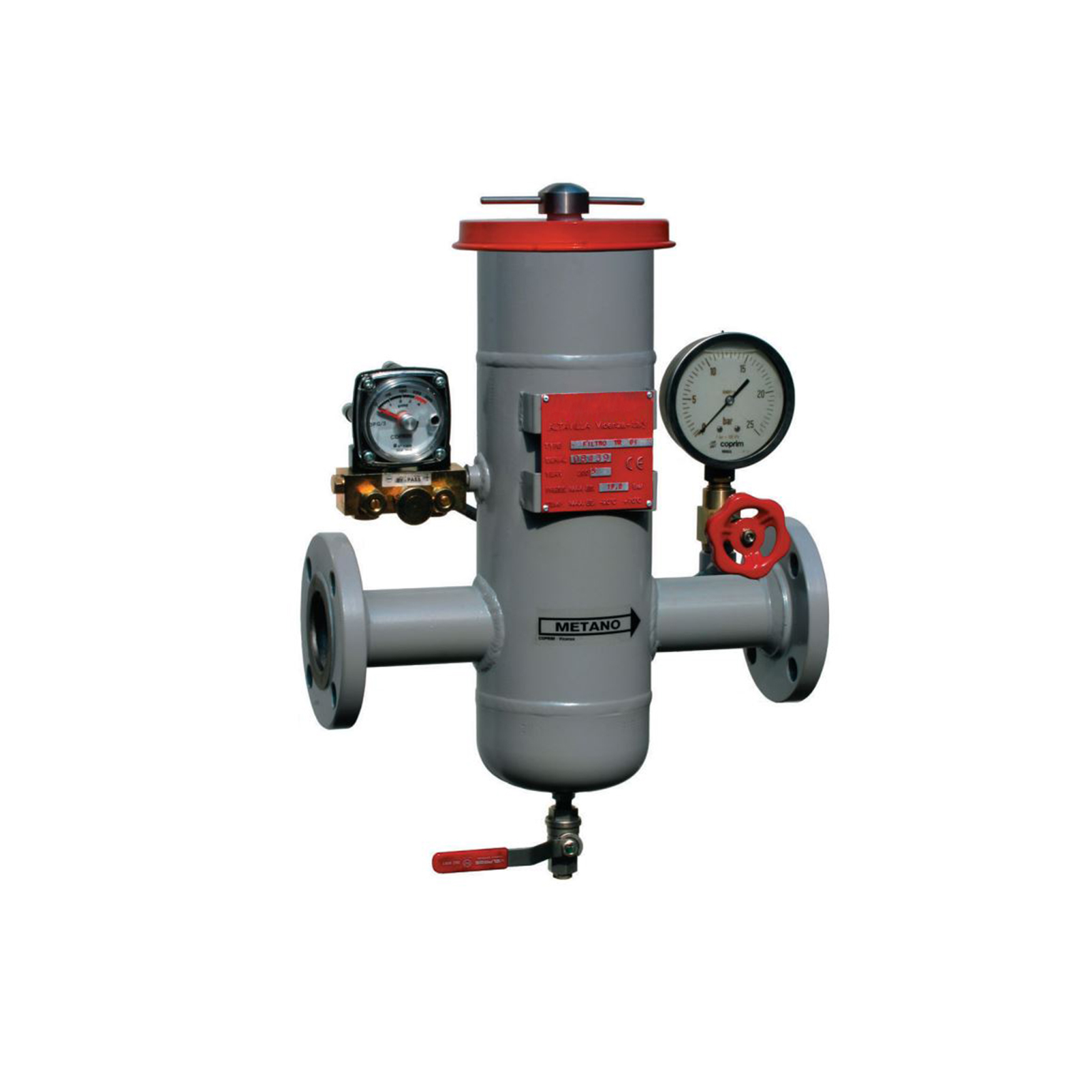

Cartridge filter for methane gas TRM 1 - TRM 1,5 - TRM 2 model, designed to detain the solid particles carried by the gas, protecting the entire system from possible obstruction.
Quick opening version, equipped with differential pressure gauge and fixed pressure gauge.
Technical Features
| INLET PRESSURE | 100 bar |
|---|---|
| FILTERING DEGREE | 5 micron |
| OPERATING TEMPERATURE | - 15°C ÷ + 60°C |
| MATERIALS |
|

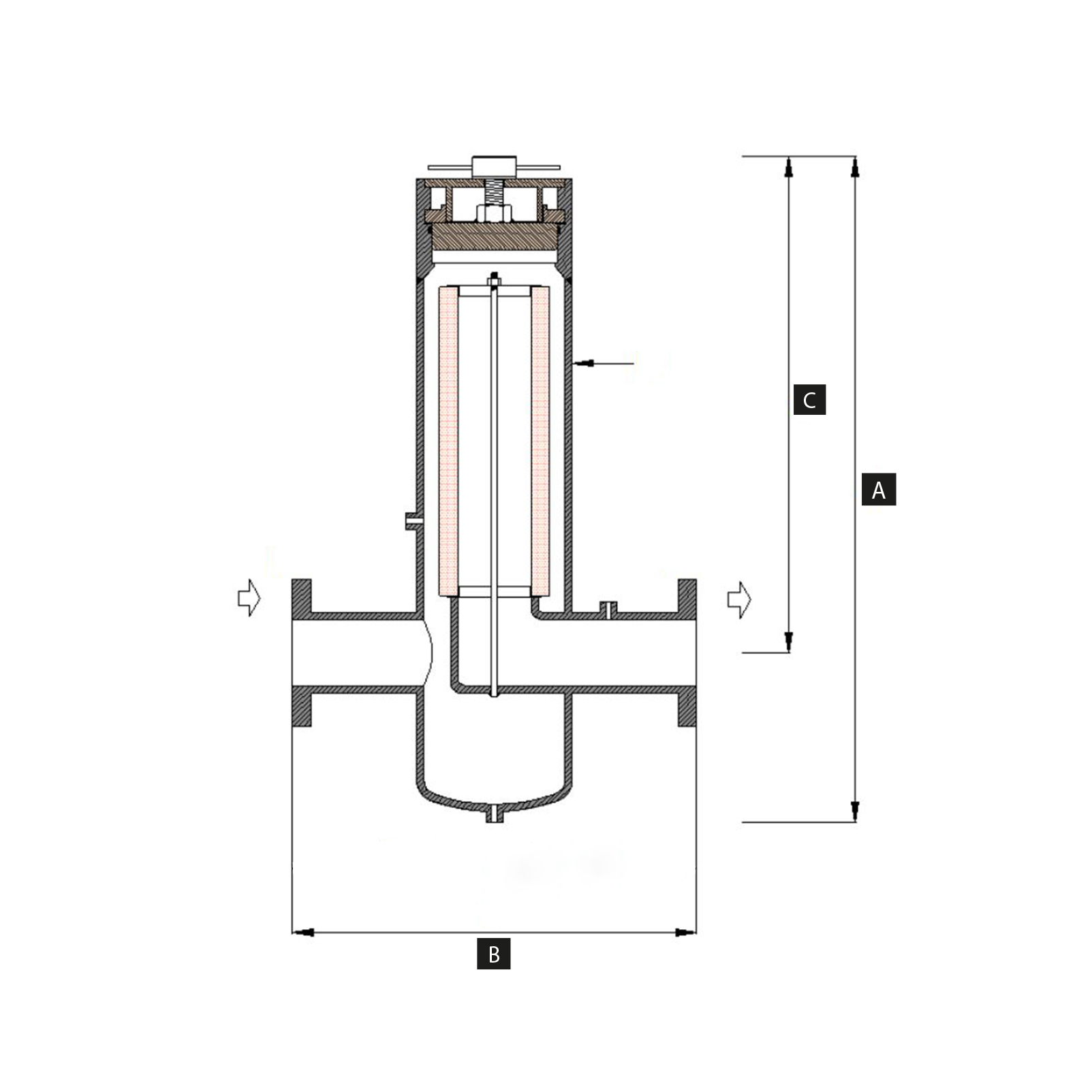

| OVERALL DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|
| SKU | VERSION | INLET CONNECTION | OUTPUT CONNECTION | A | B | C | D |
| 4515 | TRM 1 | DN 40 | DN 50 | 520 mm | 500 mm | 324 mm | 141 mm |
| 4518 | TRM 1,5 | DN 50 | DN 80 | 605 mm | 550 mm | 324 mm | 168 mm |
| 4521 | TRM 2 | DN 65 | DN 100 | 750 mm | 650 mm | 324 mm | 219 mm |
