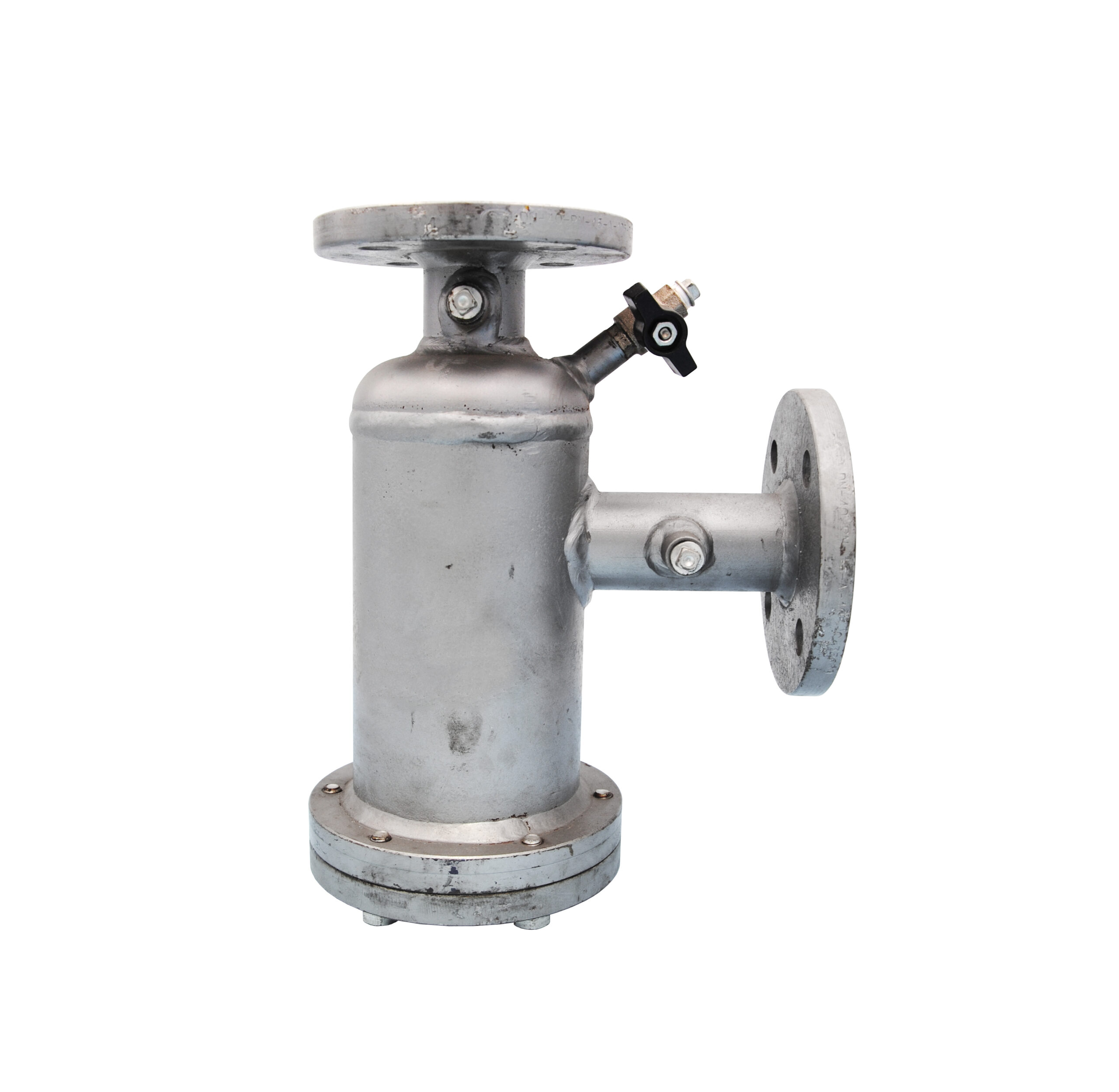

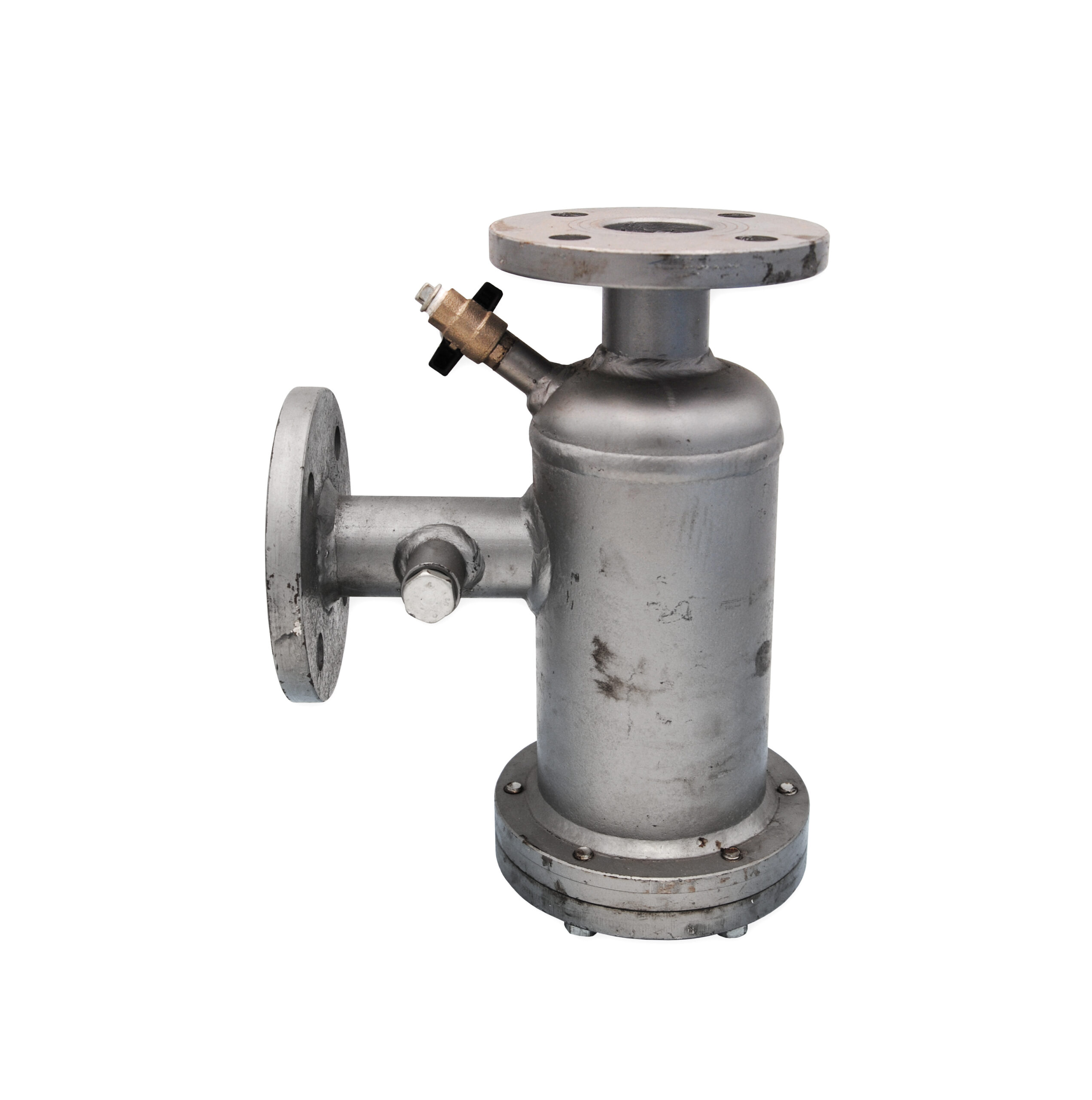

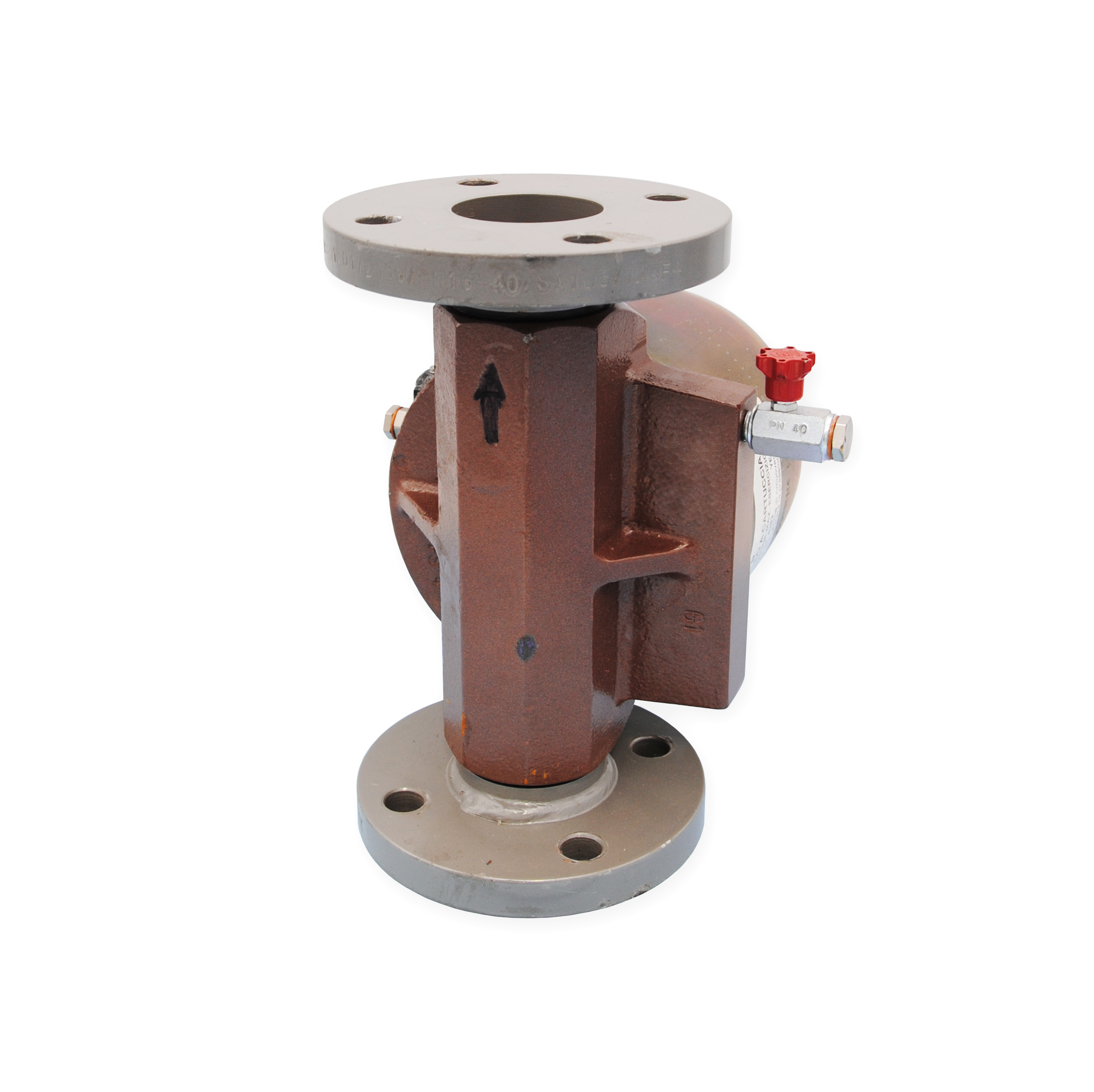

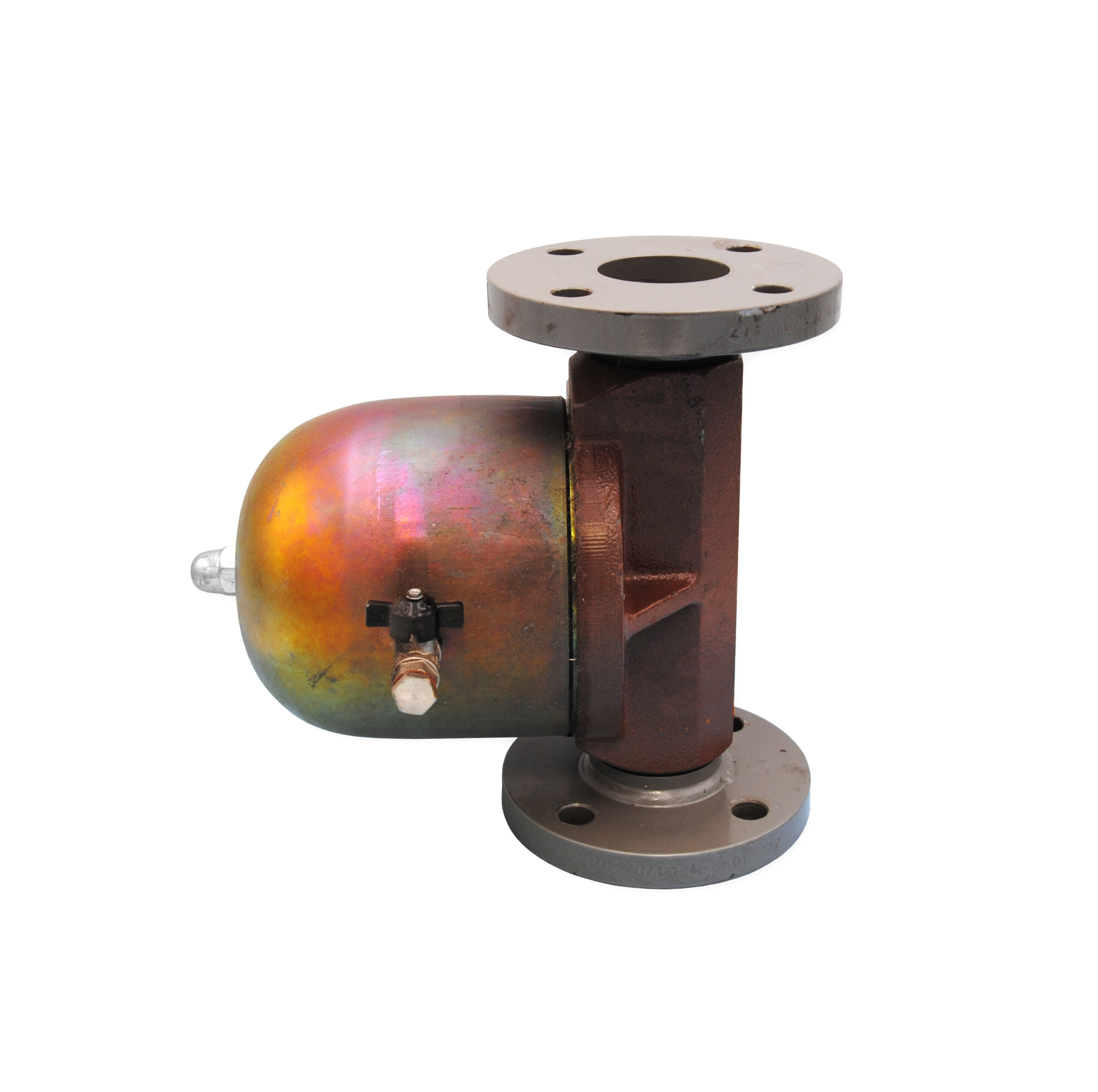

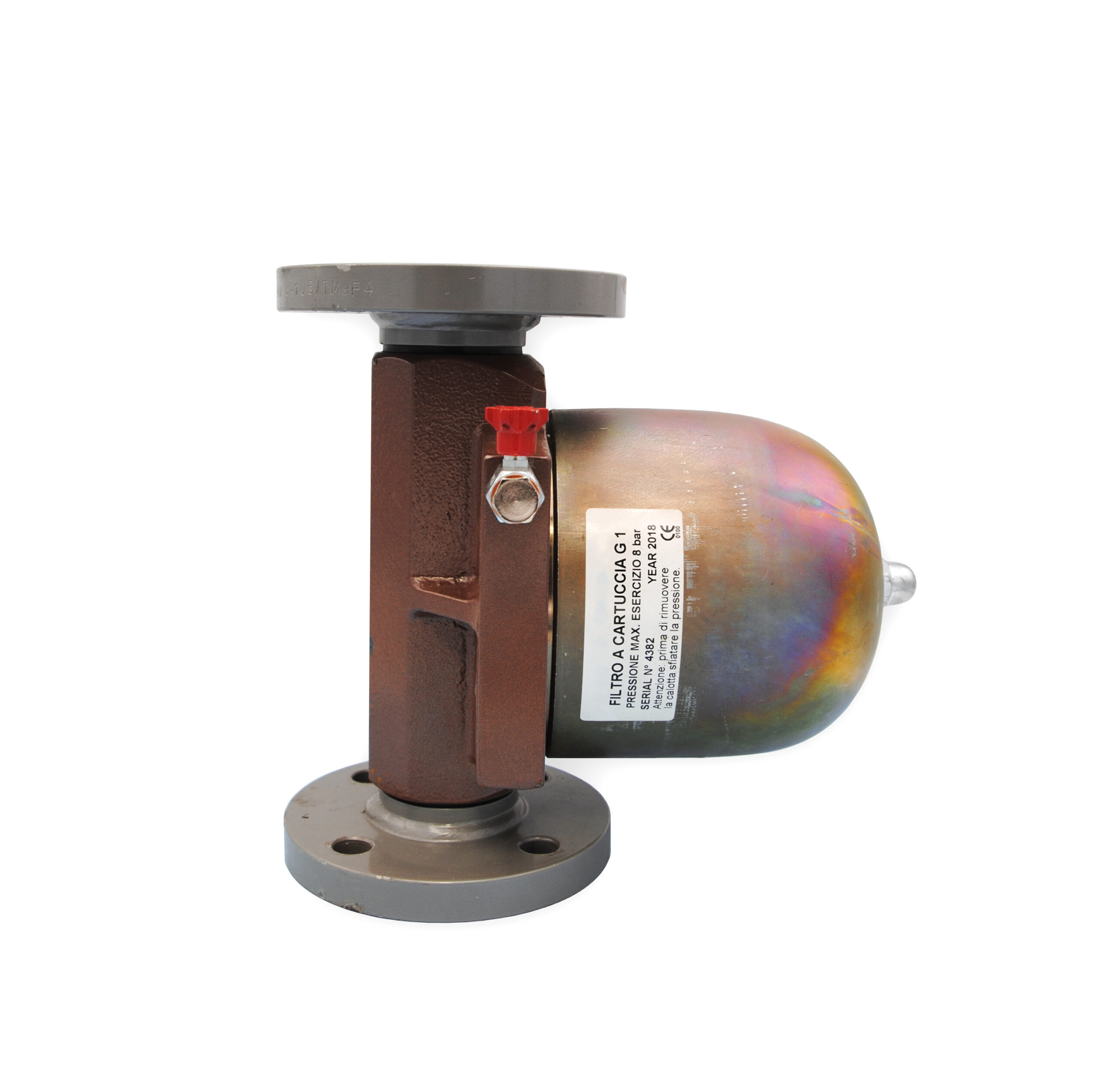

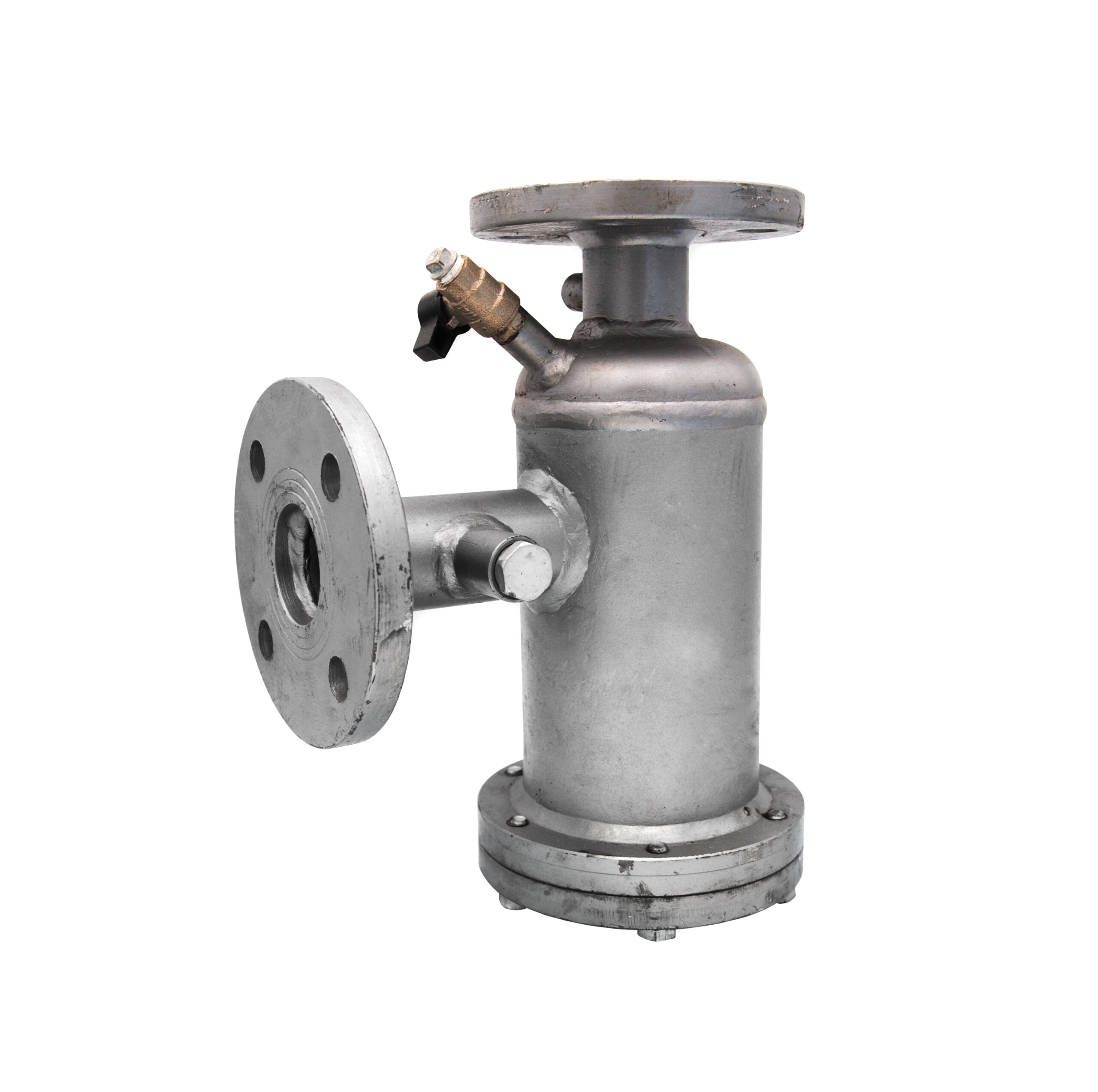

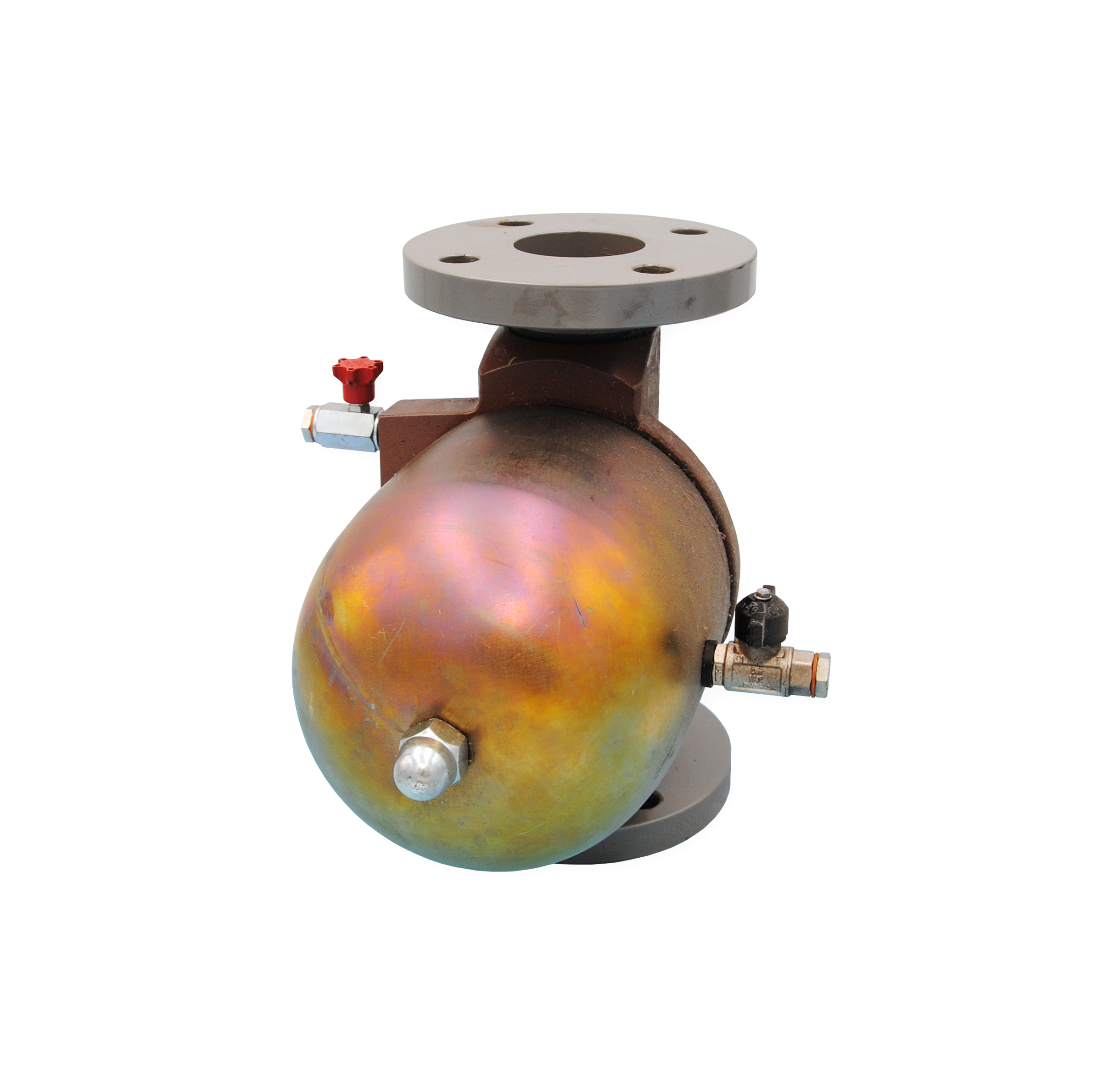

Flanged Filter for Methane Gas PN16
G 1 cartridge model
ON REQUEST, ALSO AVAILABLE COMPLETE WITH DIFFERENTIAL PRESSURE GAUGE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004505 |
FLANGED FILTER FOR METHANE GAS G 1 IN LINE MODEL - DN 40 x DN 40 connections |
€942,65 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004506 |
FLANGED FILTER FOR METHANE GAS G 1 IN SQUARE MODEL - DN 40 x DN 40 connections |
€942,65 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004508 |
FLANGED FILTER FOR METHANE GAS G 1 IN LINE MODEL - DN 50 x DN 50 connections |
€963,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004509 |
FLANGED FILTER FOR METHANE GAS G 1 IN SQUARE MODEL - DN 50 x DN 50 connections |
€963,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Cartridge filter for methane gas G 1 model, designed to detain the solid particles carried by the gas, protecting the entire system from possible obstruction.
Technical Features
| INLET PRESSURE | 8 bar |
|---|---|
| FILTERING DEGREE | 5 micron |
| INLET CONNECTION |
|
| OUTPUT CONNECTION |
|
| OPERATING TEMPERATURE | - 15°C ÷ + 60°C |
| MATERIALS | polyester resin cartridge with metal support |

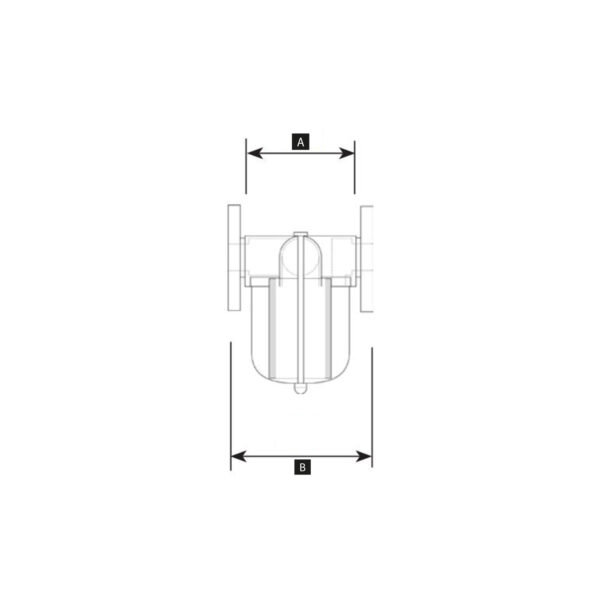

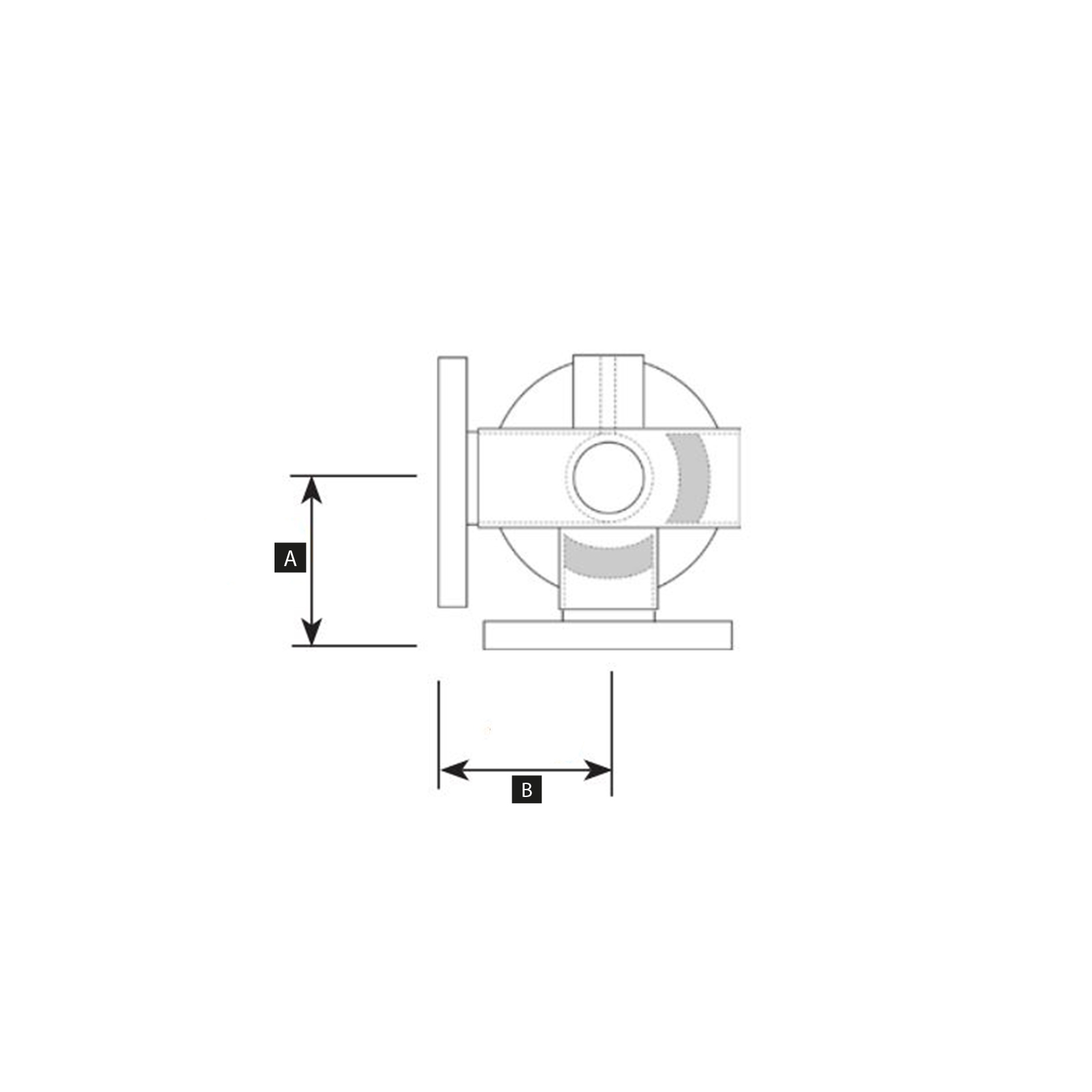

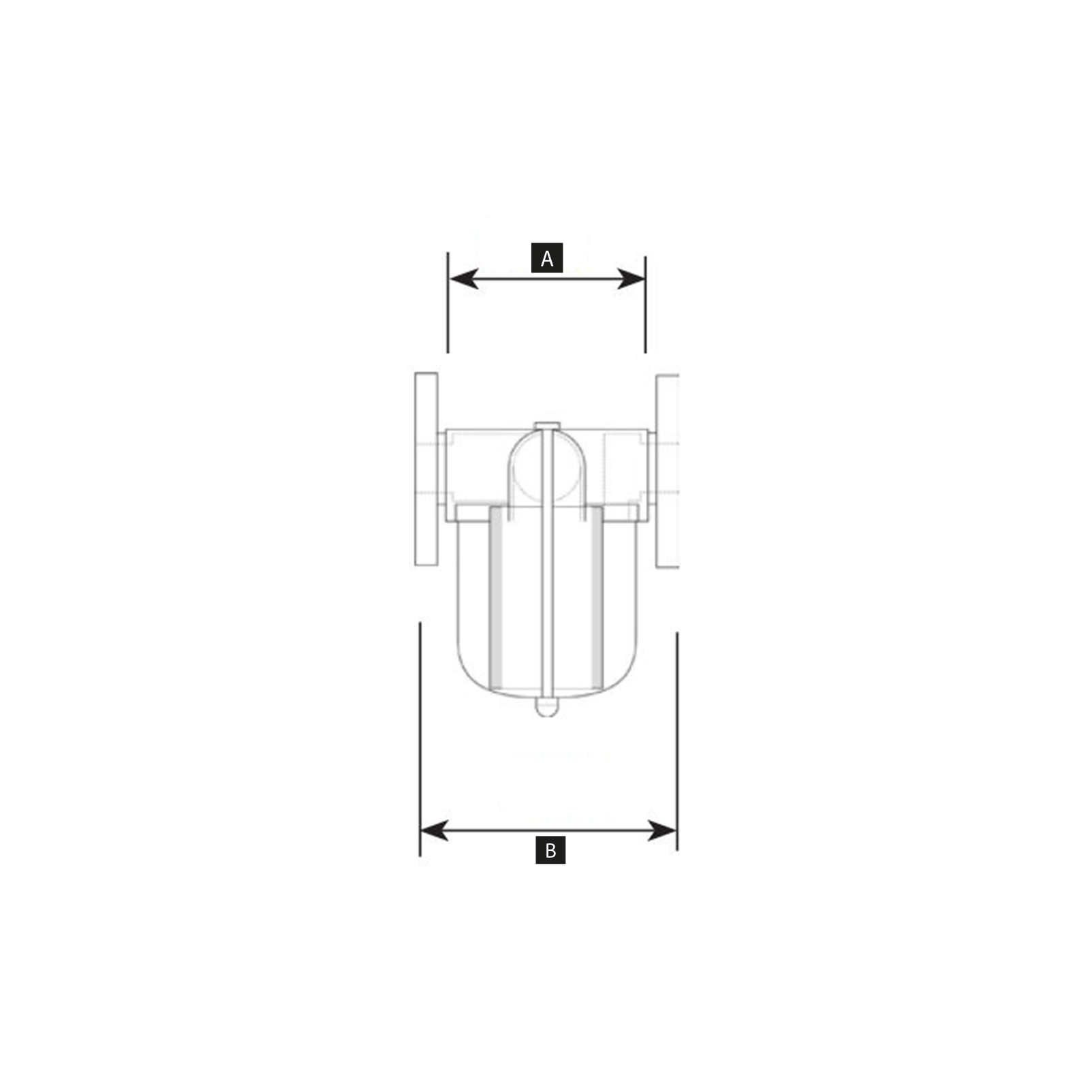

| OVERALL DIMENSIONS | |||
|---|---|---|---|
| SKU | VERSION | A | B |
| 4505 | G 1 - in line | 215 mm | 285 mm |
| 4506 | G 1 - square | 140 mm | 145 mm |
| 4508 | G 1 - in line | 215 mm | 285 mm |
| 4509 | G 1 - square | 140 mm | 145 mm |
