PN 16 Flanged Filter for Methane Gas
F 1 – F 1,5 – F 2 cartridge model
FOR THE SUPPLY OF OTHER VERSIONS AND DIAMETERS, CONTACT OUR TECHNICAL DEPARTMENT
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004473 |
FLANGED FILTER FOR METHANE GAS Mod. F 1 IN LINE - DN 40 x DN 40 connections |
€1.748,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004474 |
FLANGED FILTER FOR METHANE GAS Mod. F 1 IN LINE - DN 50 x DN 50 connections |
€1.748,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004475 |
FLANGED FILTER FOR METHANE GAS Mod. FG 1,5 IN LINE WITH PRESSURE GAUGE - DN 50 x DN 65 connections |
€2.394,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004476 |
FLANGED FILTER FOR METHANE GAS Mod. FG 1,5 IN LINE WITH PRESSURE GAUGE - DN 50 x DN 80 connections |
€2.394,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004477 |
FLANGED FILTER FOR METHANE GAS Mod. FG 2 SQUARE WITH PRESSURE GAUGE - DN 65 x DN 50 connections |
€2.945,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004478 |
FLANGED FILTER FOR METHANE GAS Mod. FG 2 SQUARE WITH PRESSURE GAUGE - DN 80 x DN 50 connections |
€2.945,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

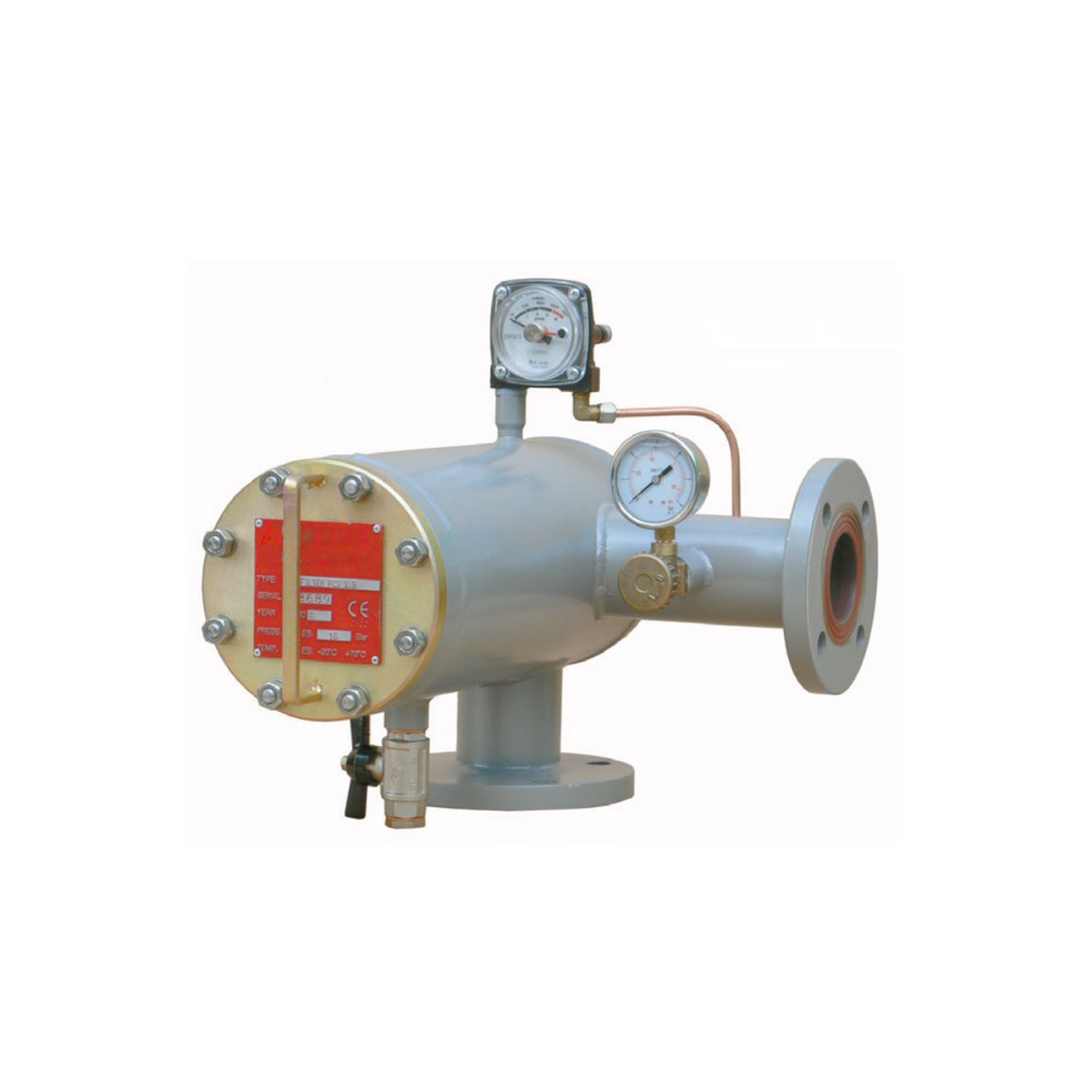

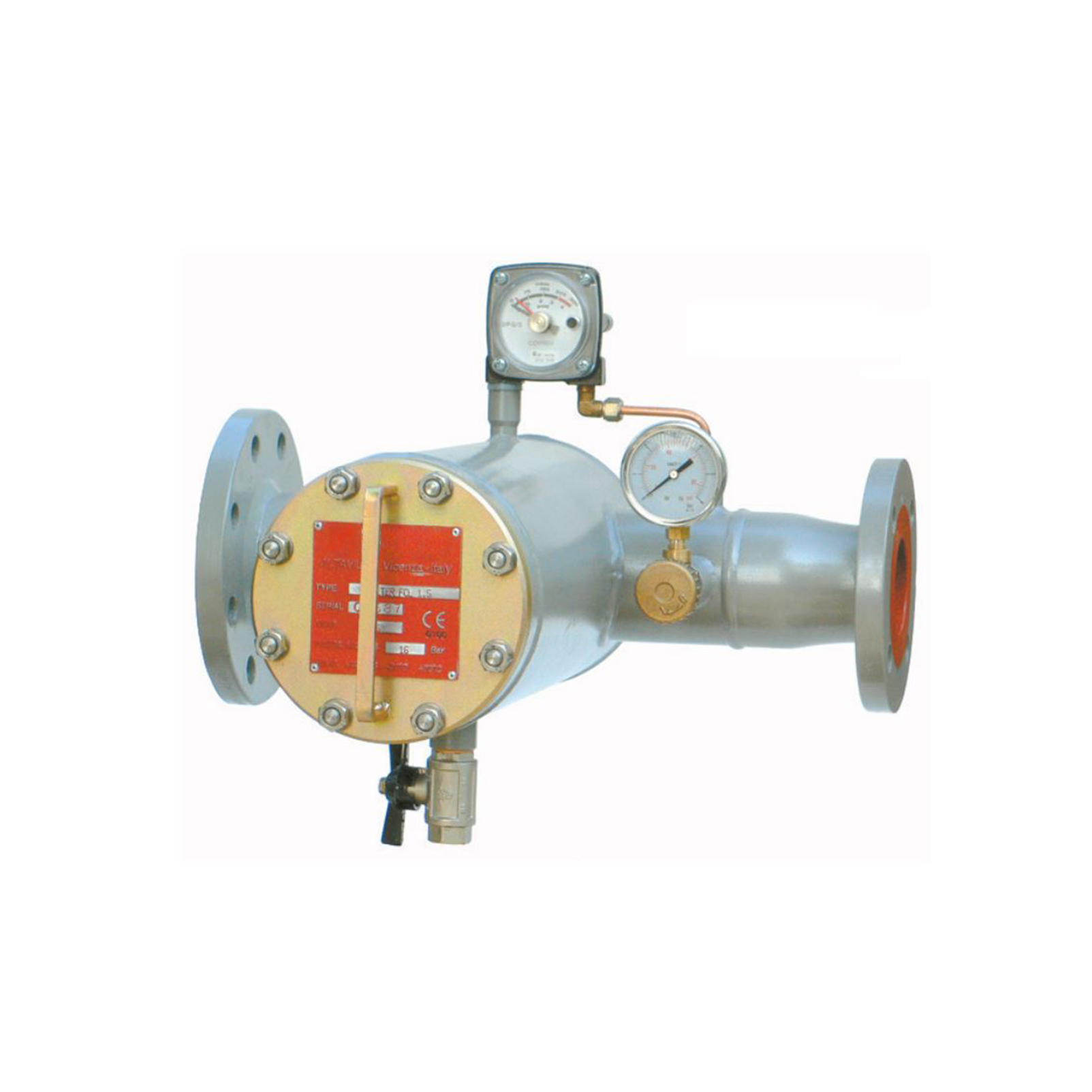

Cartridge filter for methane gas F 1 - F 1,5 - F 2 model, designed to detain the solid particles carried by the gas, protecting the entire system from possible obstruction.
Supplied with or without differential pressure gauge.
Technical Features
| INLET PRESSURE | 25 bar |
|---|---|
| FILTERING DEGREE | 5 micron |
| OPERATING TEMPERATURE | - 15°C ÷ + 60°C |
| MATERIALS | polyester resin cartridge with metal support |

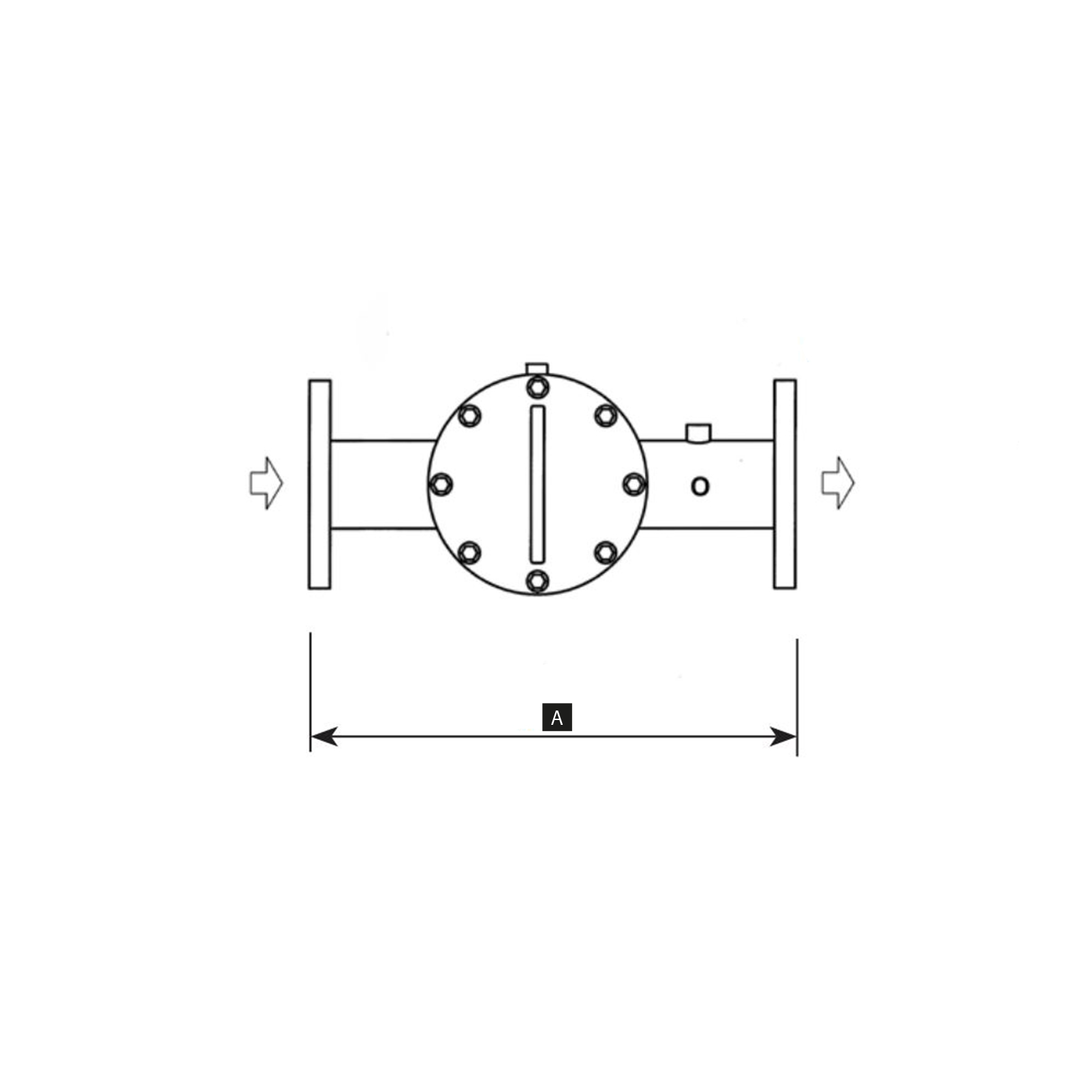

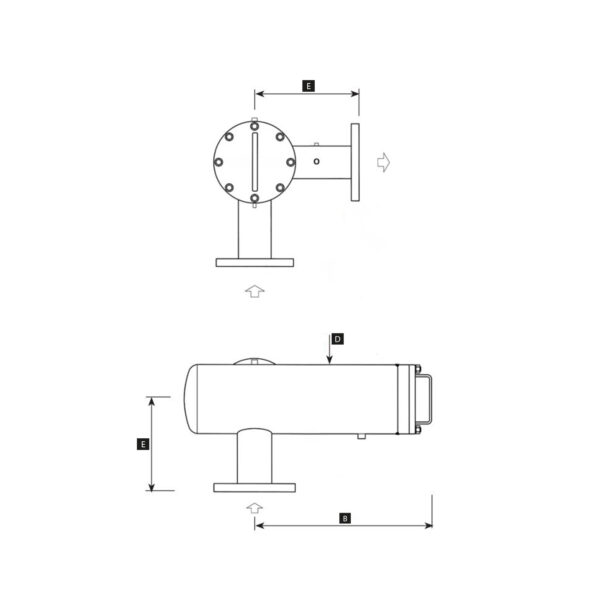

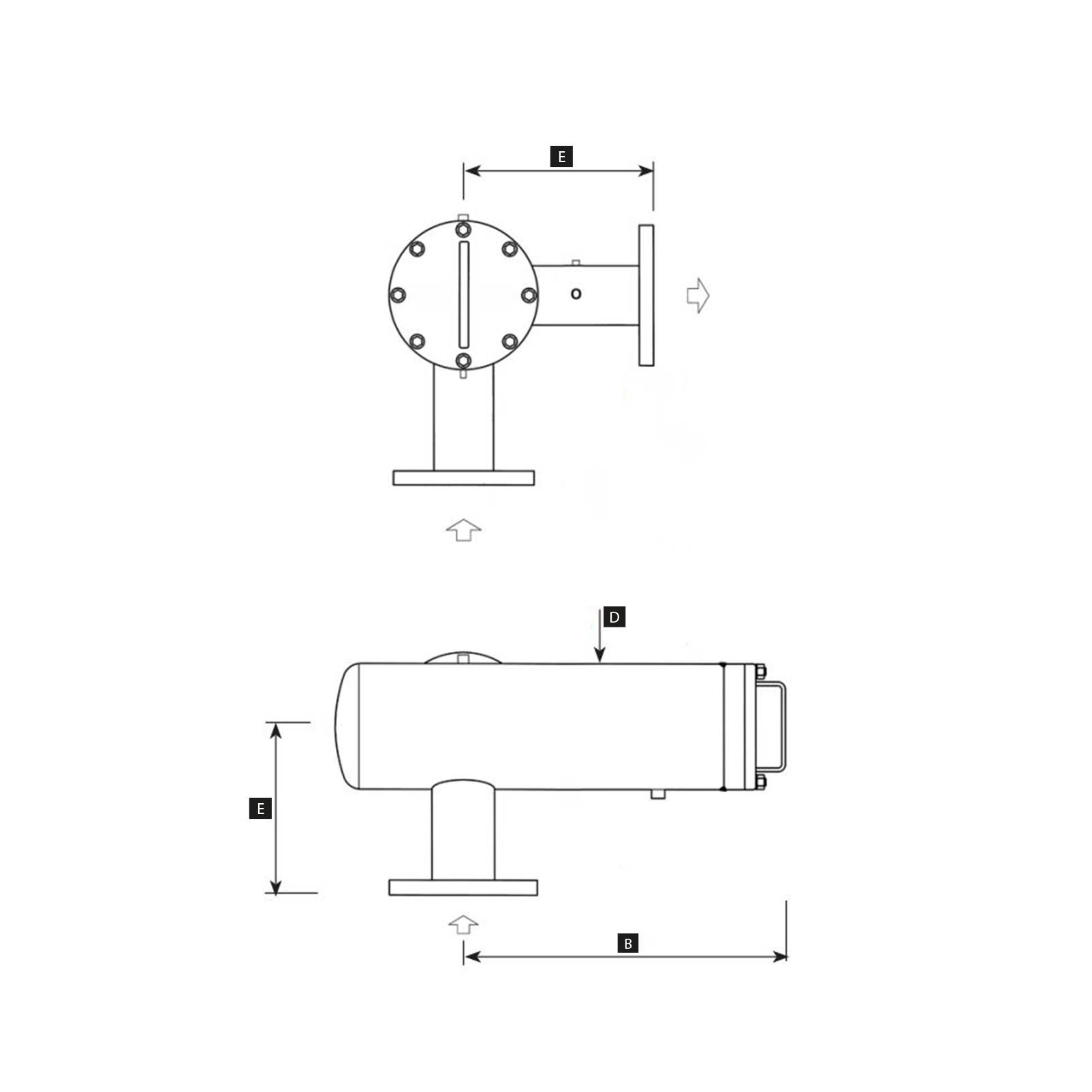

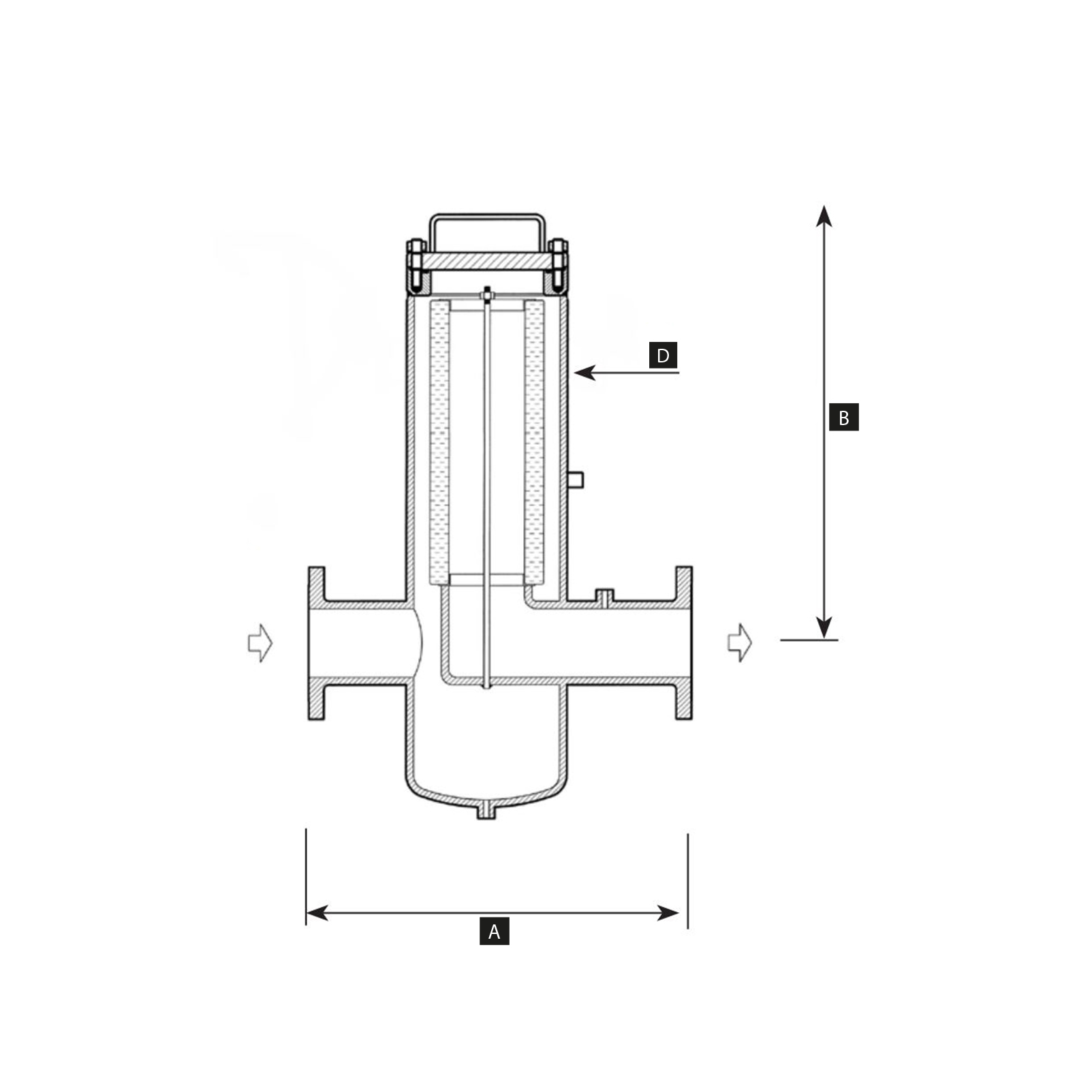

| OVERALL DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|
| SKU | VERSION | INLET CONNECTION | OUTPUT CONNECTION | A | B | D | E |
| 4473 | F 1 - in line | DN 40 | DN 40 | 360 mm | 285 mm | 5" | - |
| 4474 | F 1 - in line | DN 50 | DN 50 | 360 mm | 285 mm | 5" | - |
| 4475 | FG 1,5 - in line with differential pressure gauge | DN 50 | DN 65 | 400 mm | - | - | - |
| 4476 | FG 1,5 - in line with differential pressure gauge | DN 50 | DN 80 | 400 mm | - | - | - |
| 4477 | FG 2 - square with differential pressure gauge | DN 65 | DN 50 | - | 415 mm | 8" | 235 mm |
| 4478 | FG 2 - square with differential pressure gauge | DN 80 | DN 50 | - | 415 mm | 8" | 235 mm |
