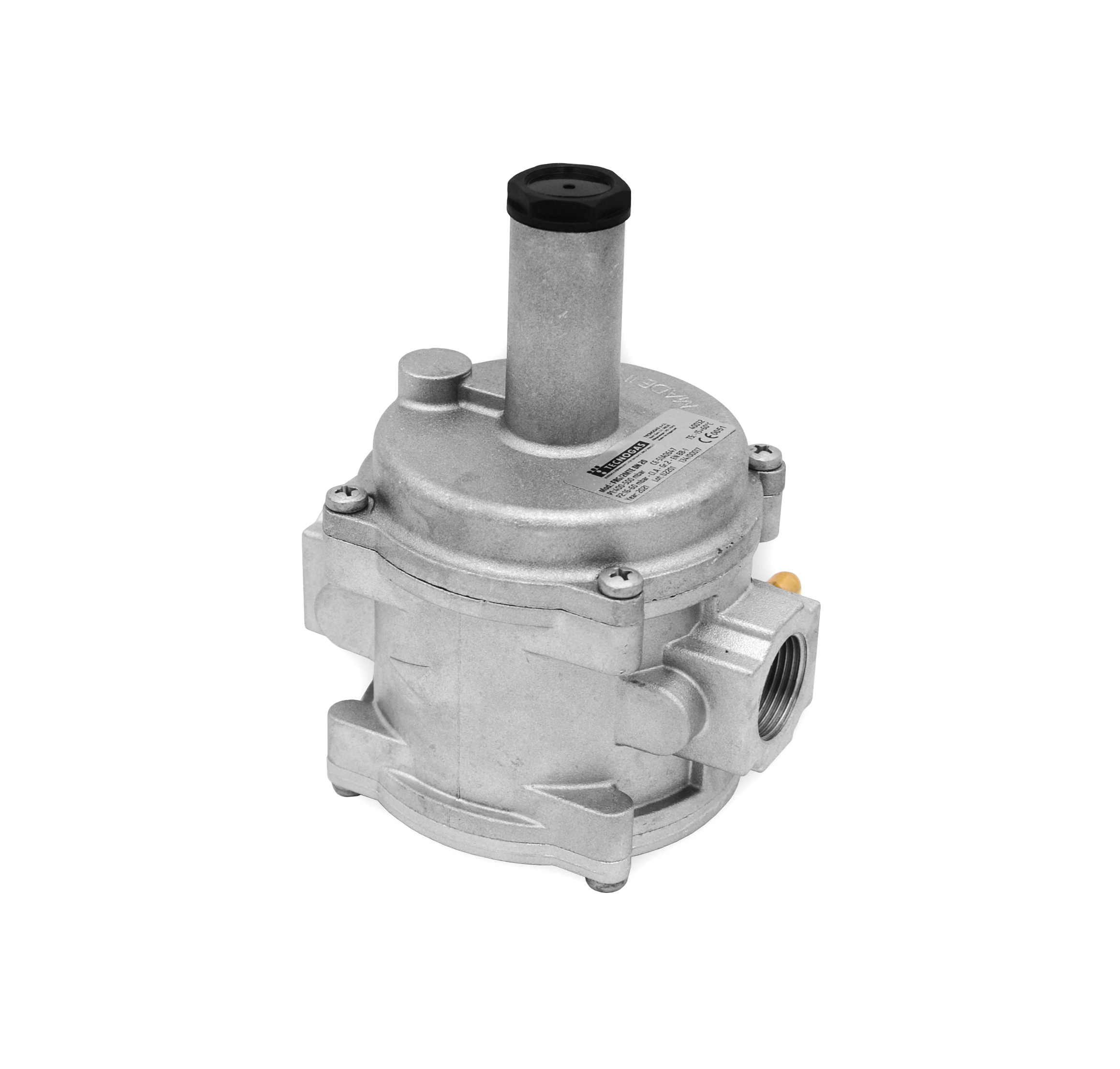

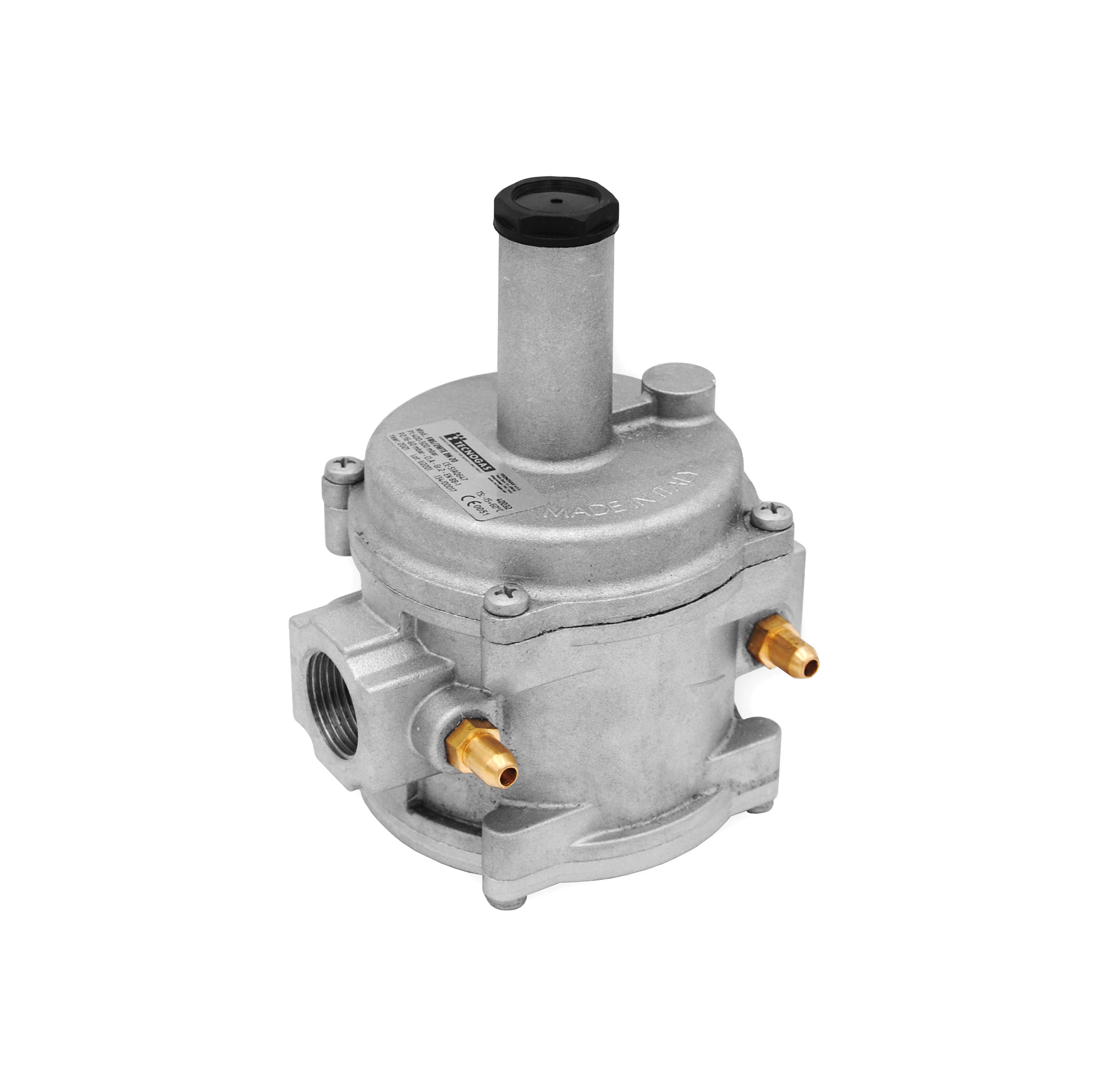

Double Membrane Stabilizer without Filter

FRG/2MT model, maximum pressure 500 mbar

COMPLIANT WITH REGULATION (EU) 2016/426

sku	model	price	info	add to cart
00000040031	DOUBLE DIAPHRAGM STABILIZER FRG/2MT MODEL - 1/2" FF connections	€64,90 Excl. Taxes	Physical data UM Base: NR Dimension: 13 × 10 × 16 cm Volume: 0.0021 m³ Weight: 0,80 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Double Membrane Stabilizer without Filter quantity Buy Info Request
00000040032	DOUBLE DIAPHRAGM STABILIZER FRG/2MT MODEL - 3/4" FF connections	€63,65 Excl. Taxes	Physical data UM Base: NR Dimension: 12 × 9 × 15 cm Volume: 0.0016 m³ Weight: 0,77 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Double Membrane Stabilizer without Filter quantity Buy Info Request
00000040033	DOUBLE DIAPHRAGM STABILIZER FRG/2MT MODEL - 1" FF connections	€66,80 Excl. Taxes	Physical data UM Base: NR Dimension: 13 × 9 × 16 cm Volume: 0.002 m³ Weight: 0,82 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Double Membrane Stabilizer without Filter quantity Buy Info Request

Device which supplies a preset and constant “downstream” pressure value, when the inlet pressure and/or the flow rate changes.

Equipped with

USE	not aggressive gases of the three families (manufactured / natural / LPG)
INLET PRESSURE RANGE	400 ÷ 500 mbar
OUTPUT PRESSURE RANGE	16 to 60 mbar
*FILTER SURFACE*	2810 mm²
*FILTER ORGAN*	50 µm filtration
INLET CONNECTION	1/2" FF - *sku 40031* 3/4" FF - *sku 40032* 1" FF - *sku 40033*
OUTPUT CONNECTION	1/2" FF - *sku 40031* 3/4" FF - *sku 40032* 1" FF - *sku 40033*
PRESSURE TAP	according to UNI 8979
OPERATING TEMPERATURE	- 15°C ÷ + 60°C
MATERIAL	die-cast aluminum

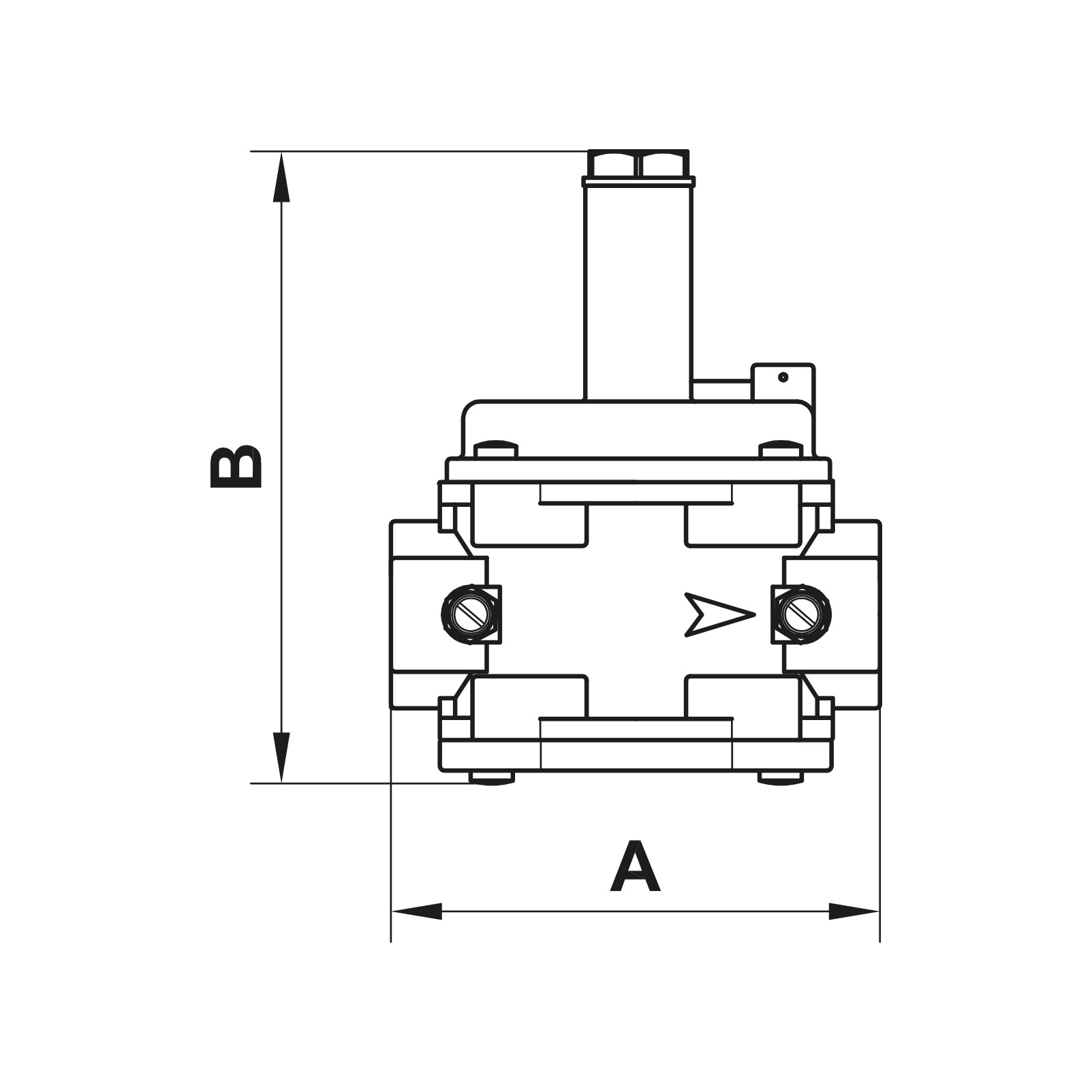

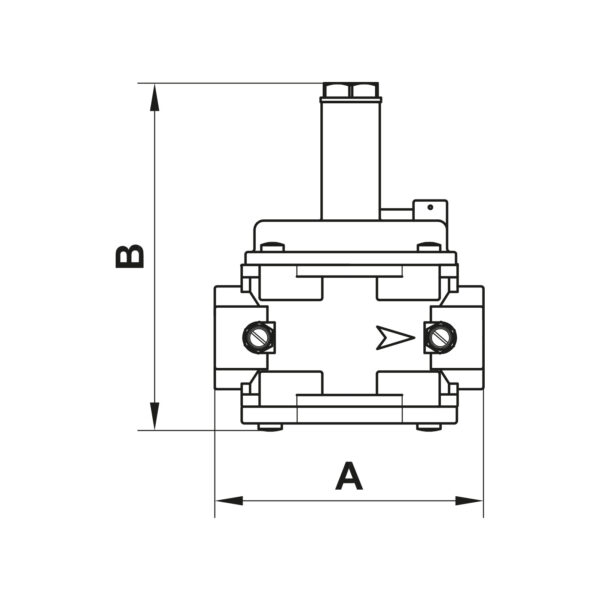

DIMENSIONS	120 x 152 mm (AxB)
