Download Product Data Sheet

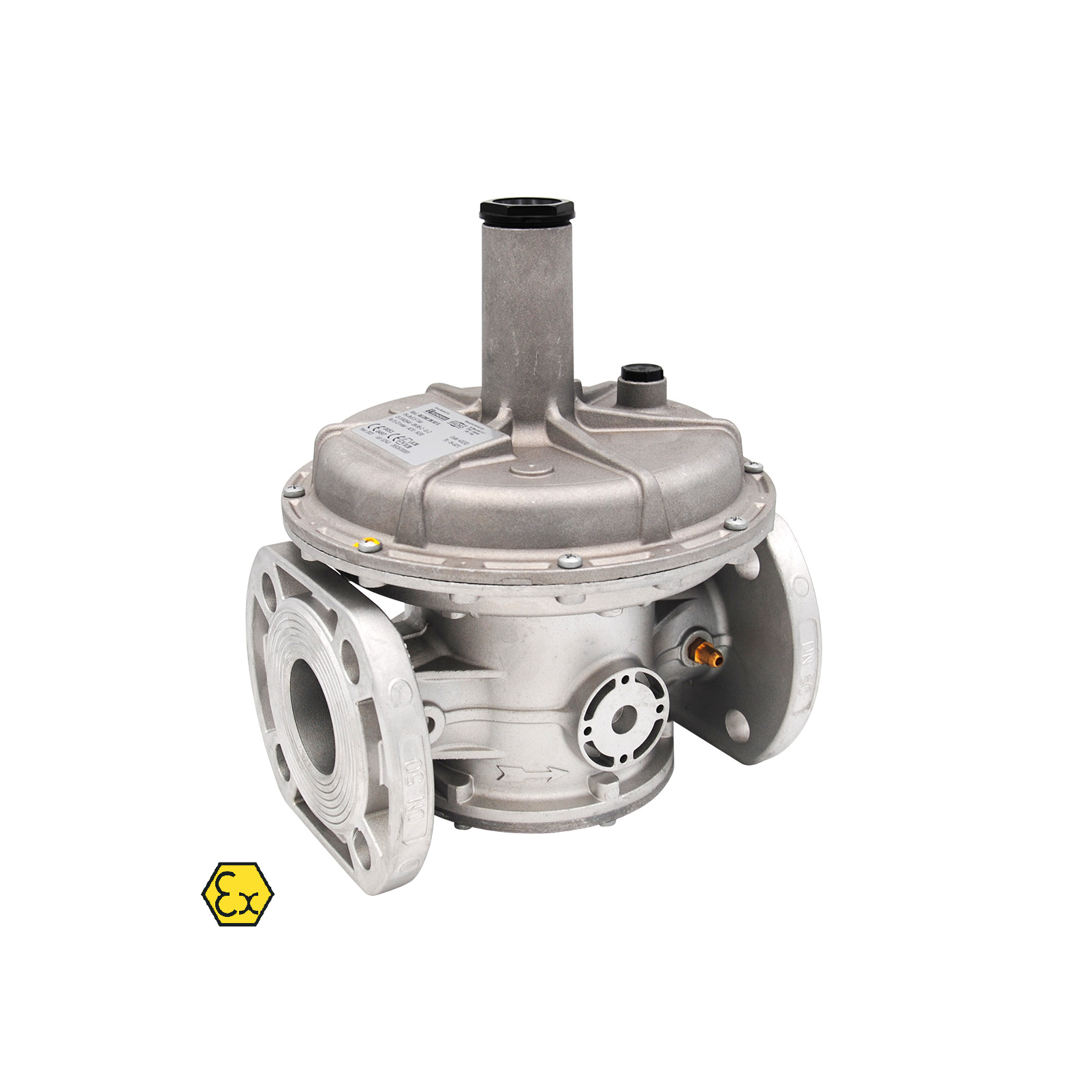

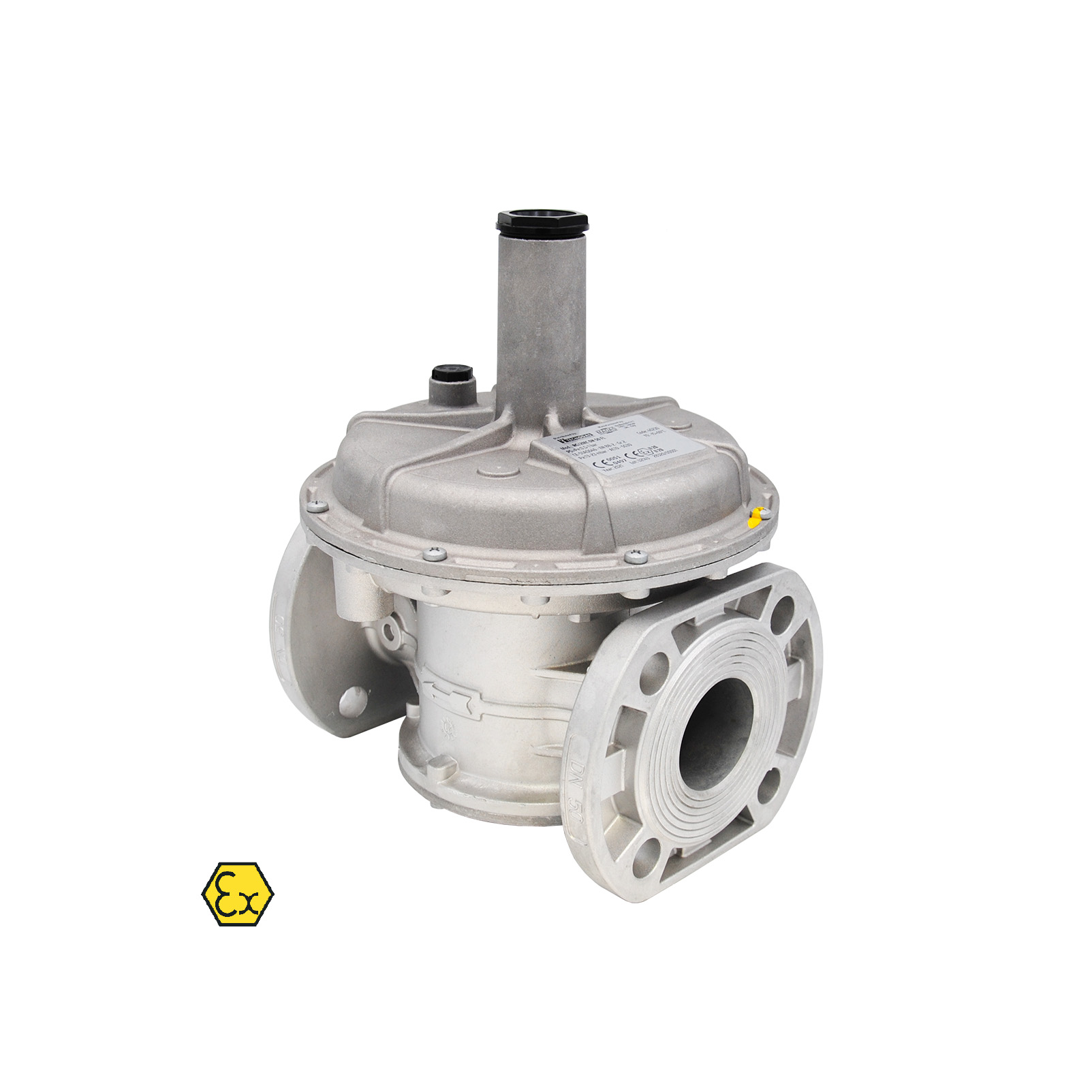

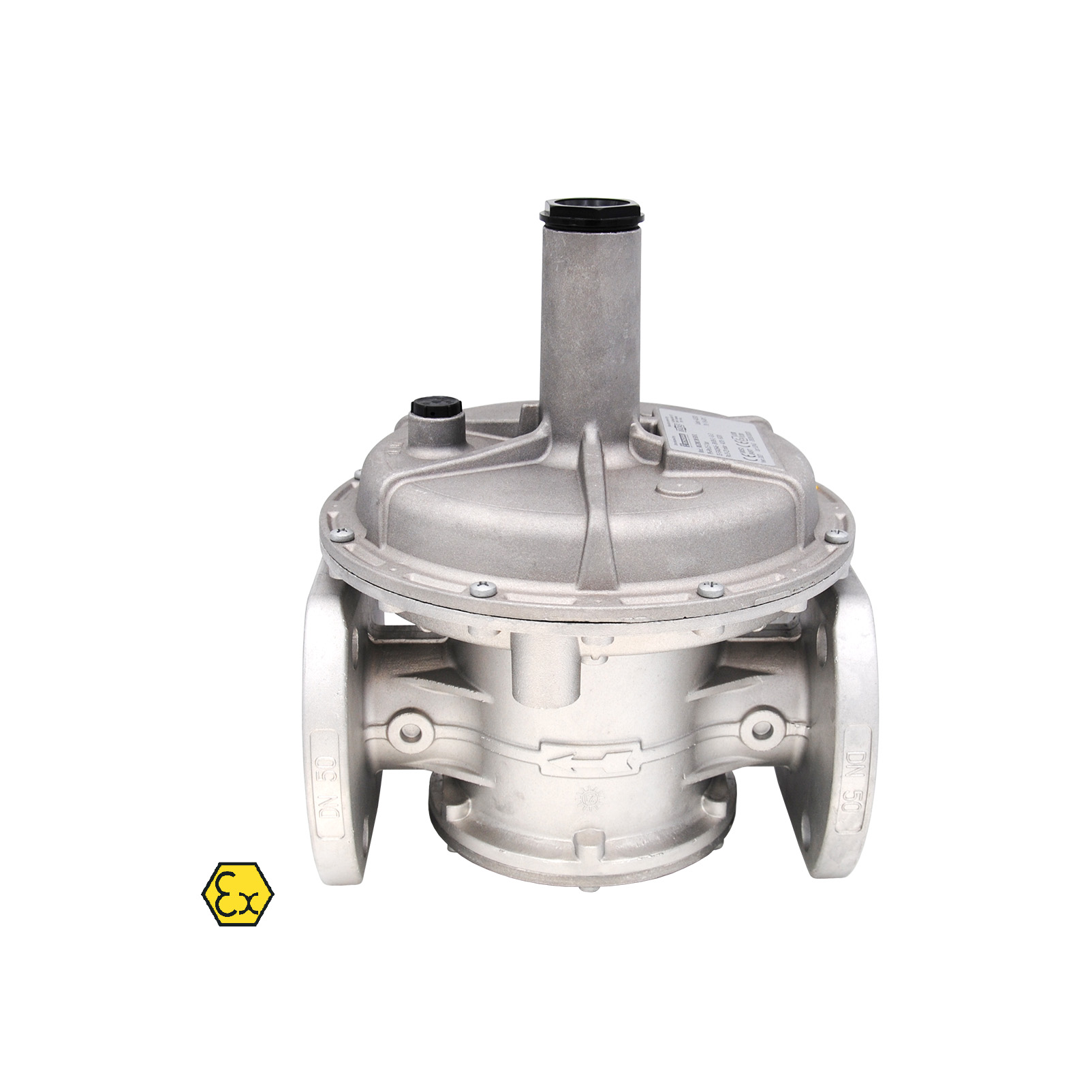

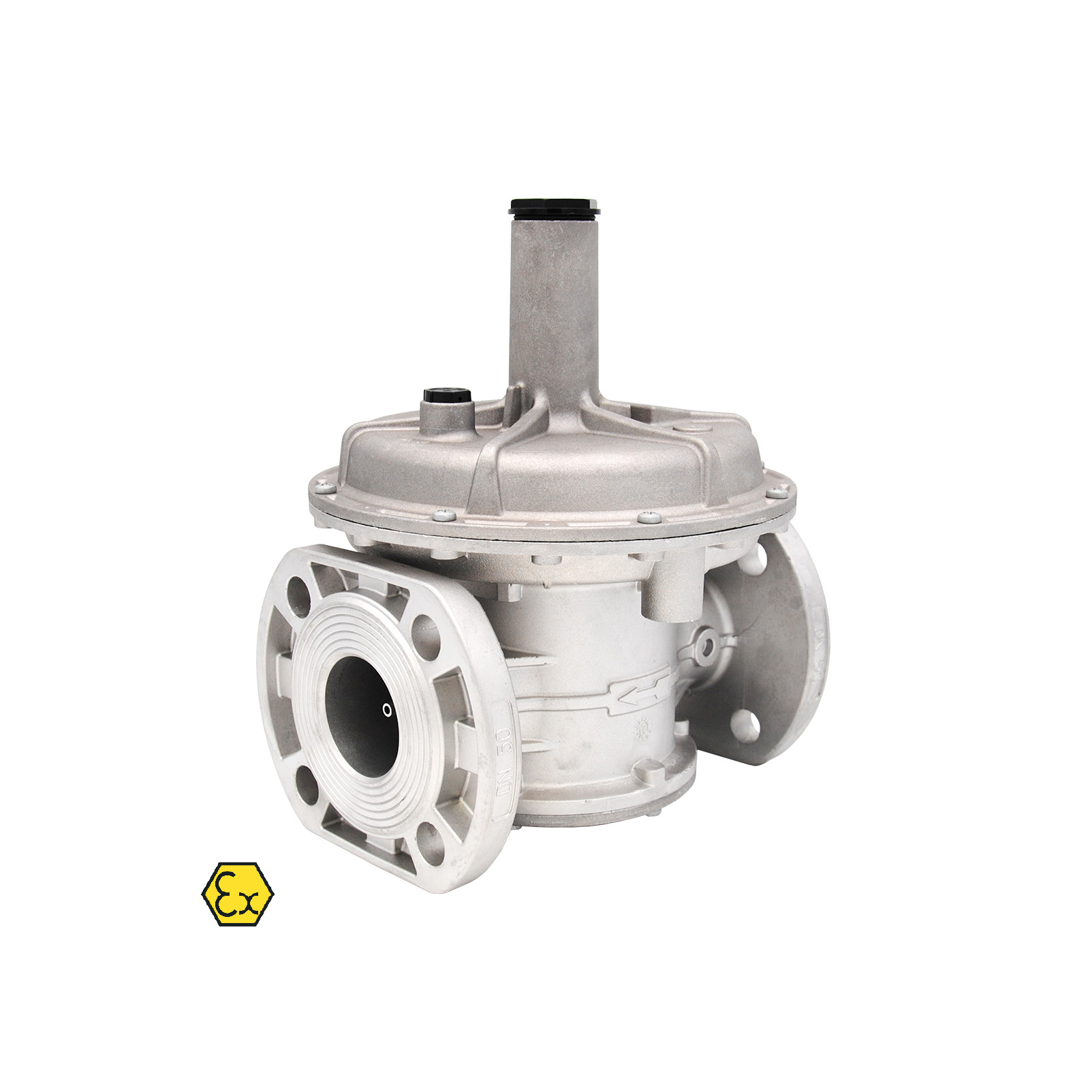

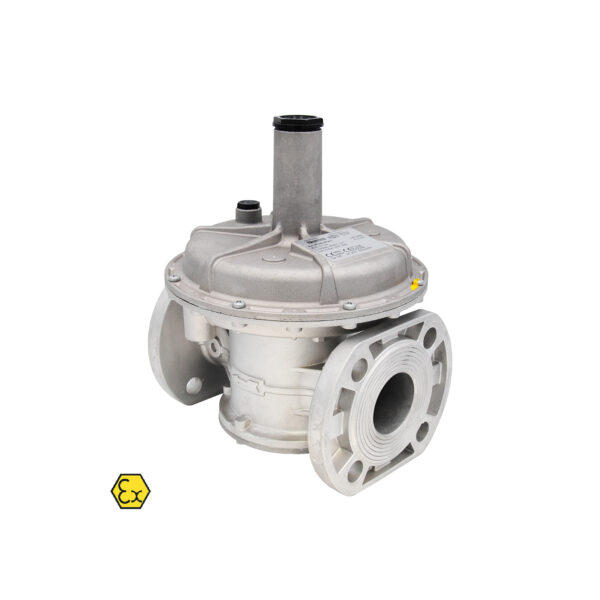

Double Membrane Closing Regulator without Filter

RG/2MC model, max inlet pressure 1 bar, flanged connections

REINFORCED MEMBRANE OR BIOGAS VERSION ALSO AVAILABLE

COMPLIANT WITH PED DIRECTIVE 2014/68/EU AND ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000040165

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 65 PN 16

€972,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
35 × 54 × 35 cm

Volume:
0.0662 m3

Weight:
13,70 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040166

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 80 PN 16

€980,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
53 × 35 × 34 cm

Volume:
0.0631 m3

Weight:
14,34 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040167

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 100 PN 16

€1.705,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
52 × 38 × 57 cm

Volume:
0.1126 m3

Weight:
18,40 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040228

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 32 PN 16

€309,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040229

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 40 PN 16

€309,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040230

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 50 PN 16

€406,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
5,15 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Device which supplies a preset and constant “downstream” pressure value, when the inlet pressure and/or the flow rate changes.



Equipped with

  • spring for adjusting the output pressure
  • safety membrane
  • outlet pressure point for outlet pressure control
  • flanged connections

Technical Features

USE not aggressive gases of the three families (manufactured / natural / LPG)
INLET PRESSURE RANGE 0,5 ÷ 1 bar (on request, also 0 ÷ 0,5 bar)
OUTPUT PRESSURE RANGE
  • 13 ÷ 23 mbar - sku 40228 / 40229 / 40230
  • 13 ÷ 27 mbar - sku 40165 / 40166
  • 15 ÷ 27 mbar - sku 40167
INLET CONNECTION
  • DN 32 PN 16 - sku 40228
  • DN 40 PN 16 - sku 40229
  • DN 50 PN 16 - sku 40230
  • DN 65 PN 16 - sku 40165
  • DN 80 PN 16 - sku 40166
  • DN 100 PN 16 - sku  40167
OUTPUT CONNECTION
  • DN 32 PN 16 - sku 40228
  • DN 40 PN 16 - sku 40229
  • DN 50 PN 16 - sku 40230
  • DN 65 PN 16 - sku 40165
  • DN 80 PN 16 - sku 40166
  • DN 100 PN 16 - sku  40167
OPERATING TEMPERATURE - 15°C ÷ + 60°C

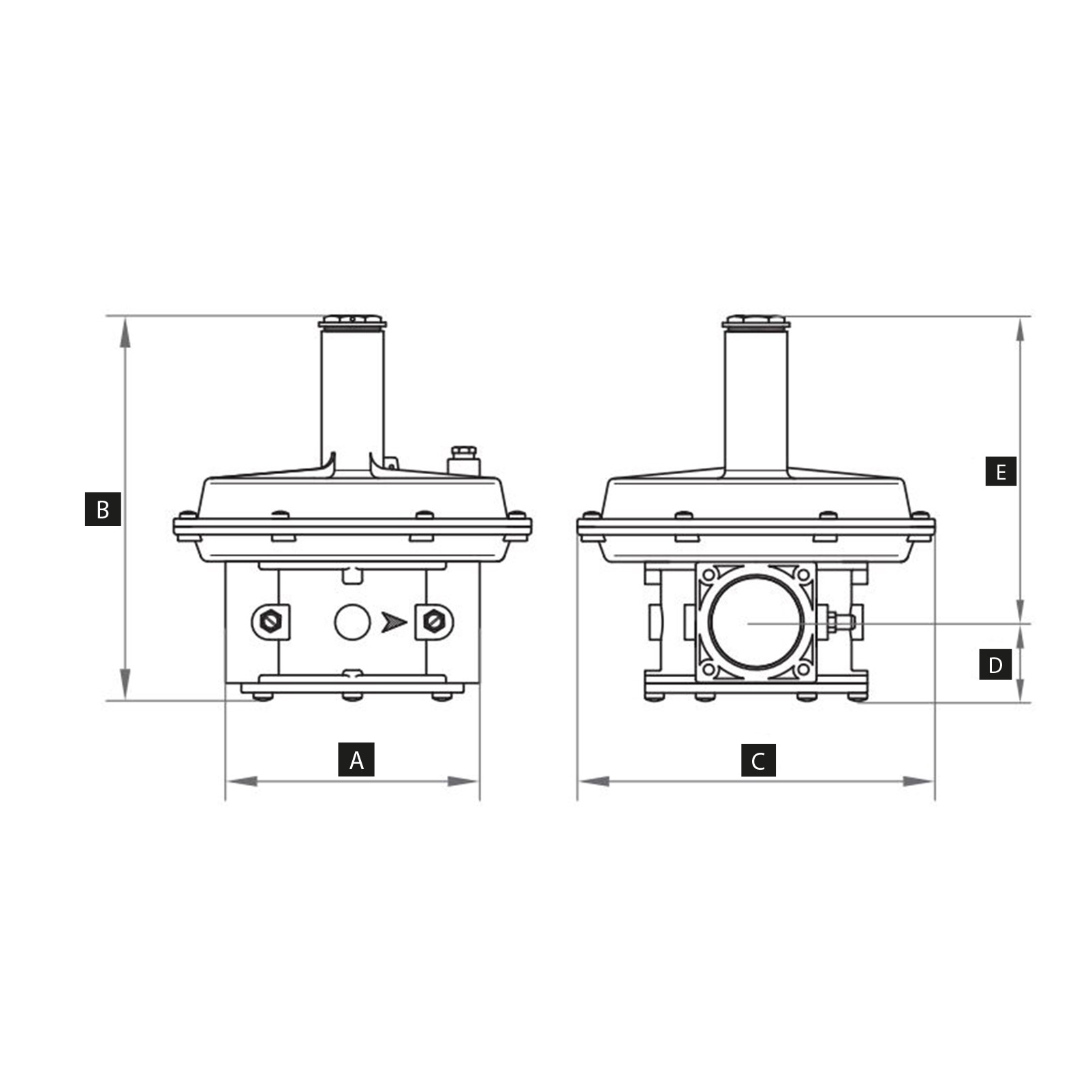

OVERALL DIMENSIONS
SKU HOLE A B (D+E) C D E
40228 4 230 mm 285 mm 225 mm 67,5 mm 217,5 mm
40229 4 230 mm 285 mm 225 mm 67,5 mm 217,5 mm
40230 4 230 mm 285 mm 225 mm 67,5 mm 217,5 mm
40165 4 290 mm 456 mm 330 mm 90 mm 366 mm
40166 8 310 mm 463 mm 330 mm 97 mm 366 mm
40167 8 350 mm 502 mm 330 mm 106 mm 396 mm



Download

Download Product Data Sheet

Data Sheets

Data Sheet Scheda Tecnica Fiche Technique Ficha De Datos
