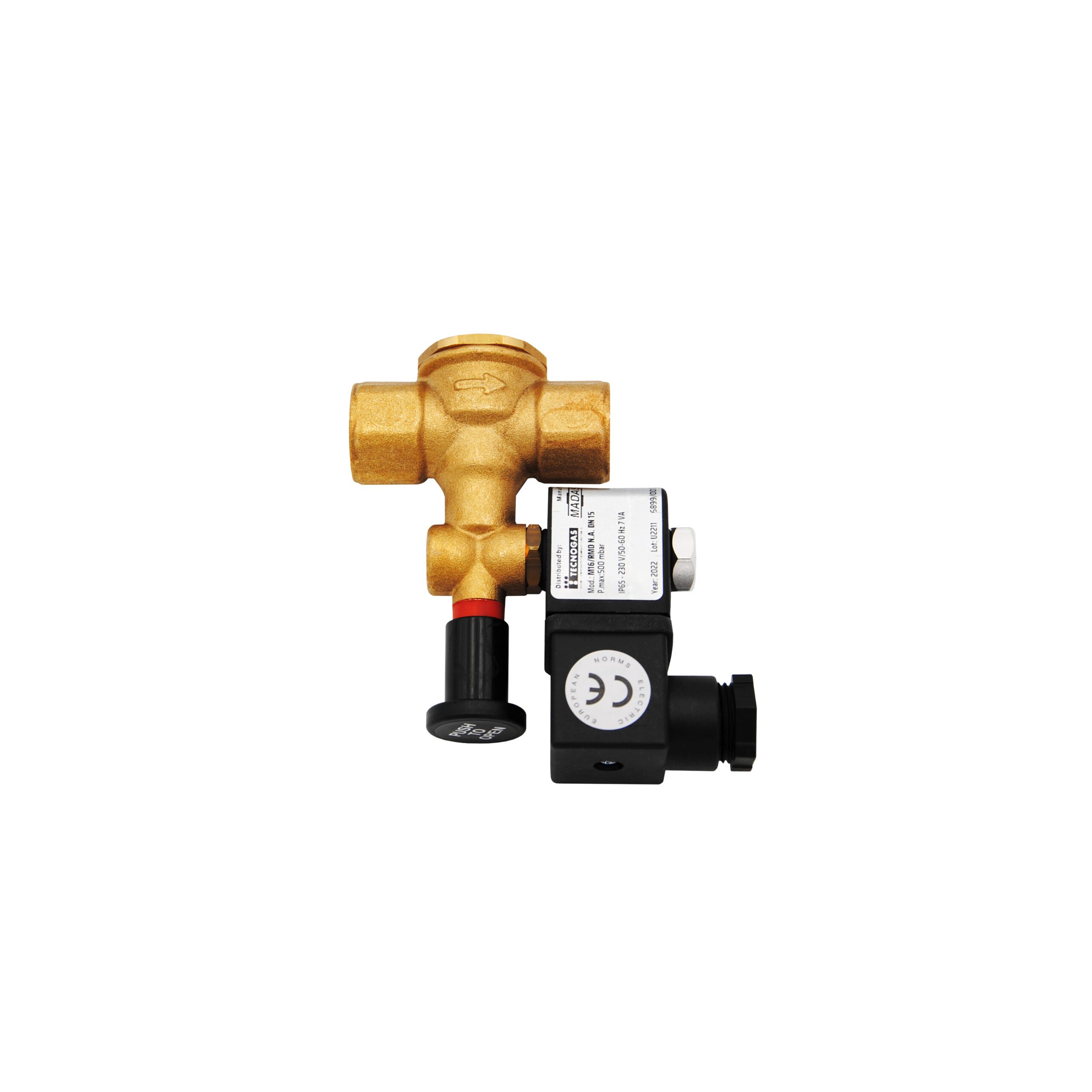

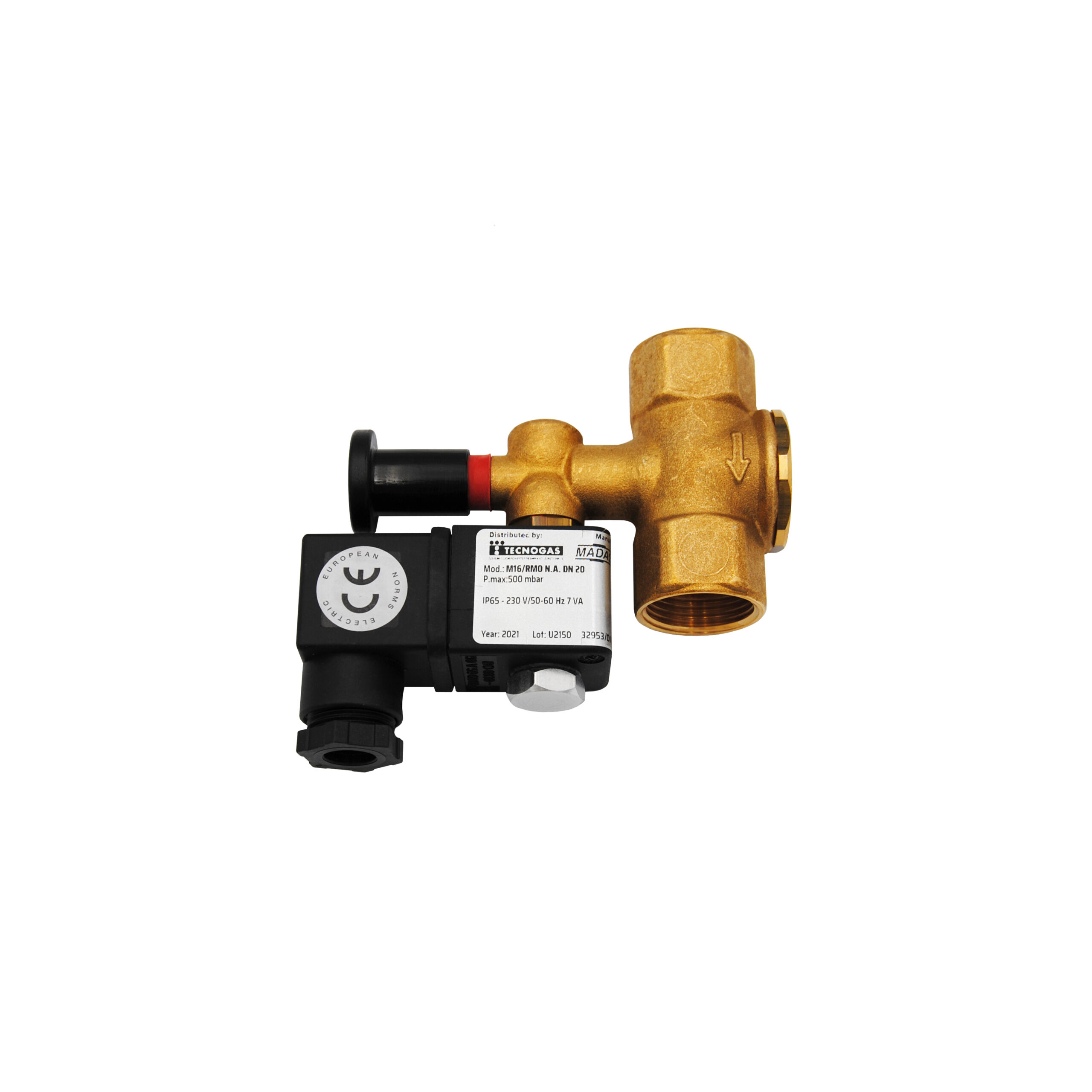

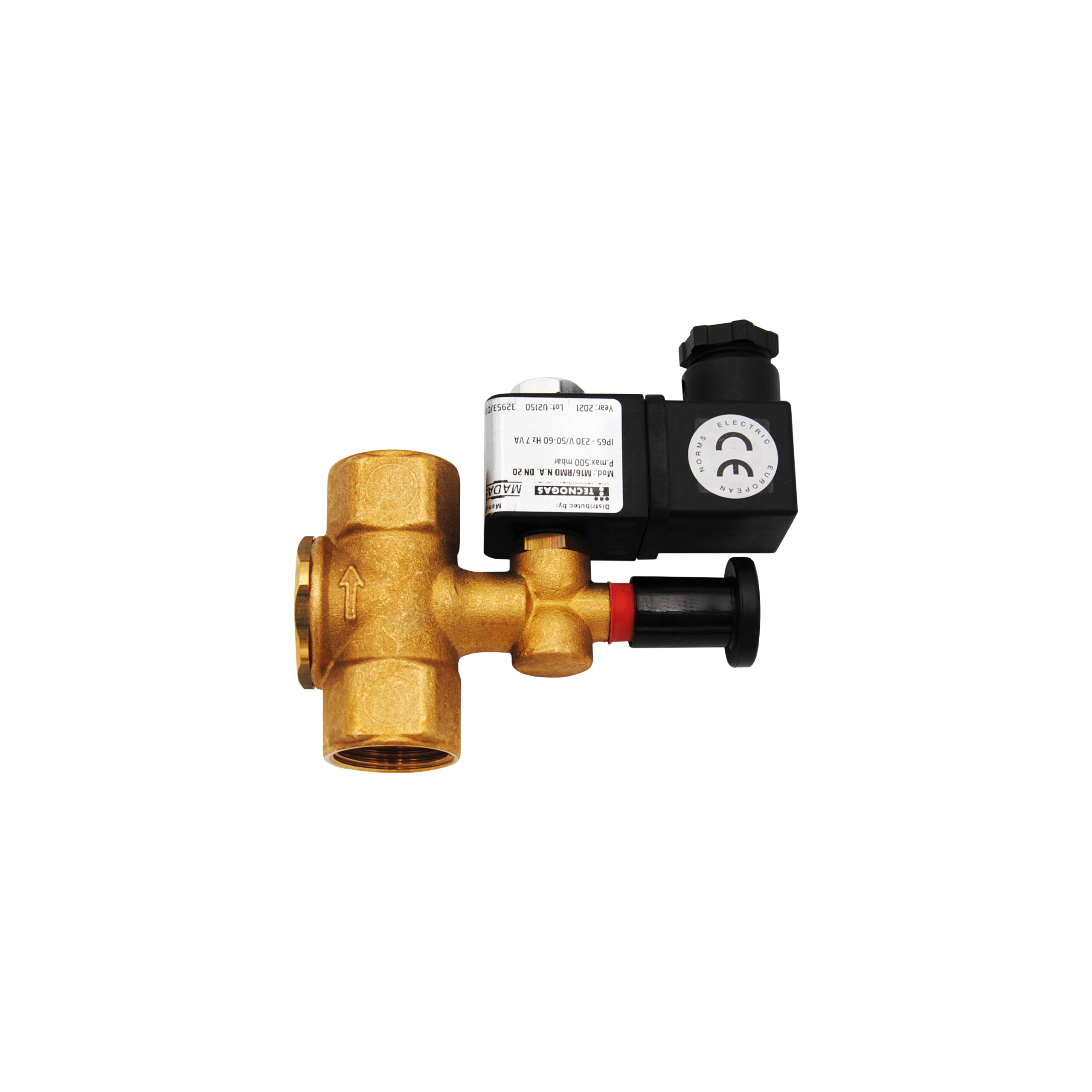

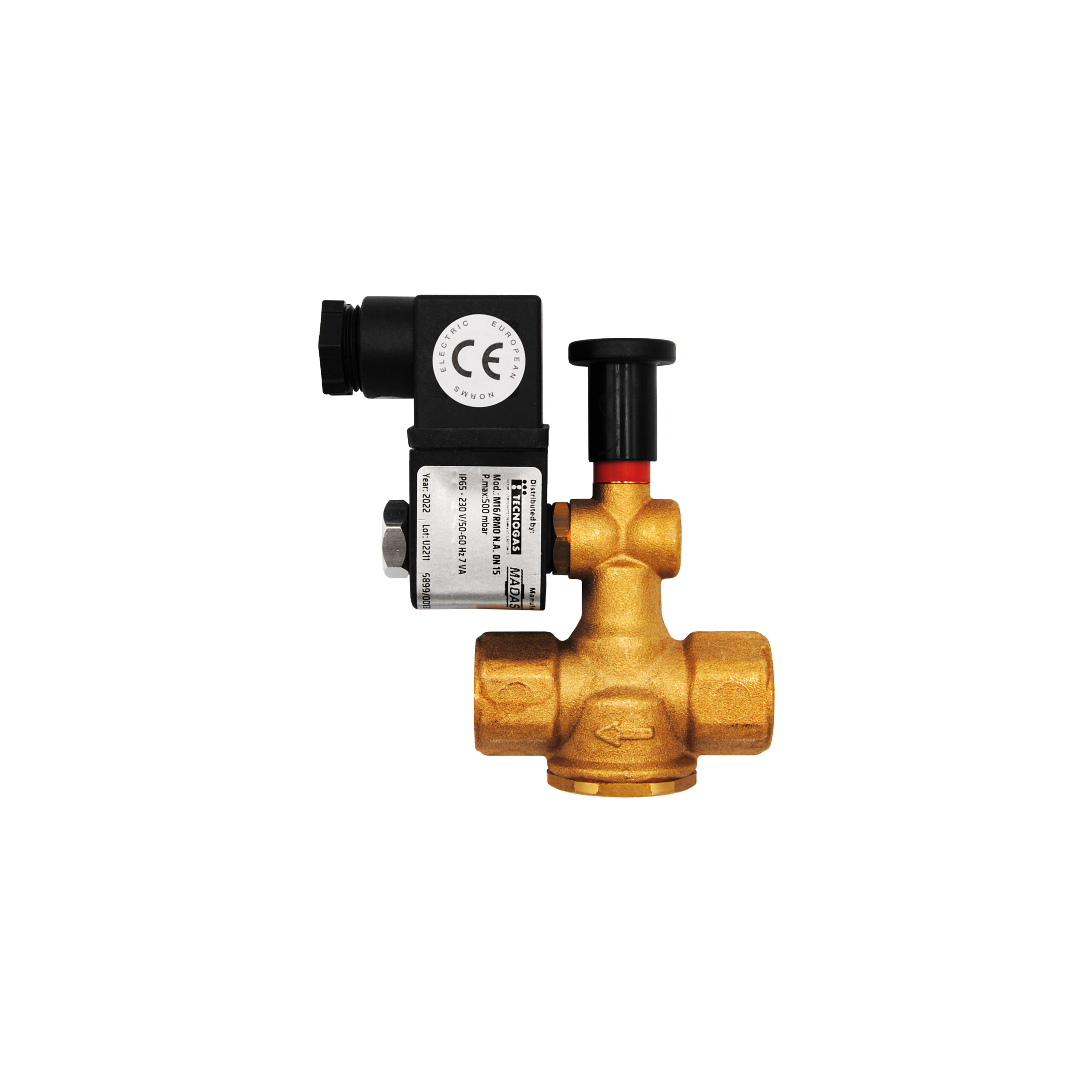

Solenoid Valve For Gas

Normally open with manual reset without voltage, max. pressure 500 mbar and/or 6 bar

OTHER VOLTAGES AVAILABLE ON REQUEST

sku model price info add to cart

00000050331

SOLENOID VALVE FOR GAS - 1/2" FF - 500 mbar

€68,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 16 × 5 cm

Volume:
0.0009 m3

Weight:
0,57 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

0000050331A

SOLENOID VALVE FOR GAS - 3/4" FF - 500 mbar

€59,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 5 × 12 cm

Volume:
0.001 m3

Weight:
0,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

0000050331B

SOLENOID VALVE FOR GAS - 1" FF - 500 mbar

€98,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 15 × 4 cm

Volume:
0.0009 m3

Weight:
1,01 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

000050331/6

SOLENOID VALVE FOR GAS - 1/2" FF - 6 bar

€87,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 15 × 5 cm

Volume:
0.0009 m3

Weight:
0,62 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00050331A/6

SOLENOID VALVE FOR GAS - 3/4" FF - 6 bar

€87,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 5 × 11 cm

Volume:
0.0009 m3

Weight:
0,53 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00050331B/6

SOLENOID VALVE FOR GAS - 1" FF - 6 bar

€113,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 5 × 11 cm

Volume:
0.0009 m3

Weight:
1,04 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Solenoid valve for gas with manual reset without voltage.



Product features

  • it can only be reset manually and only when it is not electrically powered
  • equipped with VPI (Visual Position Indicator) for visual signaling of the position of the valve plug
  • when the valve is closed, the red band normally hidden by the reset knob is visible

Technical Features

USE not aggressive gases of the three families (dry gases)
ROOM TEMPERATURE - 20°C ÷ + 60°C
SUPPLY VOLTAGES 230 V 50 - 60 Hz (single-phase only, the appliance does not work if powered three-phase)
ELECTRICAL WIRING strain relief M20 x 1.5
COIL 7 VA (8 VA 1")
ABSORBED POWER 230 V = 7/8 VA
MAXIMUM WORKING PRESSURE 500 mbar and 6 bar
CLOSING TIME < 1 s
DEGREE OF PROTECTION IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes)
MATERIALS body and block coil in brass monoblock
MECHANICAL STRENGTH group 2
CONNECTIONS 1/2" FF - 3/4" FF - 1" FF
COMPLIANCE
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • RoHS II Directive 2011/65/EU

Download

Download Product Data Sheet

Data Sheets

Data Sheet Scheda Tecnica Fiche Technique Ficha De Datos
