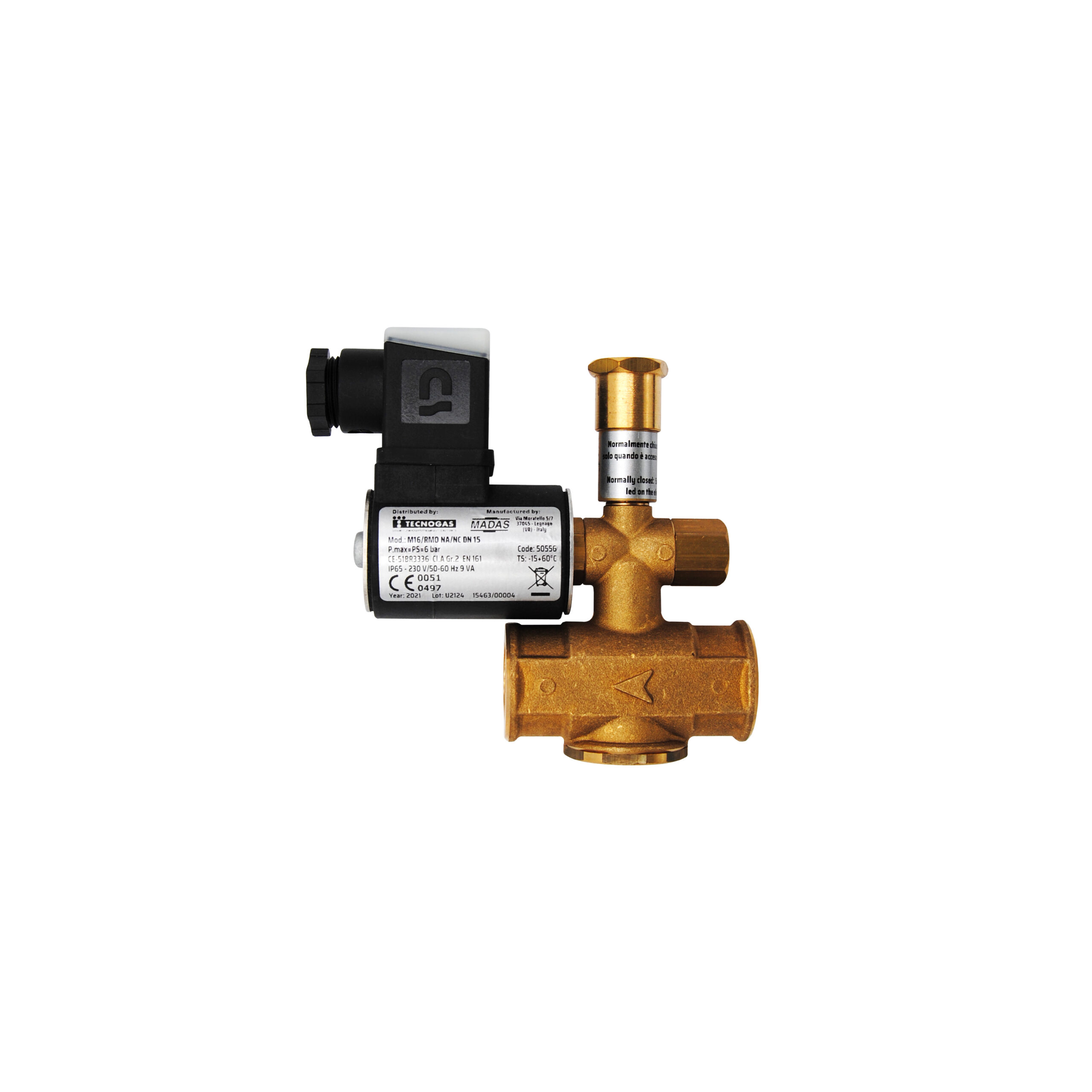

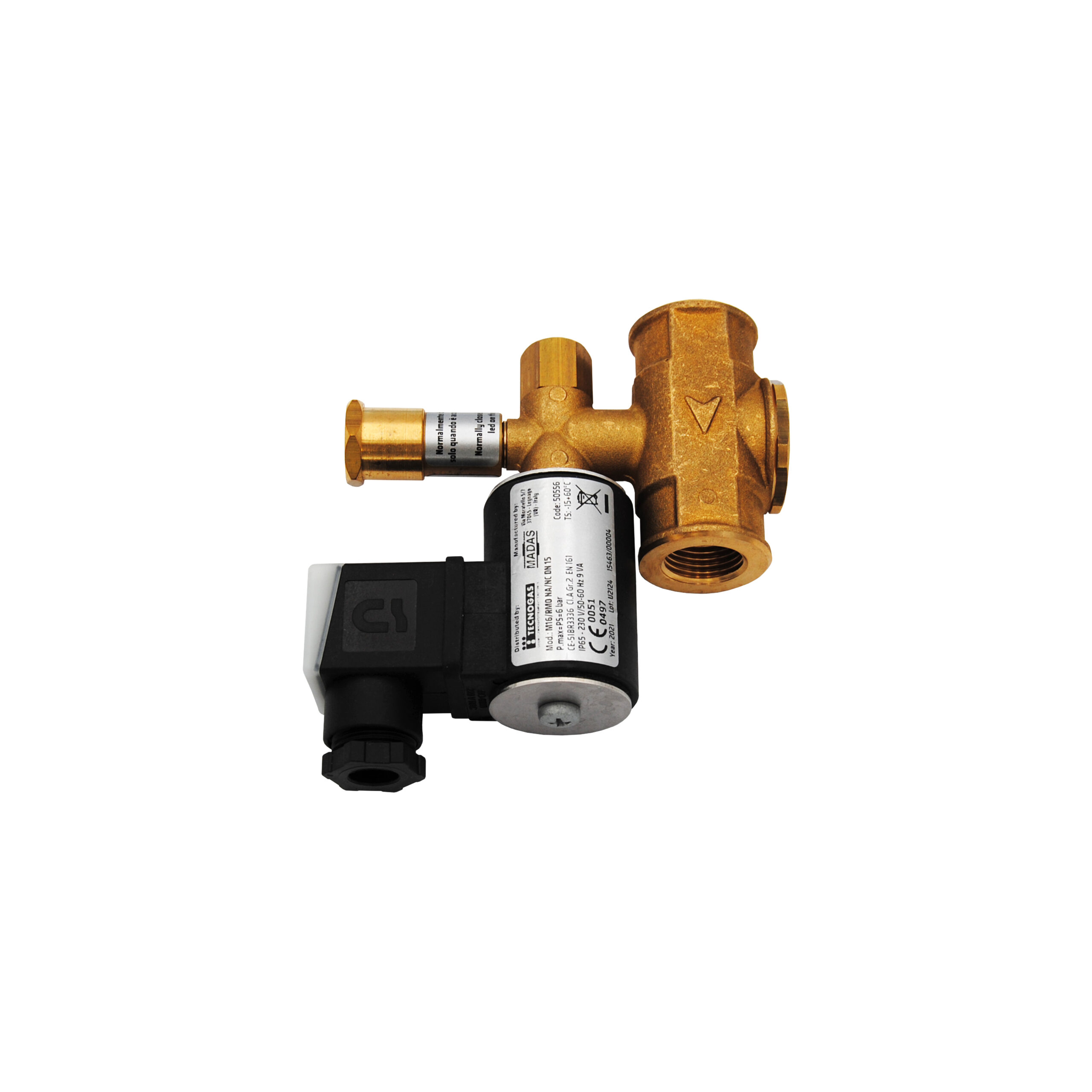

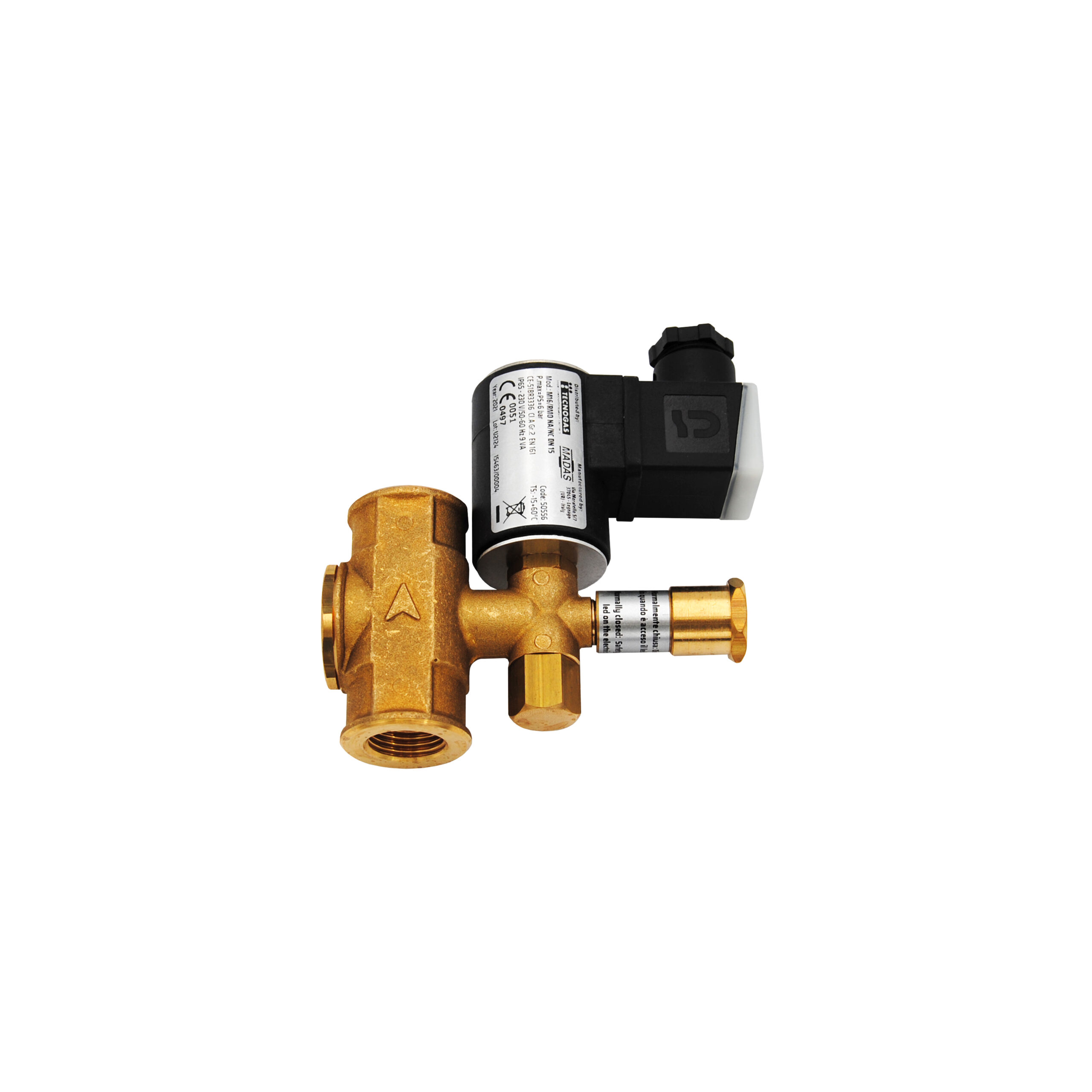

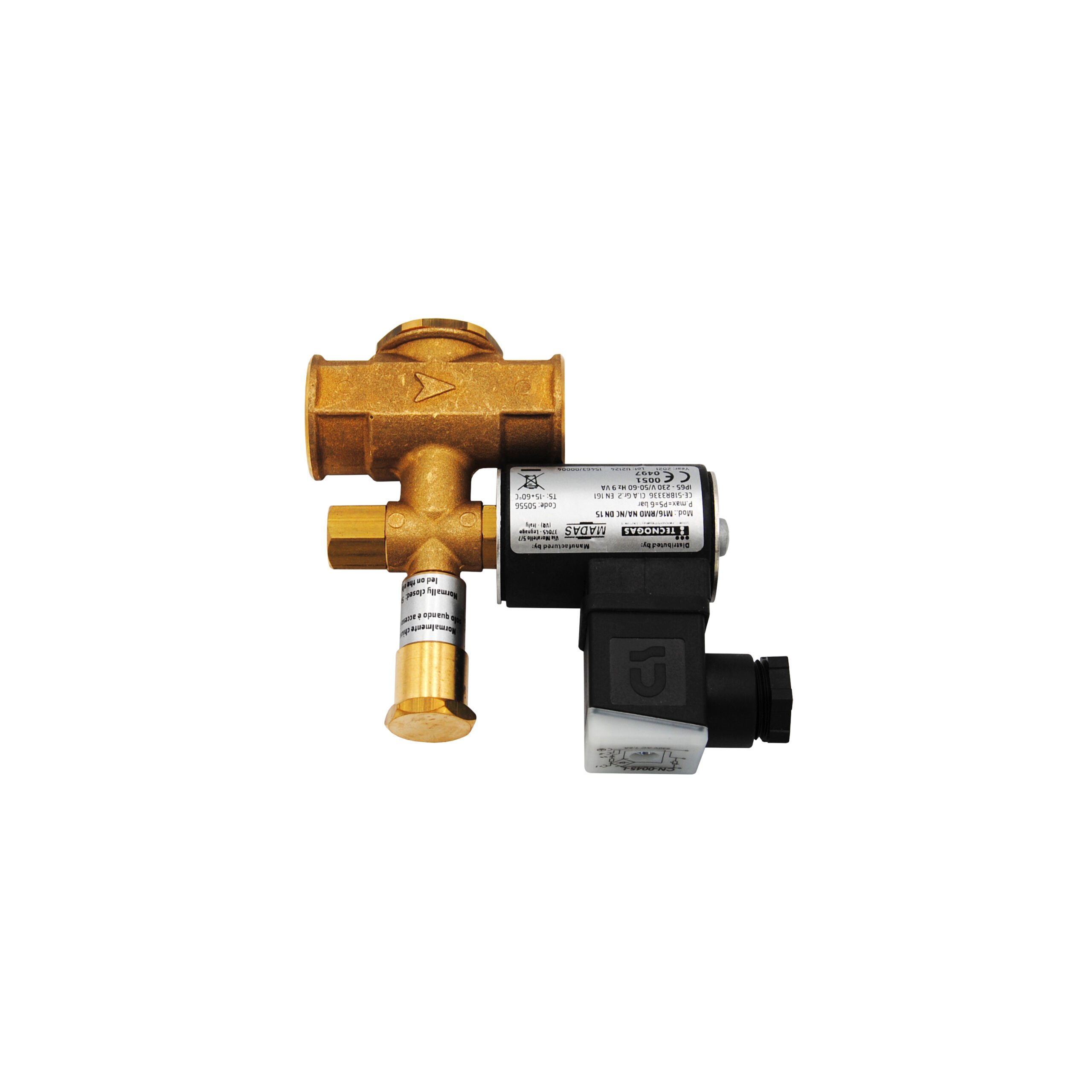

Closed Manual Reset Solenoid Valve for Gas

Normally open/closed, max. pressure 6 bar

sku	model	price	info	add to cart
00000050552	MANUAL RESET GAS SOLENOID VALVE - 1" FF - 6 bar	€166,80 Excl. Taxes	Physical data UM Base: NR Dimension: 12 × 5 × 16 cm Volume: 0.001 m³ Weight: 1,10 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Closed Manual Reset Solenoid Valve for Gas quantity Buy Info Request
00000050556	MANUAL RESET GAS SOLENOID VALVE - 1/2" FF - 6 bar	€152,55 Excl. Taxes	Physical data UM Base: NR Dimension: 11 × 5 × 15 cm Volume: 0.0009 m³ Weight: 0,80 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Closed Manual Reset Solenoid Valve for Gas quantity Buy Info Request
00000050557	MANUAL RESET GAS SOLENOID VALVE - 1/2" FF - 6 bar	€152,55 Excl. Taxes	Physical data UM Base: NR Dimension: 16 × 12 × 5 cm Volume: 0.001 m³ Weight: 0,73 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Closed Manual Reset Solenoid Valve for Gas quantity Buy Info Request

Product informations

Manual reset solenoid valve equipped with the possibility of being used both normally open and normally closed; with inlet breechblock, the closure of which eliminates any leaks from the valve itself.

Working modality

as "normally closed": power the solenoid valve and press the reset knob until it engages
as "normally open": only press the reset knob until it engages

Technical Features

*USE*	not aggressive gases of the three families (dry gases)
*ROOM TEMPERATURE*	- 15°C ÷ + 60°C
*SUPPLY VOLTAGES*	230 V 50 - 60 Hz (single-phase only, the appliance does not work if powered three-phase)
*ELECTRICAL WIRING*	strain relief M20x1,5
*MAXIMUM WORKING PRESSURE*	6 bar
*CLOSING TIME*	< 1 s
*DEGREE OF PROTECTION*	IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes)
*CLASS*	A
*MECHANICAL STRENGTH*	group 2
*CONNECTIONS*	1/2" FF - 3/4" FF - 1" FF
*ABSORBED POWER*	230 V = 9 VA
*MATERIAL*	brass
*COMPLIANCE*	Regulation (EU) 2016/426 (appliances that burn gaseous fuels) PED Directive 2014/68/EU EMC Directive 2014/30/EU LVD Directive 2014/35/EU RoHS II Directive 2011/65/EU
