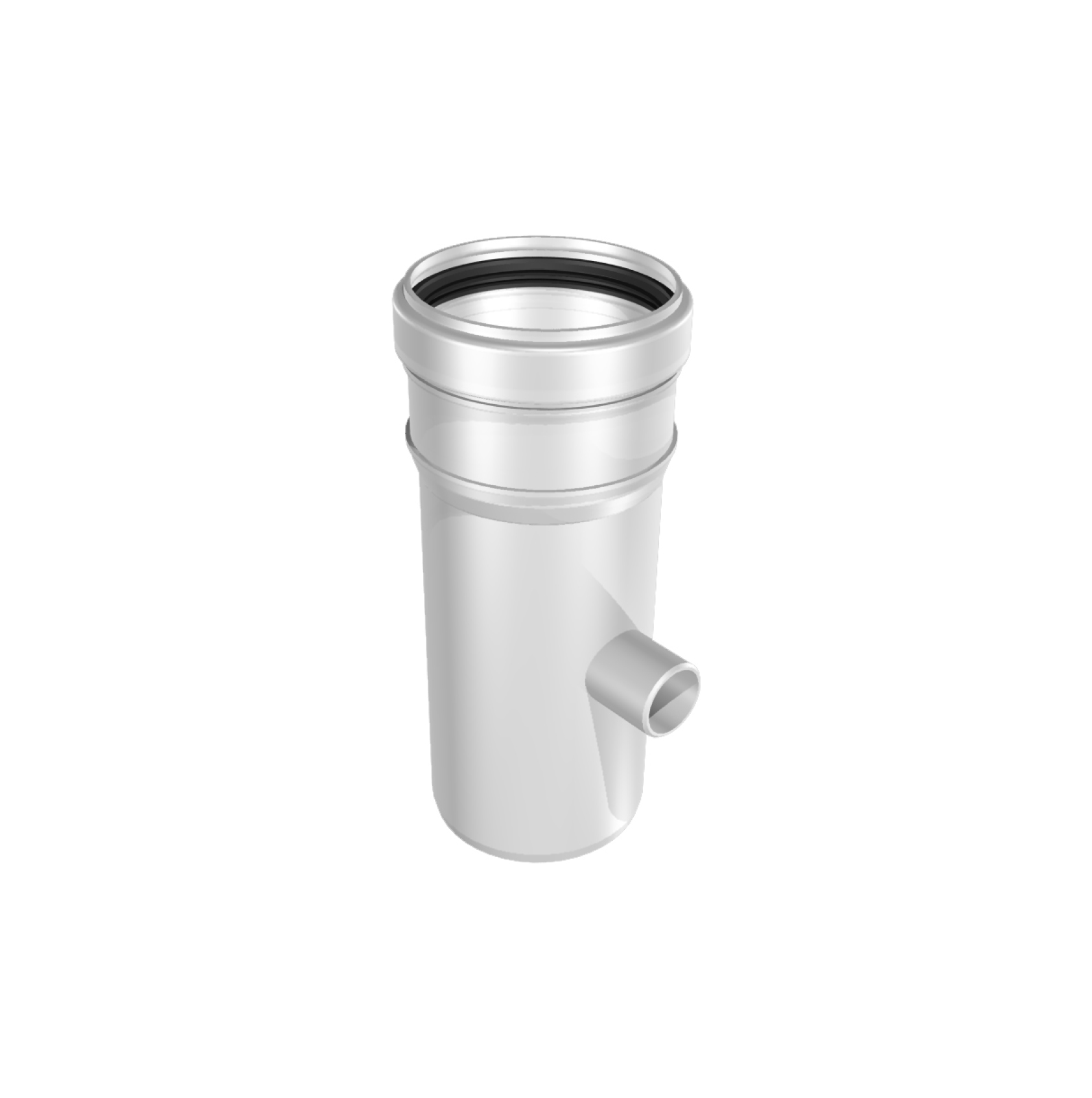

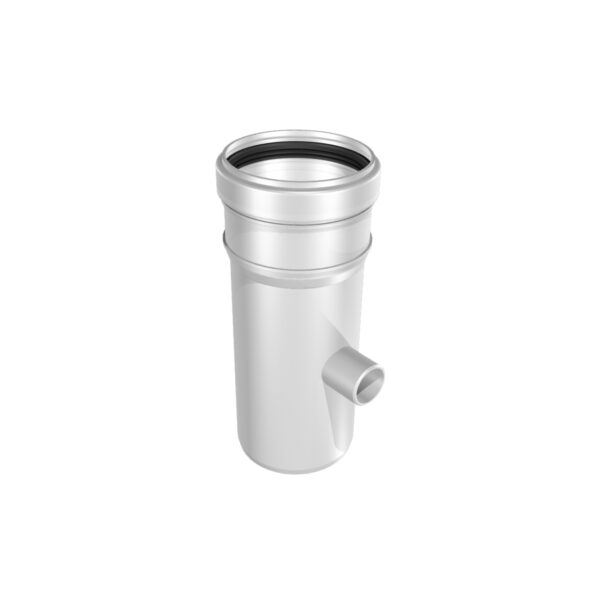

Smoke Analysis Element
For rigid single wall system
UNI EN 14471 - UNI 11528 - UNI 7129 RULES
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000051755 |
SMOKE ANALYSIS ELEMENT - Ø 60 mm |
€27,55 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051756 |
SMOKE ANALYSIS ELEMENT - Ø 80 mm |
€31,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051757 |
SMOKE ANALYSIS ELEMENT - Ø 100 mm |
€40,70 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051758 |
SMOKE ANALYSIS ELEMENT - Ø 125 mm |
€45,65 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051759 |
SMOKE ANALYSIS ELEMENT - Ø 160 mm |
€60,95 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Element that allows the extraction of exhausted combustion fumes in order to carry out the appropriate checks regarding the efficiency and good operation of the heat generator; it can be installed in ducts, smoke ducts and chimneys.
Product features
- made in diameters: Ø 60 mm - Ø 80 mm - Ø 100 mm - Ø 125 mm - Ø 160 mm
- finished in RAL 9010 color
Technical Features
| DESIGNATION | T120 H1 W 2 O00 LI E U |
|---|---|
| TYPE OF MATERIAL | self-extinguishing PPs |
| PRESSURE RESISTANCE | with EPDM gaskets conforming to the EN 14241 standard |
| APPLICATION RANGE | condensing boilers and cooking steam exhaust |
| CORROSION RESISTANCE | type 2 |
| SUITABLE FUELS | methane gas |
| FIRE REACTION | Class "E" (according to EN 13501-1) |
| OPERATING TEMPERATURE | continuous operation up to 120°C wet under pressure with EPDM gasket |

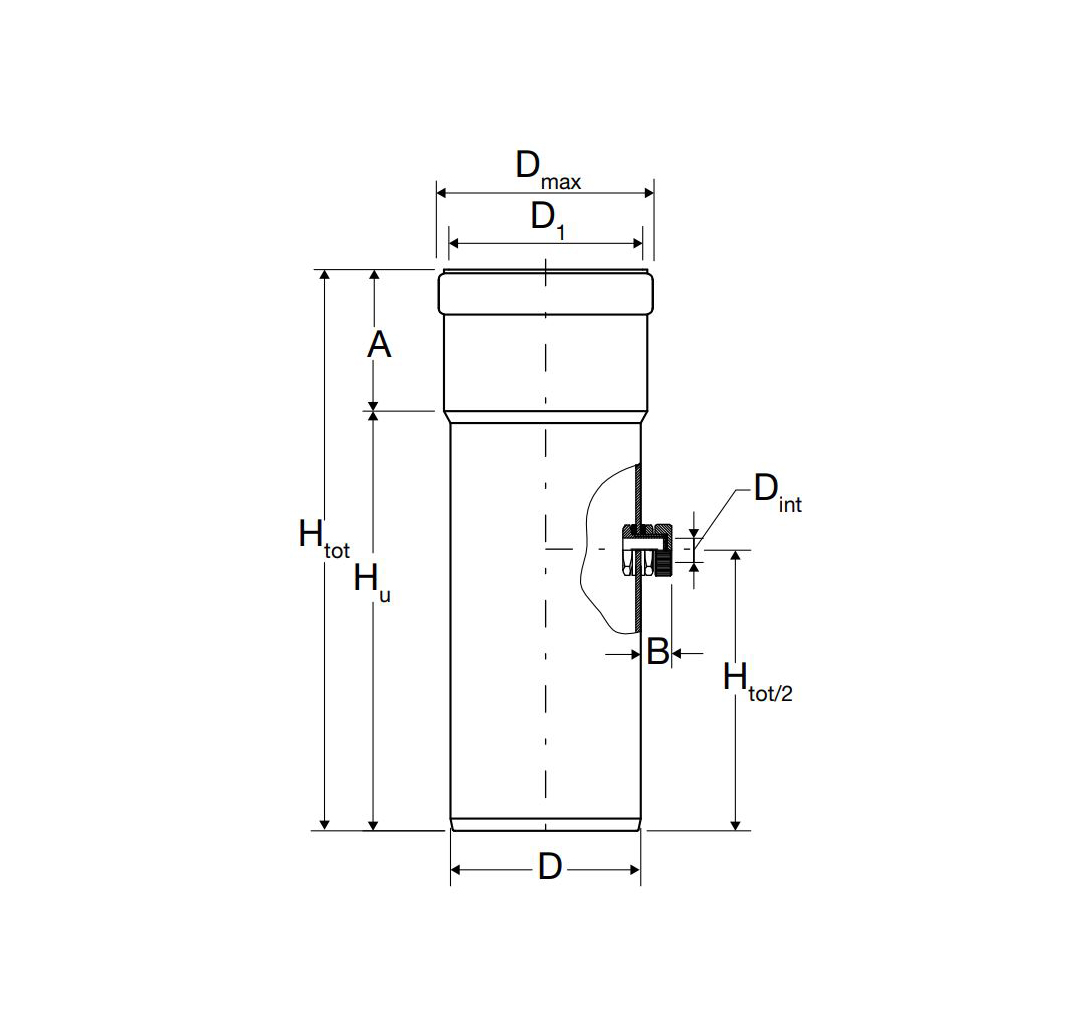

| SKU | DIAMETER | D1 | Dmax |
Dint |
A | B | Hu | Htot | THICKNESS |
|---|---|---|---|---|---|---|---|---|---|
| 51755 | Ø 60 mm | 61 | 70 | 10 | 50 | 13 | 200 | 250 | 2 |
| 51756 | Ø 80 mm | 81 | 90 | 10 | 58 | 13 | 192 | 250 | 2,1 |
| 51757 | Ø 100 mm | 101 | 112 | 10 | 58 | 13 | 192 | 250 | 2,7 |
| 51758 | Ø 125 mm | 126 | 140 | 10 | 68 | 12 | 182 | 250 | 3,2 |
| 51759 | Ø 160 mm | 161 | 178 | 10 | 77 | 11 | 173 | 250 | 3,9 |
