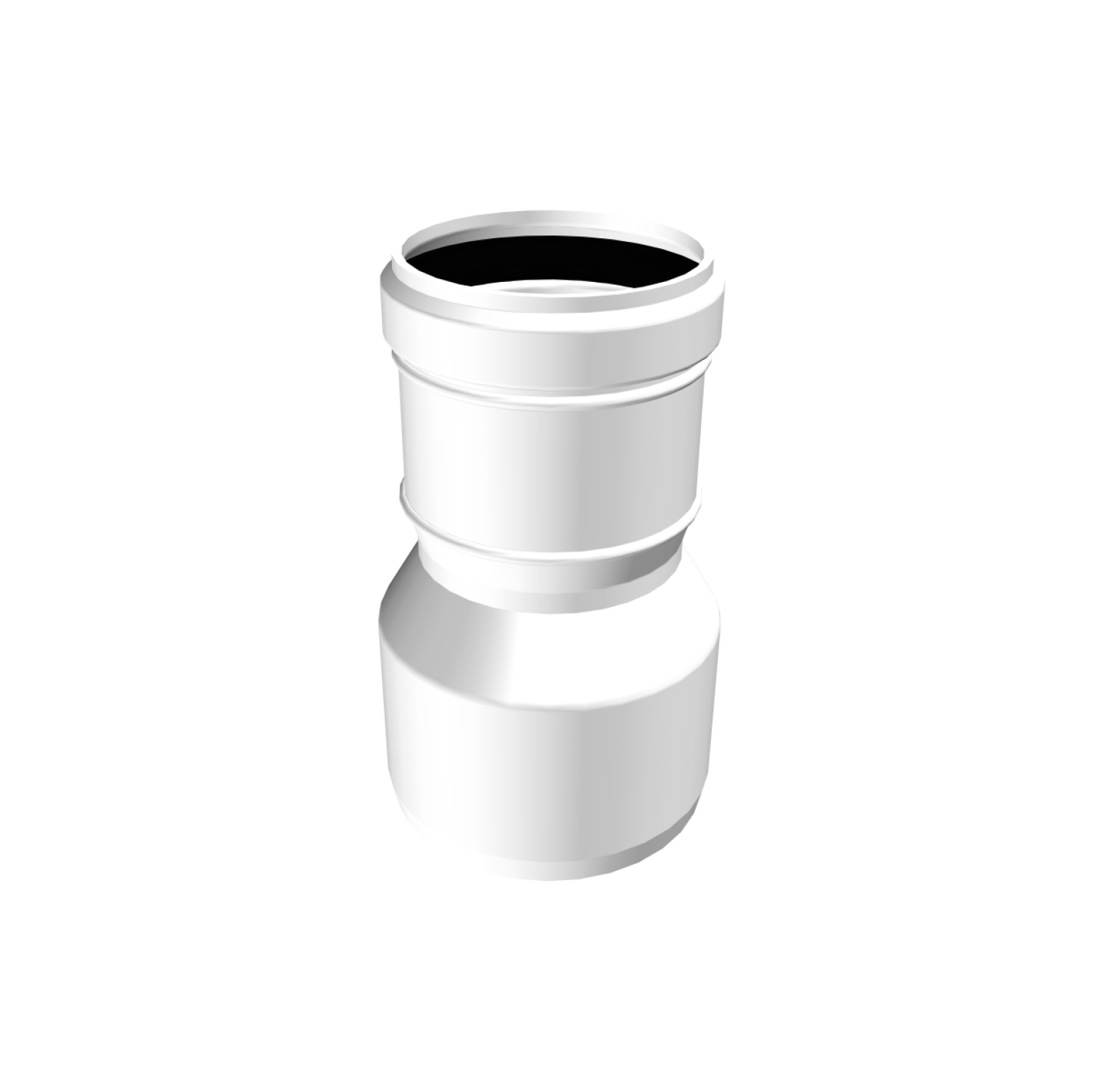

Conic Shaped Diameter Reducer

For rigid single wall system

UNI EN 14471 - UNI 11528 - UNI 7129 RULES

sku	model	price	info	add to cart
00000051292	CONIC SHAPED DIAMETER REDUCER - M Ø 80 mm - F Ø 60 mm	€14,50 Excl. Taxes	Physical data UM Base: NR Dimension: 8 × 14 × 8 cm Volume: 0.0009 m³ Weight: 0,08 kg Minimum Order Quantity: 1 Customs data Customs Code 39269097	Conic Shaped Diameter Reducer quantity Buy Info Request
00000051380	CONIC SHAPED DIAMETER REDUCER - M Ø 100 - F Ø 80 mm	€10,95 Excl. Taxes	Physical data UM Base: NR Dimension: 12 × 10 × 10 cm Volume: 0.0012 m³ Weight: 0,10 kg Minimum Order Quantity: 1 Customs data Customs Code 39269097	Conic Shaped Diameter Reducer quantity Buy Info Request
00000051382	CONIC SHAPED DIAMETER REDUCER - M Ø 80 mm - F Ø 50 mm	€19,65 Excl. Taxes	Physical data UM Base: NR Dimension: 14 × 8 × 8 cm Volume: 0.0009 m³ Weight: 0,05 kg Minimum Order Quantity: 1 Customs data Customs Code 39269097	Conic Shaped Diameter Reducer quantity Buy Info Request

Junction that allows the joining of two sections with different diameters, passing from a certain diameter to a smaller one.

Product features

made in diameters: M Ø 80 mm - F Ø 50 mm / M Ø 80 mm - F Ø 60 mm / M Ø 100 mm - F Ø 80 mm
finished in RAL 9010 color

*DESIGNATION*	T120 H1 W 2 O00 LI E U
*TYPE OF MATERIAL*	self-extinguishing PPs
*PRESSURE RESISTANCE*	with EPDM gaskets conforming to the EN 14241 standard
*APPLICATION RANGE*	condensing boilers and cooking steam exhaust
*CORROSION RESISTANCE*	type 2
*SUITABLE FUELS*	methane gas
*FIRE REACTION*	Class "E" (according to EN 13501-1)
*OPERATING TEMPERATURE*	continuous operation up to 120°C wet under pressure with EPDM gasket
