Retourn Valves or Supply Valves
With fixing clamp
| sku | model | price | info | add to cart |
|---|
Product informations

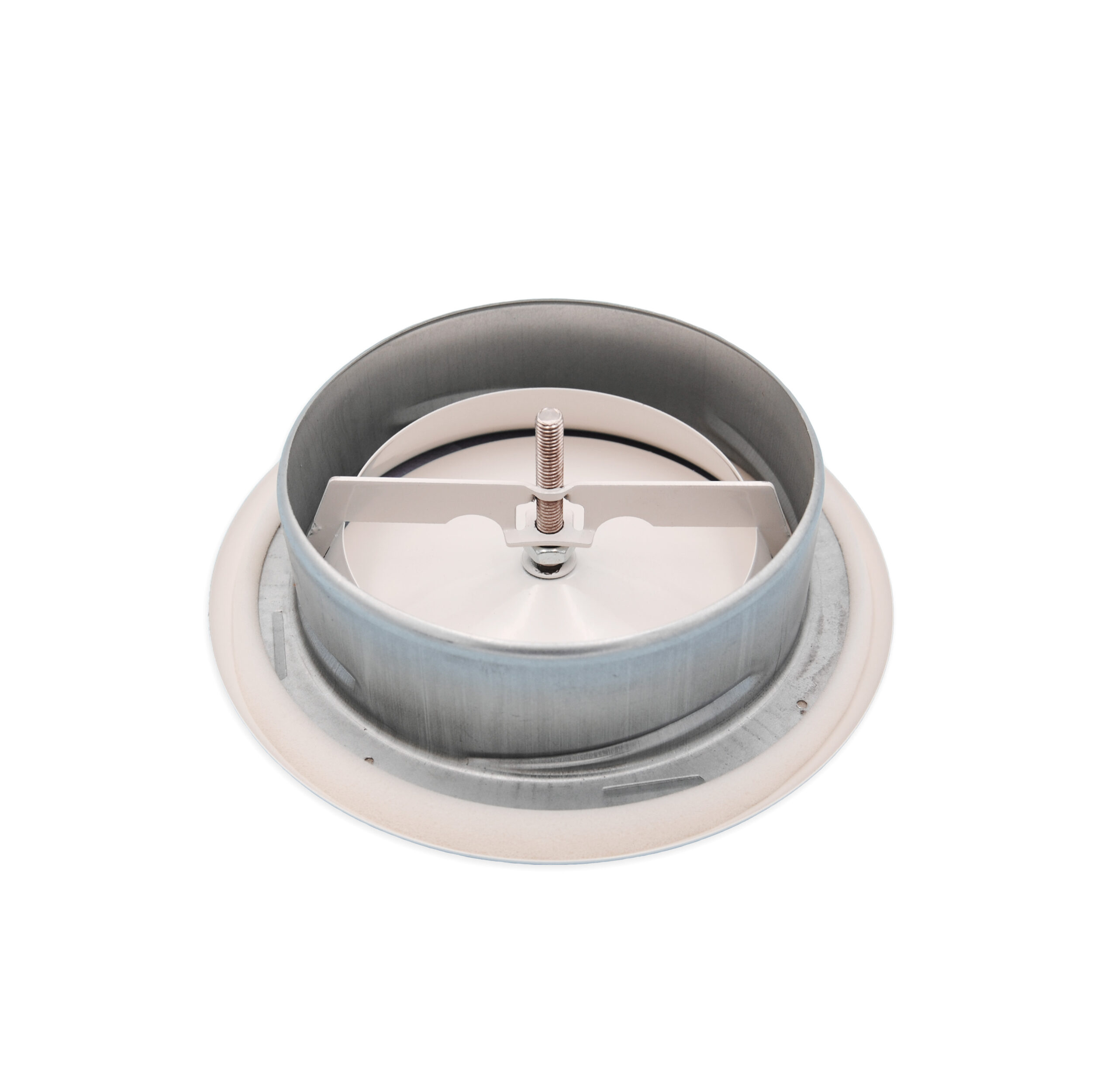

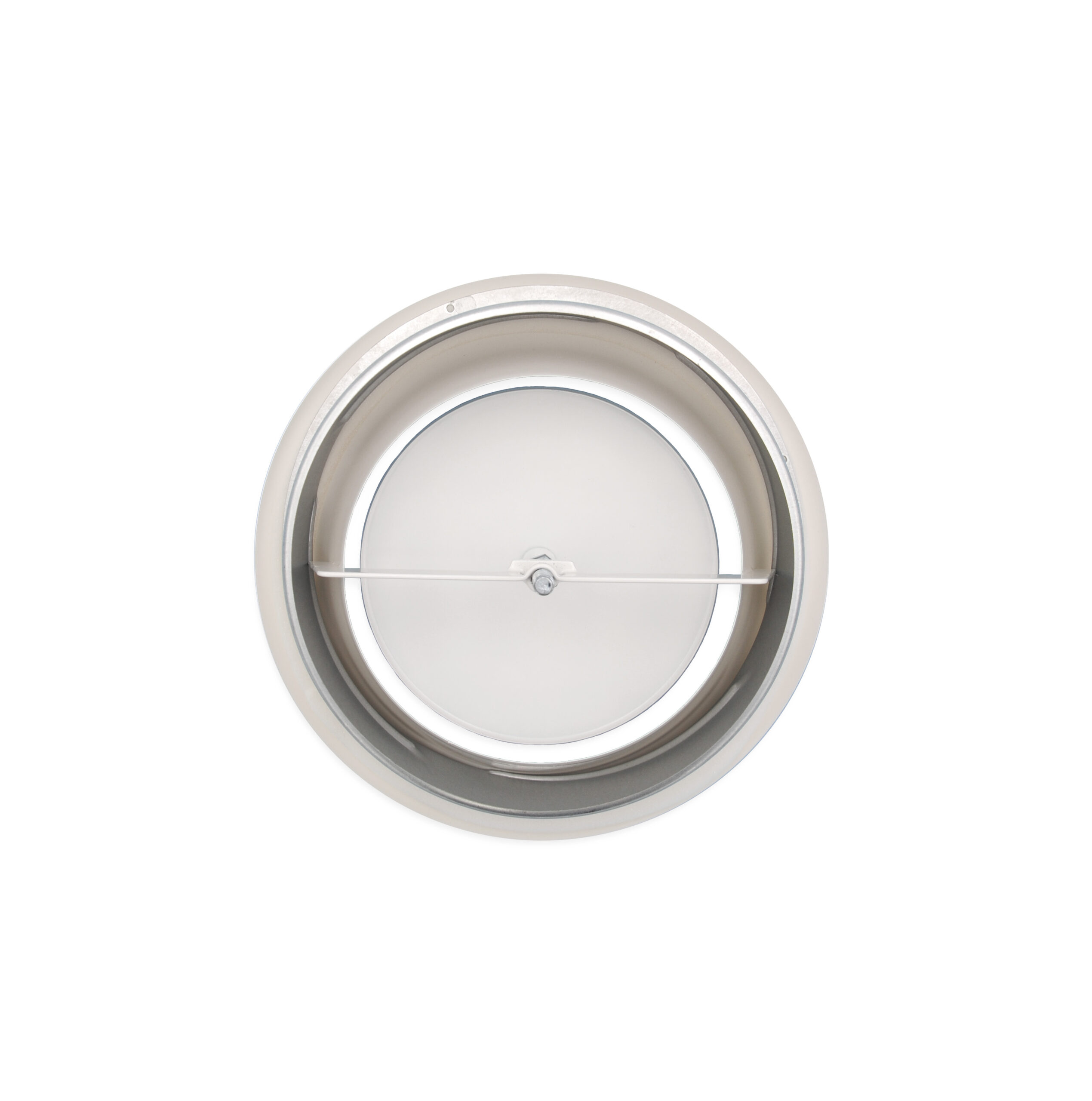

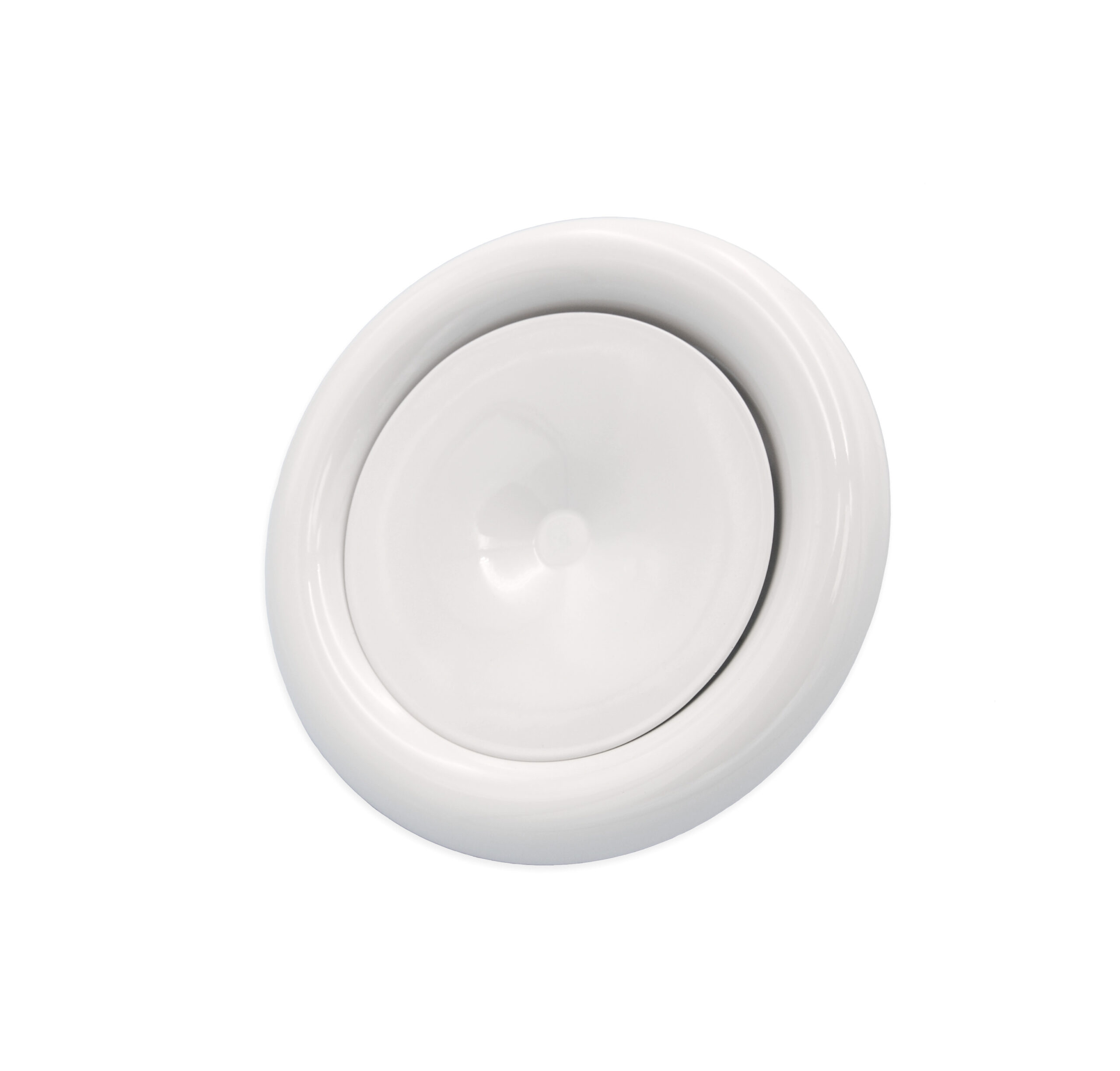

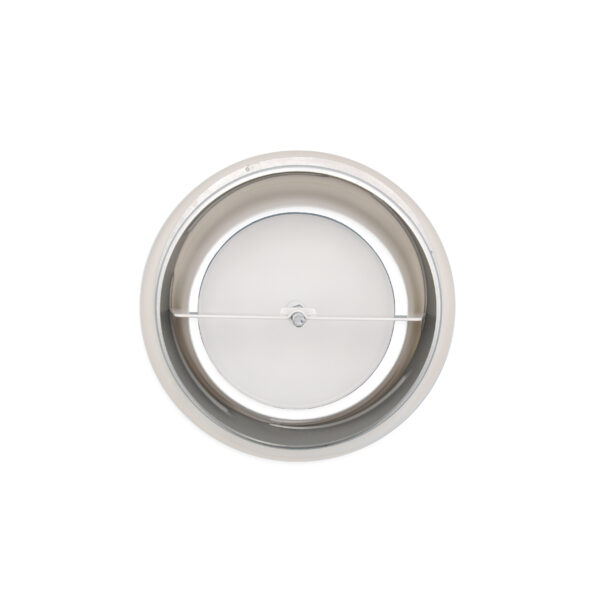

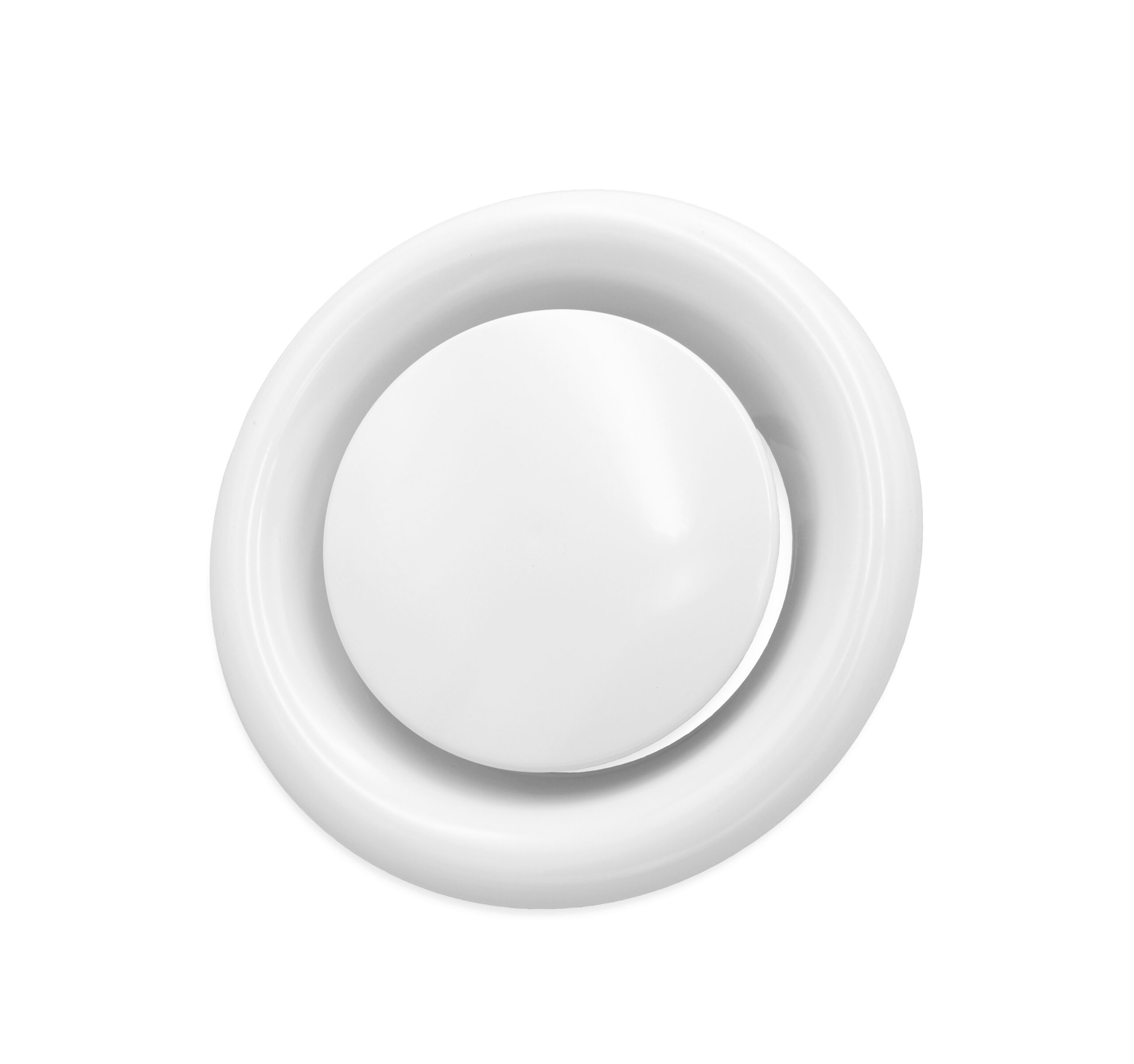

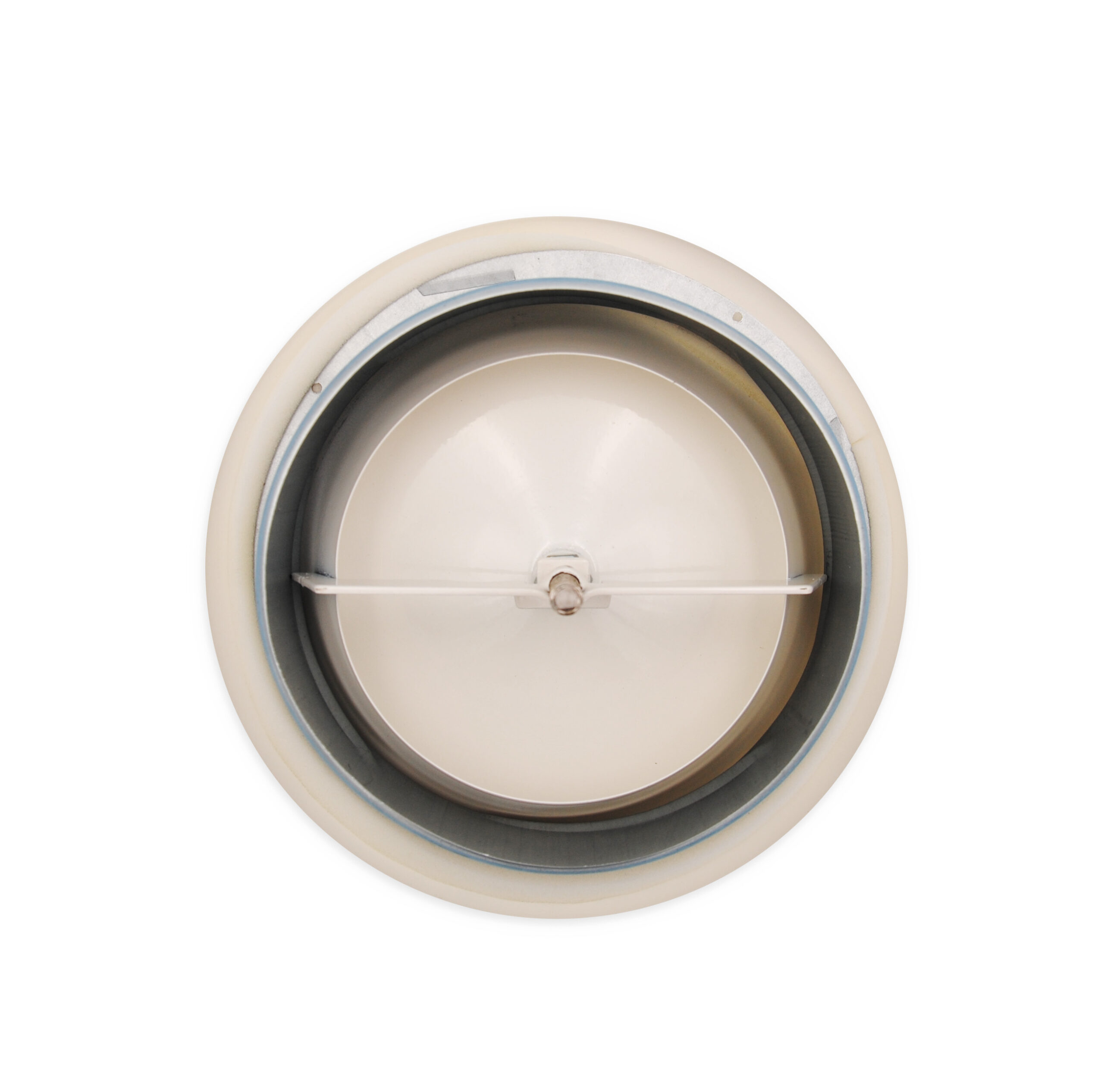

Retorun valves with fixing collar and steel supply valves with fixing collar.
Product features
- made of white RAL 9010 steel
- use: on the ceiling, in return or in supply
- installation height: 2.5 - 3.0 m
Technical Features

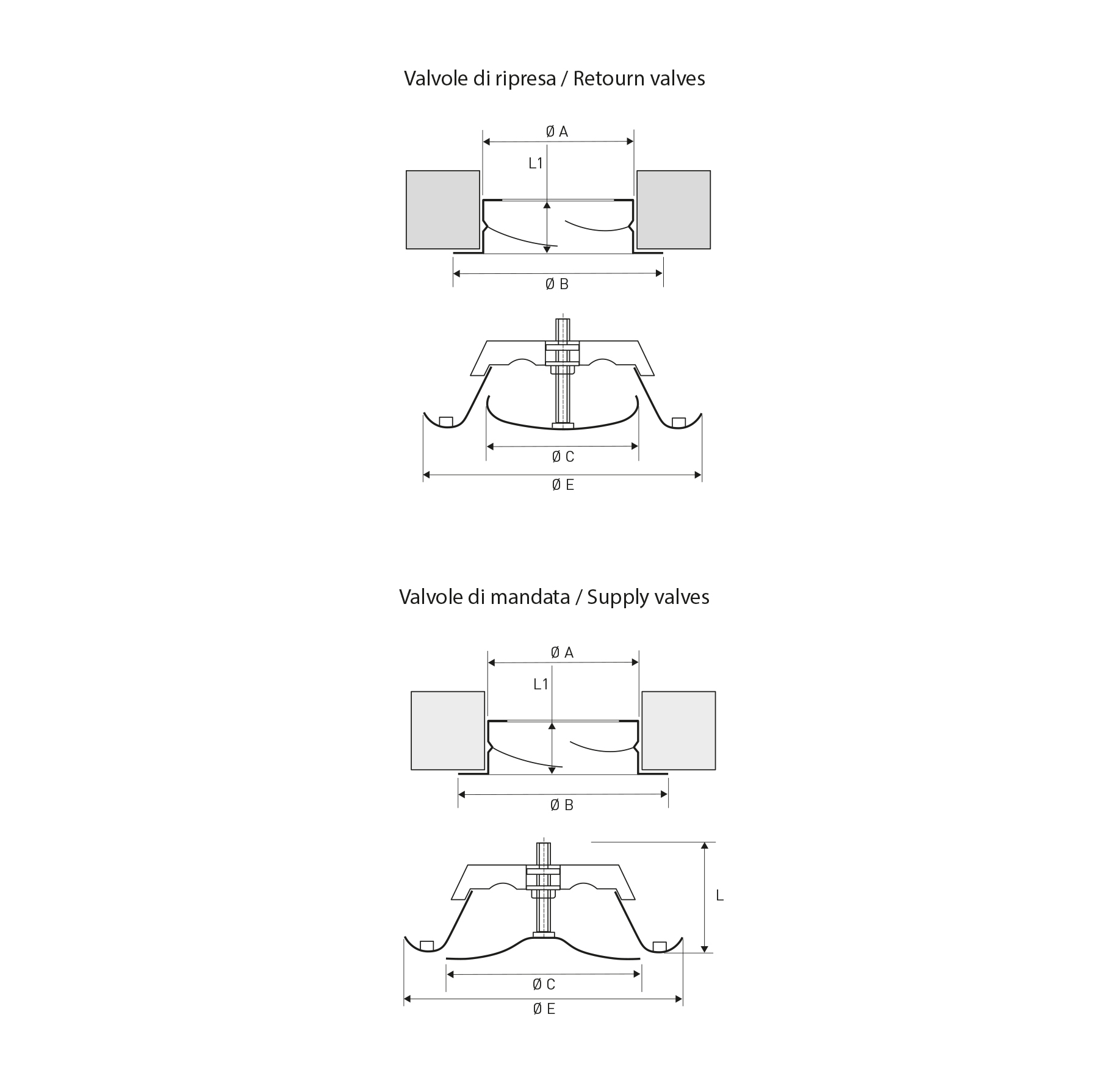

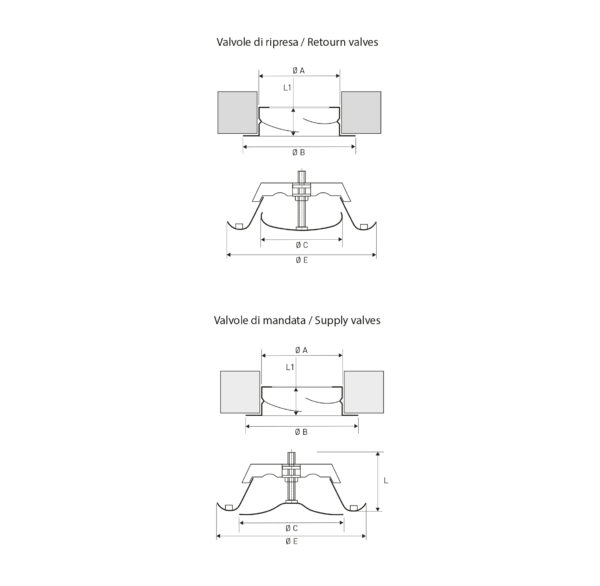

| RETURN VALVES DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|
| VALVE SKU | DN (mm) | Ø A (mm) | Ø B (mm) | Ø C (mm) | Ø E (mm) | L (mm) | L1 (mm) |
| 66146 | 100 | Ø 99 | Ø 125 | Ø 75 | Ø 140 | 55 | 50 |
| 66147 | 125 | Ø 124 | Ø 150 | Ø 100 | Ø 170 | 65 | 60 |
| 66148 | 160 | Ø 159 | Ø 185 | Ø 130 | Ø 215 | 65 | 60 |
| 66149 | 200 | Ø 199 | Ø 225 | Ø 160 | Ø 255 | 65 | 60 |
| 66150 | 150 | Ø 149 | Ø 175 | Ø 120 | Ø 205 | 65 | 60 |
| SUPPLY VALVES DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|
| VALVE SKU | DN (mm) | Ø A (mm) | Ø B (mm) | Ø C (mm) | Ø E (mm) | L (mm) | L1 (mm) |
| 66151 | 100 | Ø 99 | Ø 125 | Ø 85 | Ø 140 | 55 | 50 |
| 66152 | 125 | Ø 124 | Ø 150 | Ø 110 | Ø 170 | 65 | 60 |
| 66153 | 160 | Ø 159 | Ø 185 | Ø 145 | Ø 215 | 65 | 60 |
| 66154 | 200 | Ø 199 | Ø 225 | Ø 195 | Ø 255 | 65 | 60 |
| 66155 | 150 | Ø 149 | Ø 175 | Ø 135 | Ø 205 | 65 | 60 |
