Square Diffuser with Panel
Multidirectional
| sku | model | price | info | add to cart |
|---|
Product informations

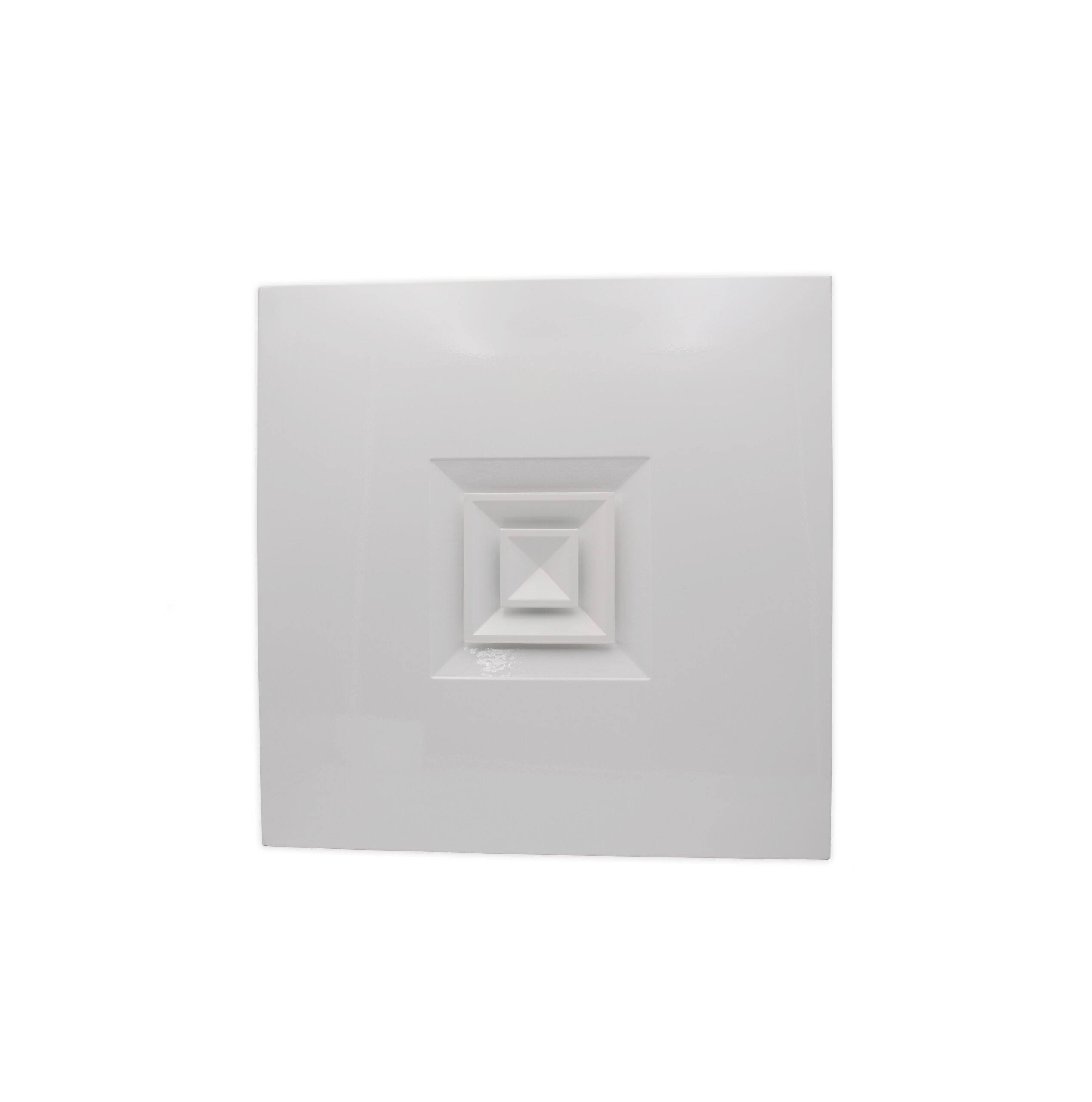

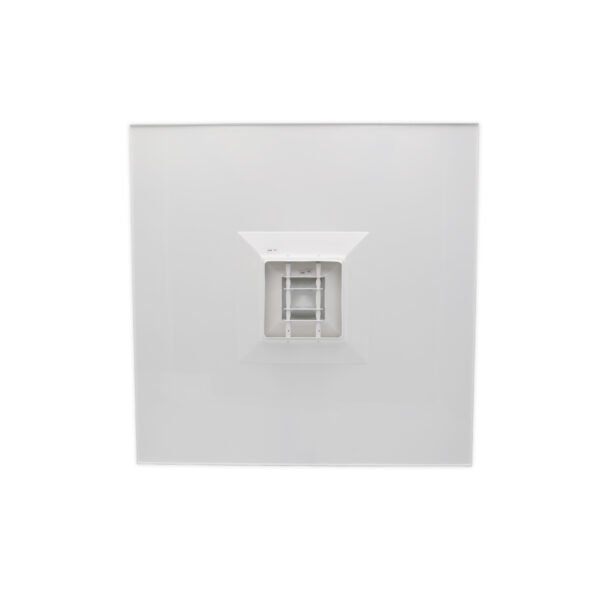

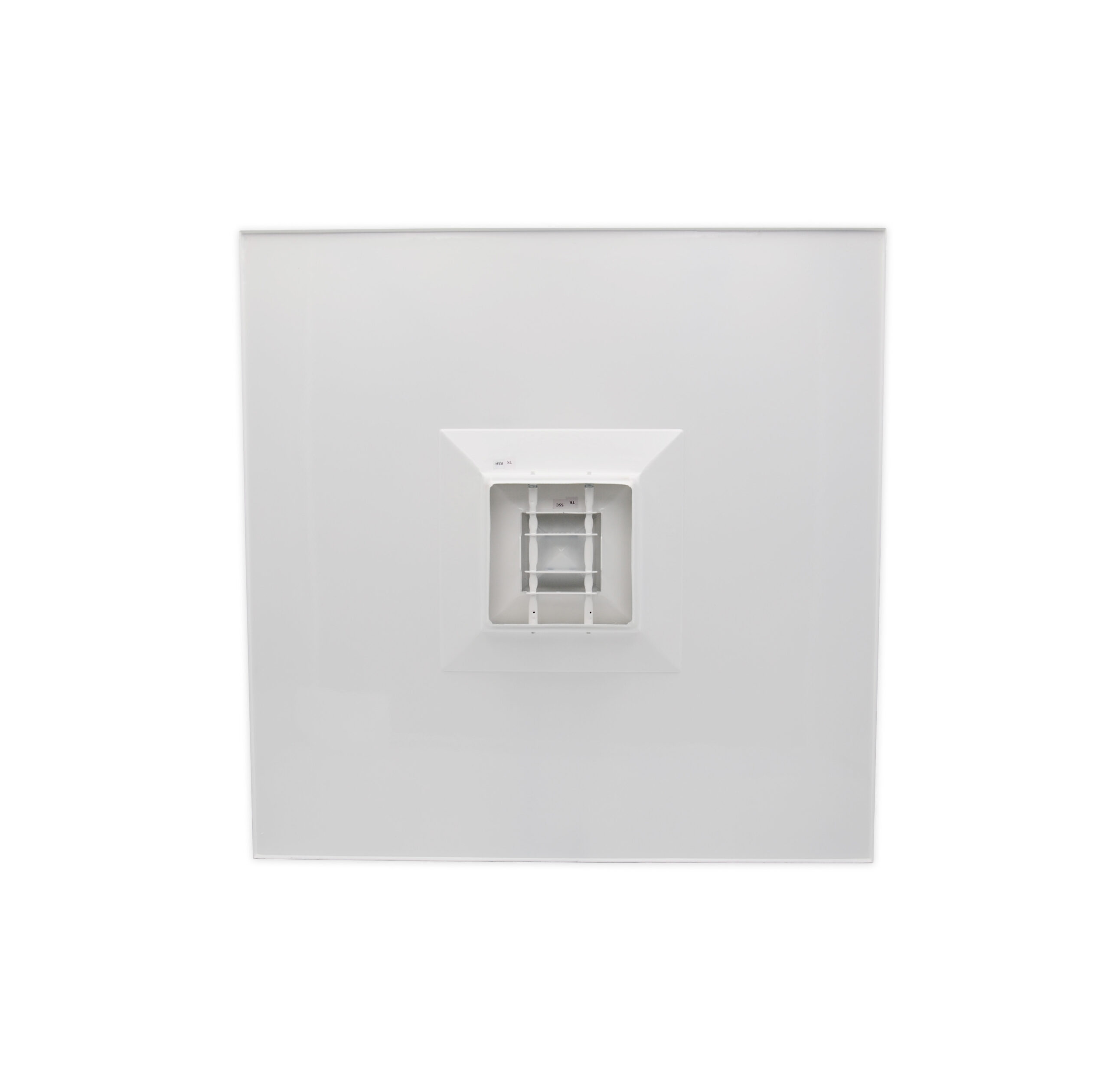

Multidirection diffuser with 4 ways on 595 x 595 mm panel and removable central core.
Product features
- made of aluminum sheet, in a single piece
- use: ceiling, supply and return
- painted in white RAL 9016
- installation height: 2,5 - 3,1 m
- fixing by using screws on the diffuser neck
Accessories

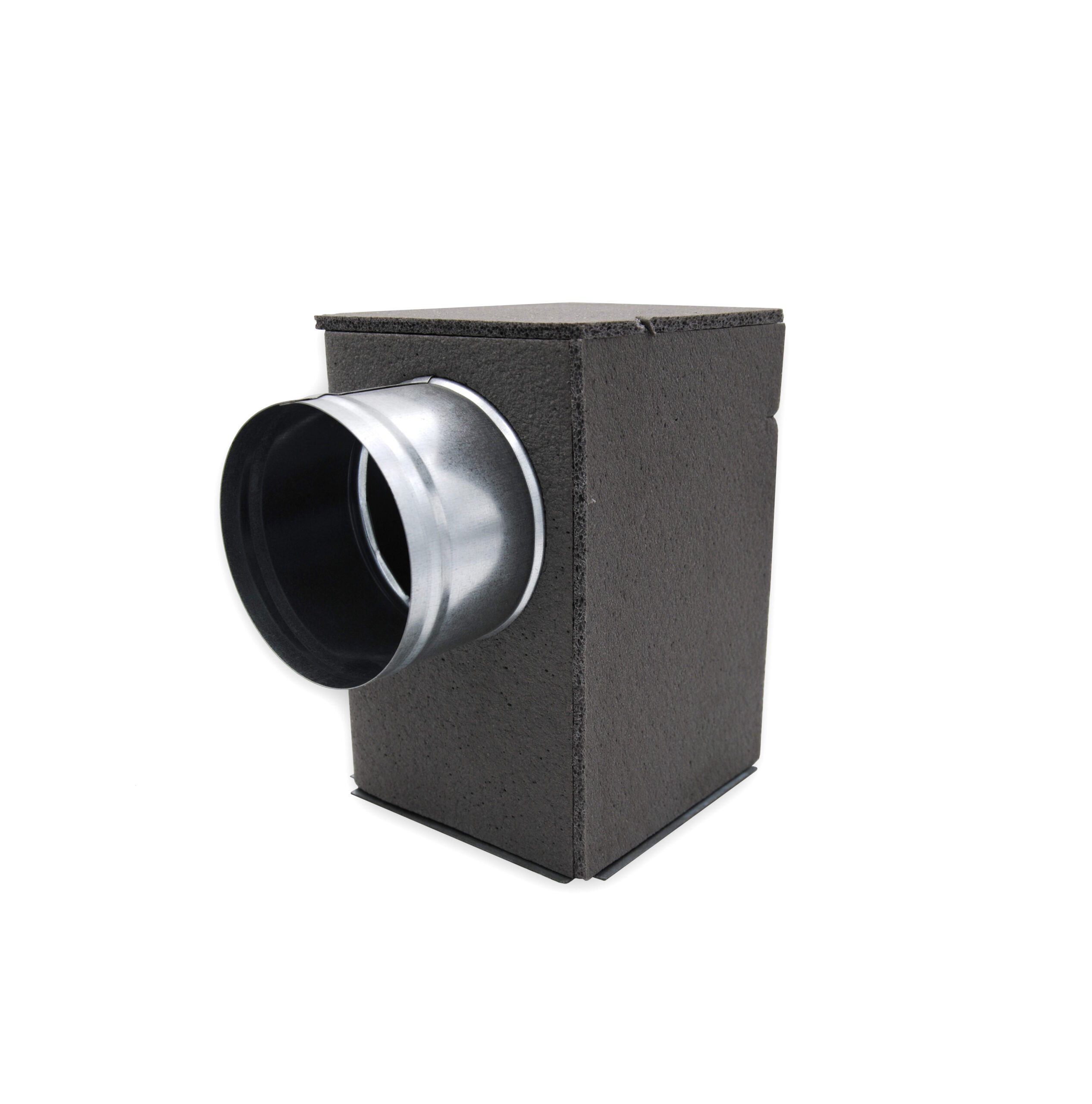

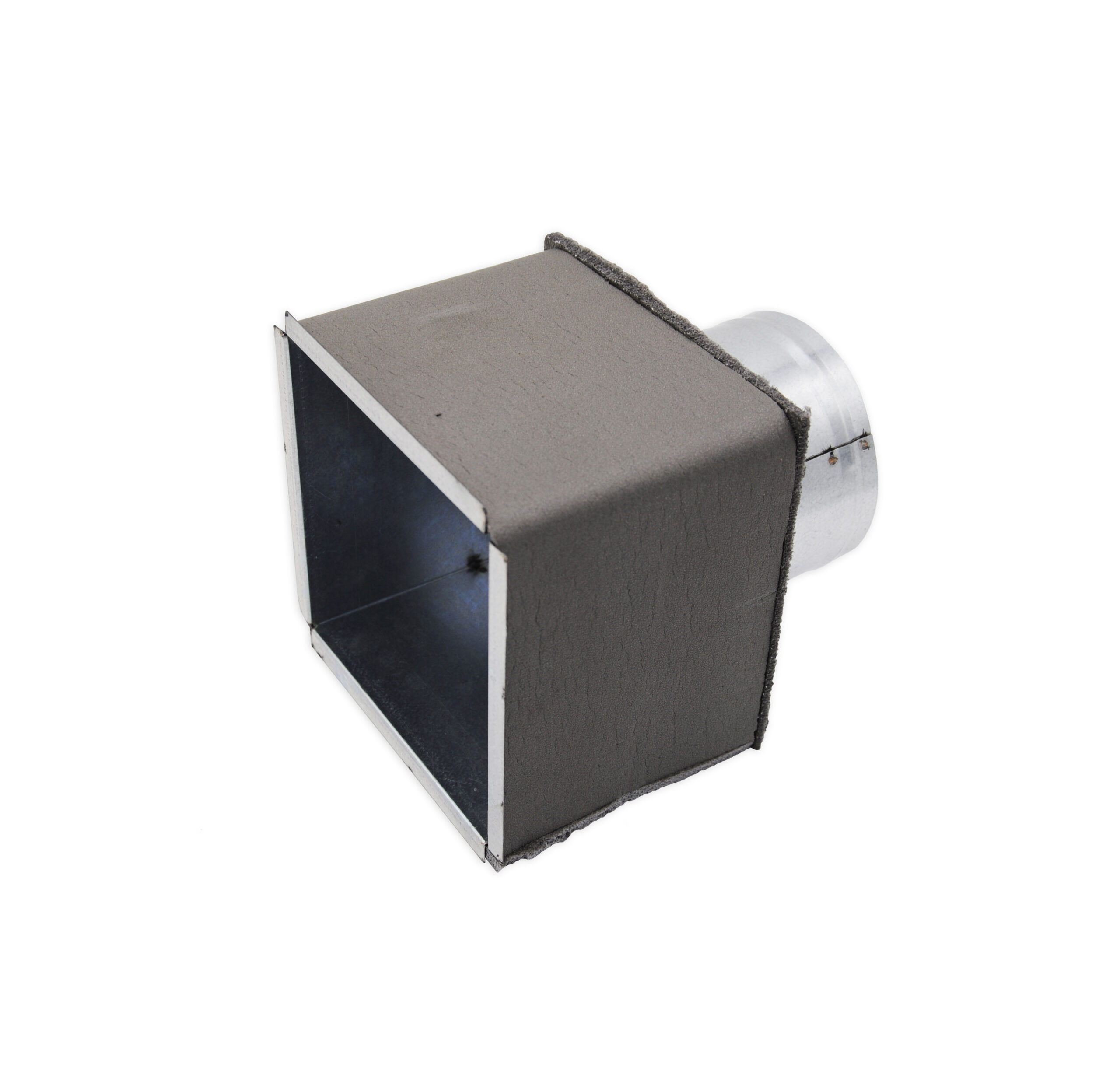

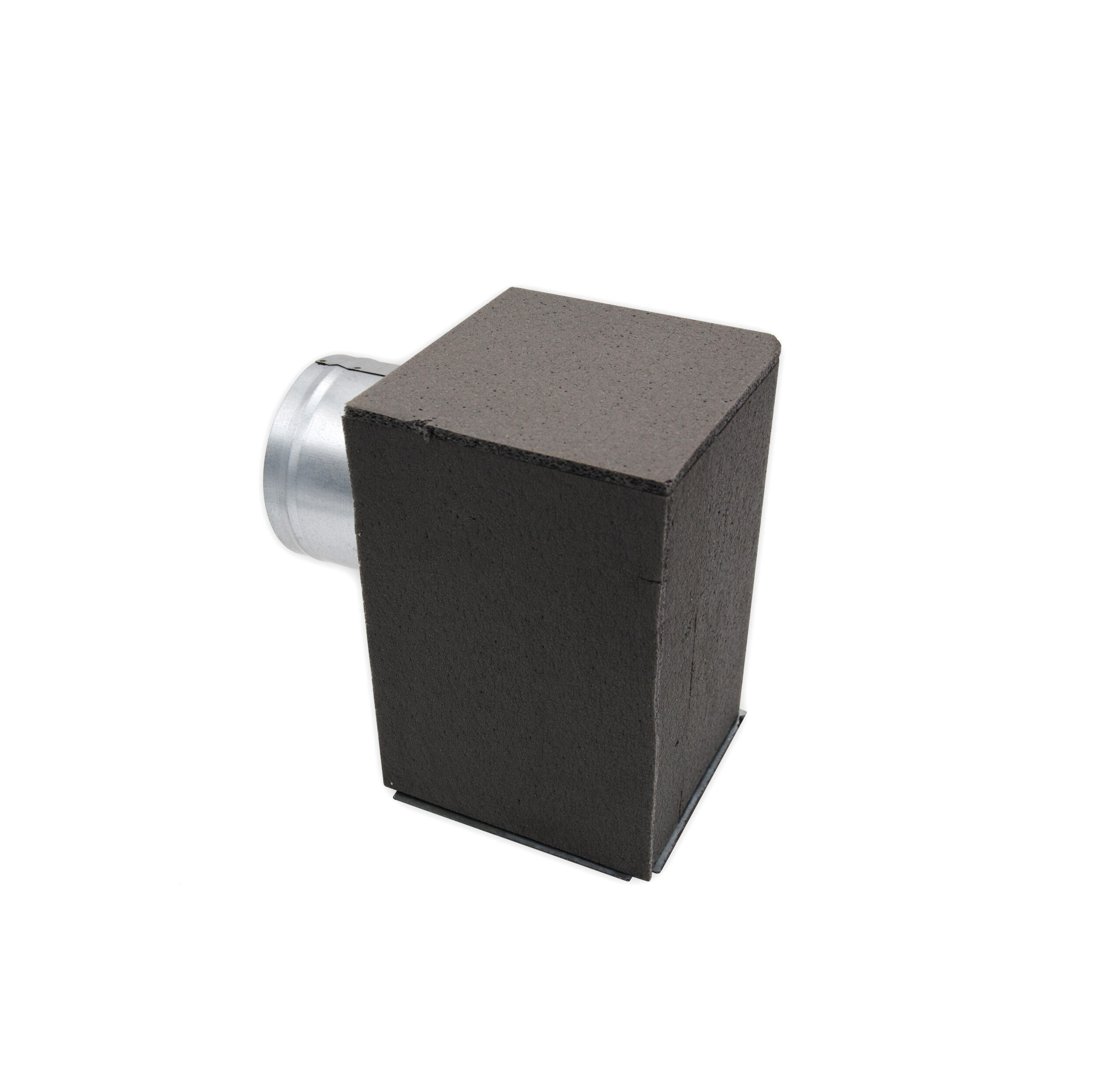

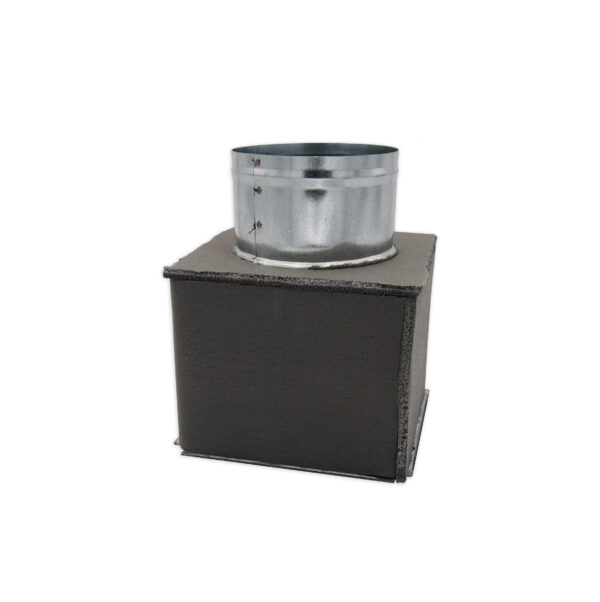

- galvanized sheet plenum, standard or insulated, with or without equalizer sheet

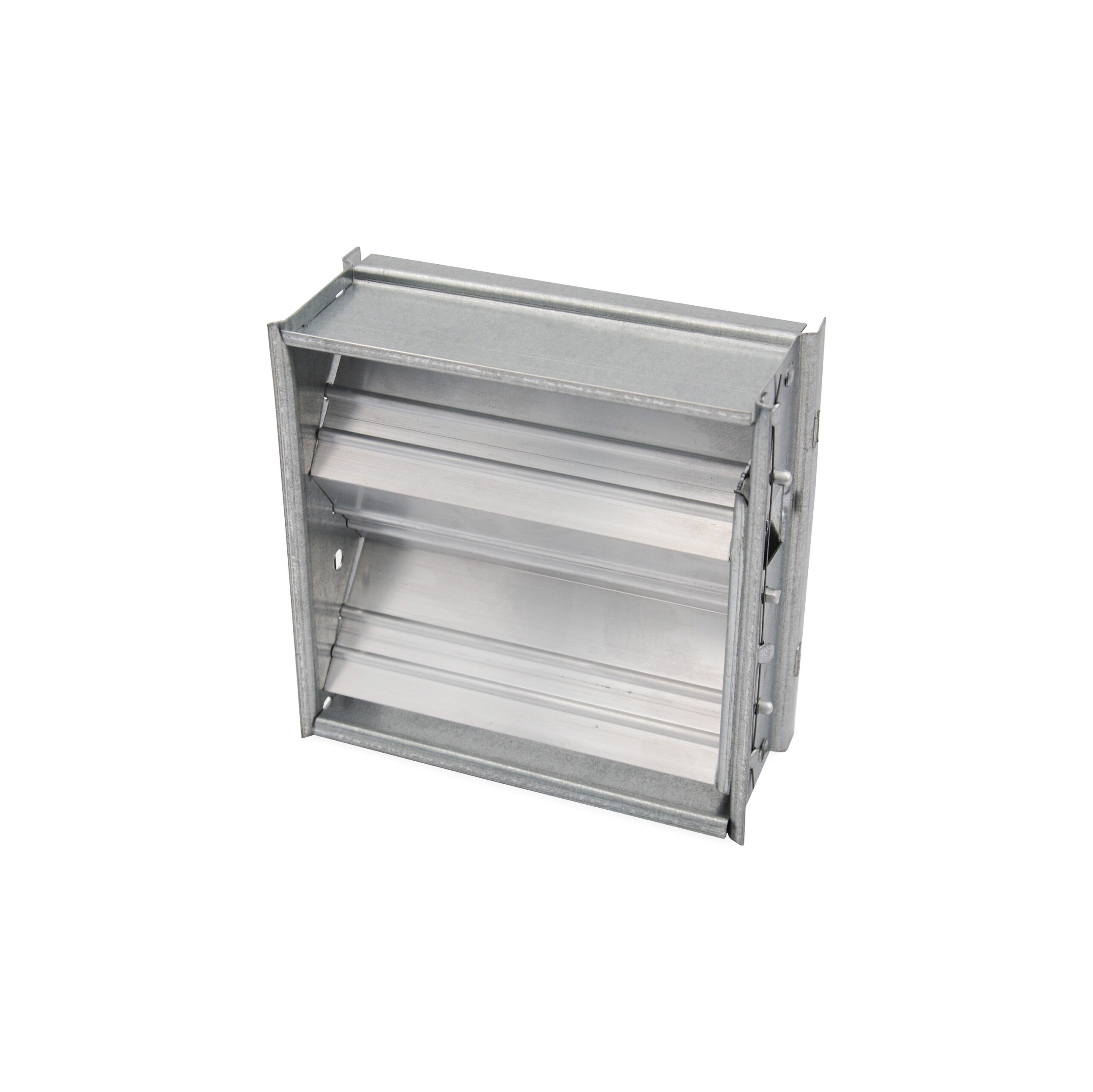

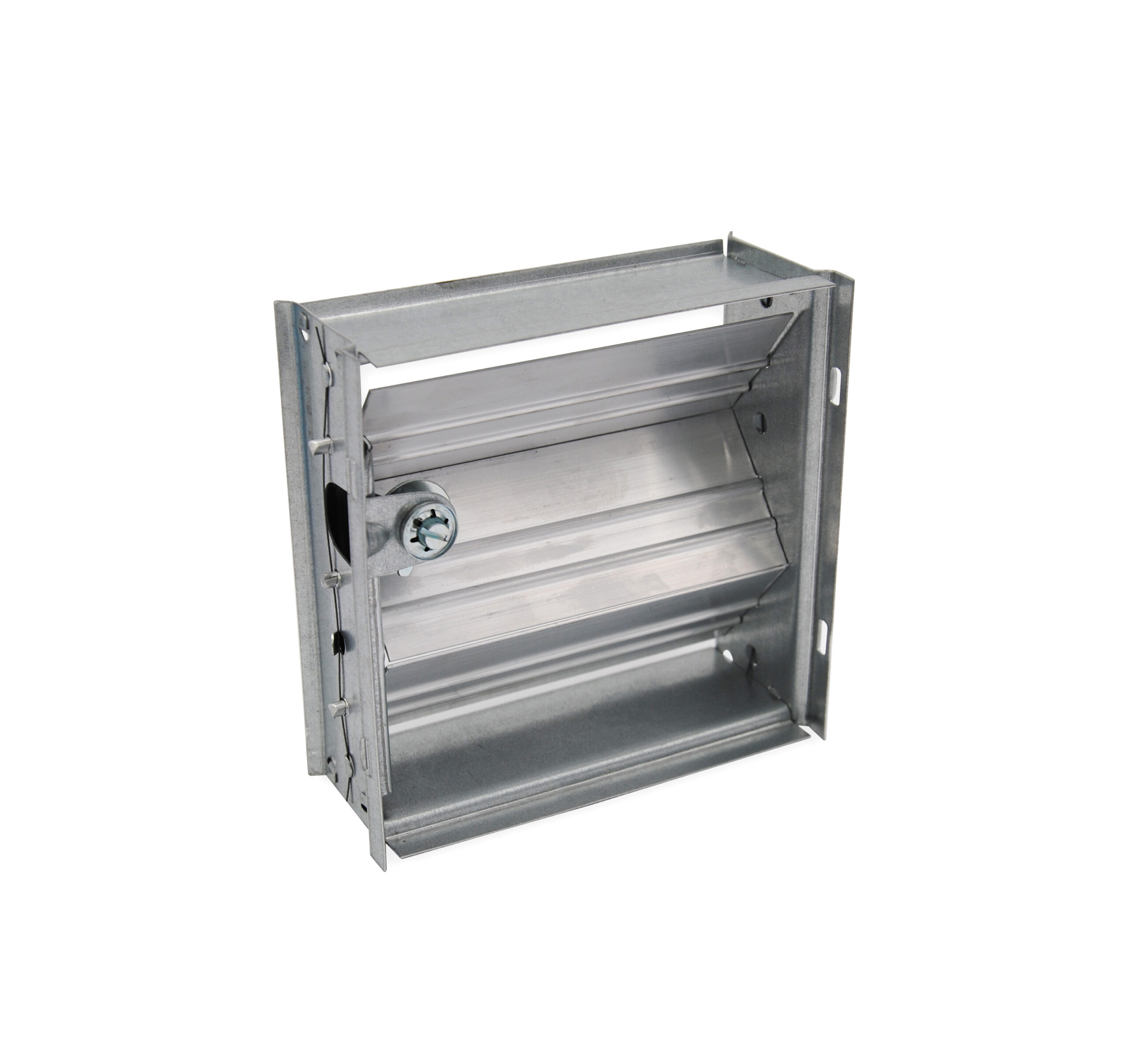

- calibration damper made of galvanized steel and fins with opposite movement
Technical Features
| DIFFUSER SKU | DIFFUSER DIMENSIONS | DAMPER SKU | "A" INSULATED PLENUM SKU | "B" INSULATED PLENUM SKU |
|---|---|---|---|---|
| 66121 | 150 x 150 mm | 66225 | 66235 | 66245 |
| 66122 | 225 x 225 mm | 66226 | 66236 | 66246 |
| 66123 | 300 x 300 mm | 66227 | 66237 | 66247 |
| 66124 | 375 x 375 mm | 66228 | 66238 | 66248 |
| PLENUM A/B MEASURES | |||||
|---|---|---|---|---|---|

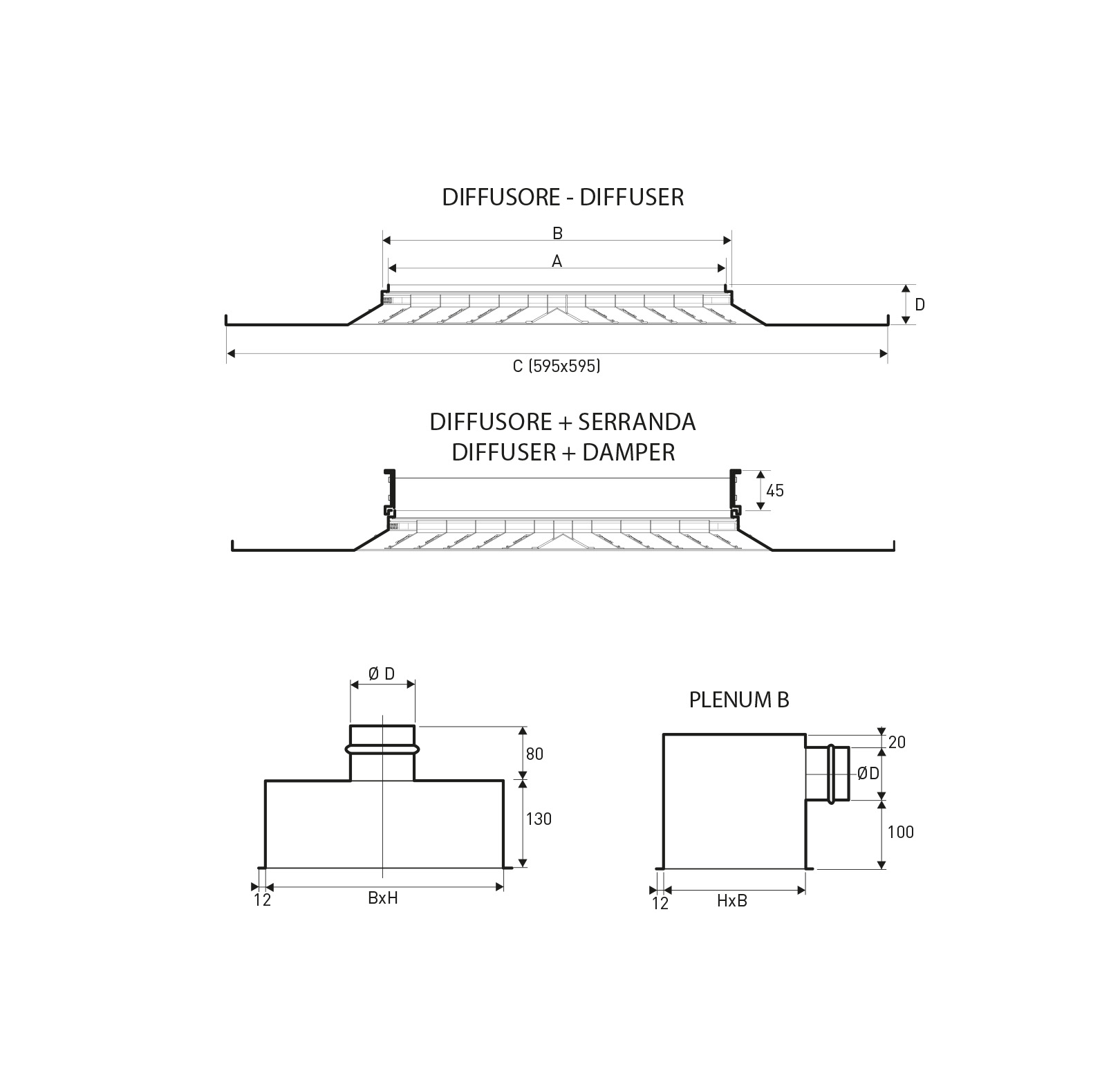

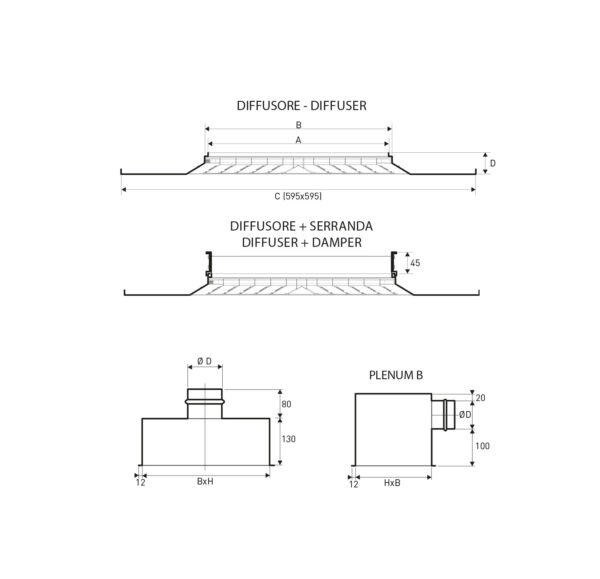

| BxH (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Ø CONNECTION PLENUM (mm) |
| 150 x 150 mm | 131 mm | 144 mm | 595 mm | 45 mm | Ø 122 mm |
| 225 x 225 mm | 207 mm | 220 mm | 595 mm | 45 mm | Ø 147 mm |
| 300 x 300 mm | 278 mm | 294 mm | 595 mm | 45 mm | Ø 197 mm |
| 375 x 375 mm | 355 mm | 369 mm | 595 mm | 45 mm | Ø 197 mm |
