Download Product Data Sheet

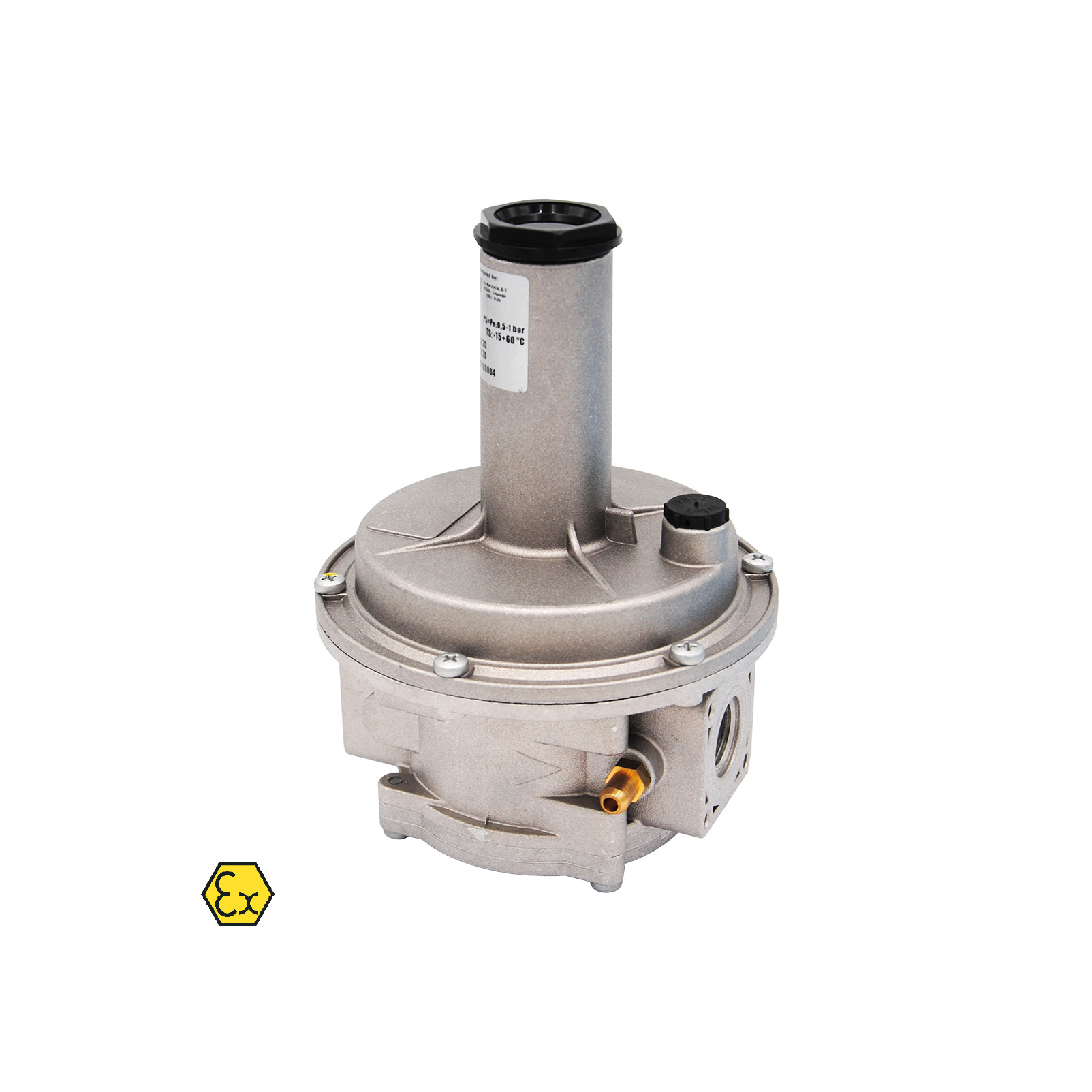

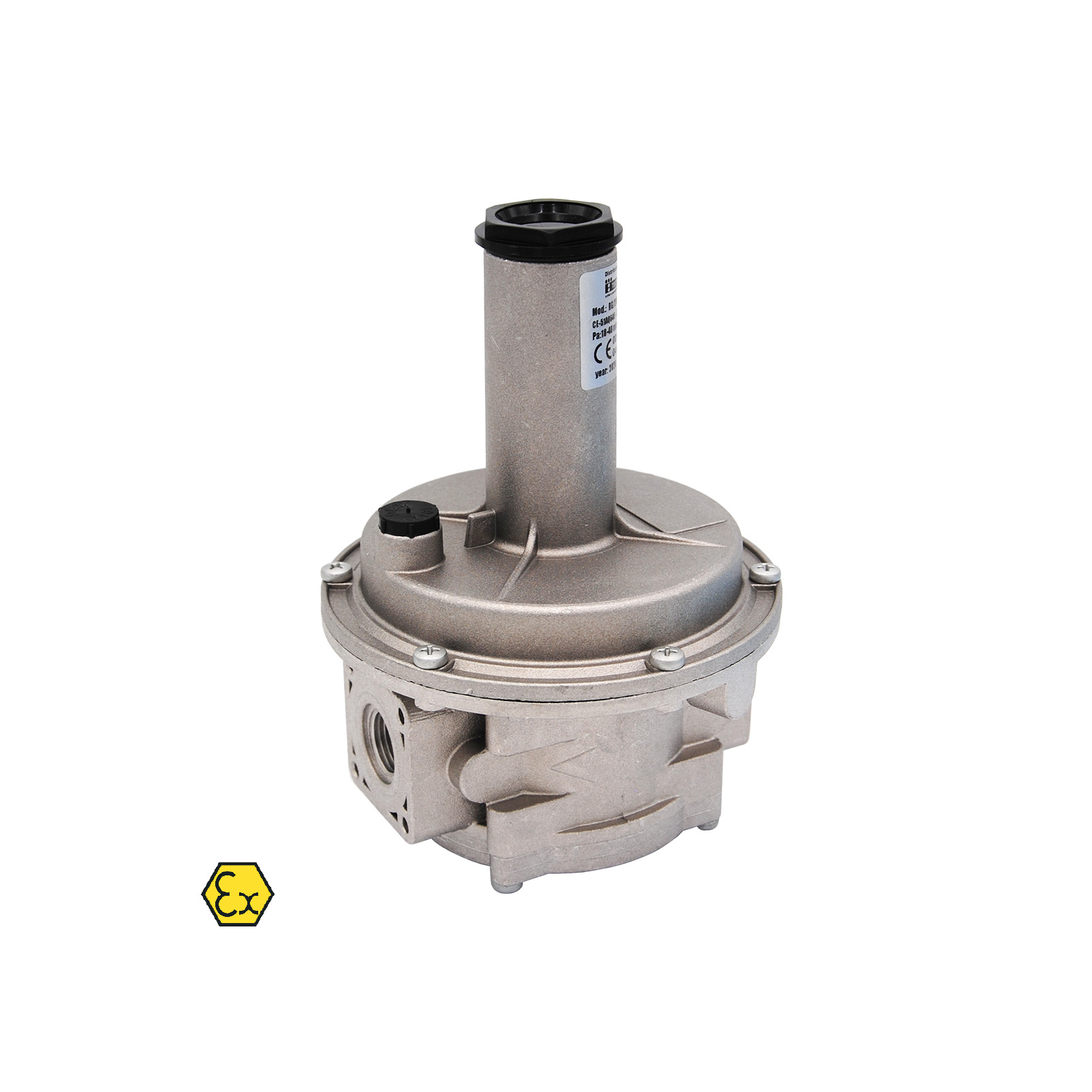

Double Membrane Closing Regulator Without Filter

RG/2MC model, max inlet pressure 1 bar, threaded connections

REINFORCED MEMBRANE OR BIOGAS VERSION ALSO AVAILABLE

COMPLIANT WITH PED DIRECTIVE 2014/68/EU AND ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000040159

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - 1/2" FF connections

€90,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 15 × 23 cm

Volume:
0.0056 m3

Weight:
1,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040160

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - 3/4" FF connections

€90,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 15 × 23 cm

Volume:
0.006 m3

Weight:
1,45 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040161

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - 1" FF connections

€90,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 15 × 23 cm

Volume:
0.006 m3

Weight:
1,45 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040162

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections 1" 1/4 FF

€193,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
3,66 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040163

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections 1" 1/2 FF

€193,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
3,58 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040164

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - 2" FF connections

€275,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
3,63 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Device which supplies a preset and constant “downstream” pressure value, when the inlet pressure and/or the flow rate changes.



Equipped with

  • spring for adjusting the output pressure
  • safety membrane
  • outlet pressure point for outlet pressure control
  • threaded connections

Technical Features

USE not aggressive gases of the three families (manufactured / natural / LPG)
INLET PRESSURE RANGE 0,5 ÷ 1 bar (on request, also 0 ÷ 0,5 bar)
OUTPUT PRESSURE RANGE
  • 18 ÷ 40 mbar - sku 40159 / 40160 / 40161
  • 13 ÷ 25 mbar - sku 40162 / 40163 / 40164
INLET CONNECTION
  • 1/2" FF -sku 40159
  • 3/4" FF -sku 40160
  • 1" FF -sku 40161
  • 1" 1/4 FF- sku 40162
  • 1" 1/2 FF- sku 40163
  • 2" FF- sku 40164
OUTPUT CONNECTION
  • 1/2" FF -sku 40159
  • 3/4" FF -sku 40160
  • 1" FF -sku 40161
  • 1" 1/4 FF- sku 40162
  • 1" 1/2 FF- sku 40163
  • 2" FF- sku 40164
OPERATING TEMPERATURE - 15°C ÷ + 60°C

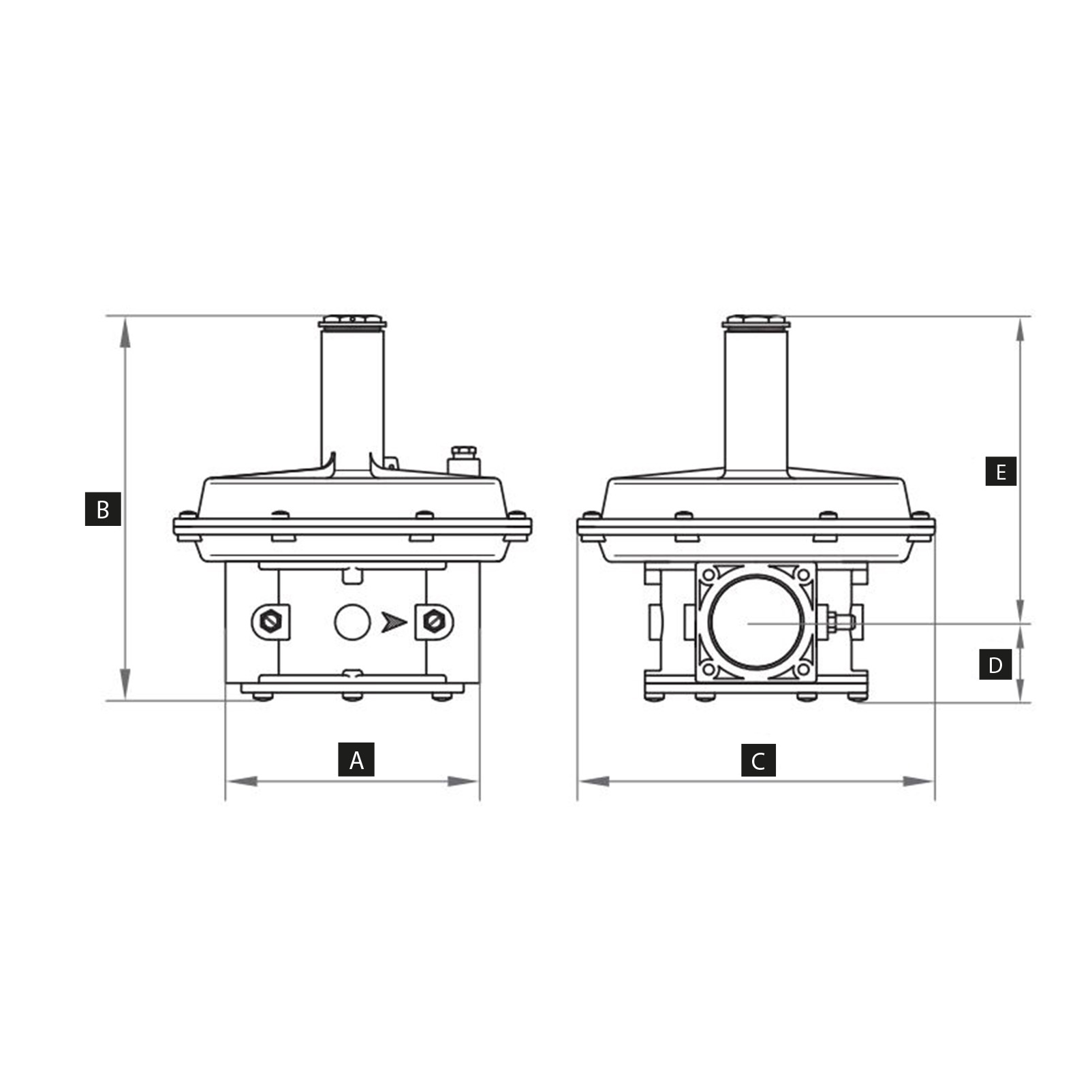

OVERALL DIMENSIONS
SKU A B (D+E) C D E
40159 120 mm 194 mm 140 mm 38.5 mm 155.5 mm
40160 120 mm 194 mm 140 mm 38.5 mm 155.5 mm
40161 120 mm 194 mm 140 mm 38.5 mm 155.5 mm
40162 160 mm 242 mm 225 mm 48.5 mm 193.5 mm
40163 160 mm 242 mm 225 mm 48.5 mm 193.5 mm
40164 160 mm 242 mm 225 mm 48.5 mm 193.5 mm



Download

Download Product Data Sheet

Data Sheets

Data Sheet Scheda Tecnica Fiche Technique Ficha De Datos
