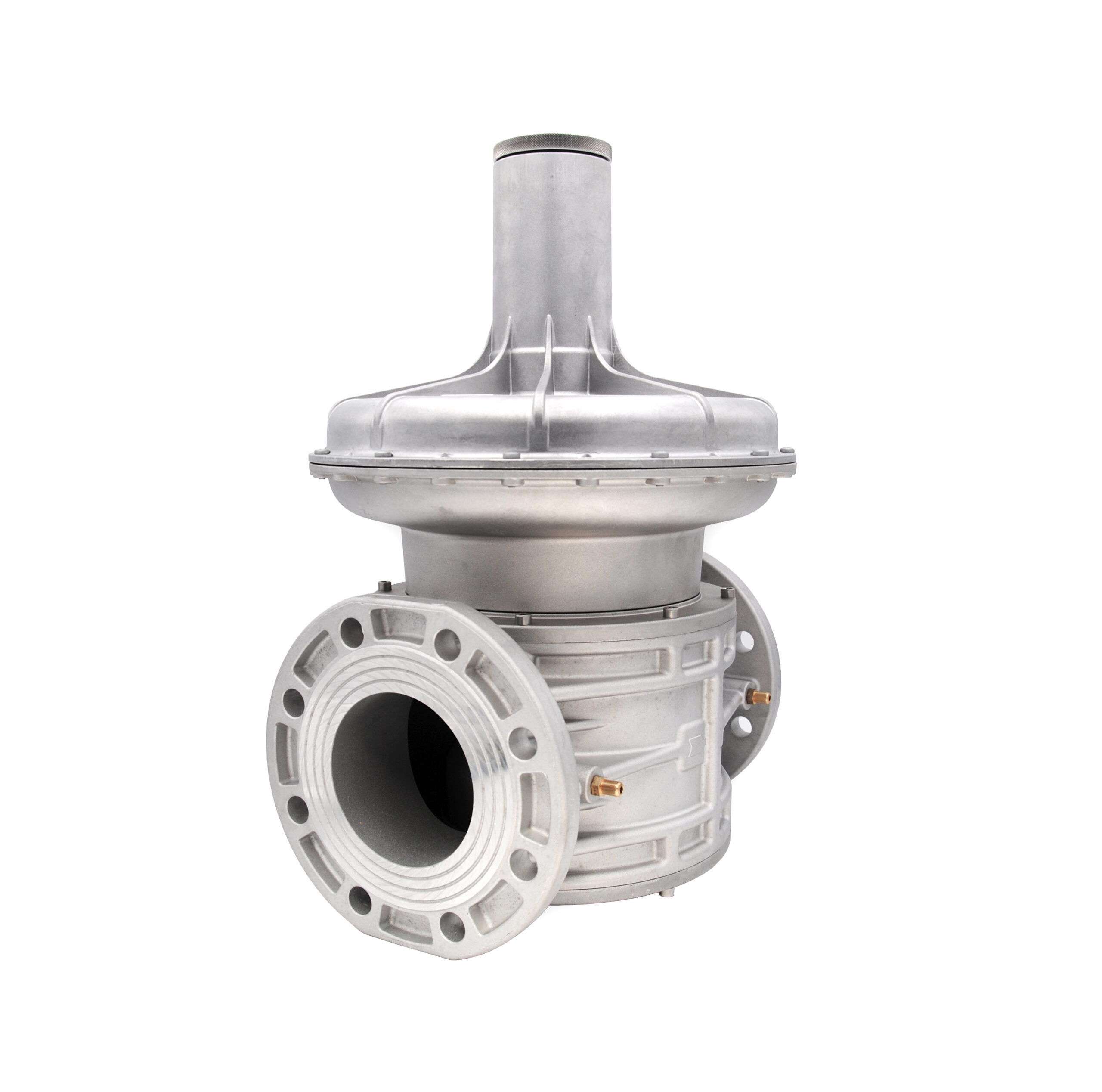

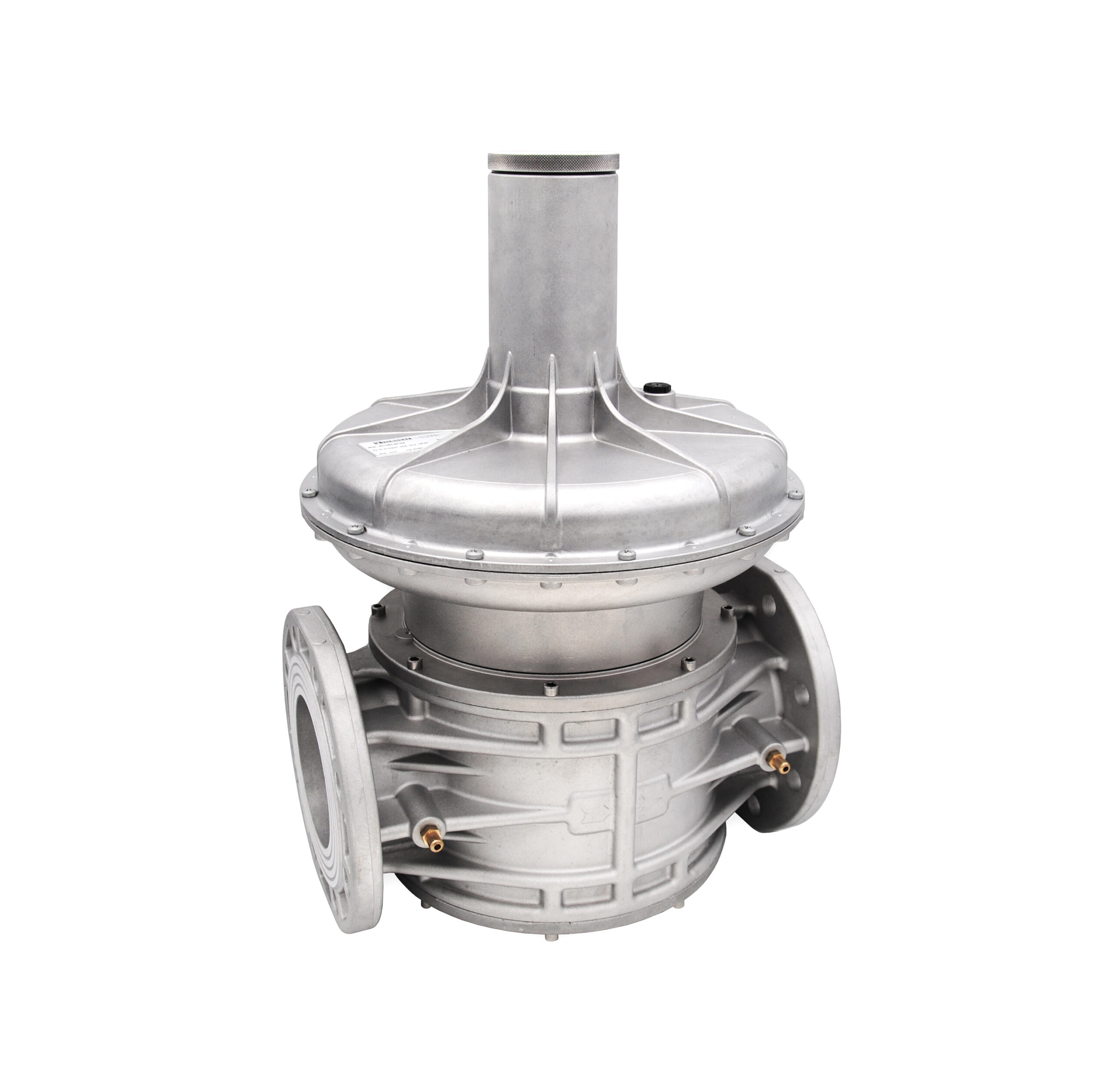

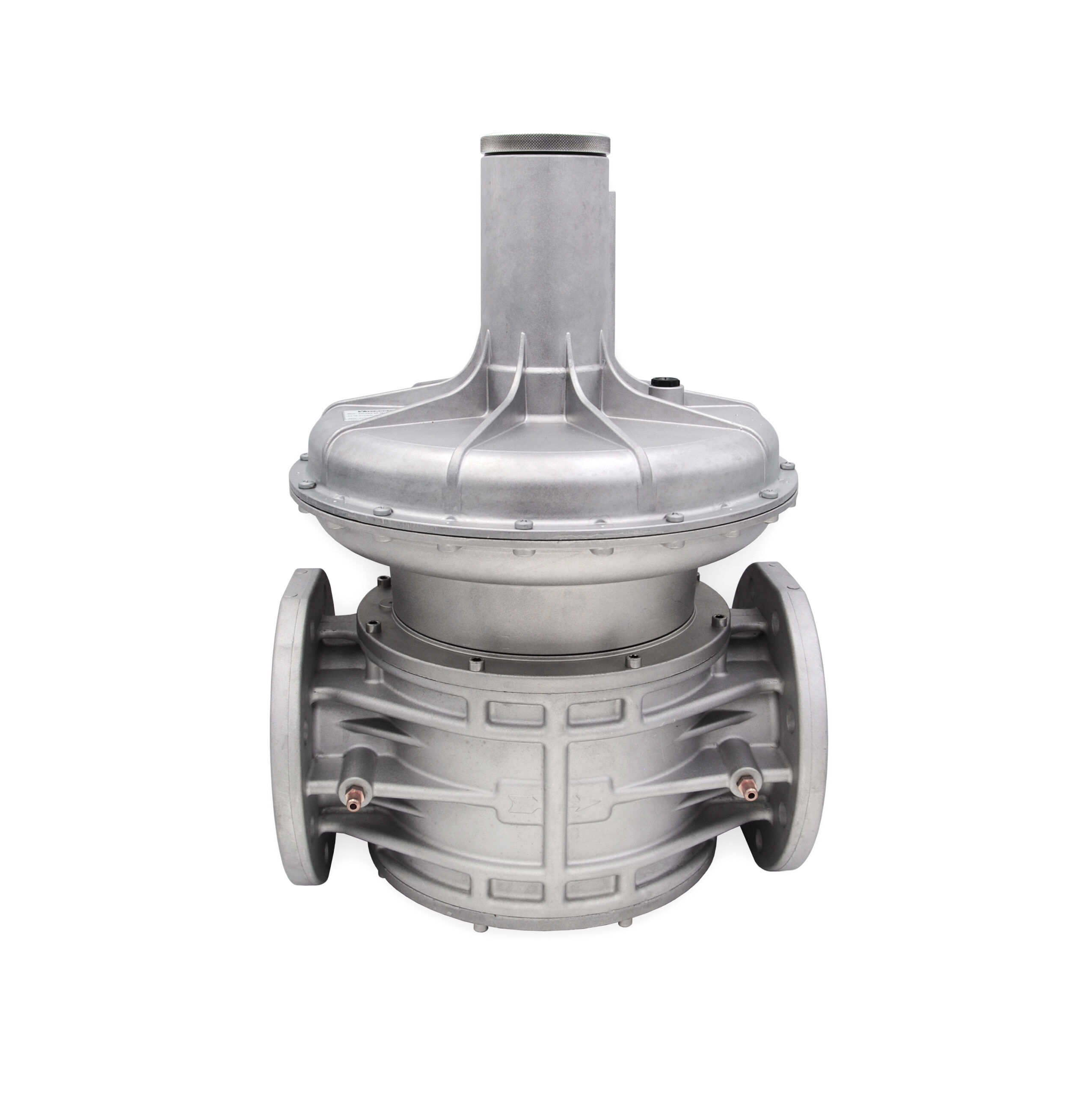

Double Membrane Closing Regulator Without Filter

RG/2MC model, max inlet pressure 2 bar, flanged connections

REINFORCED MEMBRANE OR BIOGAS VERSION ALSO AVAILABLE

COMPLIANT WITH PED DIRECTIVE 2014/68/EU AND ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000040207

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 65 PN 16

€1.146,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040208

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 80 PN 16

€1.155,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
34 × 34 × 52 cm

Volume:
0.0623 m3

Weight:
14,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040209

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 100 PN 16

€2.052,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
52 × 37 × 57 cm

Volume:
0.1097 m3

Weight:
19,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040238

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 32 PN 16

€349,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040239

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 40 PN 16

€349,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040240

DOUBLE MEMBRANE CLOSING REGULATOR WITHOUT FILTER RG/2MC MODEL - connections DN 50 PN 16

€477,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
5,25 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Device which supplies a preset and constant “downstream” pressure value, when the inlet pressure and/or the flow rate changes.



Equipped with

  • spring for adjusting the output pressure
  • safety membrane
  • inlet and output pressure tap for output pressure control
  • flanged connections



Technical Features

USE not aggressive gases of the three families (manufactured / natural / LPG)
INLET PRESSURE RANGE 0,5 ÷ 2 bar
OUTPUT PRESSURE RANGE
  • 13 ÷ 23 mbar - sku 40241 / 40242 / 40245
  • 13 ÷ 27 mbar - sku 40217 / 40218
  • 15 ÷ 27 mbar - sku 40219
INLET CONNECTION
  • DN 32 PN 16 - sku 40238
  • DN 40 PN 16 - sku 40239
  • DN 50 PN 16 - sku 40240
  • DN 65 PN 16 - sku 40207
  • DN 80 PN 16 - sku 40208
  • DN 100 PN 16 - sku  40209
OUTPUT CONNECTION
  • DN 32 PN 16 - sku 40238
  • DN 40 PN 16 - sku 40239
  • DN 50 PN 16 - sku 40240
  • DN 65 PN 16 - sku 40207
  • DN 80 PN 16 - sku 40208
  • DN 100 PN 16 - sku  40209
OPERATING TEMPERATURE - 15°C ÷ + 60°C



OVERALL DIMENSIONS
SKU HOLES A B
40238 4 230 mm 285 mm
40239 4 230 mm 285 mm
40240 4 230 mm 285 mm
40207 4 290 mm 456 mm
40208 8 310 mm 463 mm
40209 8 350 mm 502 mm
