Download Product Data Sheet

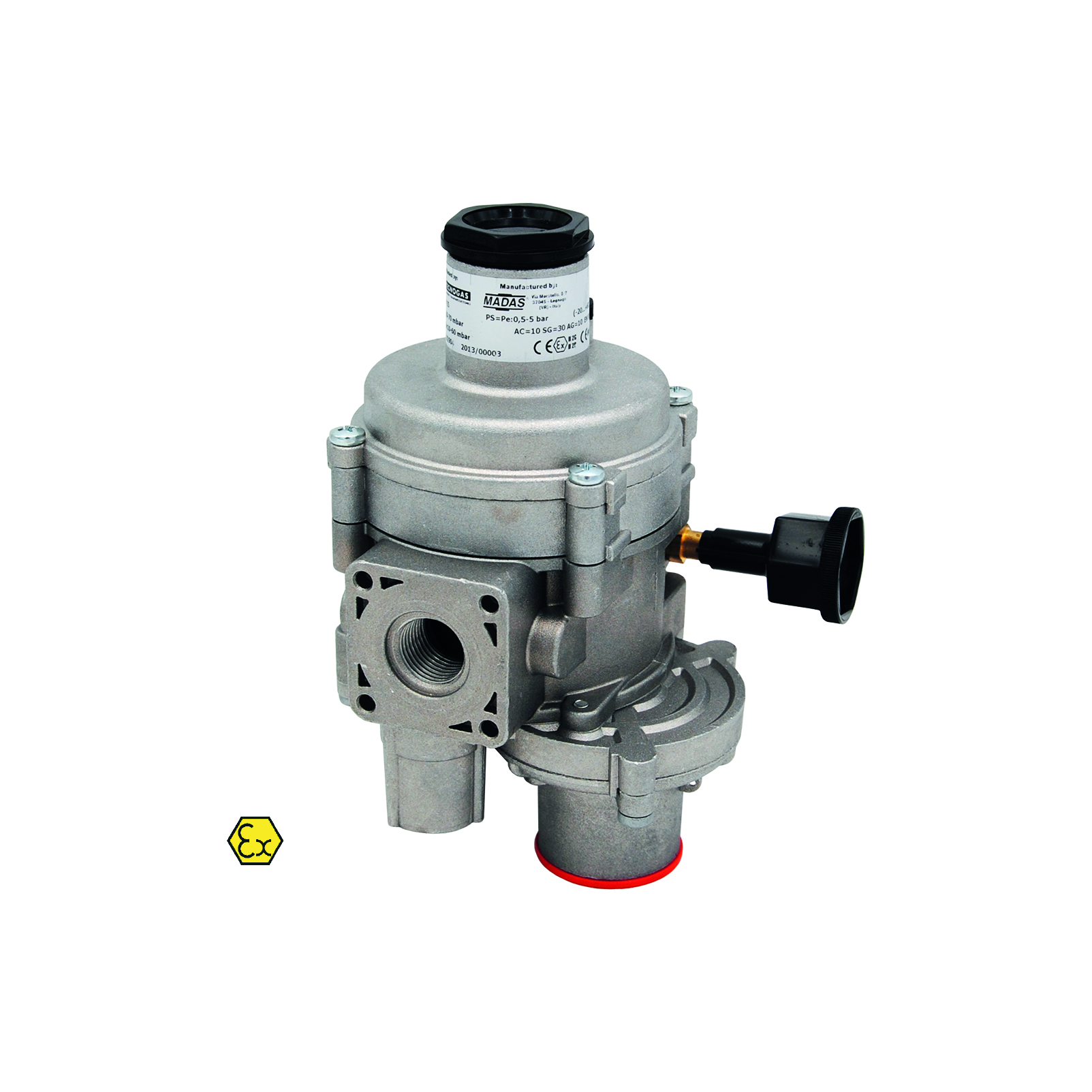

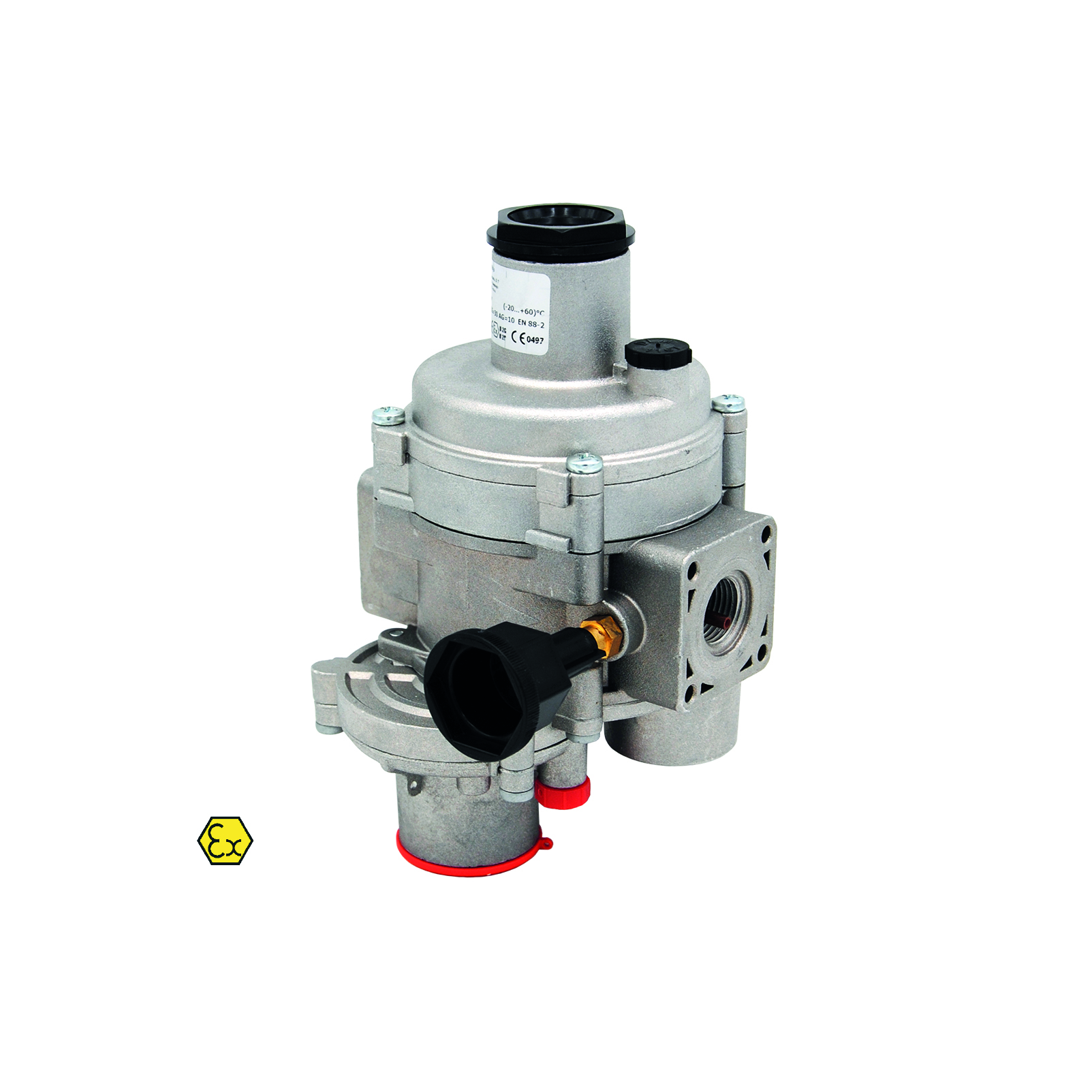

Double Membrane Single-Stage Pressure Regulator with Filter

Models FRG/2MB and FRG/2MB-C, max inlet pressure 5 bar, threaded connections

COMPLIANT WITH PED DIRECTIVE 2014/68/EU AND ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000040174

DOUBLE MEMBRANE SINGLE-STAGE PRESSURE REGULATOR Mod. FRG/2MB-C - 1/2" connections - Q max 25 m3/h

€157,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
1,33 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040175

DOUBLE MEMBRANE SINGLE-STAGE PRESSURE REGULATOR Mod. FRG/2MB-C - 3/4" connections - Q max 25 m3/h

€157,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
18 × 14 × 14 cm

Volume:
0.0037 m3

Weight:
1,31 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040177

DOUBLE MEMBRANE SINGLE-STAGE PRESSURE REGULATOR Mod. FRG/2MB-C - 1" connections - Q max 25 m3/h

€157,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 15 × 15 cm

Volume:
0.0039 m3

Weight:
1,36 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040179

DOUBLE MEMBRANE SINGLE-STAGE PRESSURE REGULATOR Mod. FRG/2MB-C - 1/2" connections - Q max 100 m3/h

€200,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
1,60 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040180

DOUBLE MEMBRANE SINGLE-STAGE PRESSURE REGULATOR Mod. FRG/2MB-C - 3/4" connections - Q max 100 m3/h

€200,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 15 × 23 cm

Volume:
0.006 m3

Weight:
1,65 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040182

DOUBLE MEMBRANE SINGLE-STAGE PRESSURE REGULATOR Mod. FRG/2MB-C - 1" connections - Q max 100 m3/h

€200,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 15 × 23 cm

Volume:
0.0061 m3

Weight:
1,61 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Device which supplies a preset and constant “downstream” pressure value, when the inlet pressure and/or the flow rate changes; the compensated obturator ensures precision when adjusting the output pressure even with high and sudden variations in the inlet pressure.



Equipped with

  • relief valve and output max/min pressure shut off valve
  • complete with inlet filter
  • inlet and outlet parallel
  • regulation key

Technical Features

Q MAX
  • 25 m3/h - sku 40174 / 40175 / 40177
  • 100 m3/h - sku 40179 / 40180 / 40182
USE not aggressive gases of the three families (manufactured / natural / LPG)
INLET PRESSURE RANGE 0,5 ÷ 2 bar
OUTPUT PRESSURE RANGE
  • 10 ÷ 25 mbar - sku 40174 / 40175 / 40177
  • 20 ÷ 30 mbar - sku 40179 / 40180 / 40182
SHUT-OFF SETTING
  • minimum 10 ÷ 30 mbar
  • maximum 20 ÷ 70 mbar - 40 ÷ 90 mbar
INLET CONNECTION
  • 1/2" - sku 40174 / 40179
  • 3/4" - sku 40175 / 40180
  • 1" - sku 40177 / 40182
OUTPUT CONNECTION
  • 1/2" - sku 40174 / 40179
  • 3/4" - sku 40175 / 40180
  • 1" - sku 40177 / 40182
OPERATING TEMPERATURE - 15°C ÷ + 60°C

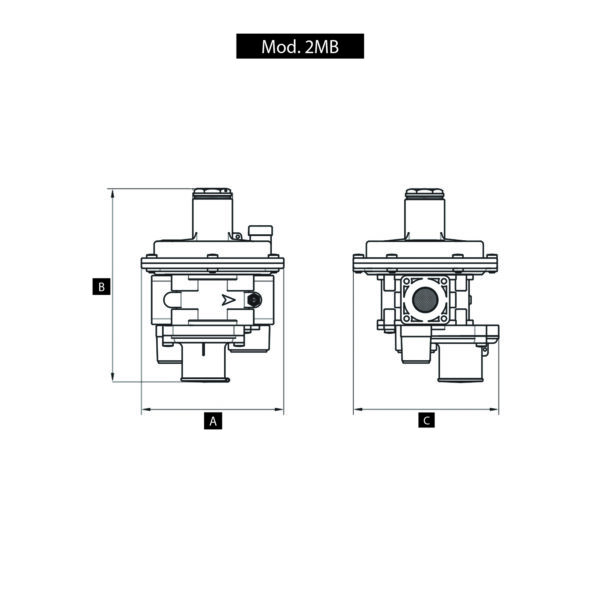

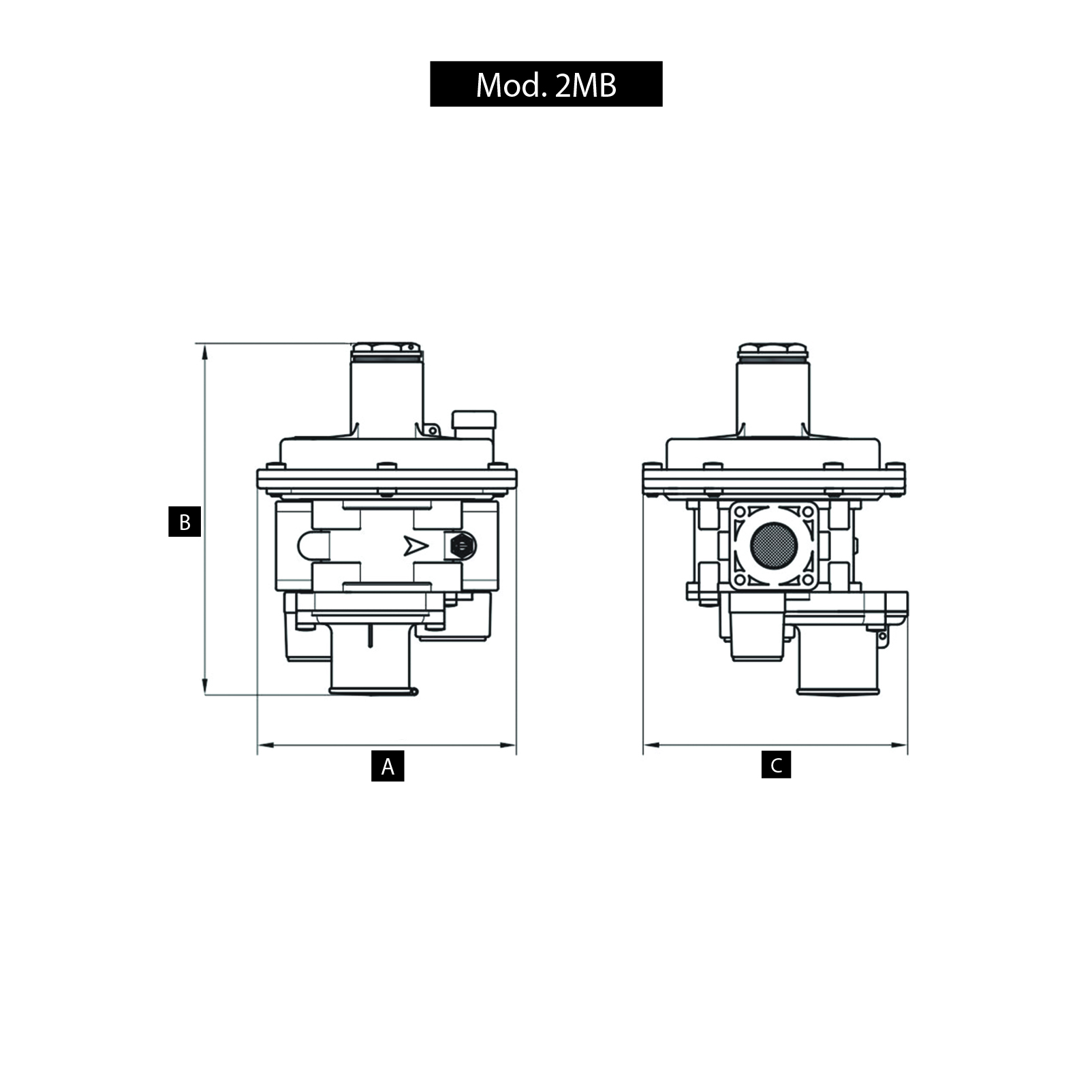

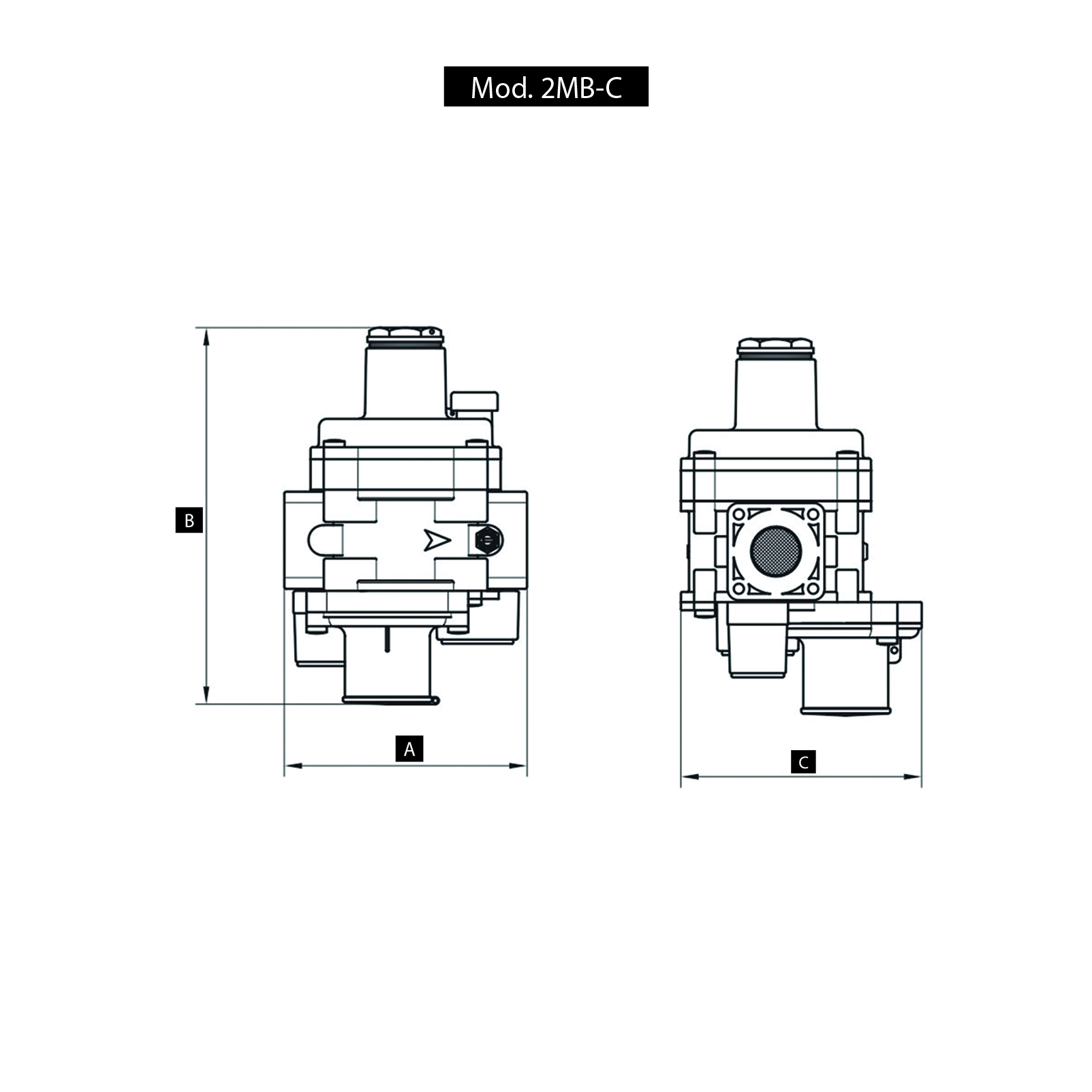

OVERALL DIMENSIONS
SKU A B C
40174 120 mm 186 mm 119 mm
40175 120 mm 186 mm 119 mm
40177 120 mm 186 mm 119 mm
40179 140 mm 190 mm 143 mm
40180 140 mm 190 mm 143 mm
40182 140 mm 190 mm 143 mm



Download

Download Product Data Sheet

Data Sheets

Data Sheet Scheda Tecnica Fiche Technique Ficha De Datos
