Download Product Data Sheet

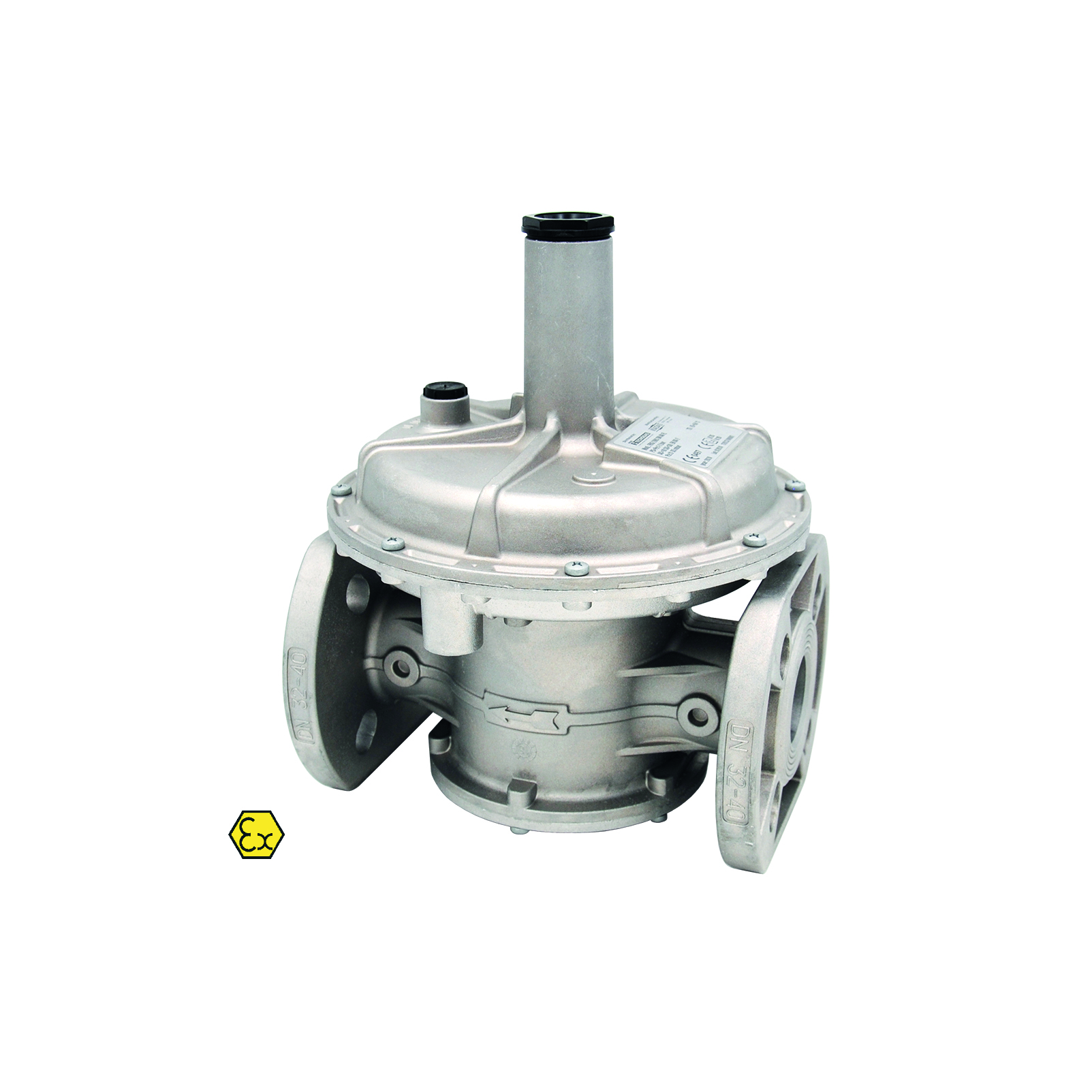

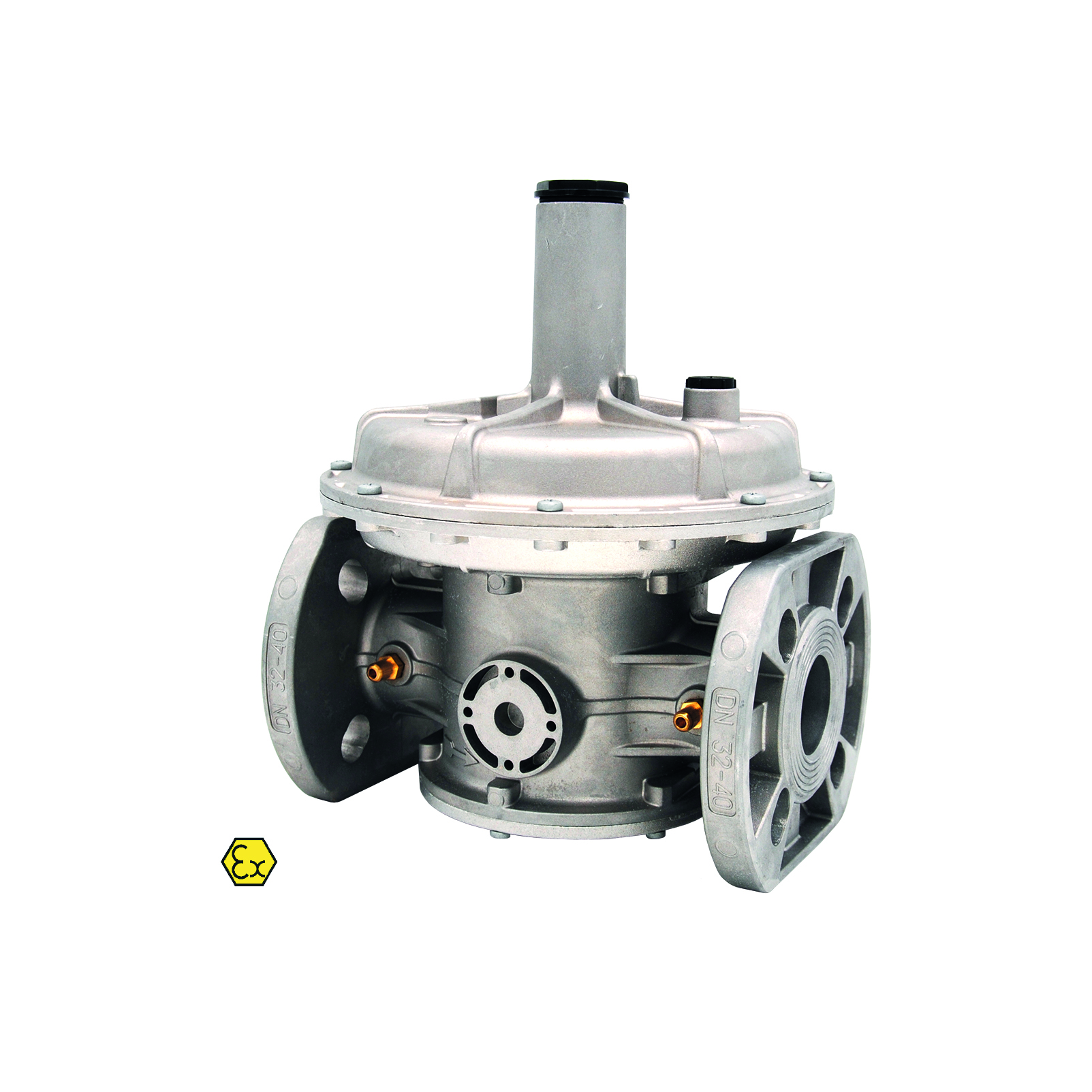

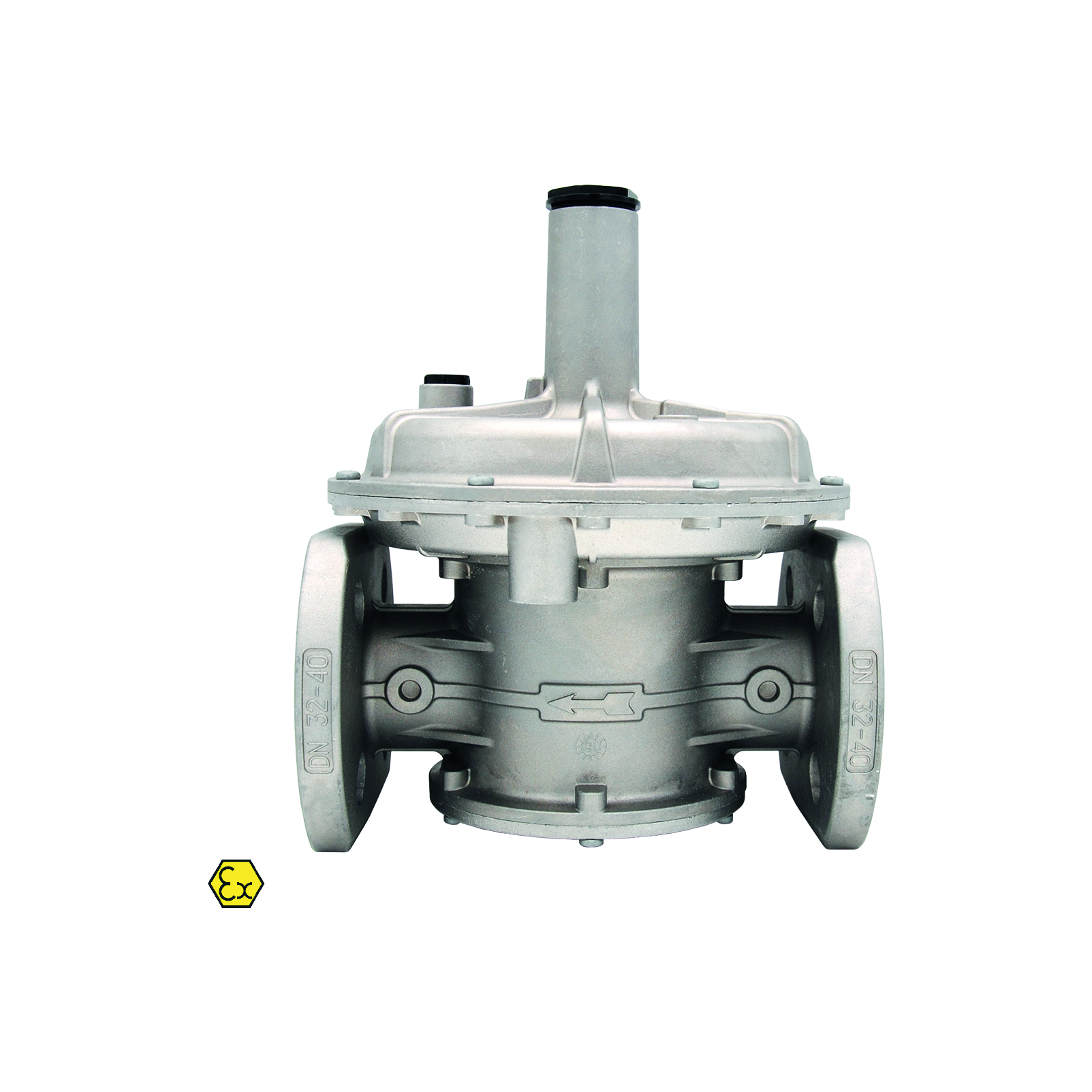

Double Membrane Closing Regulator with Filter

FRG/2MC model, max inlet pressure 2 bar, flanged connections

REINFORCED MEMBRANE OR BIOGAS VERSION ALSO AVAILABLE

COMPLIANT WITH PED DIRECTIVE 2014/68/EU AND ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000040217

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - connections DN 65 PN 16

€1.167,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
35 × 34 × 52 cm

Volume:
0.0619 m3

Weight:
13,94 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040218

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - connections DN 80 PN 16

€1.174,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
35 × 34 × 52 cm

Volume:
0.0634 m3

Weight:
14,46 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040219

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - connections DN 100 PN 16

€2.082,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
36 × 50 × 56 cm

Volume:
0.1008 m3

Weight:
18,57 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040241

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - connections DN 32 PN 16

€357,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040242

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - connections DN 40 PN 16

€357,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
5,24 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040245

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - connections DN 50 PN 16

€485,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0191 m3

Weight:
5,24 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Device which supplies a preset and constant “downstream” pressure value, when the inlet pressure and/or the flow rate changes.



Equipped with

  • spring for adjusting the output pressure
  • safety membrane
  • inlet and output pressure tap for output pressure control
  • flanged connections





Technical Features

USE not aggressive gases of the three families (manufactured / natural / LPG)
INLET PRESSURE RANGE 0,5 ÷ 2 bar
OUTPUT PRESSURE RANGE
  • 13 ÷ 23 mbar - sku 40241 / 40242 / 40245
  • 13 ÷ 27 mbar - sku 40217 / 40218
  • 15 ÷ 27 mbar - sku 40219
INLET CONNECTION
  • DN 32 PN 16 - sku 40241
  • DN 40 PN 16 - sku 40242
  • DN 50 PN 16 - sku 40245
  • DN 65 PN 16 - sku 40217
  • DN 80 PN 16 - sku 40218
  • DN 100 PN 16 - sku  40219
OUTPUT CONNECTION
  • DN 32 PN 16 - sku 40241
  • DN 40 PN 16 - sku 40242
  • DN 50 PN 16 - sku 40245
  • DN 65 PN 16 - sku 40217
  • DN 80 PN 16 - sku 40218
  • DN 100 PN 16 - sku  40219
OPERATING TEMPERATURE - 15°C ÷ + 60°C

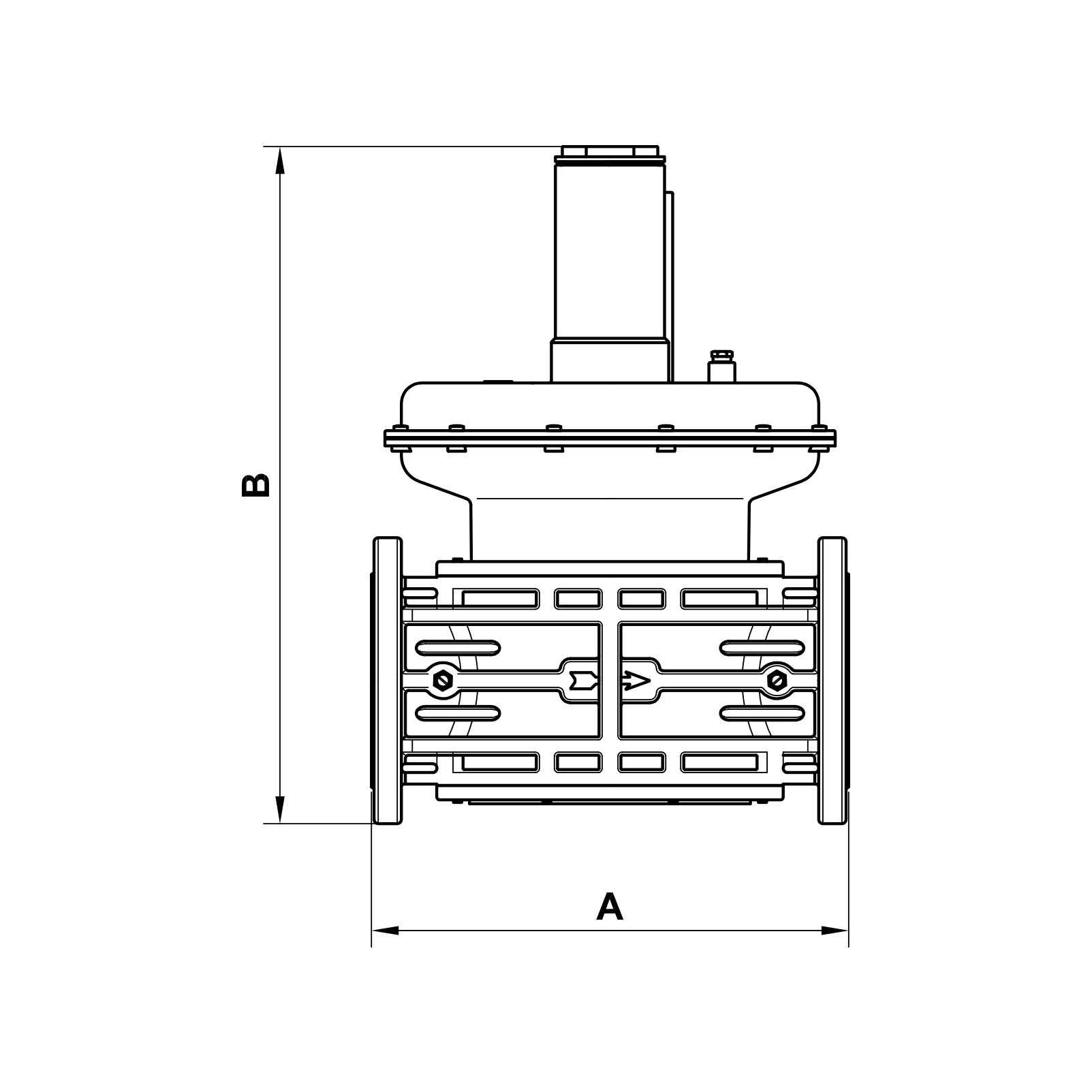

OVERALL DIMENSIONS
SKU HOLES A B  C D E
40241 4 120 mm 194 mm 140 mm 38,5 mm 155,5 mm
40242 4 120 mm 194 mm 140 mm 38,5 mm 155,5 mm
40245 4 120 mm 194 mm 140 mm 38,5 mm 155,5 mm
40217 4 160 mm 242 mm 225 mm 48,5 mm 193,5 mm
40218 8 160 mm 242 mm 225 mm 48,5 mm 193,5 mm
40219 8 160 mm 242 mm 225 mm 48,5 mm 193,5 mm
