Download Product Data Sheet

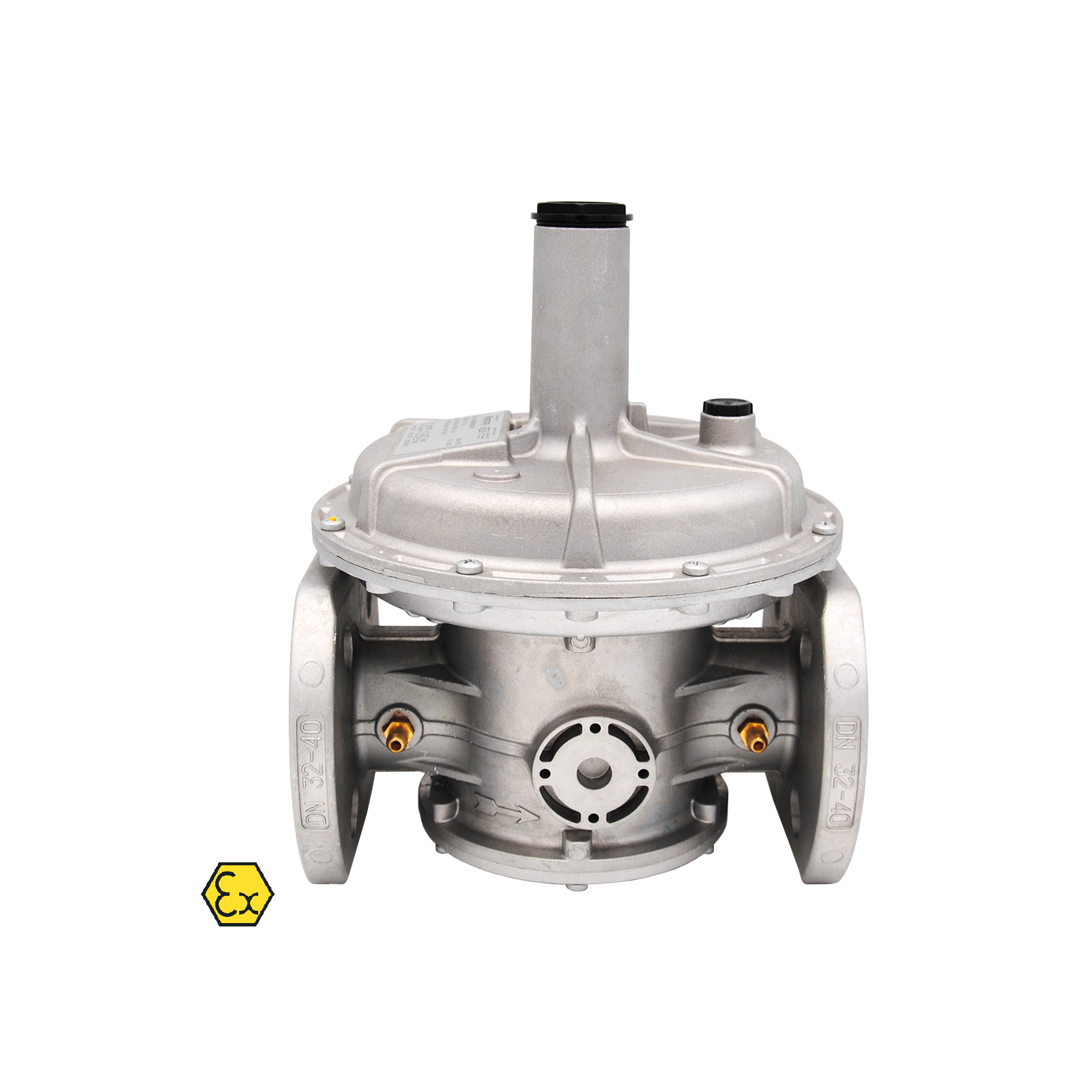

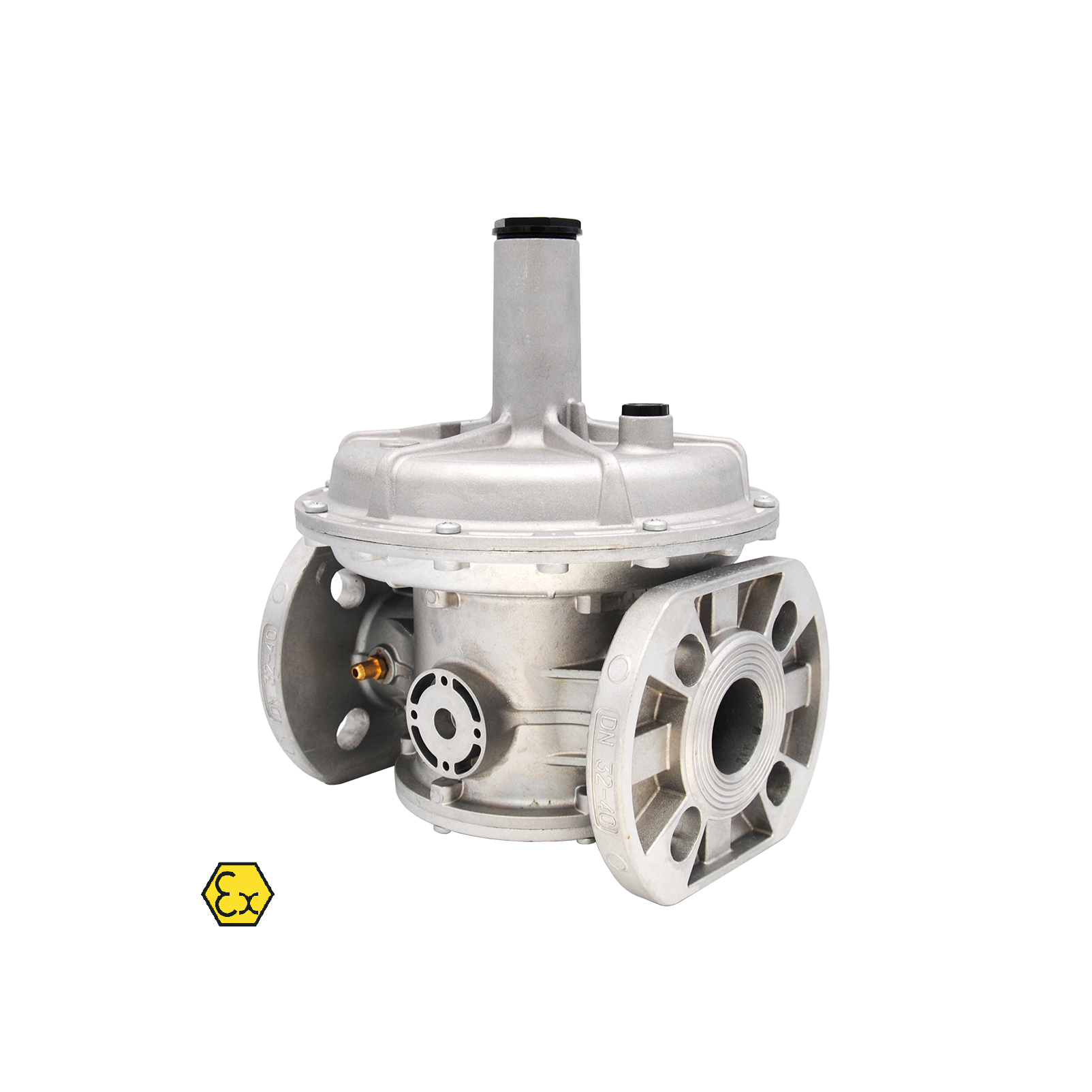

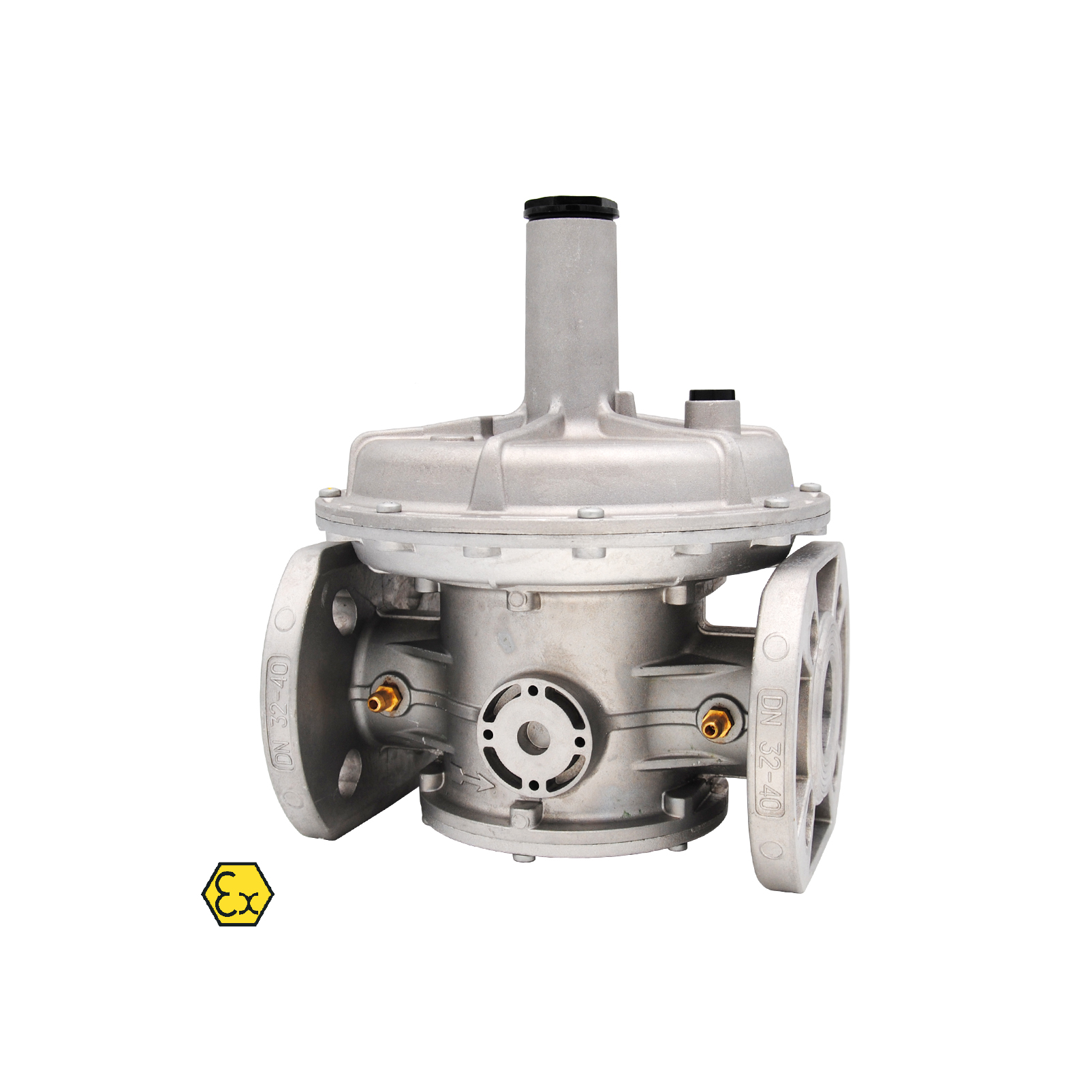

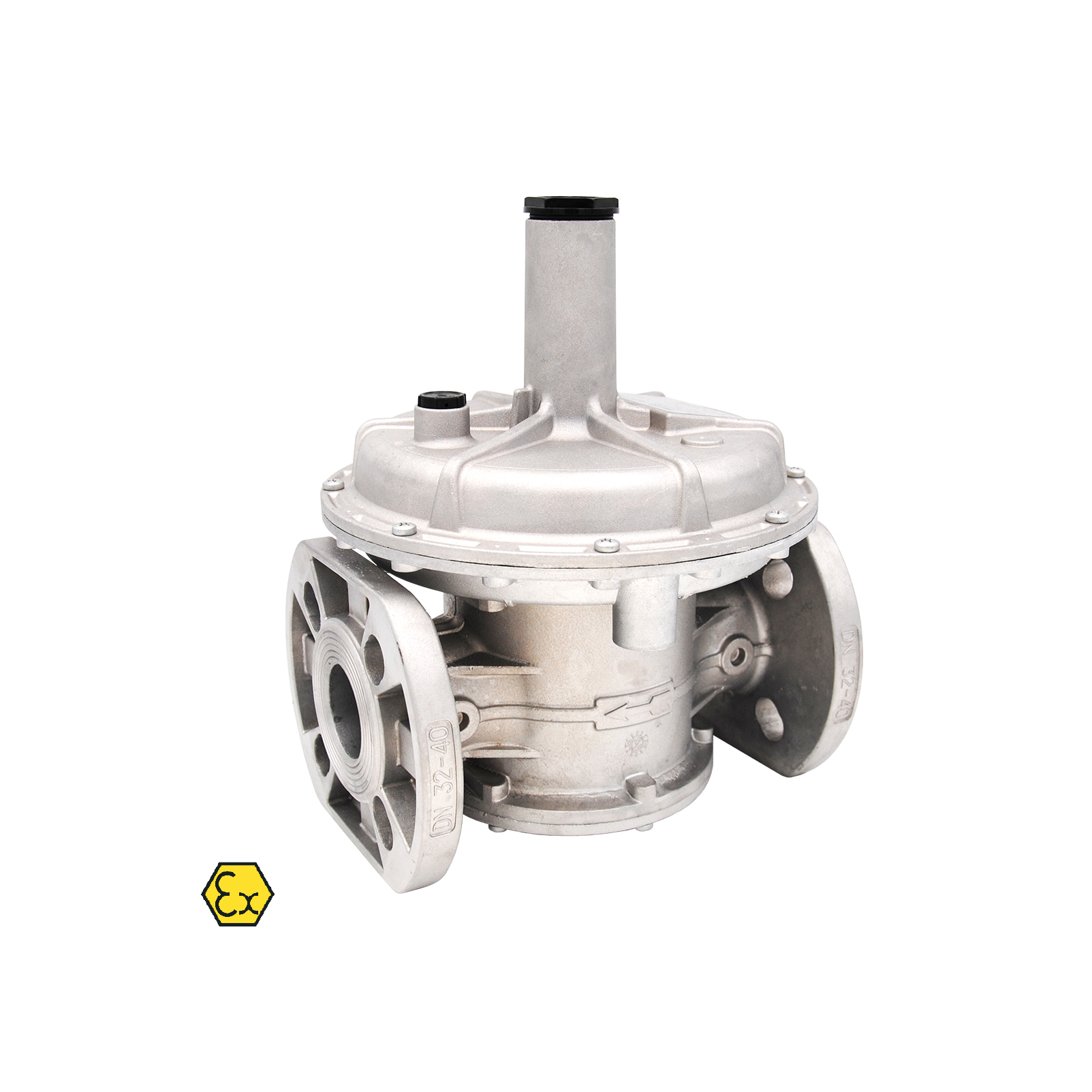

Double Membrane Closing Regulator with Filter

FRG/2MC model, max inlet pressure 1 bar, flanged connections

REINFORCED MEMBRANE OR BIOGAS VERSION ALSO AVAILABLE

COMPLIANT WITH PED DIRECTIVE 2014/68/EU AND ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000040046

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - DN 65 PN 16 connections

€902,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
35 × 53 × 35 cm

Volume:
0.0649 m3

Weight:
13,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040047

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - DN 80 PN 16 connections

€909,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
35 × 34 × 52 cm

Volume:
0.0634 m3

Weight:
14,17 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040048

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - DN 100 PN 16 connections

€1.576,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
51 × 37 × 58 cm

Volume:
0.1119 m3

Weight:
19,75 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040231

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - DN 32 PN 16 connections

€296,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
5,22 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040232

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - DN 40 PN 16 connections

€296,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
30 × 25 × 25 cm

Volume:
0.0188 m3

Weight:
5,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040235

DOUBLE MEMBRANE CLOSING REGULATOR WITH FILTER FRG/2MC MODEL - DN 50 PN 16 connections

€382,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 24 × 30 cm

Volume:
0.0187 m3

Weight:
5,18 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Device which supplies a preset and constant “downstream” pressure value, when the inlet pressure and/or the flow rate changes.



Equipped with

  • spring for adjusting the output pressure
  • safety membrane
  • inlet and output pressure points for outlet pressure control
  • flanged connections

Technical Features

USE not aggressive gases of the three families (manufactured / natural / LPG)
INLET PRESSURE RANGE 0,5 ÷ 1 bar (on request, also 0 ÷ 0,5 bar)
OUTPUT PRESSURE RANGE
  • 13 ÷ 23 mbar - sku 40231 / 40232 / 40235
  • 13 ÷ 27 mbar - sku 40046 / 40047
  • 15 ÷ 27 mbar - sku 40048
INLET CONNECTION
  • DN 32 PN 16 - sku 40231
  • DN 40 PN 16 - sku 40232
  • DN 50 PN 16 - sku 40235
  • DN 65 PN 16 - sku 40046
  • DN 80 PN 16 - sku 40047
  • DN 100 PN 16 - sku 40048
OUTPUT CONNECTION
  • DN 32 PN 16 - sku 40231
  • DN 40 PN 16 - sku 40232
  • DN 50 PN 16 - sku 40235
  • DN 65 PN 16 - sku 40046
  • DN 80 PN 16 - sku 40047
  • DN 100 PN 16 - sku 40048
OPERATING TEMPERATURE - 15°C ÷ + 60°C

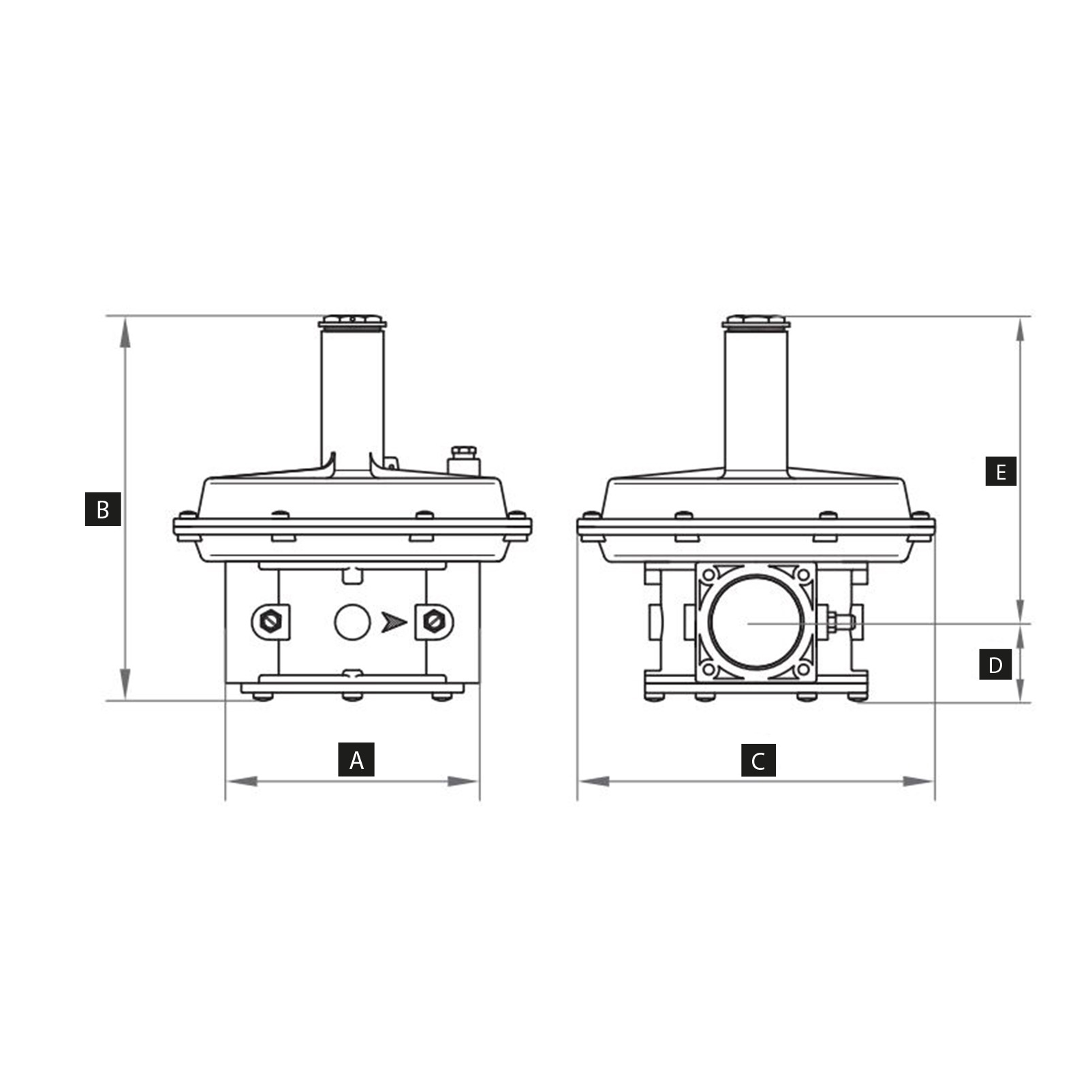

OVERALL DIMENSIONS
SKU HOLES A B (D+E) C D E
40231 4 120 mm 194 mm 140 mm 38,5 mm 155,5 mm
40232 4 120 mm 194 mm 140 mm 38,5 mm 155,5 mm
40235 4 120 mm 194 mm 140 mm 38,5 mm 155,5 mm
40046 4 160 mm 242 mm 225 mm 48,5 mm 193,5 mm
40047 8 160 mm 242 mm 225 mm 48,5 mm 193,5 mm
40048 8 160 mm 242 mm 225 mm 48,5 mm 193,5 mm



Download

Download Product Data Sheet

Data Sheets

Data Sheet Scheda Tecnica Fiche Technique Ficha De Datos
