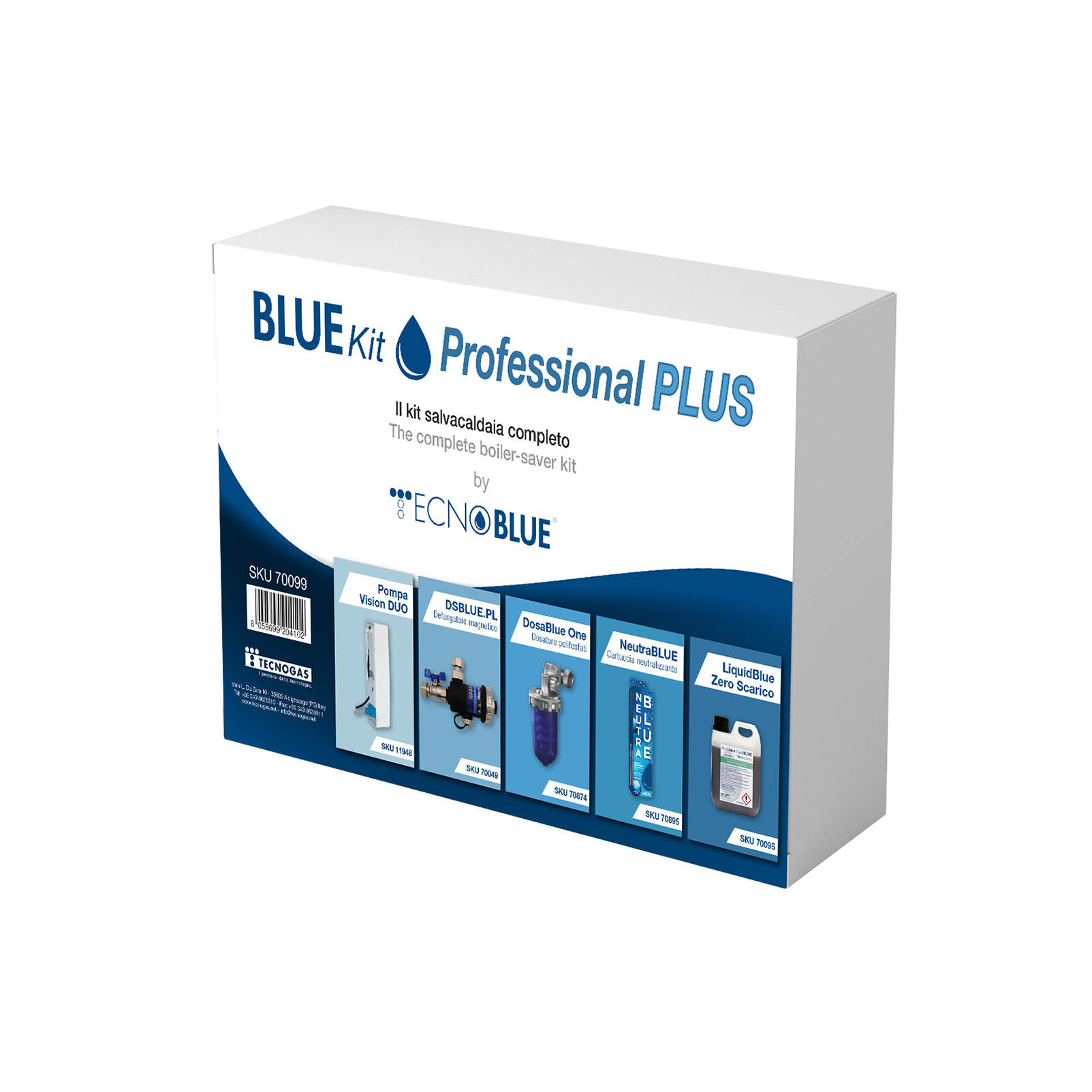

Professional Plus Blue Kit
The complete boiler-save kit
CUSTOMIZATION POSSIBILITY
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070099 |
BLUE KIT PROFESSIONAL PLUS |
€361,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
BLUE KIT PROFESSIONAL PLUS consists of the acid condensate drain pump (SKU 11948), the DSBLUE.PL magnetic filter (SKU 70049), the Dosablue One polyphosphate dispenser with by-pass (SKU 70874), the NeutraBlue neutralizing cartridge (SKU 70895) and LiquidBlue Zero Scarico (SKU 70095).
Technical Features
| SKU 11948 | |
|---|---|
| MAXIMUM CAPACITY | 19 l/h |
| MAXIMUM DISCHARGE | 10 m |
| PH RESISTANCE | pH > 2.5 |
| PUMP POWER | 19W |
| POWER SUPPLY | 220-240V 50/60Hz |
| PROTECTION | IPX3 (protected against water sprayed at an angle within ± 60°, but not protected from the ingress of solid bodies) |
| POWER CABLE LENGTH | 1,4 m |
| SOUND LEVEL | 19,7 dBA (at 1 meter) |
| WORKING TEMPERATURE | da 5°C a 45°C |
| DIMENSIONS | 230 x 61,5 x 55 mm (WxDxH) |
| SKU 70049 | |
|---|---|
| CHEMICAL COMPATIBILITY | water / water and glycol |
| MAX INLET PRESSURE | 3 bar |
| WORKING TEMPERATURE | 0 ÷ 90°C |
| DEGREE OF FILTRATION | 800 µm |
| THREADED CONNECTIONS | G 3/4" FF UNI-EN-ISO 228 |
| KV (RANGE WITH DP 1 BAR) | 5,4 m3/h |
| MAGNETIC FIELD INTENSITY | 11000 Gauss |
| SKU 70874 | |
|---|---|
| 90° CONNECTIONS |
IN/OUT 1/2" mobile (SKU 70874) |
| MAX FLOW RATE | 1,5 m3/h |
| MAX PRESSURE | 3,5 bar |
| WORKING TEMPERATURE | 0°C - 45°C |
| RECHARGE AUTONOMY | 12 - 15 m3 |
| PRESSURE DROP | 0,2 bar |
| VASE MATERIAL | San |
| SKU 70895 | |
|---|---|
| VALID FOR BOILERS UP TO 35 KW | |
| PRODUCT COMPOSITION | calcium carbonate |
| COLOUR | white |
| ODOR | odorless |
| PH | 9,3 - 9,8 |
| FUSION POINT | 1340°C |
| SKU 70095 | |
|---|---|
| CATEGORY | auxiliary chemical product for water treatment |
| APPLICATION | biocidal anti-corrosion antiscalant for closed circuits |
| APPEARANCE | liquid |
| COLOR | amber |
| PH | 7,8 |
| RELATIVE DENSITY | 1,04 |
| SOLIDIFICATION POINT | < 0°C |
| SOLUBILITY WATER | completely miscible |
| MAX TEMPERATURE | 130°C |
| CONTAINERS TO AVOID | avoid contact with aluminium, zinc, nickel, copper and its alloys |
