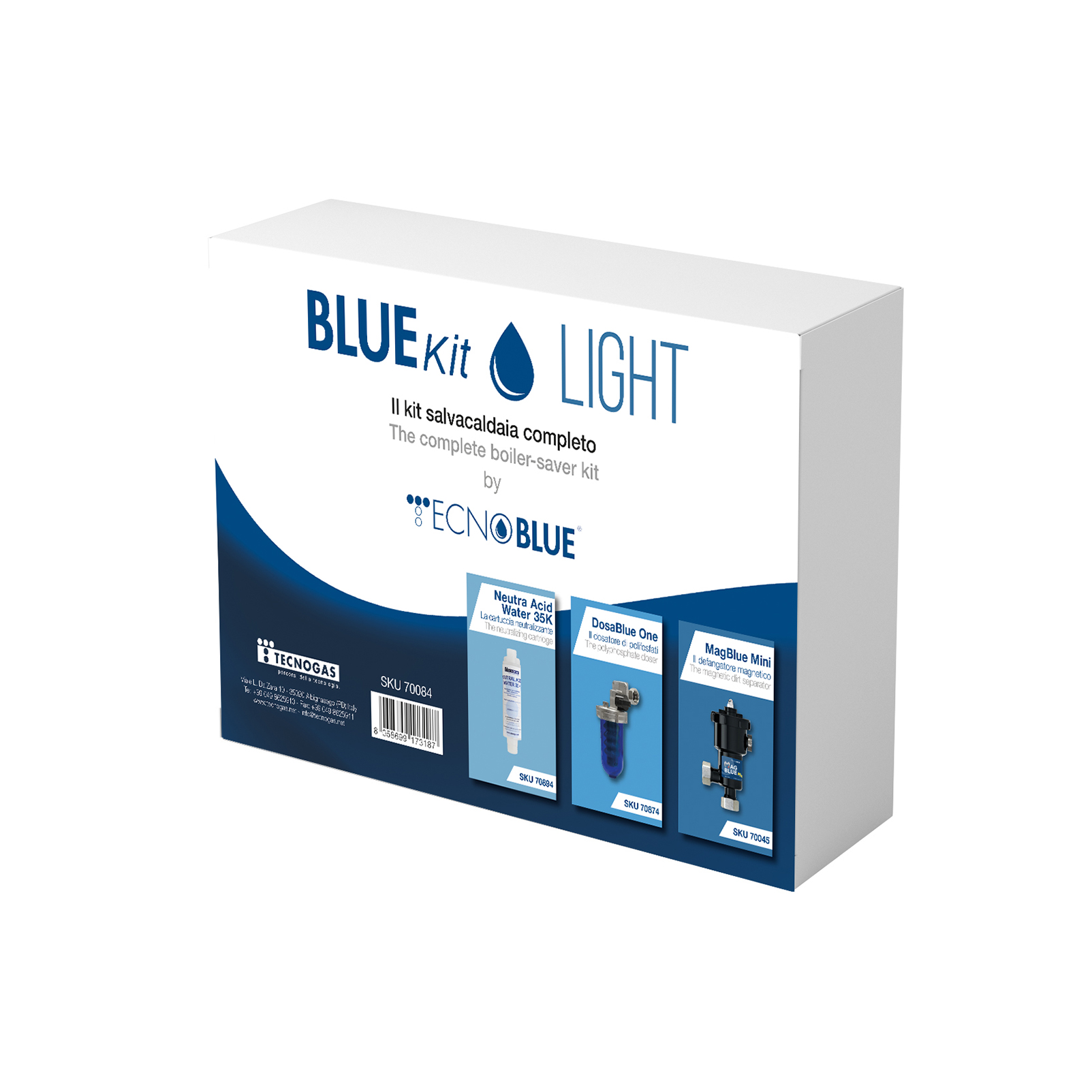

Light Blue Kit
The complete boiler-saver kit
CUSTOMIZATION POSSIBILITY
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070084 |
LIGHT BLUE KIT |
€146,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
BLUE KIT LIGHT consists of the MagBlue Mini magnetic filter (SKU 70045), the Dosablue ONE polyphosphate dispenser (SKU 70874) and the Neutral Acid Water 35K neutralizing cartridge (SKU 70894).
Technical Features
| SKU 70874 | |
|---|---|
| 90° CONNECTIONS |
IN/OUT 1/2" mobile |
| MAX FLOW RATE | 1,5 m3/h |
| MAX PRESSURE | 3,5 bar |
| WORKING TEMPERATURE | 0°C - 45°C |
| RECHARGE AUTONOMY | 12 - 15 m3 |
| PRESSURE DROP | 0,2 bar |
| VASE MATERIAL | San |
| SKU 70049 | |
|---|---|
| CHEMICAL COMPATIBILITY | water / water and glycol |
| MAX INLET PRESSURE | 3 bar |
| WORKING TEMPERATURE | 0 ÷ 90°C |
| DEGREE OF FILTRATION | 800 µm |
| THREADED CONNECTIONS | G 3/4" FF UNI-EN-ISO 228 |
| KV (RANGE WITH DP 1 BAR) | 5,4 m3/h |
| MAGNETIC FIELD INTENSITY | 11000 Gauss |
| SKU 70894 | |
|---|---|
| VALID FOR BOILERS UP TO 35 KW | |
| LENGTH | 220 mm |
| DIAMETER | 47 mm |
| MAX PRESSURE | 0,5 bar |
| MAXIMUM TEMPERATURE | 60°C |
| MAX CAPACITY | 8 l/h |
| UNIT MATERIAL | PP |
| HOSE HOLDER MATERIAL | PP |
| MATERIAL FIXING SYSTEM | PP |
| NEUTRALIZING CHARGE IN CALCIUM CARBONATE (CACO3) | |
| EPDM HYDRAULIC SEALS | |
| ACCESSORIES |
|
