Download Product Data Sheet

Methane Gas Filter

For wall-hung boiler

SKU 4458 / 4460 ALSO AVAILABLE WITH MAX PRESSURE OF 6 BAR, ASK OUR SALES DEPARTMENT

sku model price info add to cart

00000004457

FILTER FOR METHANE GAS - 1/2" connections - 0,5 bar

€23,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
7 × 7 × 4 cm

Volume:
0.0002 m3

Weight:
0,16 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84213100
Buy
Info Request

00000004458

FILTER FOR METHANE GAS - 1/2" connections - 2 bar

€15,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
8 × 6 × 7 cm

Volume:
0.0003 m3

Weight:
0,28 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004459

FILTER FOR METHANE GAS - 3/4" connections - 0,5 bar

€23,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
7 × 7 × 4 cm

Volume:
0.0002 m3

Weight:
0,15 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84213100
Buy
Info Request

00000004460

FILTER FOR METHANE GAS - 3/4" connections - 2 bar

€15,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
8 × 7 × 6 cm

Volume:
0.0003 m3

Weight:
0,29 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

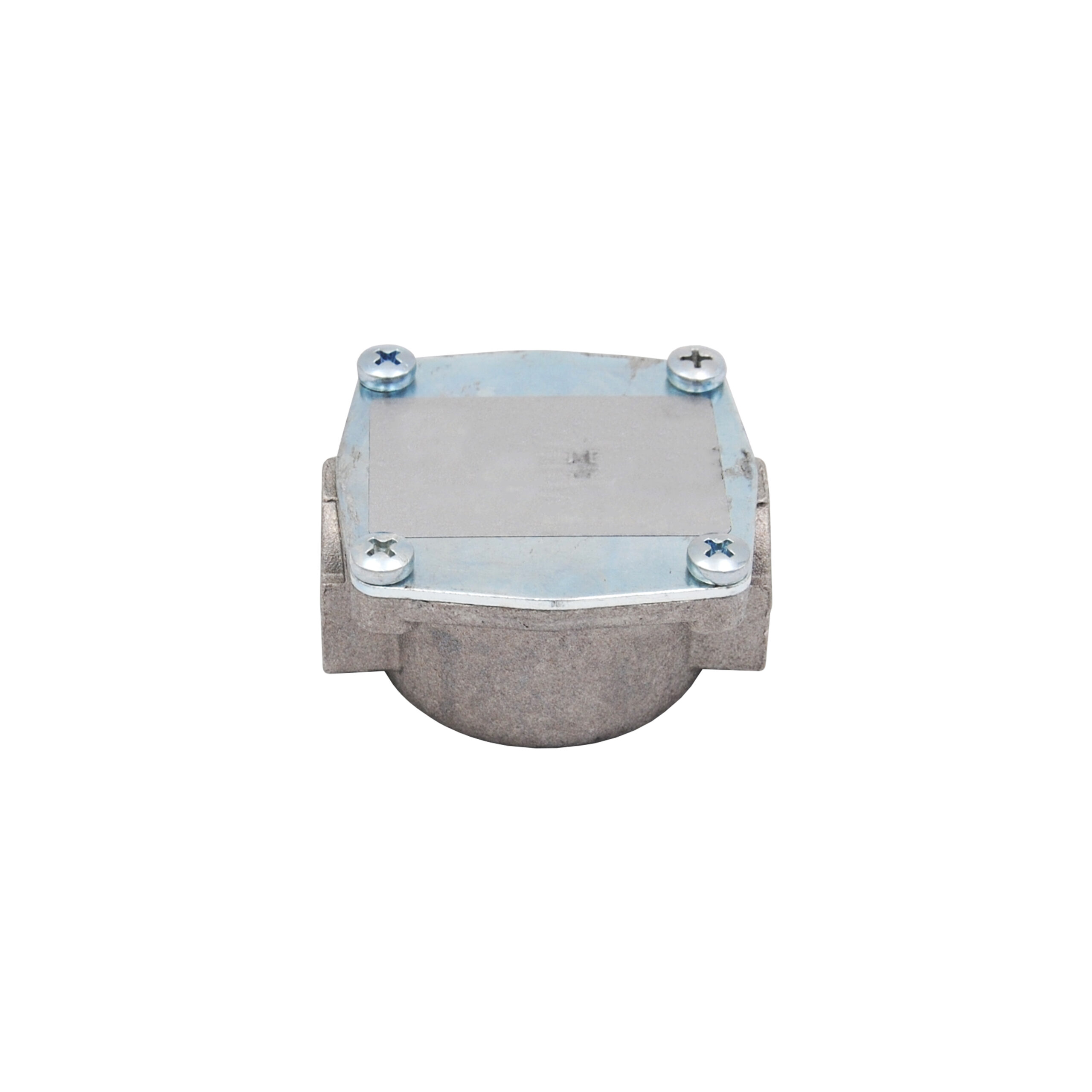

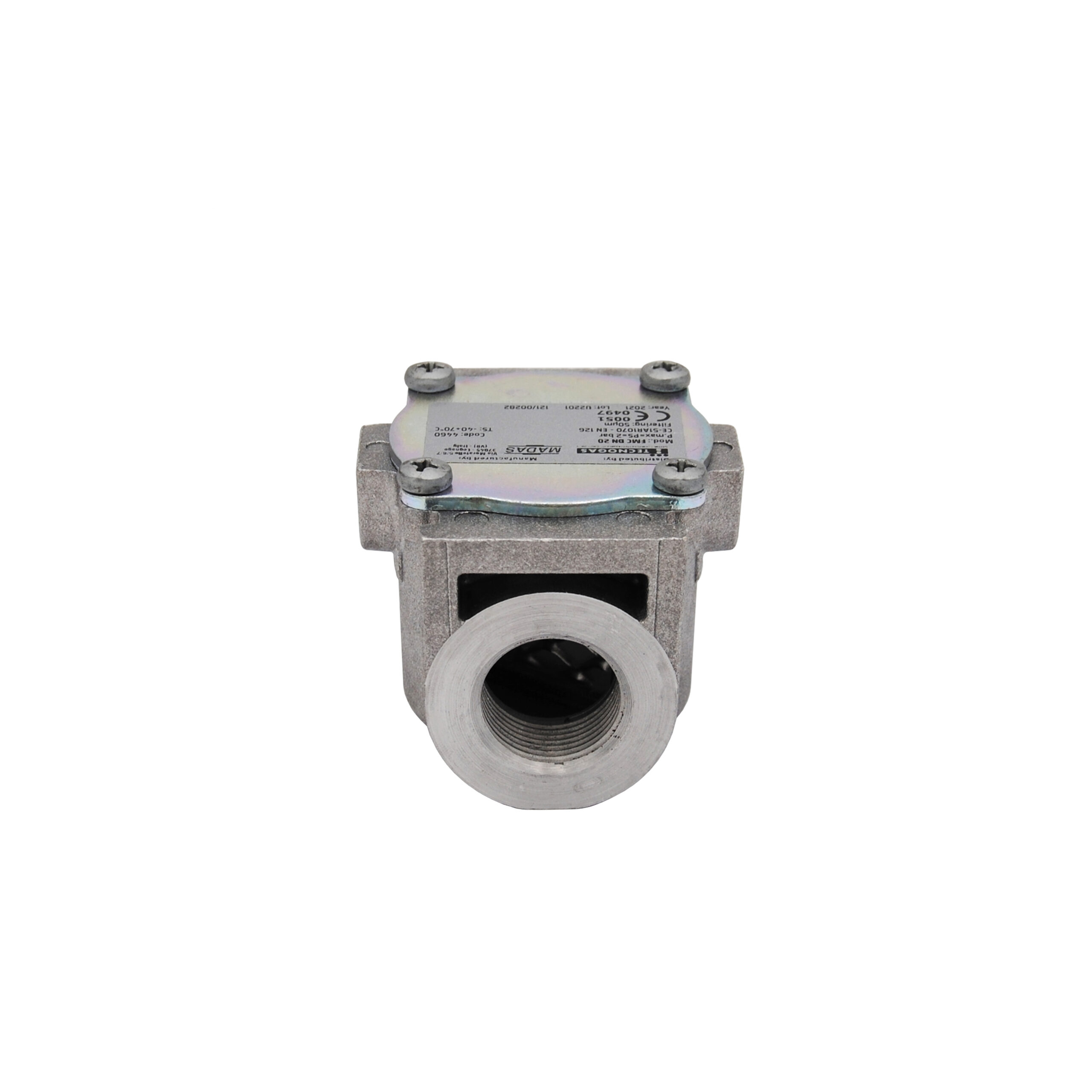

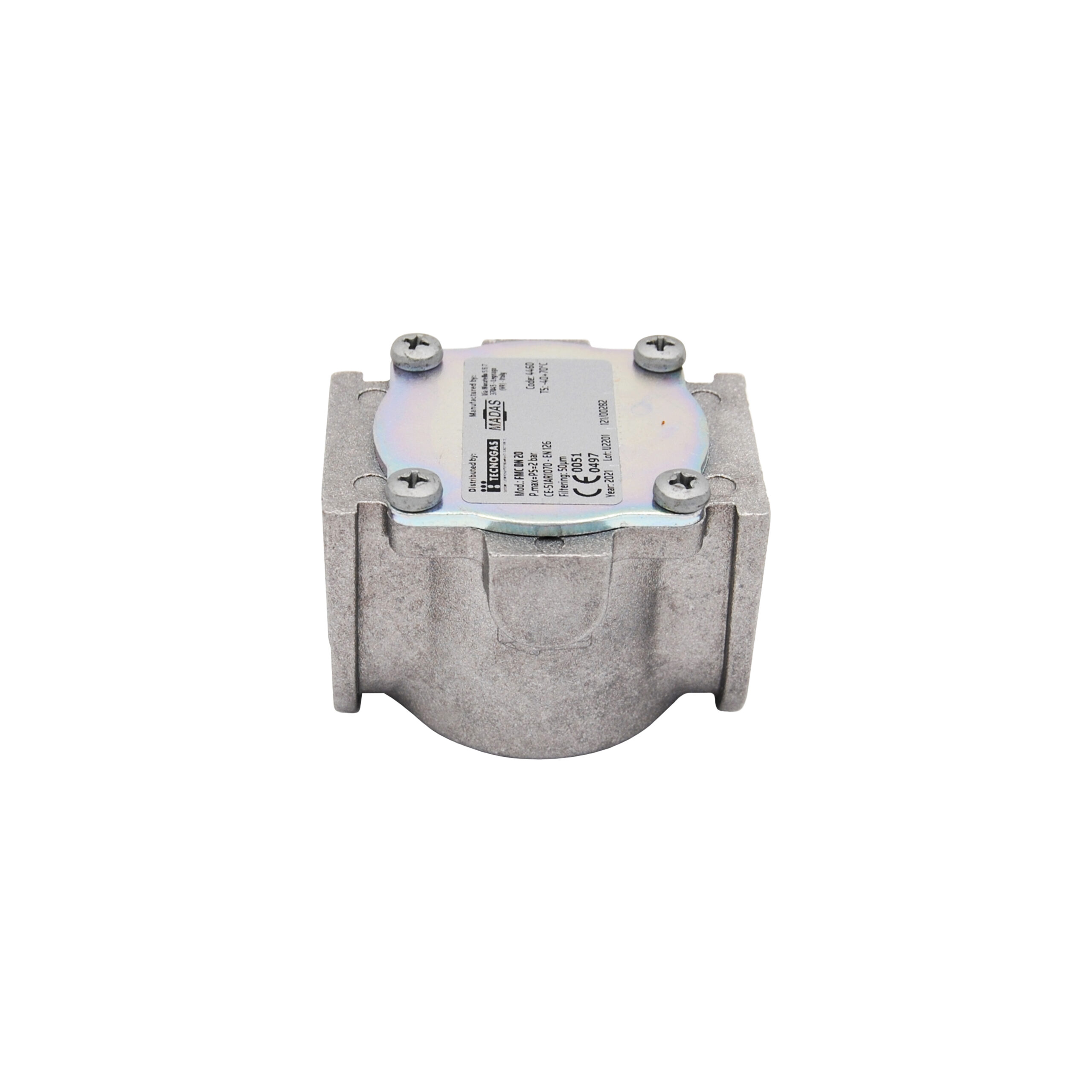

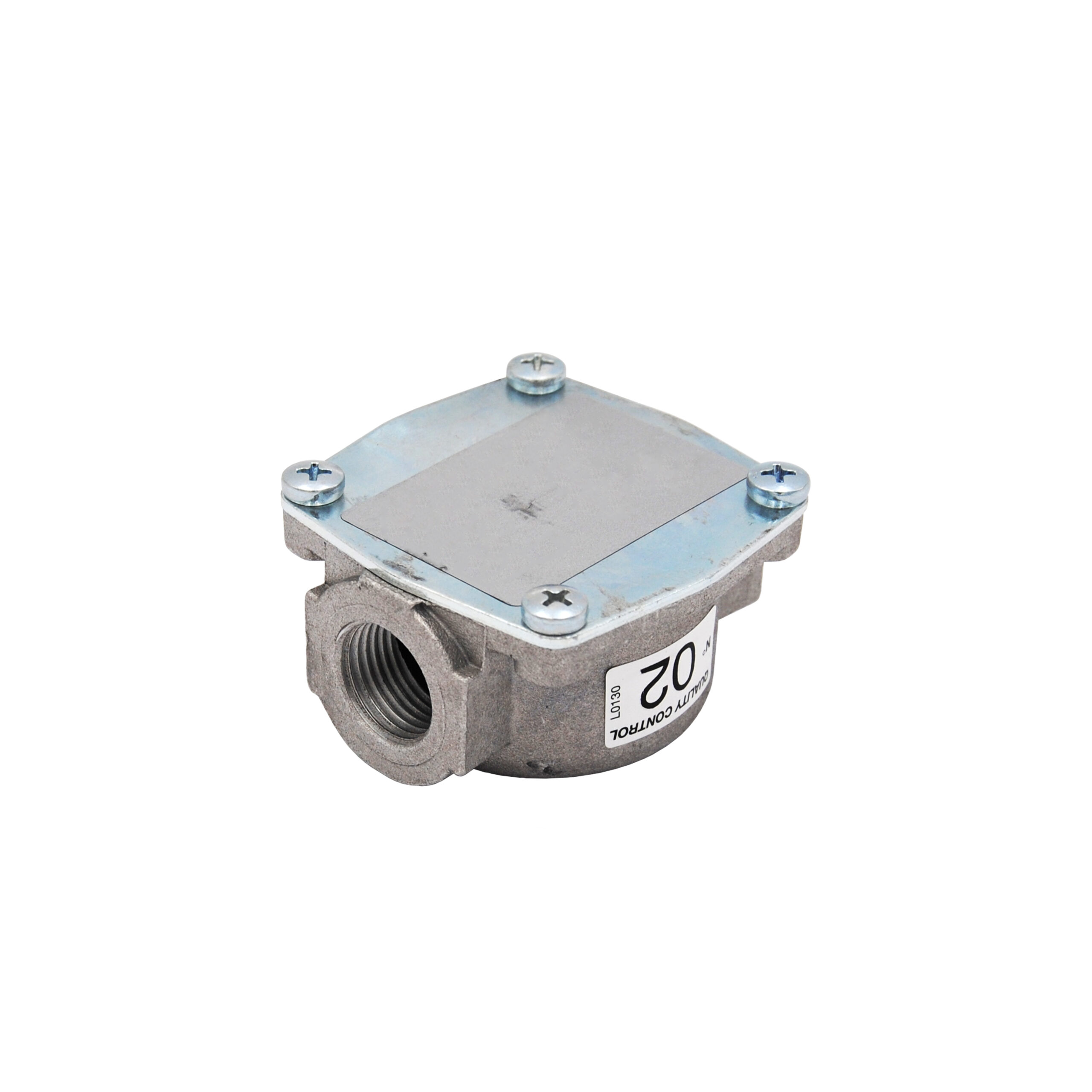

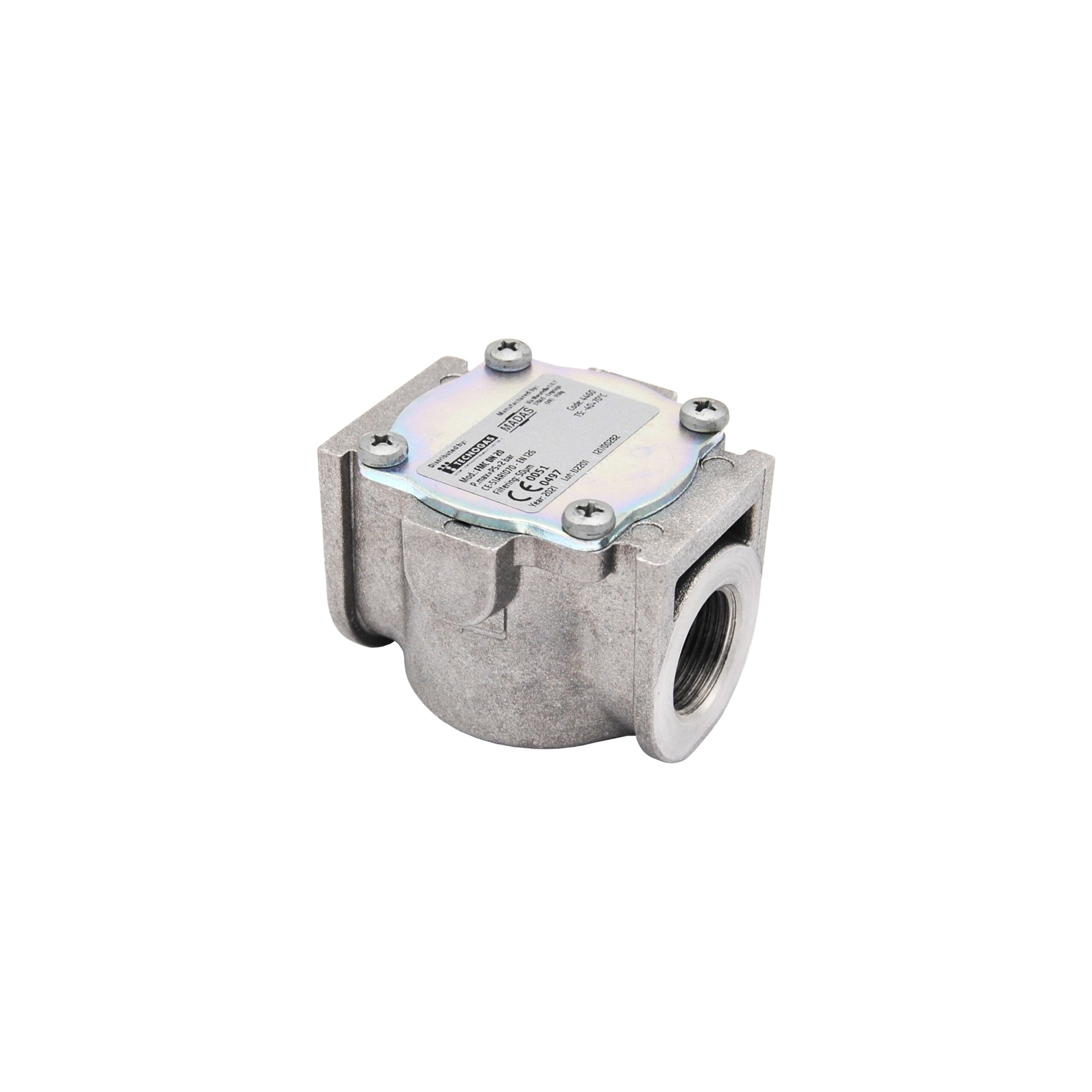

Methane gas filter specifically made for installation on wall-hung boilers, consisting of a completely removable filter cartridge for total inspection, cleaning and/or replacement; this device holds the dust particles carried by the gas and protects the all system from possible obstruction.

Technical Features

SKU 4457 / 4459
USE not aggressive gases of the three families (manufactured / natural / LPG)
MAXIMUM WORKING PRESSURE 0,5 bar
FILTERING DEGREE ≤ 50 µm
MECHANICAL RESISTANCE group 1 (according to EN 13166)
OPERATING TEMPERATURE – 20°C ÷ + 80°C
INLET CONNECTION
  • 1/2" FF – sku 4457
  • 3/4" FF – sku 4459
OUTPUT CONNECTION
  • 1/2" FF – sku 4457
  • 3/4" FF – sku 4459
INSTALLATION it can be installed on both horizontal and vertical pipes
MATERIALS
  • body: aluminum
  • cover: galvanized steel



SKU 4458 / 4460
USE non-aggressive gases of the three families (dry gases)
FLOW RATE see data sheet in downloads below
MAXIMUM WORKING PRESSURE 2 bar
FILTERING DEGREE 50 µm (on request, also available 10 µm or 20 µm)
MECHANICAL RESISTANCE group 2 (according to EN 13166)
OPERATING TEMPERATURE – 40°C ÷ + 70°C
INLET CONNECTION
  • 1/2" FF – sku 4458
  • 3/4" FF – sku 4460
OUTPUT CONNECTION
  • 1/2" FF – sku 4458
  • 3/4" FF – sku 4460
INSTALLATION it can be installed on both horizontal and vertical pipes
MATERIALS aluminum body

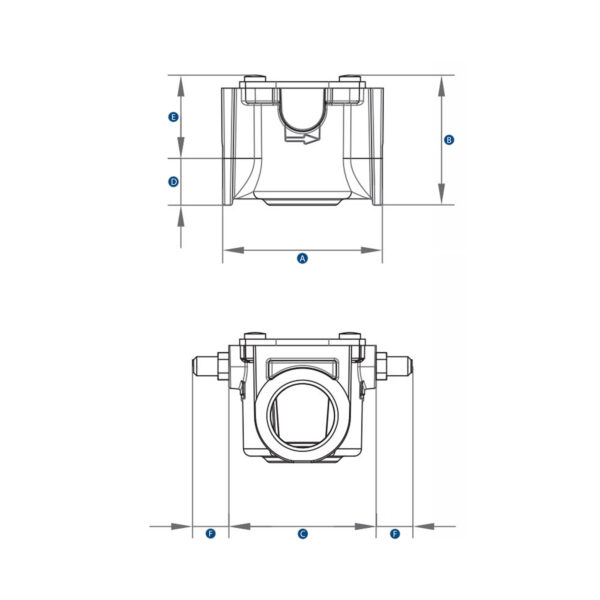

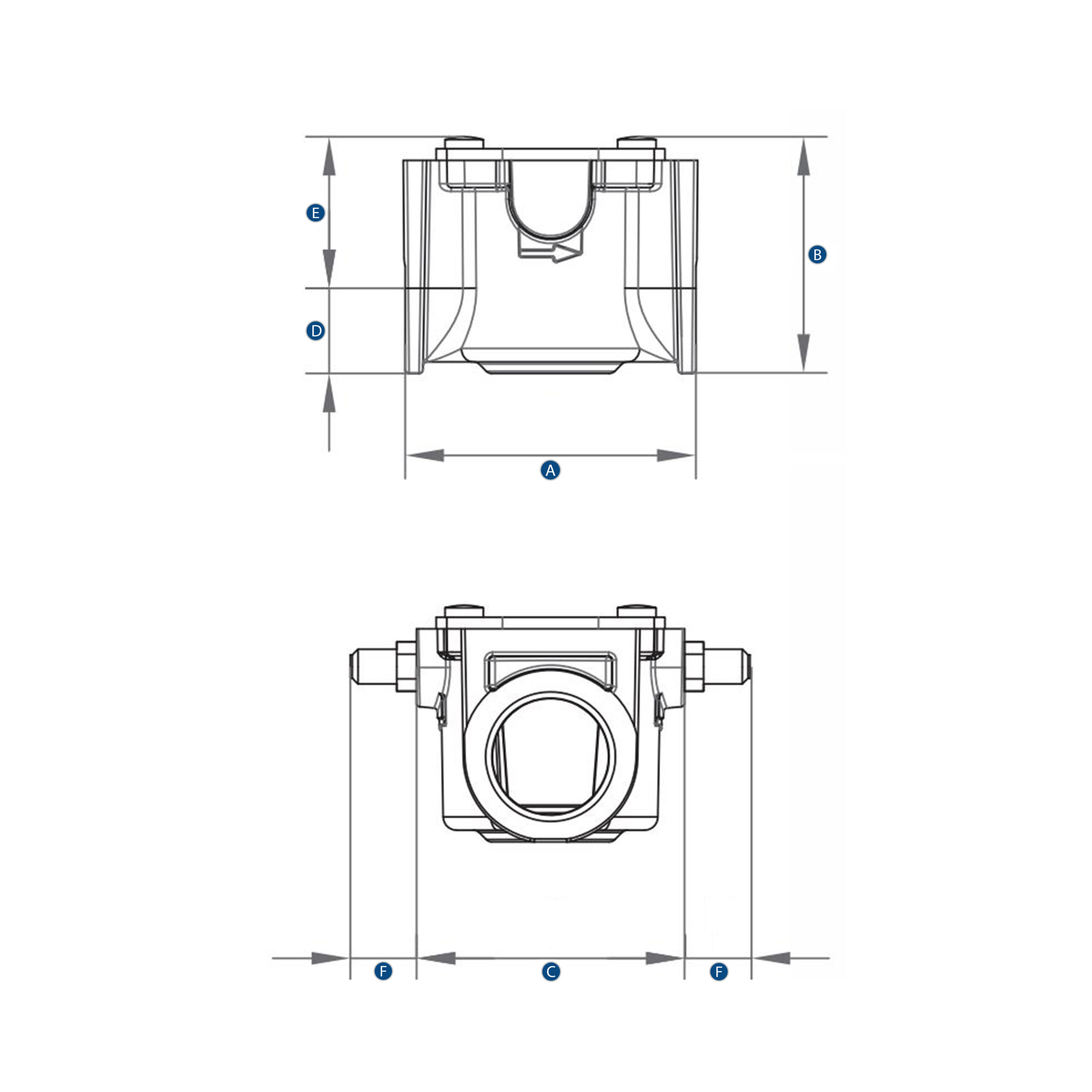

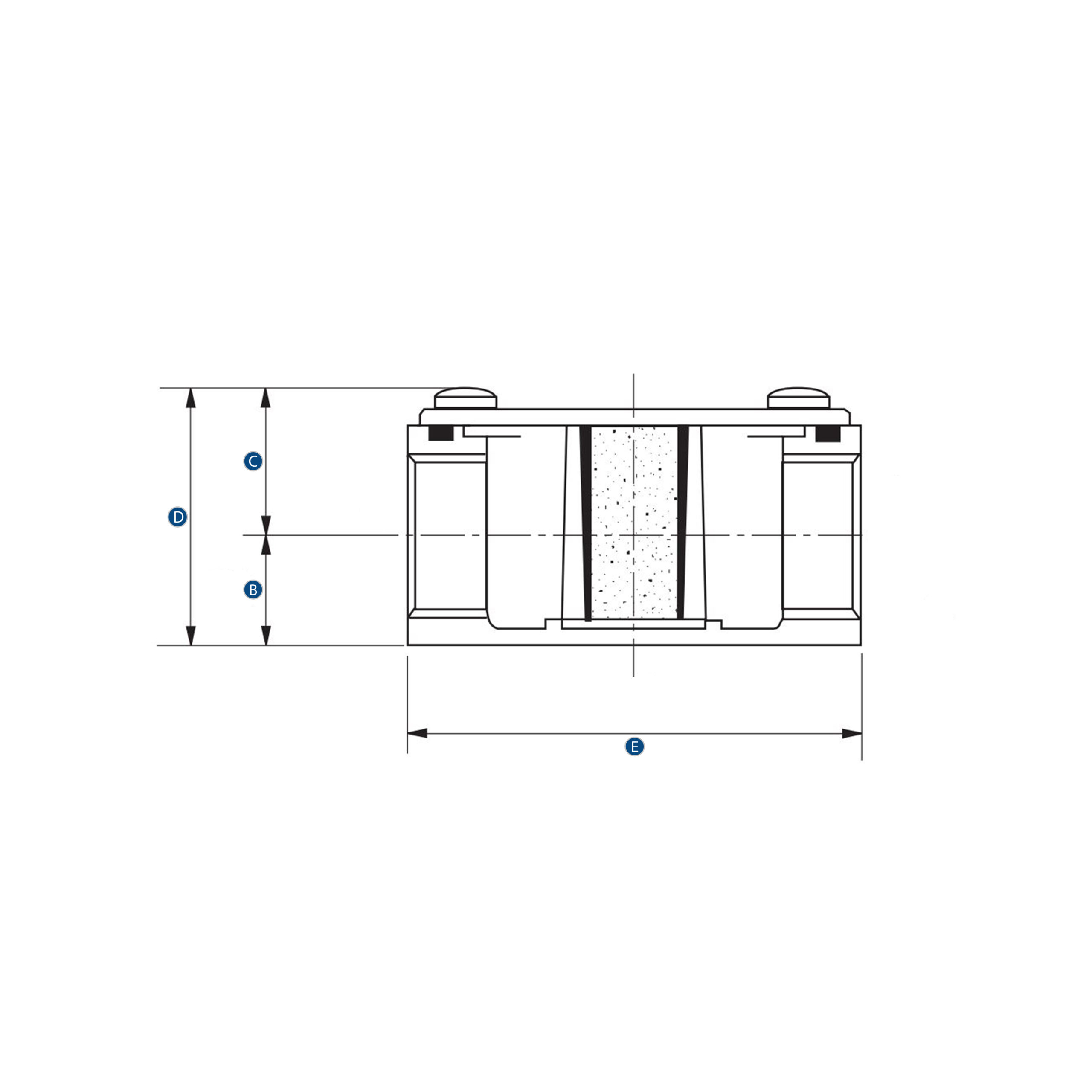

OVERALL DIMENSIONS
SKU A B C D E  F
4457 – 17 mm 22 mm 39 mm 70 mm –
4458 75 mm 67 mm 69 mm 22 mm 39 mm 17 mm
4459 – 17 mm 22 mm 39 mm 70 mm –
4460 75 mm 67 mm 69 mm 22 mm 39 mm 17 mm
