Excess Flow Safety Device
For gas systems
OTHER DIMENSIONS AVAILABLE ON REQUEST
THREADED CONNECTIONS ACCORDING TO EN 10226-1
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004292 |
EXCESS FLOW SAFETY DEVICE - 1/2" MF connections |
€56,95 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004293 |
EXCESS FLOW SAFETY DEVICE - 3/4" MF connections |
€74,35 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004294 |
EXCESS FLOW SAFETY DEVICE - 1" MF connections |
€68,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

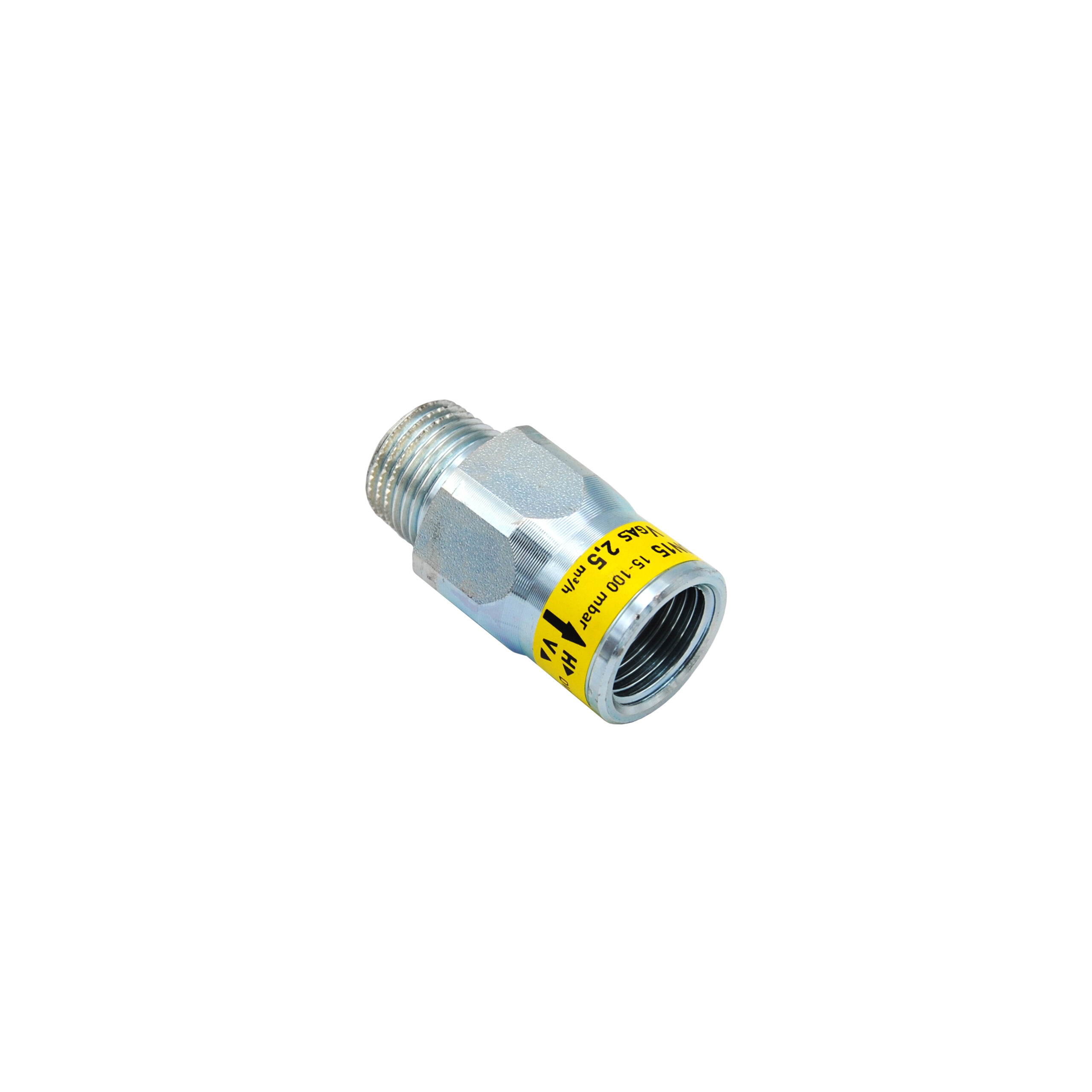

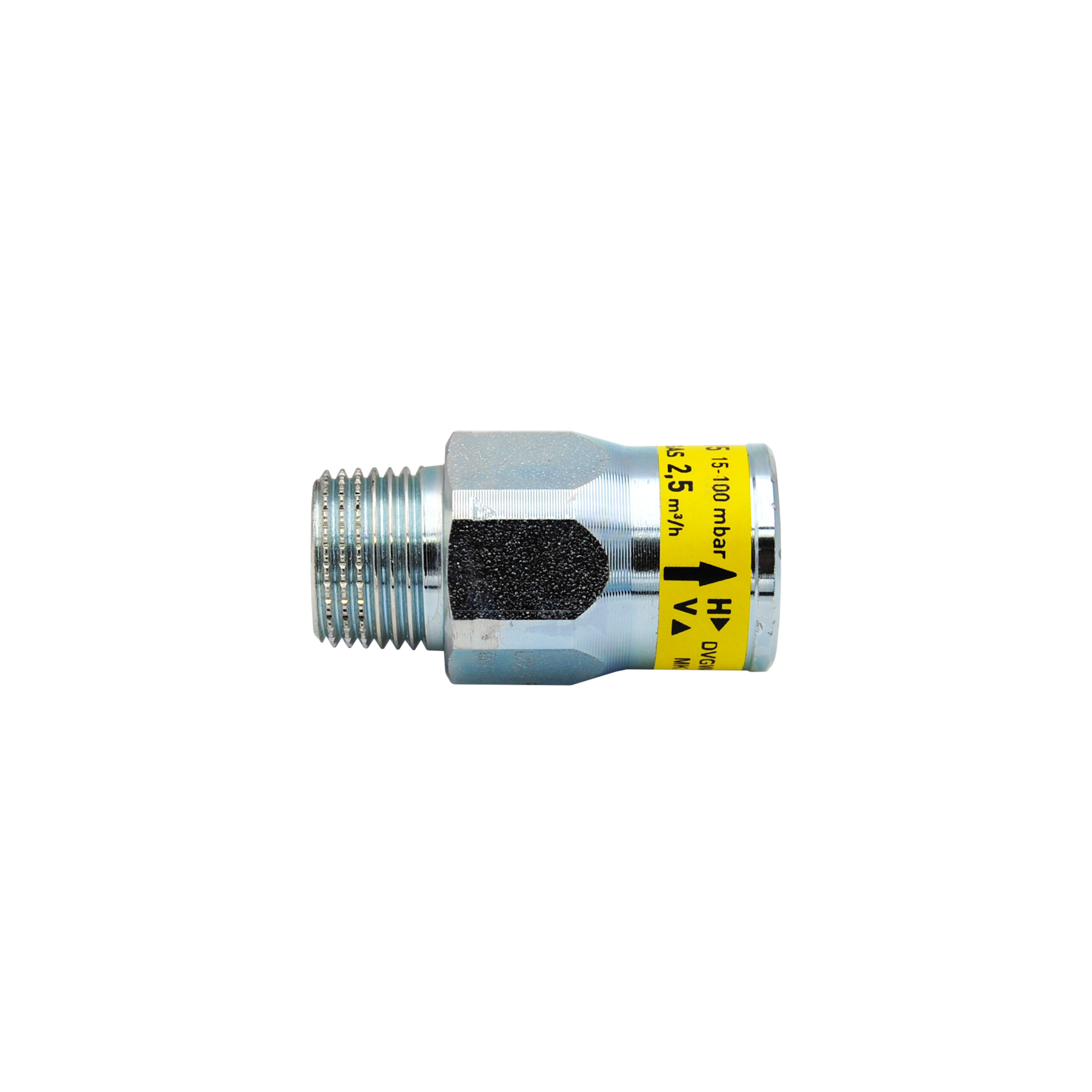

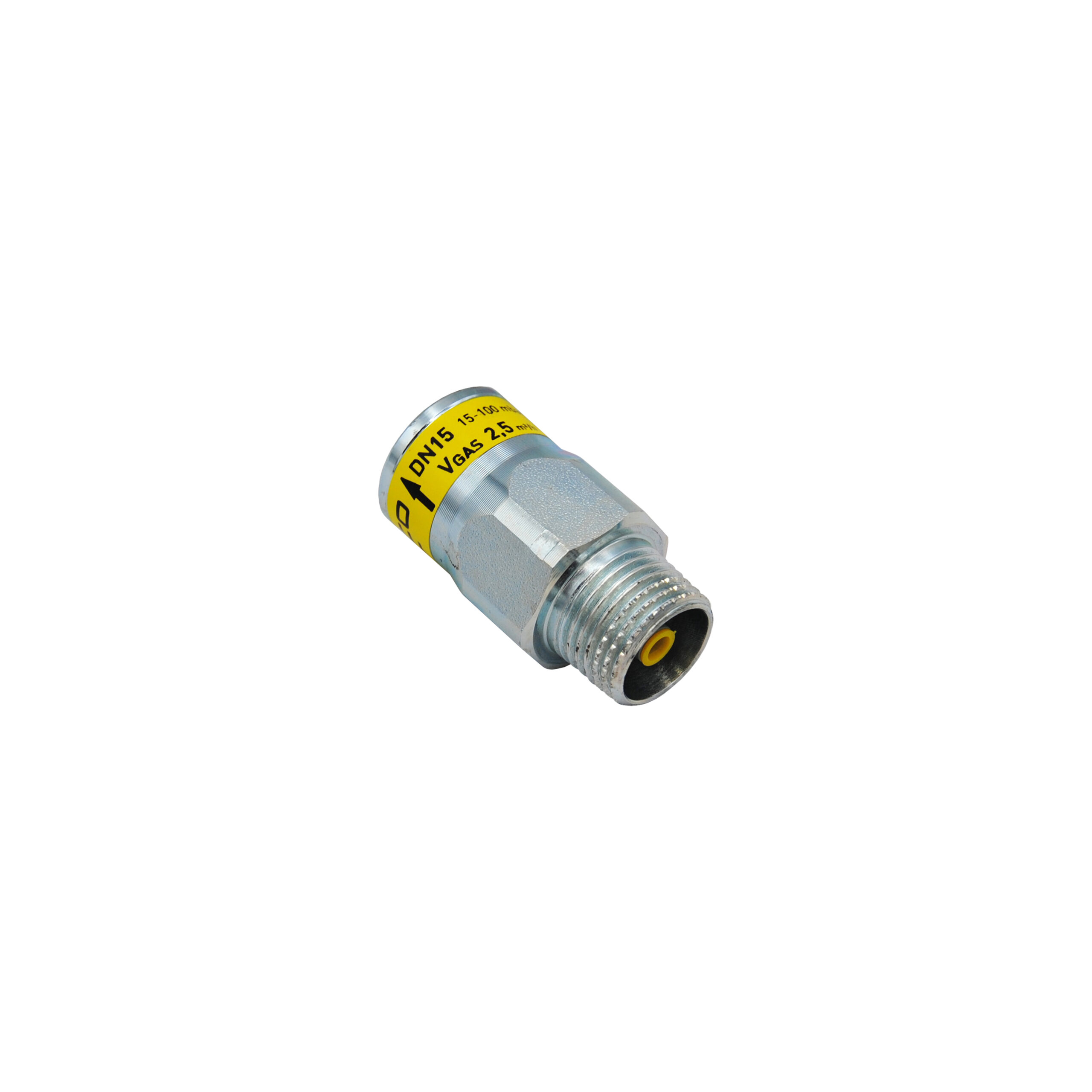

Excess flow safety device designed to instantly block the gas flow inside the pipe whenever the flow rate value is accidentally exceeded.
Technical Features

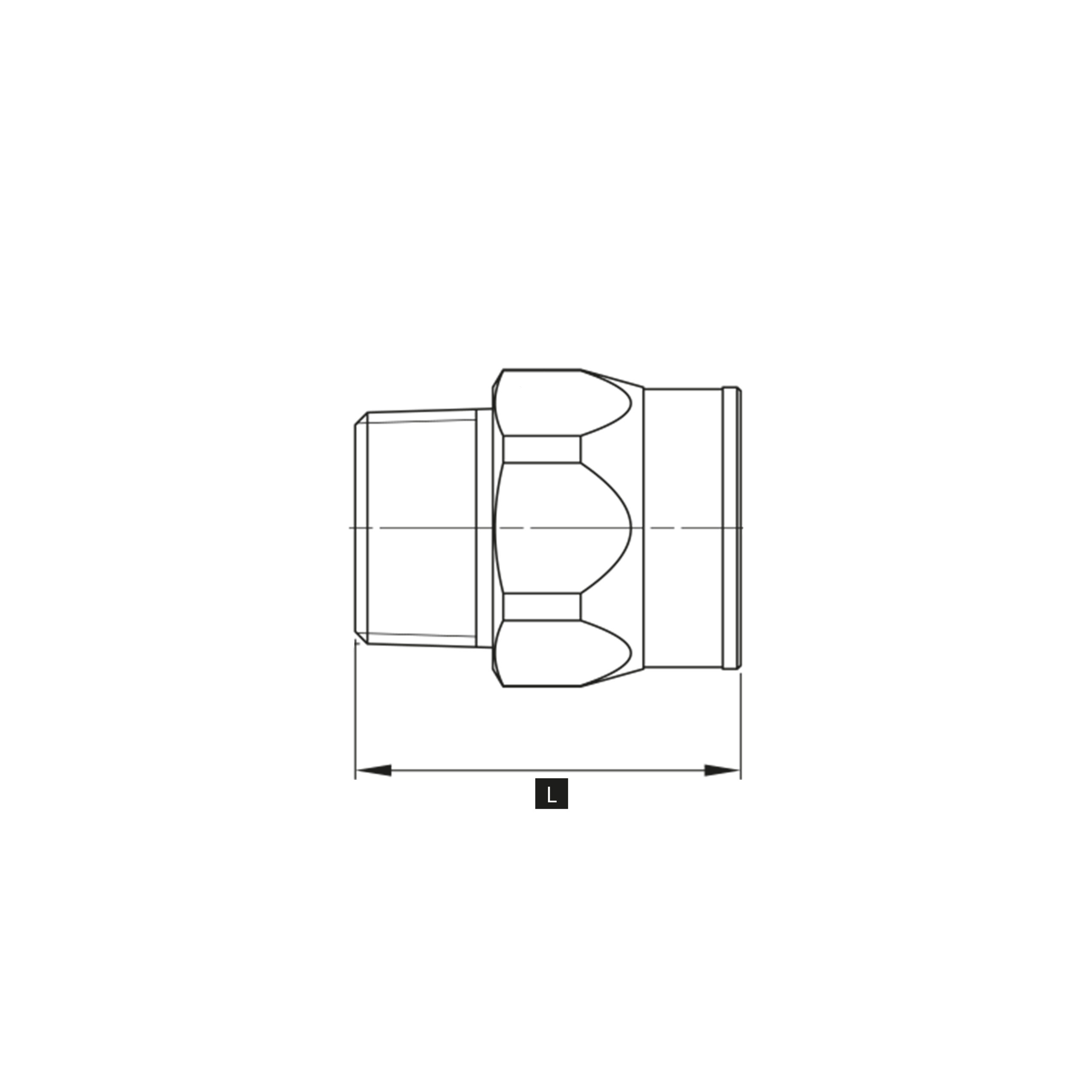

| SKU | CONNECTION | OPERATING PRESSURE | OPERATING TEMPERATURE | PRESSURE DROP | WORK APPLICATION | FLOW RATE | DIMENSIONS |
|---|---|---|---|---|---|---|---|
| 4292 | 1/2" MF | 15 ÷ 100 mbar | - 20°C ÷ + 60°C | Δp < 0,5 mbar | for all types of gas as specified in EN 437 and DVGW G260/1 | 2,5 m3/h | L 52 mm |
| 4293 | 3/4" MF | L 52 mm | |||||
| 4294 | 1" MF | L 54 mm |
