Membrane Relief Valve
VS4 model, Ø 1" x 1"
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004376 |
MEMBRANE BLOWING VALVE Mod. VS4 LOW PRESSURE - 1"x1" connections |
€293,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004377 |
MEMBRANE BLOWING VALVE Mod. VS4 LOW PRESSURE - 1"x1" connections |
€314,25 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Relief valve designed to discharge release a certain amount of gas outside when the pressure at the control point exceeds the setting pressure.
Technical Features
| PROJECT PRESSURE | 16 bar |
|---|---|
| PRESSURE RANGE | press (who) 0,02 ÷ 1 bar |
| OPERATING TEMPERATURE | - 20°C ÷ + 60°C |
| ACCURACY CLASS | AG ± 2,5 % |
| MATERIAL | die cast aluminium |
| CONNECTIONS | IN 1" - OUT 1" |

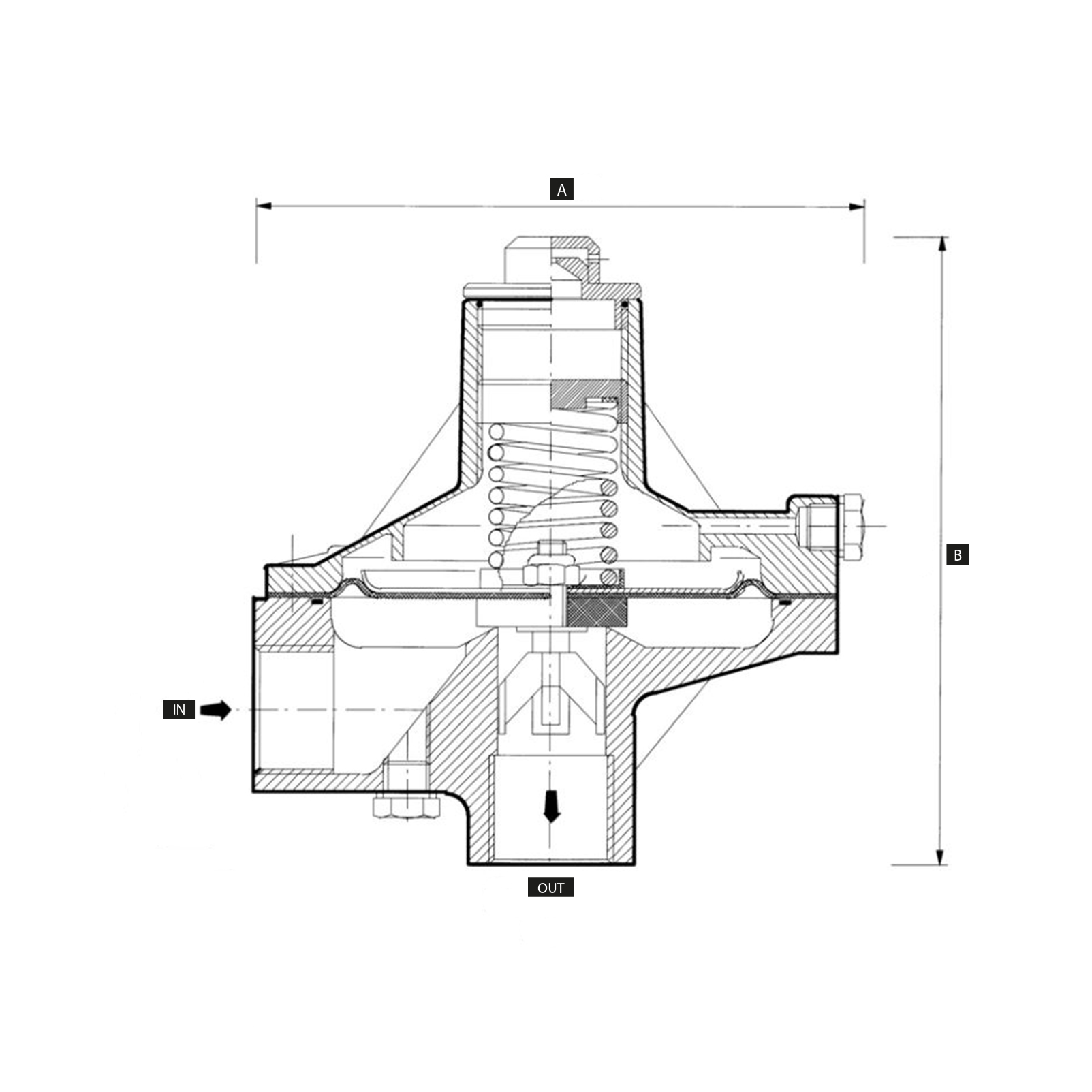

| DIMENSION | 160 x 161 mm (AxB) |
