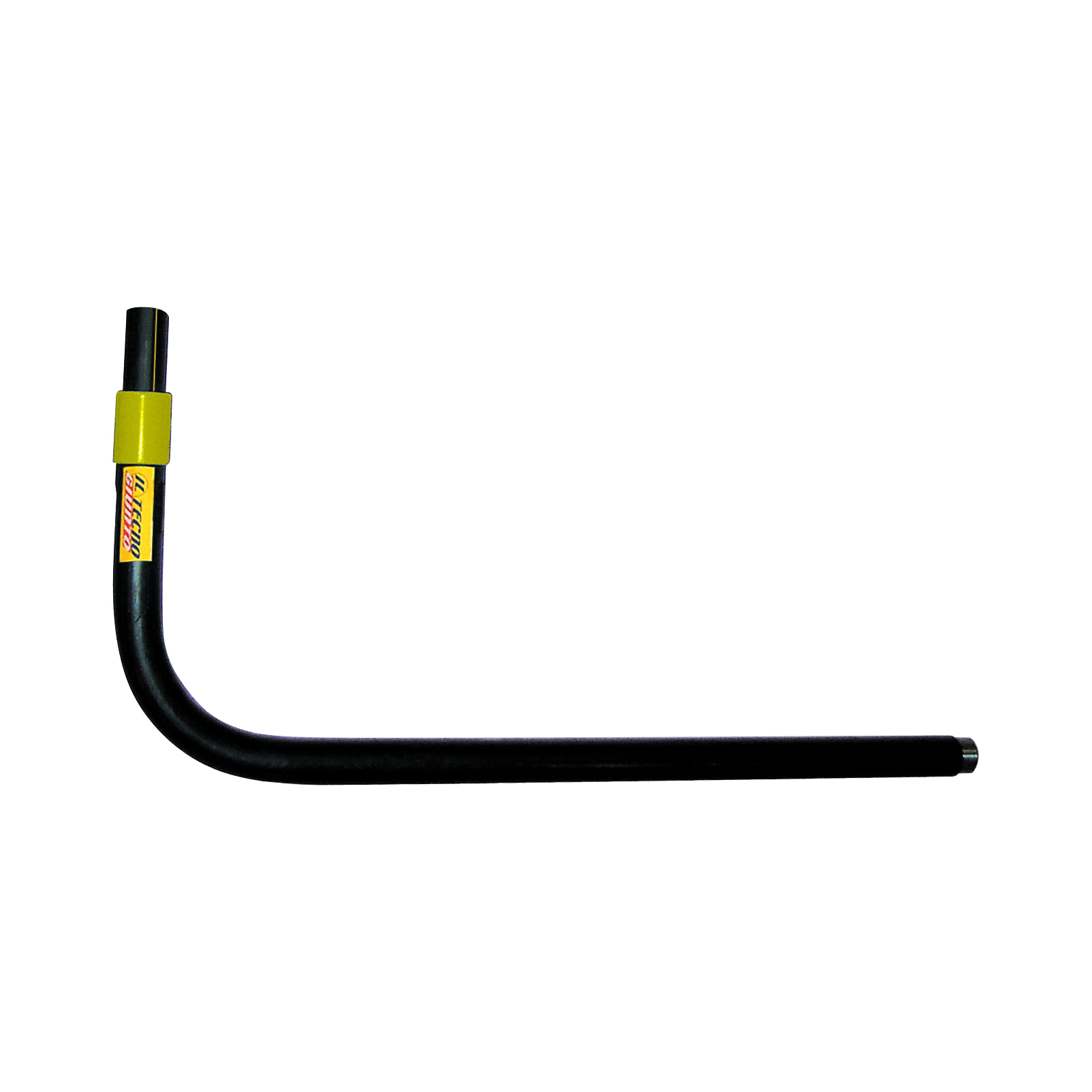

Curved Coated Transition Fitting
Dielectric threaded version
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000020410 |
COATED DIELECTRIC CURVED TRANSITION FITTING - DN 3/4" - PE-D 25 mm |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000020411 |
COATED DIELECTRIC CURVED TRANSITION FITTING - DN 1" - PE-D 32 mm |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000020412 |
COATED DIELECTRIC CURVED TRANSITION FITTING - DN 1" 1/4 - PE-D 40 mm |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000020413 |
COATED DIELECTRIC CURVED TRANSITION FITTING - DN 1" 1/2 - PE-D 50 mm |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000020414 |
COATED DIELECTRIC CURVED TRANSITION FITTING - DN 2" - PE-D 63 mm |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Transition fitting designed to allow the passage from a plant in plastic material (polyethylene) to a metal one, to allow fuel gas distribution plants to exit the ground. The joints of polyethylene pipes to metal pipes are made by means of a threaded connection for the conveyance of combustible gases under pressure.
This type of joint has the purpose of ensuring permanent electrical separation between the underground and the aerial part of a gas system, in order to protect the downstream part of the joint from any stray currents which could damage the pipe, favoring its corrosion.
Technical Features
| MATERIALS |
|
|---|---|
| THREADING | external thread (taper male) according to EN 10226-1 (R) |
| NORMATIVE REQUIREMENTS |
|
| OPERATING TEMPERATURE | 20°C |
| SKU | PE DIAMETER | DN | KG (single piece) | PACKAGING | |
|---|---|---|---|---|---|
| " | mm | ||||
| 20410 | 25 mm | 3/4" | 26,9 | 1,3 | 12 pcs. |
| 20411 | 32 mm | 1" | 33,7 | 2,5 | 10 pcs. |
| 20412 | 40 mm | 1" 1/4 | 42,4 | 4,5 | 8 pcs. |
| 20413 | 50 mm | 1" 1/2 | 48,3 | 4,8 | 6 pcs. |
| 20414 | 63 mm | 2" | 60,3 | 6 | 6 pcs. |
