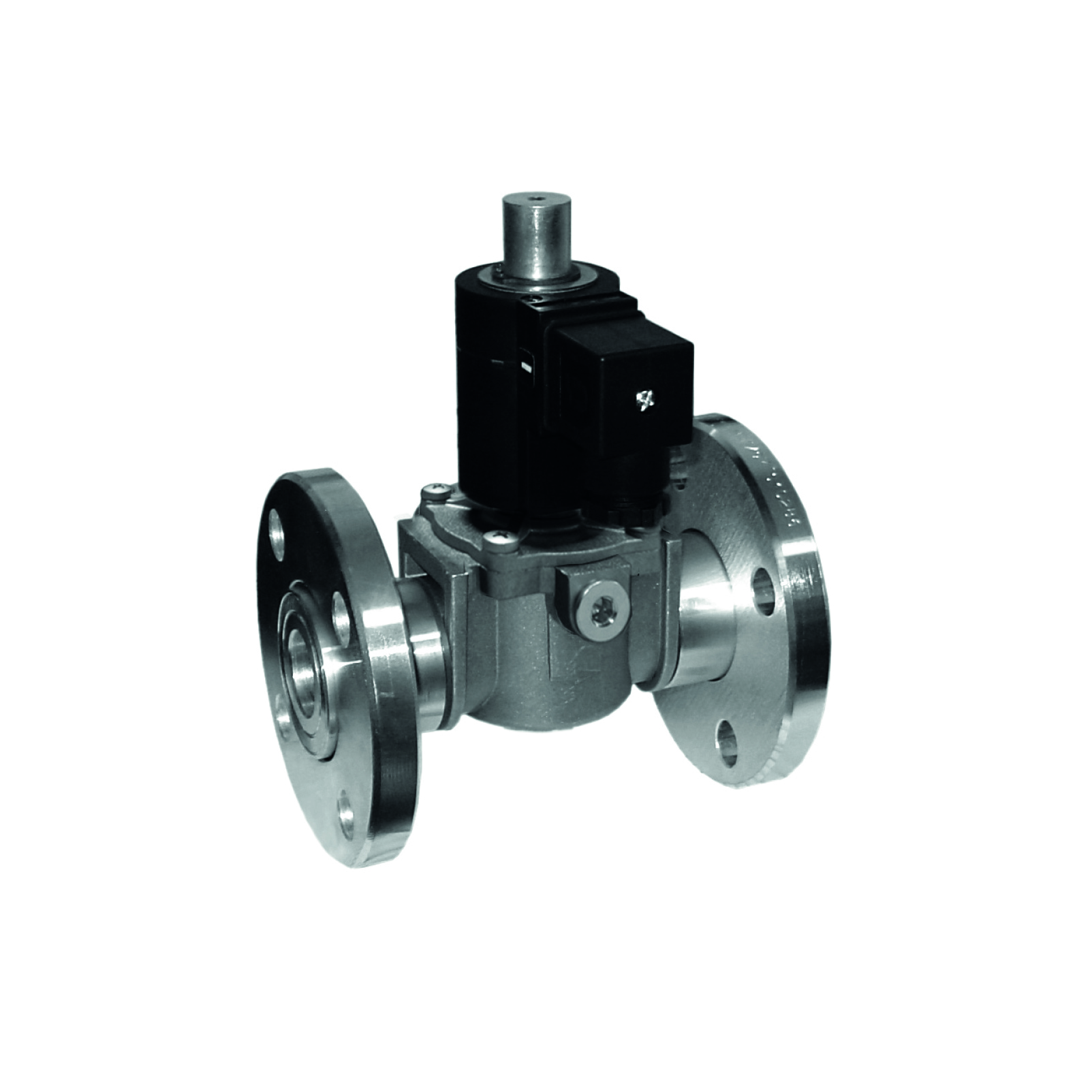

Automatic Flanged Relief Solenoid Valve EVA/NA Type

Normally open, max. pressure 1 bar

AVAILABLE ON REQUEST WITH DIFFERENT PRESSURES AND VOLTAGES

sku	model	price	info	add to cart
00000050583	AUTOMATIC RELIEF SOLENOID VALVE EVA/NA TYPE - DN25 - 1 bar	on request	Physical data UM Base: NR Dimension: N/A Volume: 0 m³ Weight: 0,00 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Info Request
00000050584	AUTOMATIC RELIEF SOLENOID VALVE EVA/NA TYPE - DN32 - 1 bar	€726,25 Excl. Taxes	Physical data UM Base: NR Dimension: N/A Volume: 0 m³ Weight: 0,00 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Automatic Flanged Relief Solenoid Valve EVA/NA Type quantity Buy Info Request
00000050598	AUTOMATIC RELIEF SOLENOID VALVE EVA/NA TYPE - DN40 - 1 bar	€726,25 Excl. Taxes	Physical data UM Base: NR Dimension: N/A Volume: 0 m³ Weight: 0,00 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Automatic Flanged Relief Solenoid Valve EVA/NA Type quantity Buy Info Request
00000050599	AUTOMATIC RELIEF SOLENOID VALVE EVA/NA TYPE - DN50 - 1 bar	€732,20 Excl. Taxes	Physical data UM Base: NR Dimension: N/A Volume: 0 m³ Weight: 0,00 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Automatic Flanged Relief Solenoid Valve EVA/NA Type quantity Buy Info Request

Product informations

Automatic relief solenoid valve for gas burners and gas appliances, normally open; opens in the absence of voltage and closes if electrically powered.

Technical Features

*USE*	not aggressive gases of the three families (dry gases)
*ROOM TEMPERATURE*	- 20°C ÷ + 60°C
*SUPPLY VOLTAGES*	230 V 50 - 60 Hz (only single-phase, the device does not work if powered with three-phase voltage)
*ELECTRICAL WIRING*	strain relief M20x1.5
*ABSORBED POWER*	230 V = 18 VA (SKU 50583) 230 V = 55 VA / 16 VA (SKU 50584 / 50598 / 50599)
*MAXIMUM WORKING PRESSURE*	1 bar
*DEGREE OF PROTECTION*	IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes)
*MATERIAL*	aluminum body
*MECHANICAL STRENGTH*	group 2
*CONNECTION*	DN25 - DN32 - DN40 - DN50 (according to ISO 7005)
*COMPLIANCE*	EMC Directive 2014/30/EU LVD Directive 2014/35/EU RoHS II Directive 2011/65/EU
