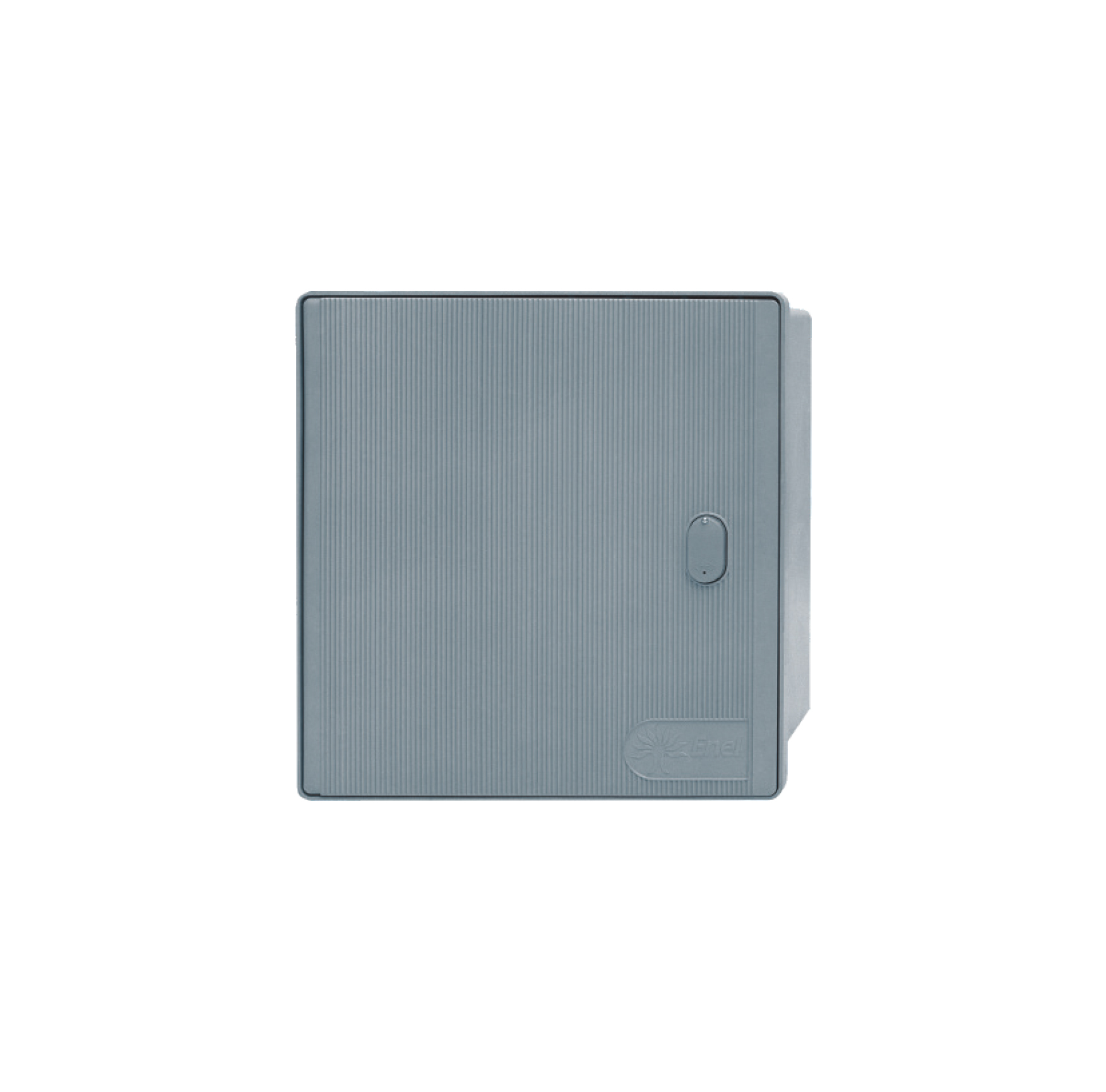

Box for Electricity Meters
Box for electric meters with door, frame and structure in fiberglass
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000050841 |
BOX - 420 x 390 x 235 mm - 6,60 kg |
€144,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Box for electricity meters, designed for the installation of GTI three-phase metering units.
Product features
- striped type door, hinged with 90° opening and with the possibility of total removal for easier access
- internal ventilation through the labyrinth on the perimeter of the door
- structure and door in SMC fiberglass, RAL 7001 gray colour
- lock type Enel 4541 Unified National for autonomous inspection of multiple users
Technical Features
| IMPACT RESISTANCE | 10 J |
|---|---|
| FLAME RESISTANCE | > 80 points |
| SURFACE CURRENT RESISTANCE | 500 points |
| DEGREE OF PROTECTION | IP 44 (protected against water splashes from any direction and protected against the entry of solid objects larger than Ø 1 mm) |
| EXTERNAL DIMENSIONS | 420 x 390 x 235 mm |
| RECESS DIMENSIONS | 410 x 370 x 207 mm |
| INTERNAL DIMENSIONS | 373 x 342 x 195 mm |
| WEIGHT | 6,60 kg |
