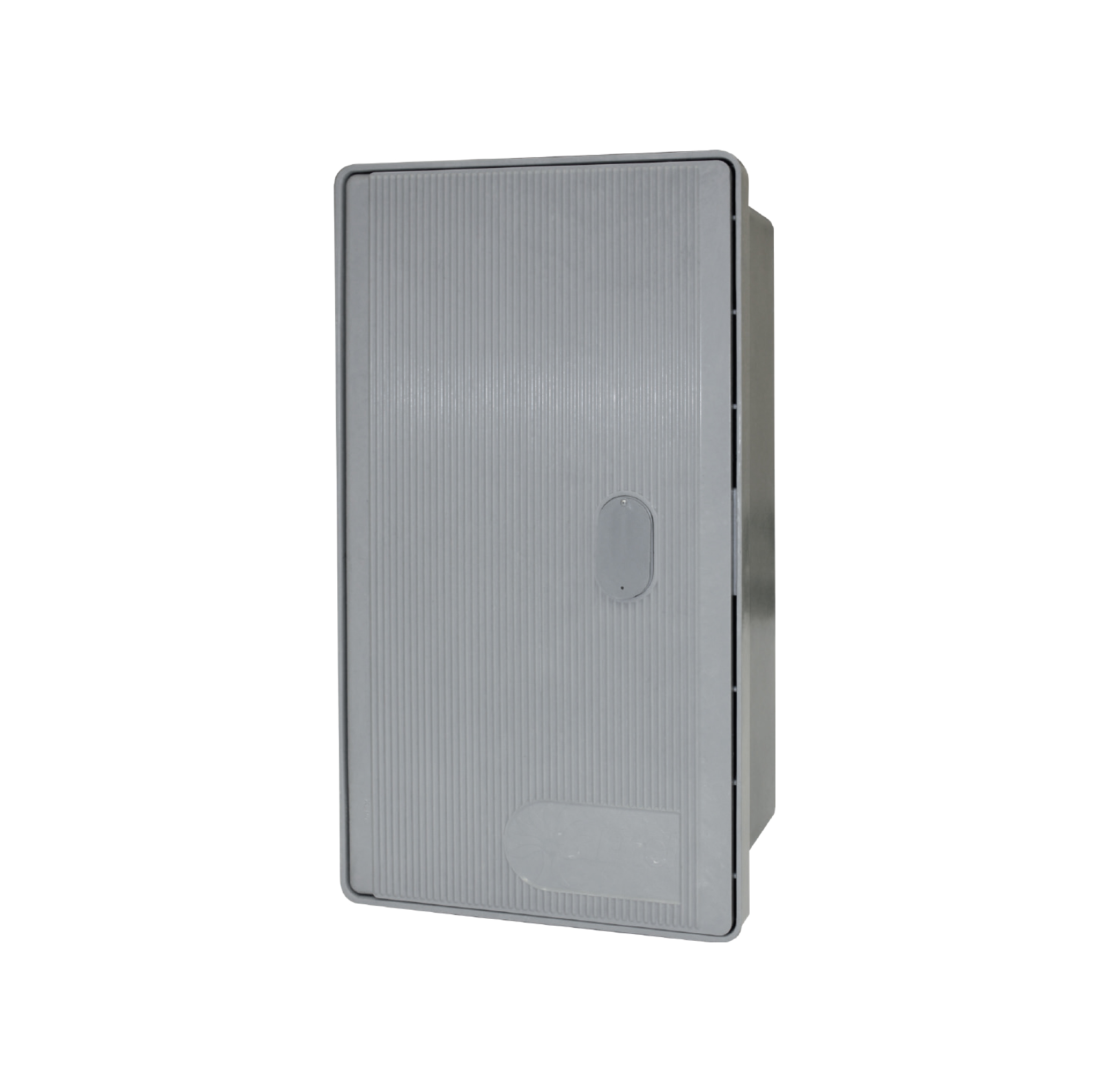

Box for Electricity Meters
Box for electric meters with door, frame and structure in fiberglass
ENEL POWER
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000050840 |
BOX - 420 x 230 x 204 mm - 4 kg |
€106,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Box for electricity meters, set up for the installation of:
- A GMI integrated single-phase measuring group
- A GEM electronic single-phase measuring unit using a T5A2 base
- An electronic three-phase measuring unit up to 15 kW type GET-1 or GET-2 via T5A4 base
Product features
- striped type door, hinged with 90° opening and with the possibility of total removal for easier access
- internal ventilation through the labyrinth on the perimeter of the door
- structure and door in SMC fiberglass, RAL 7001 gray colour
- lock type Enel 4541 Unified National for autonomous inspection of multiple users
- the box is suitable for mounting on the wall, on a pole or on a fiberglass pole such as Enel DS4553
Technical Features
| IMPACT RESISTANCE | 10 J |
|---|---|
| RESISTANCE TO FLAME | > 80 points |
| SURFACE CURRENT RESISTANCE | 500 points |
| DEGREE OF PROTECTION | IP 44 (protected against water splashes from any direction and protected against the entry of solid objects larger than Ø 1 mm) |
| EXTERNAL DIMENSIONS | 420 x 230 x 204 mm |
| RECESS DIMENSIONS | 410 x 205 x 175 mm |
| INTERNAL DIMENSIONS | 373 x 183 x 175 mm |
| WEIGHT | 4 kg |
