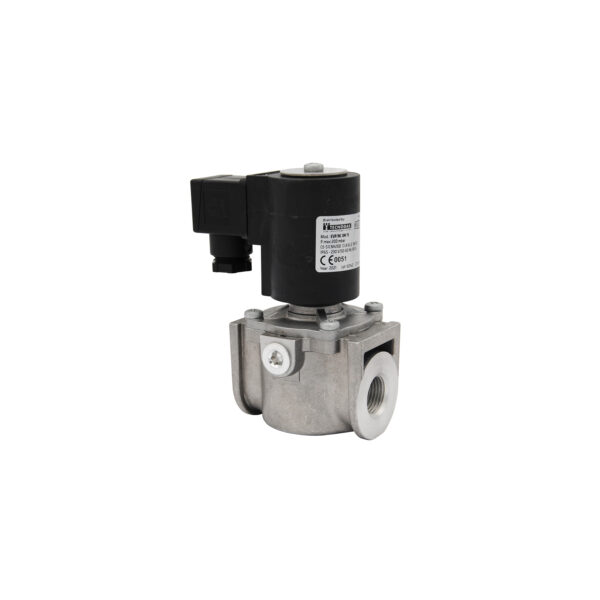

Automatic Threaded and Flanged Solenoid Valves for Gas EV1 Type

Normally closed with fast opening, max. pressure 1 bar

OTHER VOLTAGES AVAILABLE ON REQUEST

ALSO AVAILABLE WITH FLOW REGULATOR, ASK OUR SALES OFFICE FOR A QUOTATION

sku model price info add to cart

00000050322

AUTOMATIC THREADED SOLENOID VALVE FOR GAS EV1 TYPE - 1/2" FF - 1 bar

€202,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 14 × 8 cm

Volume:
0.0014 m3

Weight:
1,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050323

AUTOMATIC THREADED SOLENOID VALVE FOR GAS EV1 TYPE - 3/4" FF - 1 bar

€202,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
12 × 15 × 8 cm

Volume:
0.0015 m3

Weight:
0,98 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050324

AUTOMATIC THREADED SOLENOID VALVE FOR GAS EV1 TYPE - 1" FF - 1 bar

€202,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
12 × 15 × 8 cm

Volume:
0.0015 m3

Weight:
0,93 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050329

AUTOMATIC THREADED SOLENOID VALVE FOR GAS EV1 TYPE - DN125 - 1 bar

€3.919,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050388

AUTOMATIC THREADED SOLENOID VALVE FOR GAS EV1 TYPE - 1" 1/4 FF - 1 bar

€406,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 23 × 15 cm

Volume:
0.0061 m3

Weight:
3,69 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050389

AUTOMATIC THREADED SOLENOID VALVE FOR GAS EV1 TYPE - 1" 1/2 FF - 1 bar

€406,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 23 × 15 cm

Volume:
0.006 m3

Weight:
3,65 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050390

AUTOMATIC THREADED SOLENOID VALVE FOR GAS EV1 TYPE - 2" FF - 1 bar

€406,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 24 × 15 cm

Volume:
0.0059 m3

Weight:
3,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050391

AUTOMATIC FLANGED SOLENOID VALVE FOR GAS EV1 TYPE - DN65 - 1 bar

€1.554,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
43 × 29 × 37 cm

Volume:
0.0461 m3

Weight:
18,32 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050392

AUTOMATIC FLANGED SOLENOID VALVE FOR GAS EV1 TYPE - DN80 - 1 bar

€1.562,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
42 × 29 × 37 cm

Volume:
0.0451 m3

Weight:
18,57 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050393

AUTOMATIC FLANGED SOLENOID VALVE FOR GAS EV1 TYPE - DN100 - 1 bar

€2.397,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
43 × 36 × 38 cm

Volume:
0.0588 m3

Weight:
31,90 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050495

AUTOMATIC FLANGED SOLENOID VALVE FOR GAS EV1 TYPE - DN50 - 1 bar

€501,45 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 30 × 25 cm

Volume:
0.0188 m3

Weight:
5,21 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050590

AUTOMATIC FLANGED SOLENOID VALVE FOR GAS EV1 TYPE - DN32 - 1 bar

€495,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050591

AUTOMATIC FLANGED SOLENOID VALVE FOR GAS EV1 TYPE - DN40 - 1 bar

€495,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

0000050330A

ELETTROVALVOLA FLANGIATA AUTOMATICA PER GAS EV1 TYPE - DN200 - 1 bar

€8.508,15 Excl. Taxes

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
94,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Automatic solenoid valves for gas, normally closed with fast opening; opens the gas flow when the coil is electrically powered and closes it when the voltage is cut off.

Available on request also the version for BIOGAS (+ 10% on the price).



Technical Features

USE not aggressive gases of the three families (dry gases)
ROOM TEMPERATURE - 20°C ÷ + 60°C
SUPPLY VOLTAGES 230 V 50 - 60 Hz (only single-phase, the device does not work if powered with three-phase voltage)
ELECTRICAL WIRING
  • strain relief M20x1.5 (THREADED VERSION)
  • strain relief PG 11 (FLANGED VERSION)
ABSORBED POWER
  • 230 V = 18 VA (SKU 50322 / 50323 / 50324) - threaded version
  • 230 V = 89 VA / 25 VA (SKU 50388 / 50389 / 50390) - threaded version
  • 230 V = 82 VA / 32 VA (SKU 50590 / 50591 / 50495) - flanged version
  • 230 V = 290 VA / 75 VA (SKU 50391 / 50392) - flanged version
  • 230 V = 270 VA / 70 VA (SKU 50393 / 50330 / 50330A) - flanged version
MAXIMUM WORKING PRESSURE

1 bar
N° CYCLES/HOUR
  • 1800 cycles/hour ON=1s OFF=1s (SKU 50322 / 50323 / 50324) - threaded version
  • 450 cycles/hour ON=1s OFF=1s (SKU 50388 / 50389 / 50390) - threaded version
  • 90 cycles/hour ON=10s OFF=30s (from SKU 50590 to 50330A) - flanged version
OPENING TIME < 1 s
CLOSING TIME < 1 s
DEGREE OF PROTECTION IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes)
CLASS A
MATERIAL aluminum body
MECHANICAL STRENGTH group 2
FILTERING ORGAN wire mesh with 1 mm ((THREADED VERSION ONLY)
CONNECTIONS (threaded version) 1/2" FF - 3/4" FF - 1" FF - 1" 1/4 FF - 1" 1/2 FF - 2" FF (according to EN 10226)
CONNECTIONS (PN16 flanged version) DN32 - DN40 - DN50 - DN65 - DN80 - DN100 - DN125 - DN150 - DN200 (according to ISO 7005 / EN 1092-1)
COMPLIANCE
  • Regulation (EU) 2016/426 (appliances that burn gaseous fuels)
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • RoHS II Directive 2011/65/EU
