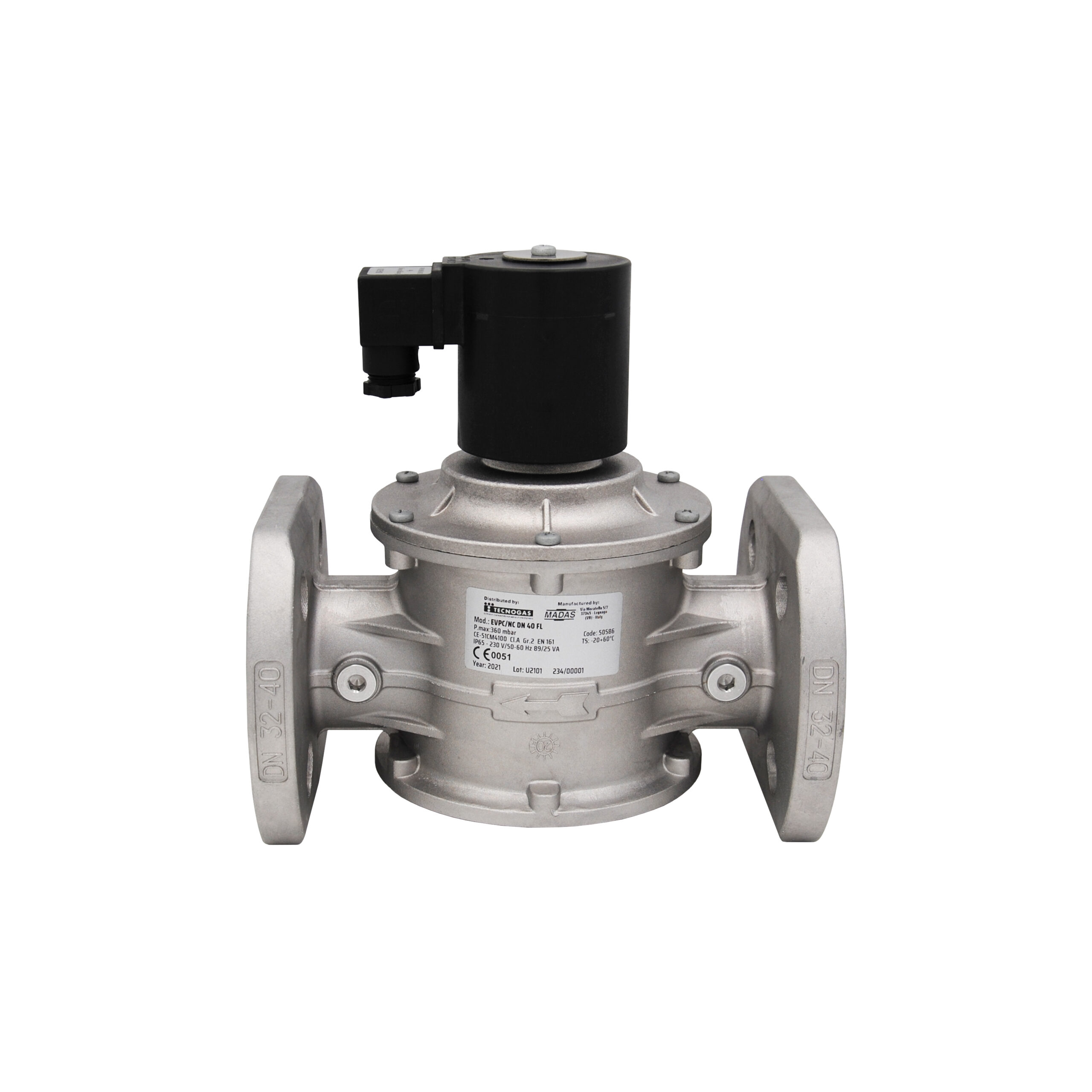

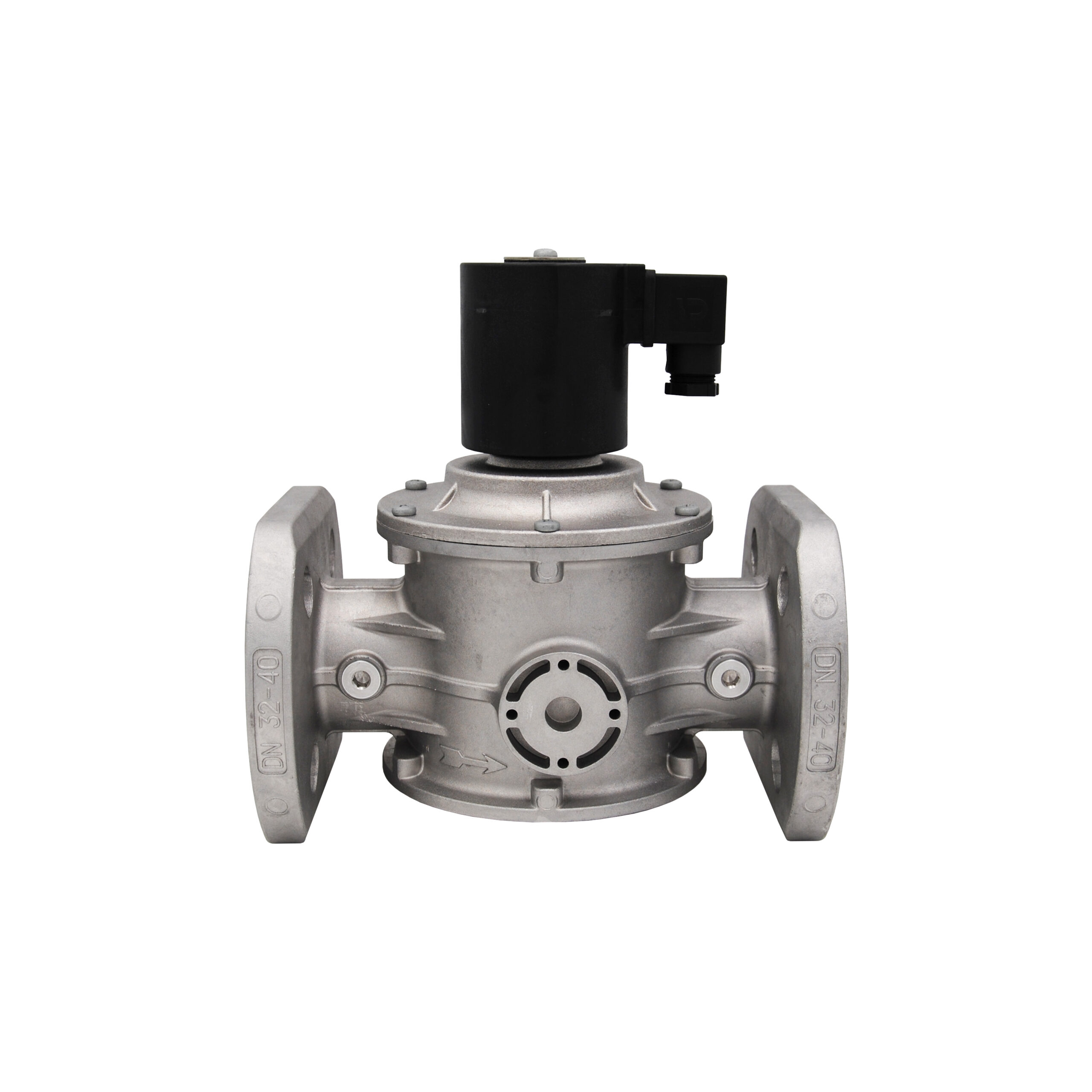

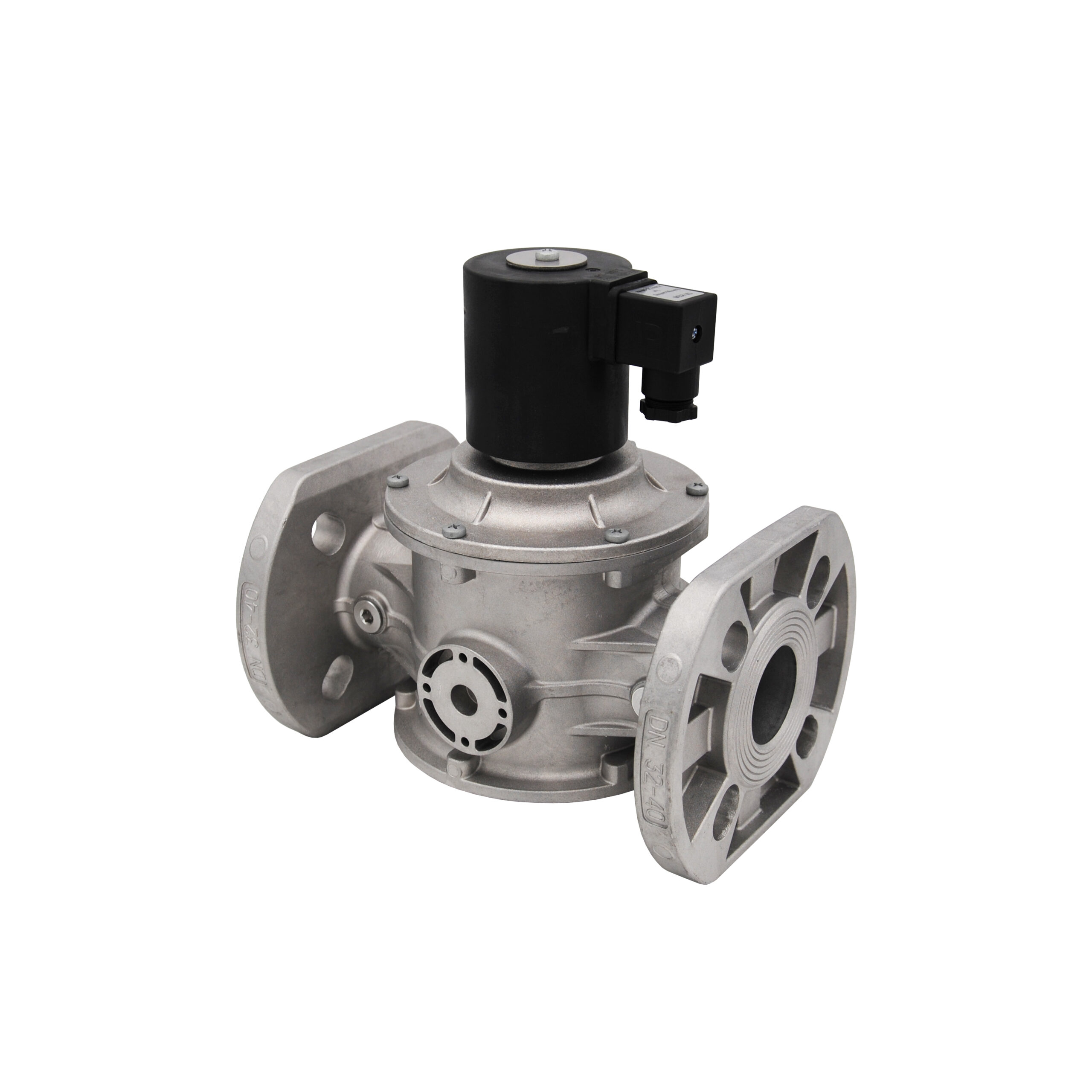

Automatic PN16 Flanged Solenoid Valve for Gas EVP/NC – EVPF/NC Type

Normally closed with fast opening

ALSO AVAILABLE WITH FLOW RATE REGULATOR (STANDARD IN DN250-300), ASK FOR A QUOTATION FROM OUR SALES OFFICE

sku model price info add to cart

00000050321

FLANGED SOLENOID VALVE FOR GAS EVPC/NC TYPE - DN50 PN16 - 360 mbar

€477,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
5,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050325

FLANGED SOLENOID VALVE FOR GAS EVP/NC TYPE - DN125 PN16 - 360 mbar

€4.156,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
52 × 65 × 48 cm

Volume:
0.1622 m3

Weight:
46,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050326

FLANGED SOLENOID VALVE FOR GAS EVP/NC TYPE - DN150 PN16 - 360 mbar

€4.156,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
65 × 52 × 48 cm

Volume:
0.1635 m3

Weight:
68,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050327

FLANGED SOLENOID VALVE FOR GAS EVPF/NC TYPE - DN200 PN16 - 360 mbar - with external operator

€8.601,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
102 × 72 × 67 cm

Volume:
0.492 m3

Weight:
94,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050397

FLANGED SOLENOID VALVE FOR GAS EVP/NC TYPE - DN65 PN16 - 360 mbar

€1.117,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
42 × 37 × 29 cm

Volume:
0.0464 m3

Weight:
17,96 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050398

FLANGED SOLENOID VALVE FOR GAS EVP/NC TYPE - DN80 PN16 - 360 mbar

€1.128,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
44 × 37 × 30 cm

Volume:
0.0488 m3

Weight:
18,37 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

00000050399

FLANGED SOLENOID VALVE FOR GAS EVP/NC TYPE - DN100 PN16 - 360 mbar

€1.995,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
44 × 37 × 36 cm

Volume:
0.0586 m3

Weight:
31,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

00000050585

FLANGED SOLENOID VALVE FOR GAS EVPC/NC TYPE - DN32 PN16 - 360 mbar

€458,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 26 × 31 cm

Volume:
0.0202 m3

Weight:
5,37 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050586

FLANGED SOLENOID VALVE FOR GAS EVPC/NC TYPE - DN40 PN16 - 360 mbar

€458,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 25 × 30 cm

Volume:
0.0188 m3

Weight:
5,30 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050587

FLANGED SOLENOID VALVE FOR GAS EVPF/NC TYPE - DN250 PN16 - 360 mbar - with external operator

€15.809,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
128,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050588

FLANGED SOLENOID VALVE FOR GAS EVPF/NC TYPE - DN300 PN16 - 360 mbar - with external operator

€16.298,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

RIP00050321

COSTO RIPARAZIONE COD. 50321

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000

 Info Request

Product informations

Automatic normally closed solenoid valve for gas, normally closed with fast opening; opens the gas flow when the coil is electrically powered and closes it when the voltage is cut off.

Available on request also the version for BIOGAS (+ 10% on the cost).

The EVPF/NC model is equipped with an external operator, which favors the faster opening of the valve (SKU 50327 / 50587 / 50588).

Technical Features

SKU 50585 TO 50326
USE non-aggressive gases of the three families (dry gases)
ROOM TEMPERATURE - 20°C ÷ + 60°C
SUPPLY VOLTAGES 230 V 50 - 60 Hz (only single-phase, the device does not work if powered with three-phase voltage)
ELECTRICAL WIRING strain relief PG 11
ABSORBED POWER
  • 230 V = 82 VA / 32 VA (SKU 50585 / 50586 / 50321)
  • 230 V = 290 VA / 75 VA (SKU 50397 / 50398)
  • 230 V = 270 VA / 70 VA (SKU 50399 / 50325 / 50326)
N° CYCLES/HOUR
  • 195 cycles/hour ON=5s OFF=13.5s (SKU 50585 / 50586 / 50321 / 50397 / 50398 / 50399)
  • 90 cycles/hour ON=10s OFF=30s (SKU 50325 / 50326)
MAXIMUM WORKING PRESSURE

360 mbar
OPENING TIME < 1 s
CLOSING TIME < 1 s
DEGREE OF PROTECTION IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes)
CLASS A
MATERIALS aluminum body
MECHANICAL STRENGTH group 2
FILTERING ORGAN
  • wire mesh with 1 mm (SKU 50585 / 50586 / 50321)
  • filtering 50 µm (SKU 50397 / 50398 / 50399)
  • filtering 10 µm (SKU 50325 / 50326)
CONNECTIONS (PN16) DN32 - DN40 - DN50 - DN65 - DN80 - DN100 - DN125 - DN150 (according to ISO 7005 / EN 1092-1)
COMPLIANCE
  • Regulation (EU) 2016/426 (appliances that burn gaseous fuels)
  • Directive EMC 2014/30/UE
  • Directive LVD 2014/35/UE
  • Directive RoHS II 2011/65/UE



SKU 50327 TO 50588
USE non-aggressive gases of the three families (dry gases)
ROOM TEMPERATURE - 20°C ÷ + 60°C
SUPPLY VOLTAGES 230 V 50 - 60 Hz (only single-phase, the device does not work if powered with three-phase voltage)
ELECTRICAL WIRING electric cable L= 3 meters with lug terminals
ABSORBED POWER
  • 230 V = 66 VA / 19 VA - SKU 50327 / 50587
  • 230 V = 84 VA / 38 VA  - SKU 50588
N° CYCLES/HOUR

20 cycles/hour ON=30s OFF=150s
MAXIMUM WORKING PRESSURE

360 mbar
DEGREE OF PROTECTION IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes)
CLASS A (SKU 50327) - B (SKU 50587 / 50588)
MATERIALS aluminum body
MECHANICAL STRENGTH group 2
FILTERING ORGAN
  • wire mesh with 1 mm (SKU 50585 / 50586 / 50321)
  • filtering 50 µm (SKU 50397 / 50398 / 50399)
  • filtering 10 µm (SKU 50325 / 50326)
CONNECTIONS (PN16) DN200 - DN250 - DN300 (according to ISO 7005 / EN 1092-1)
COMPLIANCE
  • Directive EMC 2014/30/UE
  • EN 60079-0-7-14-15-31
  • Directive LVD 2014/35/UE
  • Directive RoHS II 2011/65/UE
