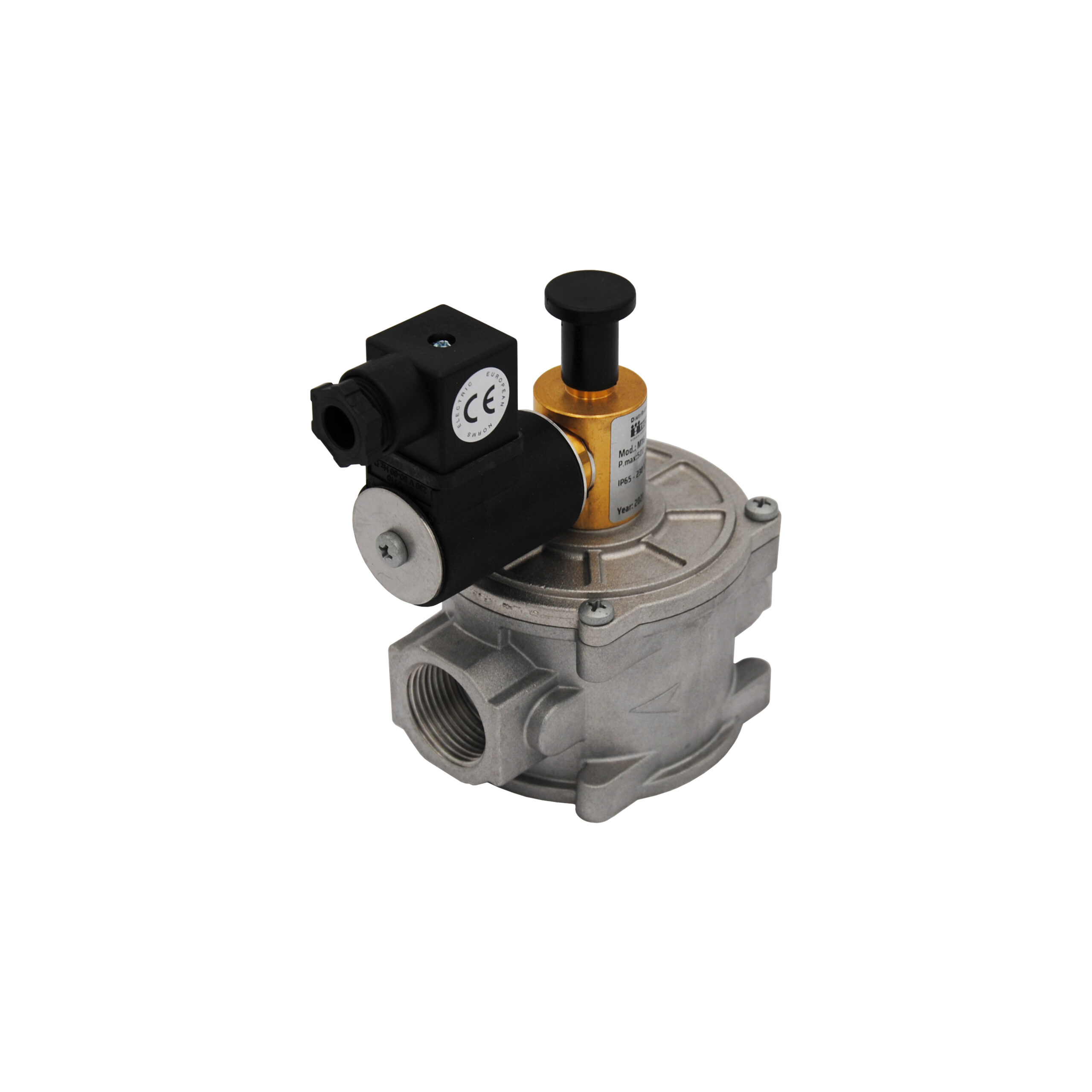

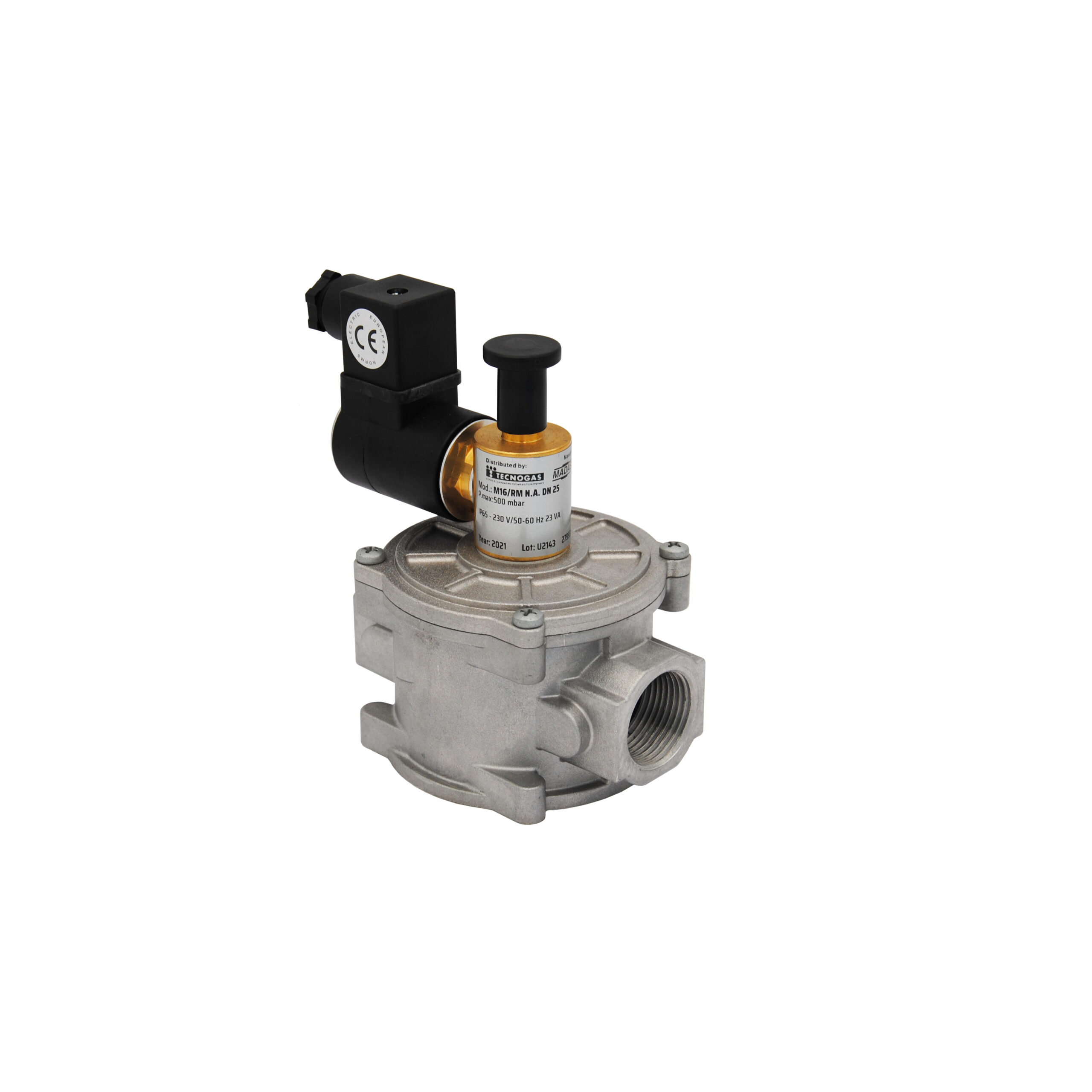

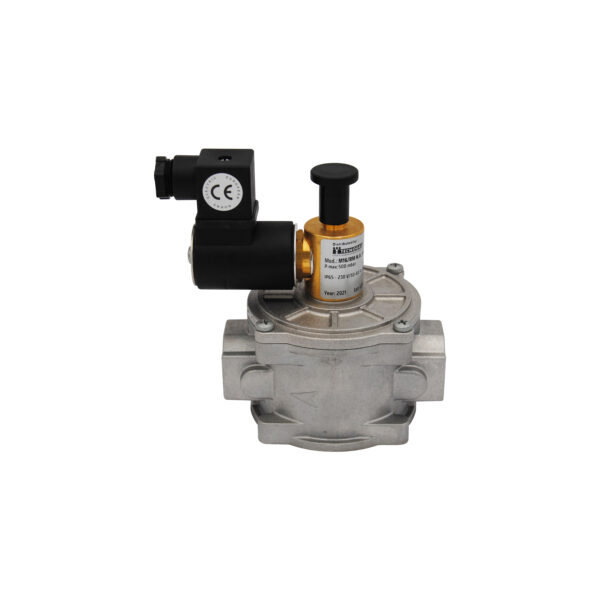

Aluminium Threaded Solenoid Valve for Gas

Normally open with manual reset without voltage, max. pressure 500 mbar

VERSION ALSO AVAILABLE WITH MAXIMUM PRESSURE 6 BAR, ASK OUR SALES OFFICE FOR THE QUOTATION

OTHER VOLTAGES AVAILABLE ON REQUEST

sku model price info add to cart

00000050332

ALUMINUM SOLENOID VALVE FOR GAS - 3/4" FF - 500 mbar

€113,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 11 × 17 cm

Volume:
0.0027 m3

Weight:
1,25 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050333

ALUMINUM SOLENOID VALVE FOR GAS - 1" FF - 500 mbar

€113,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 11 × 17 cm

Volume:
0.0027 m3

Weight:
1,24 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050334

ALUMINUM SOLENOID VALVE FOR GAS - 1" 1/4 FF - 500 mbar

€148,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 15 × 23 cm

Volume:
0.006 m3

Weight:
2,23 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050335

ALUMINUM SOLENOID VALVE FOR GAS - 1" 1/2 FF - 500 mbar

€148,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 15 × 23 cm

Volume:
0.006 m3

Weight:
2,16 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000050336

ALUMINUM SOLENOID VALVE FOR GAS - 2" FF - 500 mbar

€174,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 13 × 21 cm

Volume:
0.0041 m3

Weight:
2,43 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Normally open manual reset solenoid valve for gas with manual reset without voltage.

The version for BIOGAS is also available on request (+ 10% on the cost).



Product features

  • FF threaded version
  • it can only be reset manually and only when it is not electrically powered
  • equipped with VPI (Visual Position Indicator) for visual signaling of the position of the valve plug
  • when the valve is closed, the red band normally hidden by the reset knob is visible

Technical Features

USE not aggressive gases of the three families (dry gases)
ROOM TEMPERATURE - 20°C ÷ + 60°C
SUPPLY VOLTAGES 230 V 50 - 60 Hz (only single-phase, the device does not work if powered with three-phase voltage)
ELECTRICAL WIRING strain relief M20 x 1.5
ABSORBED POWER 230 V = 7/8 VA
MAXIMUM WORKING PRESSURE 500 mbar
CLOSING TIME < 1 s
DEGREE OF PROTECTION IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes)
MATERIALS aluminum
MECHANICAL STRENGTH group 2
CONNECTIONS 3/4" FF - 1" 1/4 FF - 1" FF - 1" 1/2 FF - 2" FF
COMPLIANCE
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • RoHS II Directive 2011/65/EU
