ABS Ventilation Valves

With adjustable central cone

sku	model	price	info	add to cart
00000061085	ABS VENTILATION VALVES - Ø 139 mm - CONNECTION Ø 100 mm	€16,77 Excl. Taxes	Physical data UM Base: NR Dimension: 15 × 15 × 6 cm Volume: 0.0015 m³ Weight: 0,13 kg Minimum Order Quantity: 1 Customs data Customs Code 39172900	ABS Ventilation Valves quantity Buy Info Request
00000061086	ABS VENTILATION VALVES - Ø 165 mm - CONNECTION Ø 120 mm	€21,46 Excl. Taxes	Physical data UM Base: NR Dimension: 18 × 18 × 9 cm Volume: 0.0029 m³ Weight: 0,16 kg Minimum Order Quantity: 1 Customs data Customs Code 39172900	ABS Ventilation Valves quantity Buy Info Request
00000061087	ABS VENTILATION VALVES - Ø 186 mm - CONNECTION Ø 150 mm	€23,46 Excl. Taxes	Physical data UM Base: NR Dimension: 20 × 20 × 6 cm Volume: 0.0026 m³ Weight: 0,20 kg Minimum Order Quantity: 1 Customs data Customs Code 39172900	ABS Ventilation Valves quantity Buy Info Request
00000061088	ABS VENTILATION VALVES - Ø 240 mm - CONNECTION Ø 200 mm	€35,47 Excl. Taxes	Physical data UM Base: NR Dimension: 23 × 23 × 7 cm Volume: 0.0041 m³ Weight: 0,37 kg Minimum Order Quantity: 1 Customs data Customs Code 39172900	ABS Ventilation Valves quantity Buy Info Request

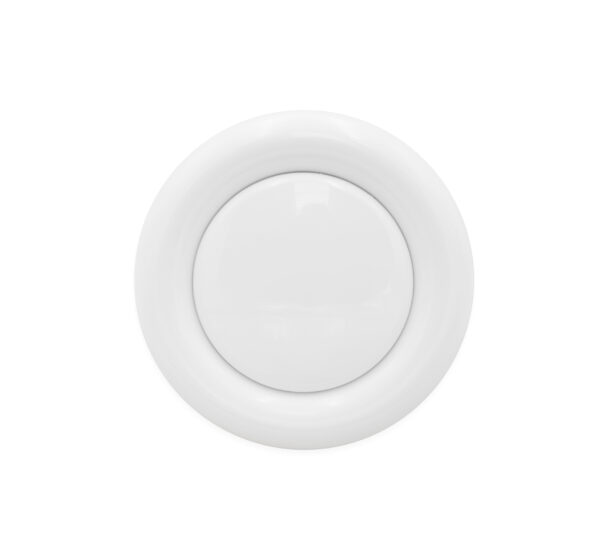

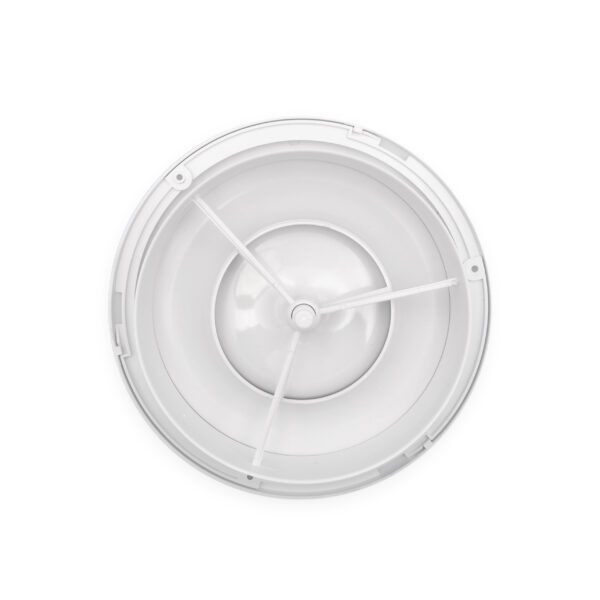

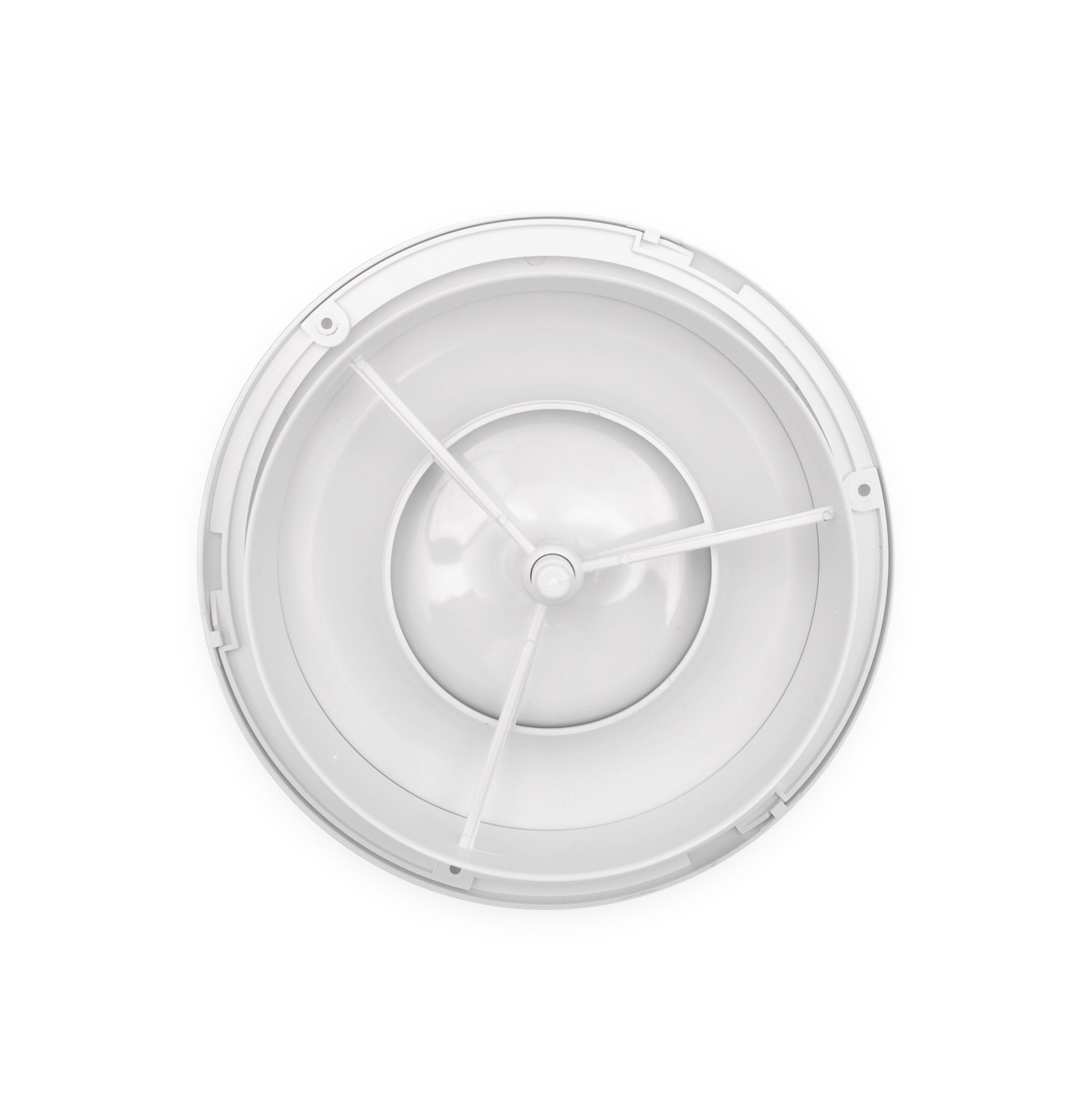

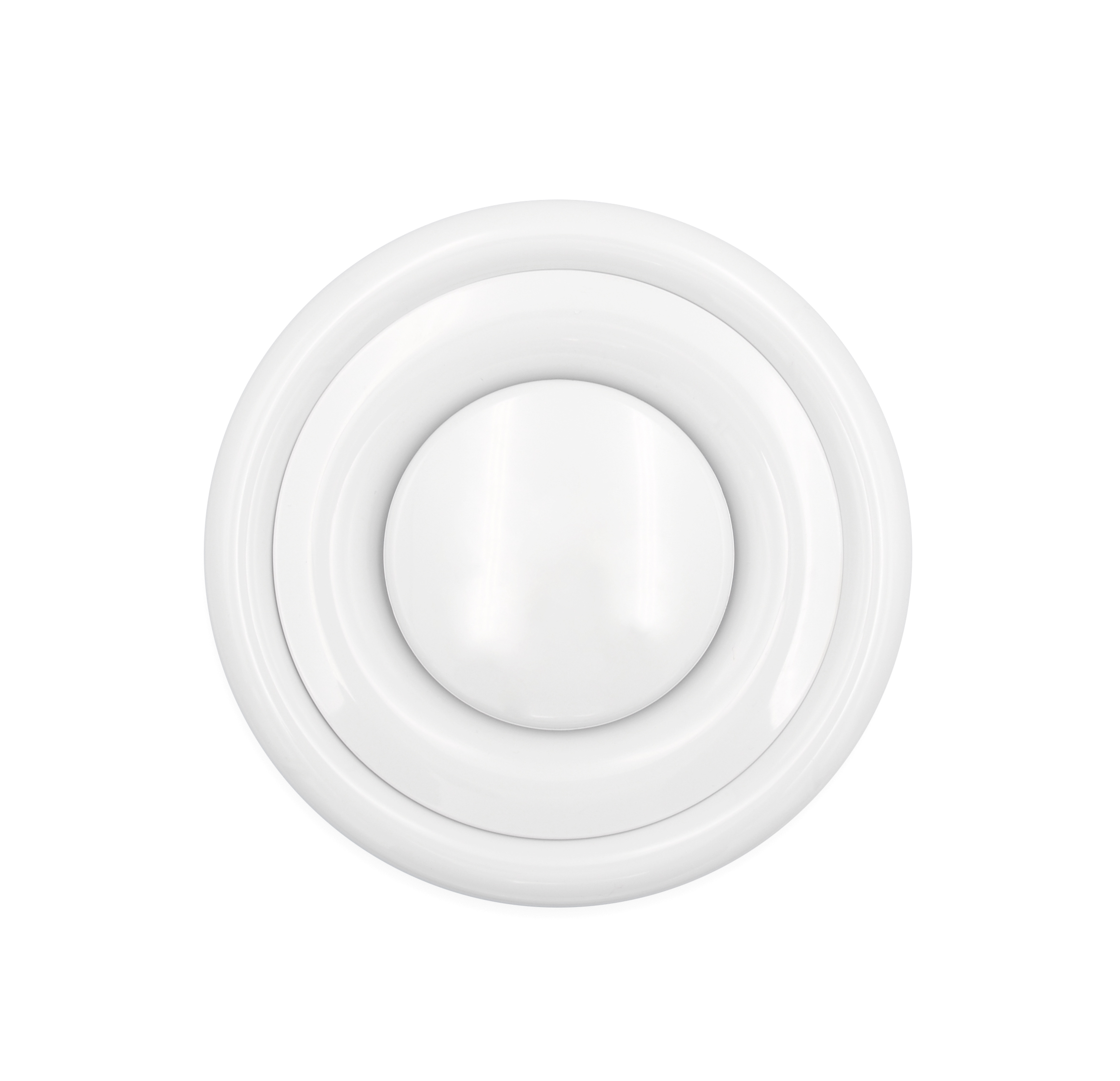

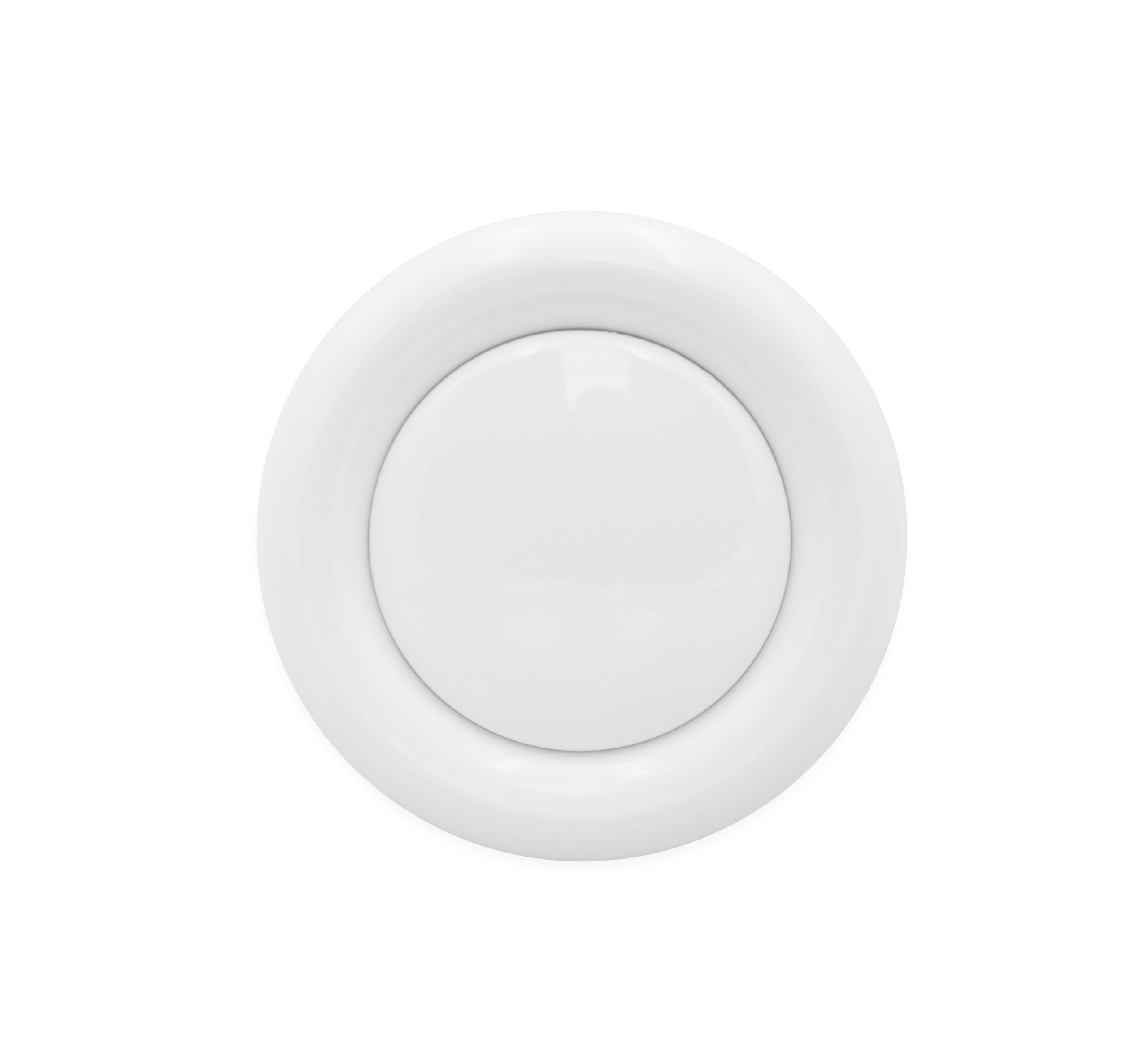

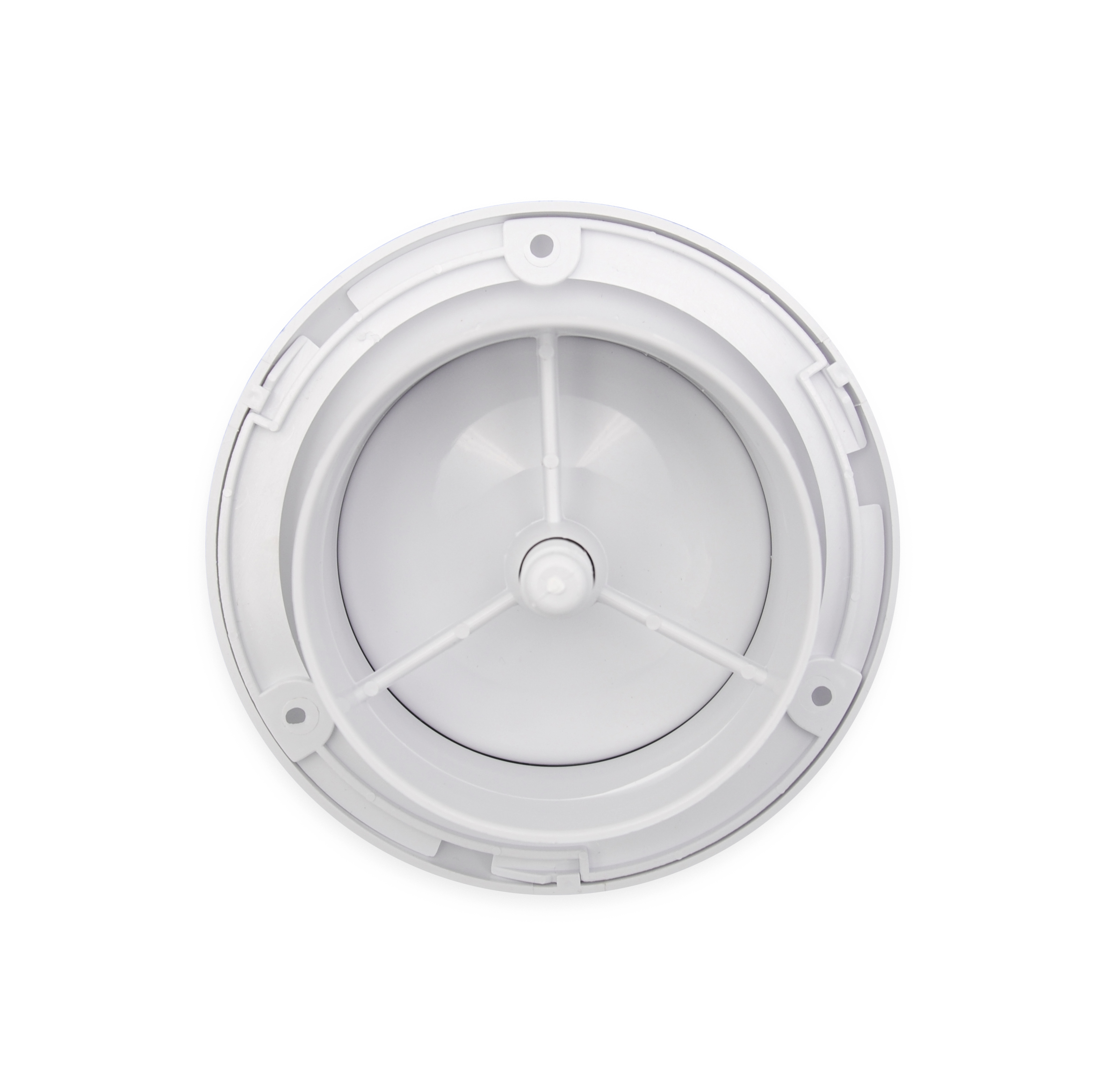

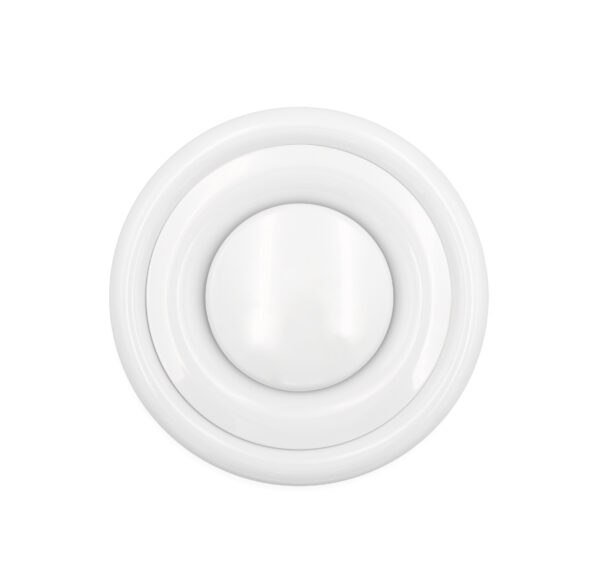

Retourn valve and supply valve in white ABS with adjustable central cone, supplied with flange and ring for installation and assembly.

Product features

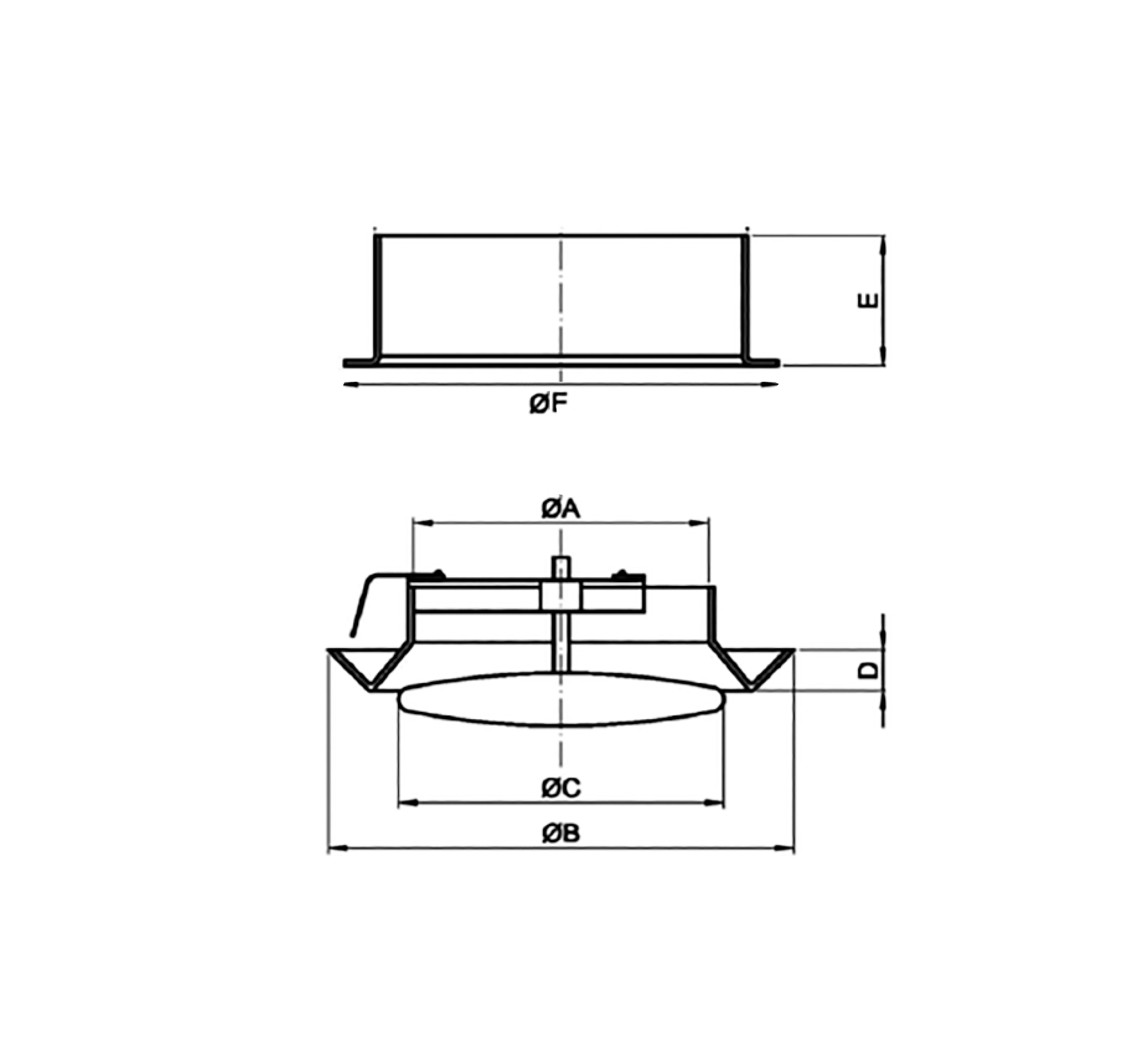

*VALVE SKU*	*Ø A (mm)*	*Ø B (mm)*	*Ø C (mm)*	*D (mm)*	*E (mm)*	*Ø F (mm)*
61085	100	148	87	20	50	139
61086	120	175	120	20	50	165
61087	150	186	130	20	50	186
61088	200	240	178	20	50	240
