Square Diffuser
Multi-directional
| sku | model | price | info | add to cart |
|---|
Product informations
Multi-directional siffuser 4-way diffusers with removable central part, made of painted aluminum.
Product features
- made of painted anodized aluminum
- use: ceiling installation, for air intake and air delivery
- painted in white RAL 9010
- diffusers equipped with "anti-fall" system
- installation height: 2,5 - 3,1 m
- fixing by screw on the diffuser neck
Accessories

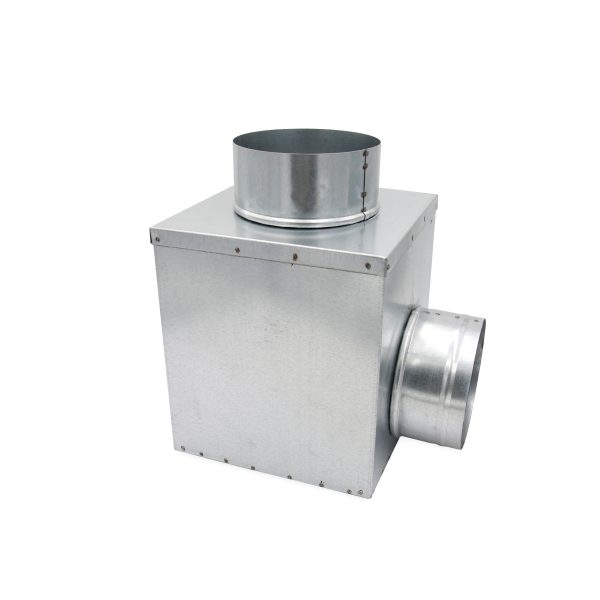

- galvanized steel plenum, standard or insulated, with or without equalizer sheet
- calibration damper made of galvenized steel and fins with opposite movement
Technical Features
| DIFFUSER SKU | DIFFUSER DIMENSIONS | DAMPER SKU | "A" INSULATED PLENUM SKU | "B" INSULATED PLENUM SKU |
|---|---|---|---|---|
| 66070 | 150 x 150 mm | 66225 | 66235 | 66245 |
| 66071 | 225 x 225 mm | 66226 | 66236 | 66246 |
| 66072 | 300 x 300 mm | 66227 | 66237 | 66247 |
| 66073 | 375 x 375 mm | 66228 | 66238 | 66248 |
| 66074 | 450 x 450 mm | 66229 | 66239 | 66249 |
| 66075 | 600 x 600 mm | 66230 | 66240 | 66250 |
| PLENUM A / B MEASURES | |||||
|---|---|---|---|---|---|
| B x H (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Ø CONNECTION PLENUM (mm) |
| 150 x 150 mm | 128 mm | 144 mm | 294 mm | 50 mm | Ø 122 mm |
| 225 x 225 mm | 203 mm | 219 mm | 369 mm | 50 mm | Ø 147 mm |
| 300 x 300 mm | 278 mm | 294 mm | 444 mm | 50 mm | Ø 197 mm |
| 375 x 375 mm | 353 mm | 369 mm | 519 mm | 50 mm | Ø 197 mm |
| 450 x 450 mm | 428 mm | 444 mm | 594 mm | 50 mm | Ø 247 mm |
| 600 x 600 m | 580 mm | 597 mm | 745 mm | 50 mm | Ø 297 mm |
