Thermostats for Resistance
Type R or double security
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070631 |

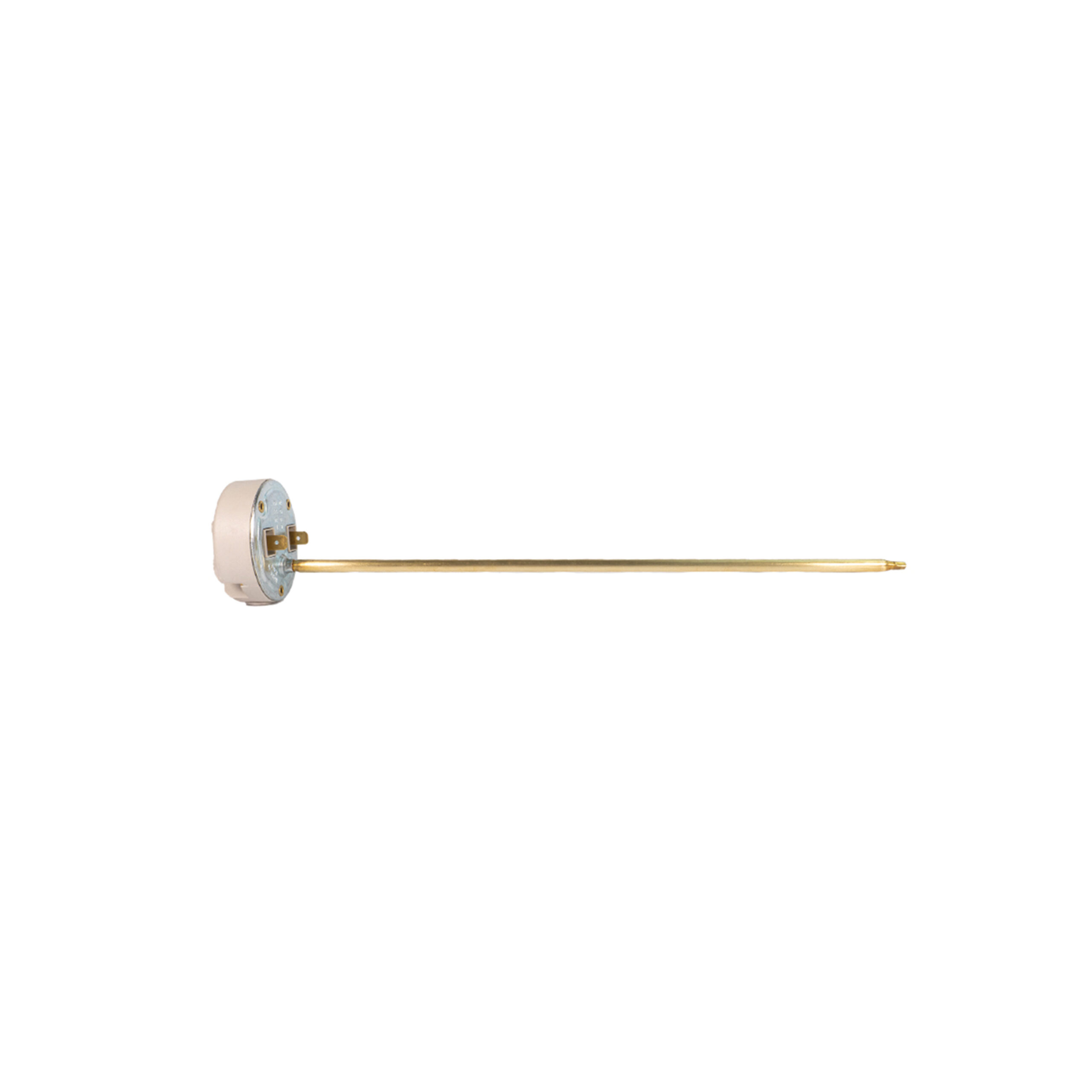

 THERMOSTAT R 300 - NORMAL ROD |
€12,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070735 |

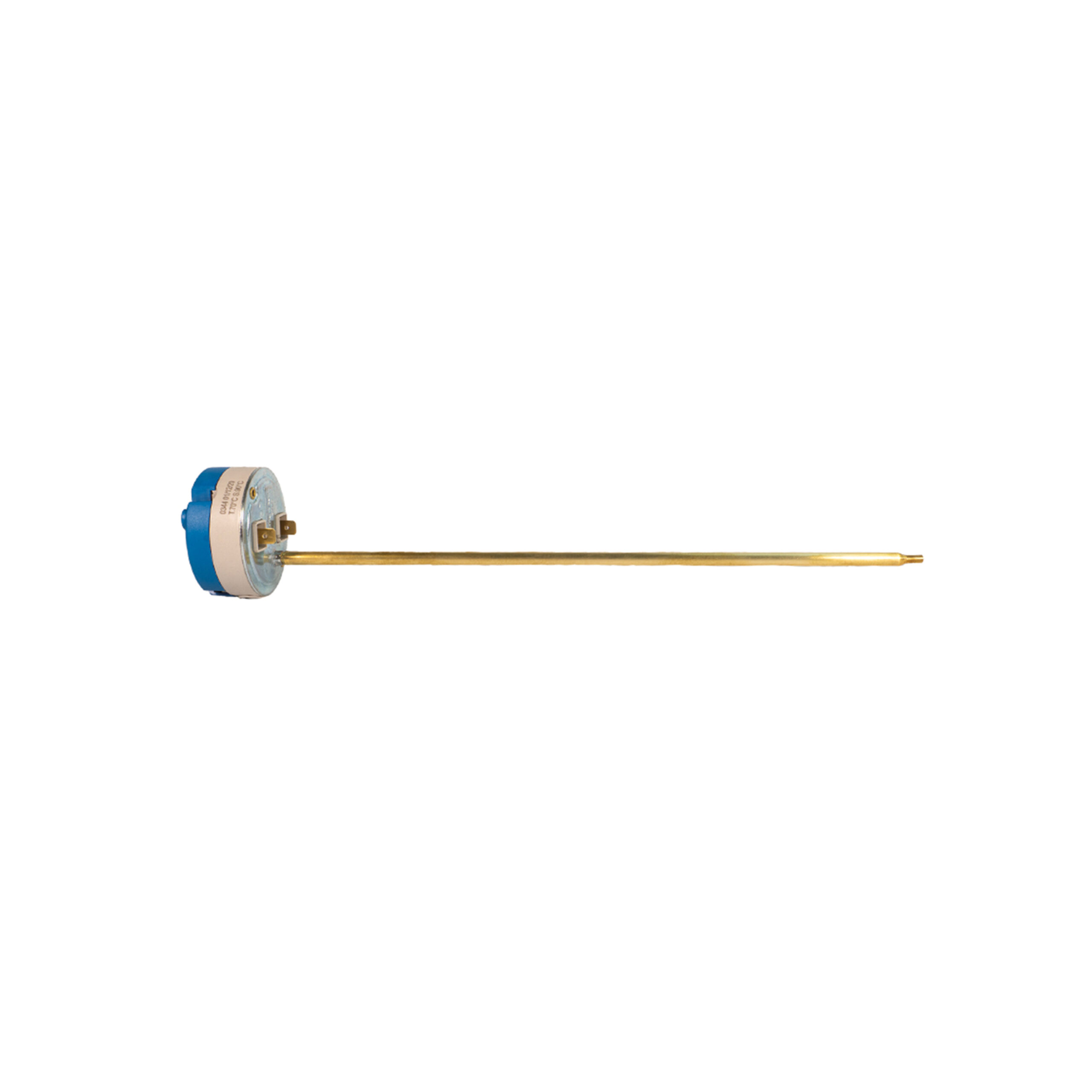

 RB 300 THERMOSTAT - NORMAL ROD DOUBLE SAFETY |
€14,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

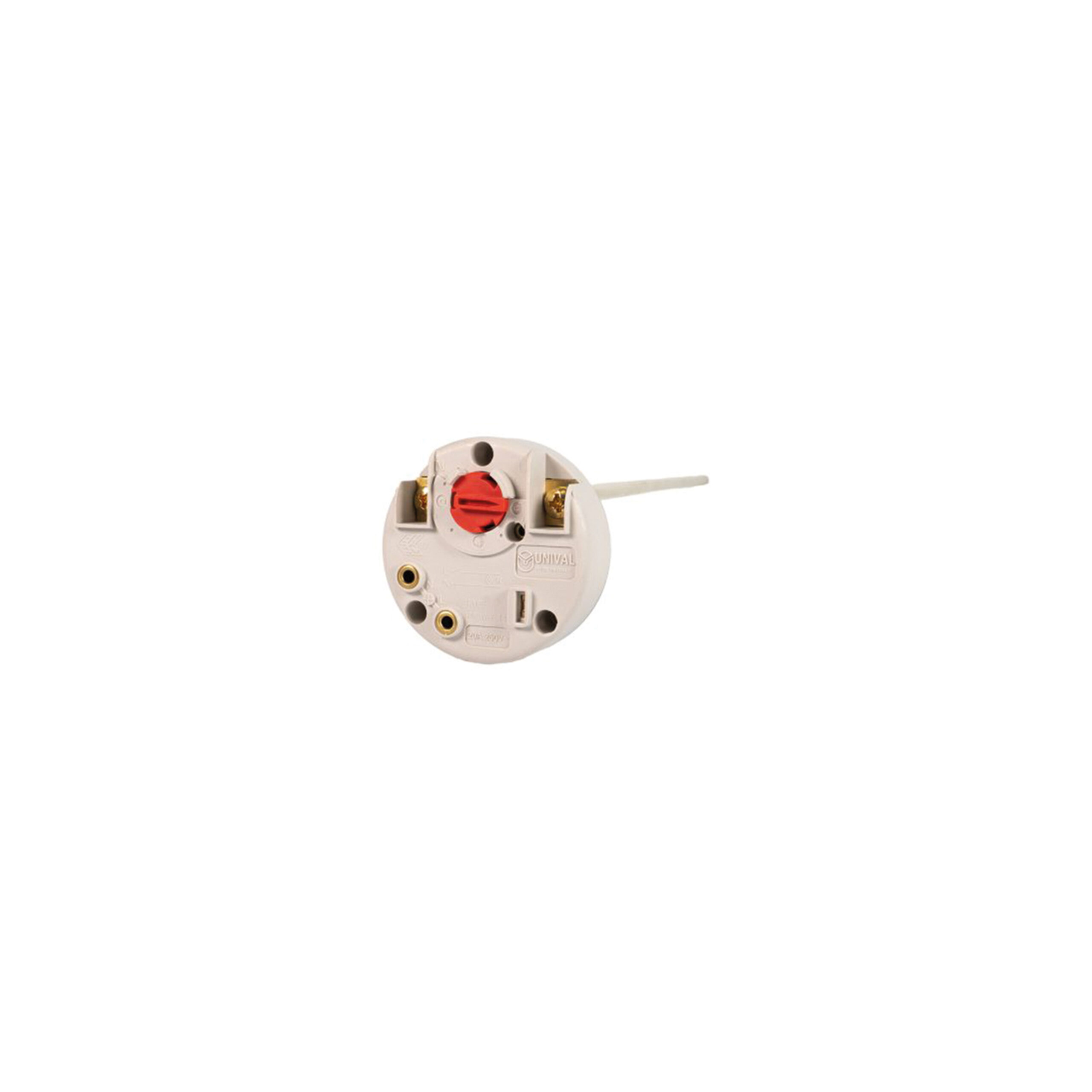

Thermostat for type R resistance: temperature-sensitive device used to control water heaters and storage tanks; the power supply to the mains takes place via special brass terminals with 4 mm screws, while the connection pressure must be between 4 and 15 nw.

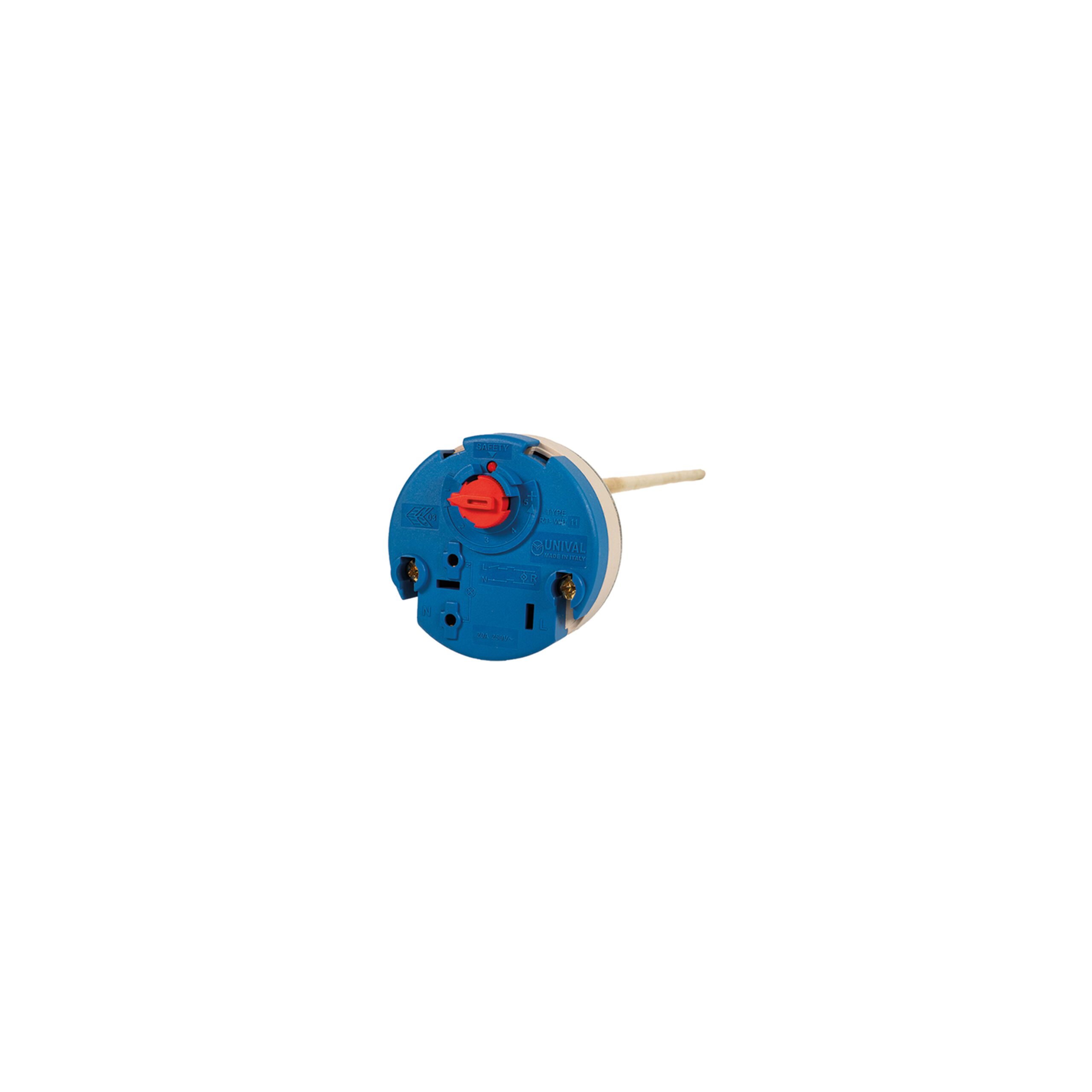

Double safety resistance thermostat: temperature sensitive device used to control water heaters and storage; the power supply to the mains is via special brass terminals with 4 mm screws. A bipolar temperature limiting device is incorporated in the appliance which needs to be reset manually.
Technical Features

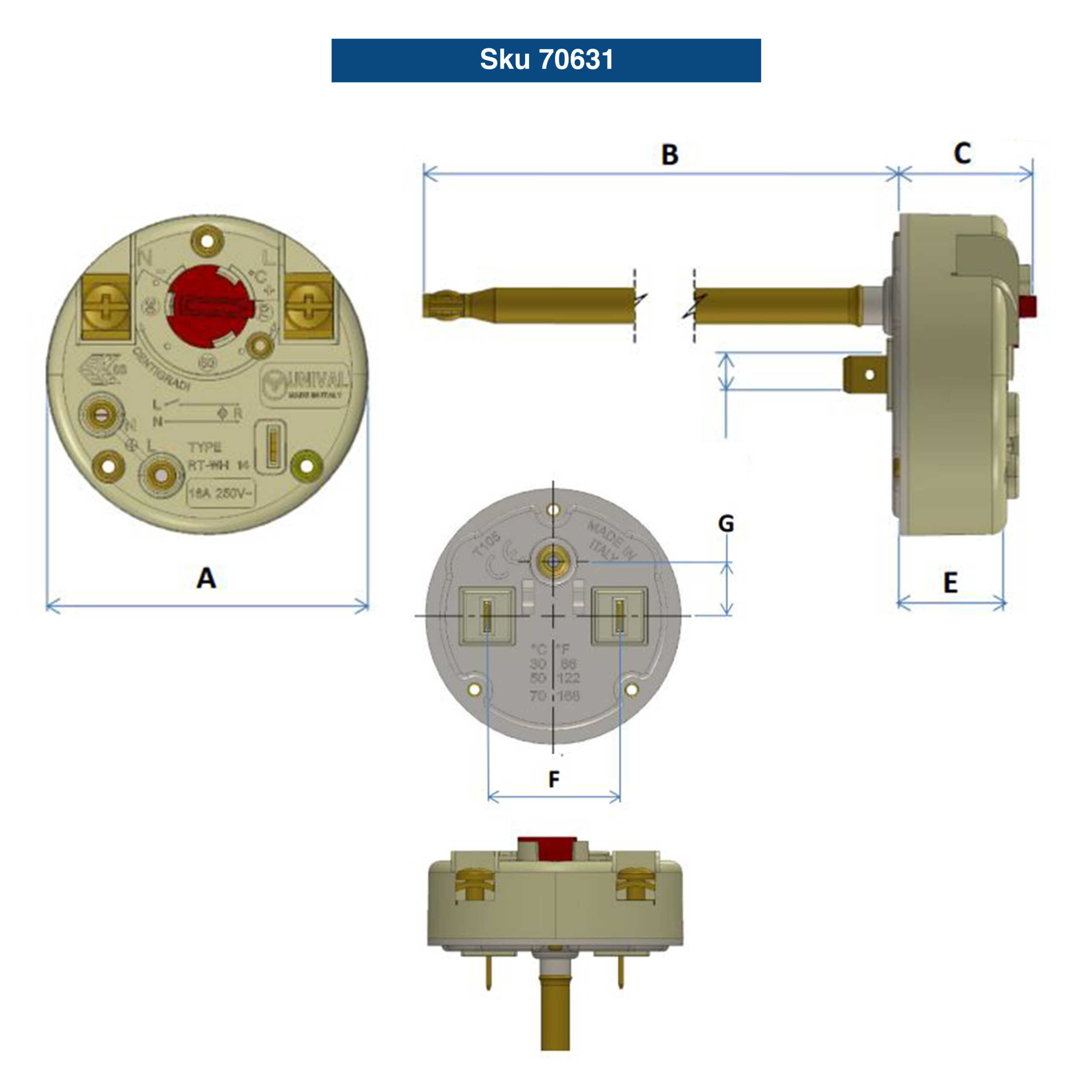

| SKU 70631 | |
|---|---|
| Unipolar operation | |
| POWER SUPPLY | 20A - 250V |
| ROOM TEMPERATURE | 105°C |
| T1 °C (Off) | 70°C±5 |
| T2 °C (On) | 60±5 |
| T3 °C (Safety) | - |
| DIMENSIONS |
|
| SKU 70735 | |
|---|---|
| Bipolar operation | |
| POWER SUPPLY | 20A - 250V |
| ROOM TEMPERATURE | 105°C |
| T1 °C (Off) | 70°C±5 |
| T2 °C (On) | 60°C±5 |
| T3 °C (Safety) | 90°C±5 |
| DIMENSIONS |
|
| Product approved according to European standard EN 60730-1 | |
| HOMOLOGATION | ENEC |
