Mini Anemometer
Model with fixed probe
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011517 |
 MINI ANEMOMETER WITH FIXED PROBE |
€445,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

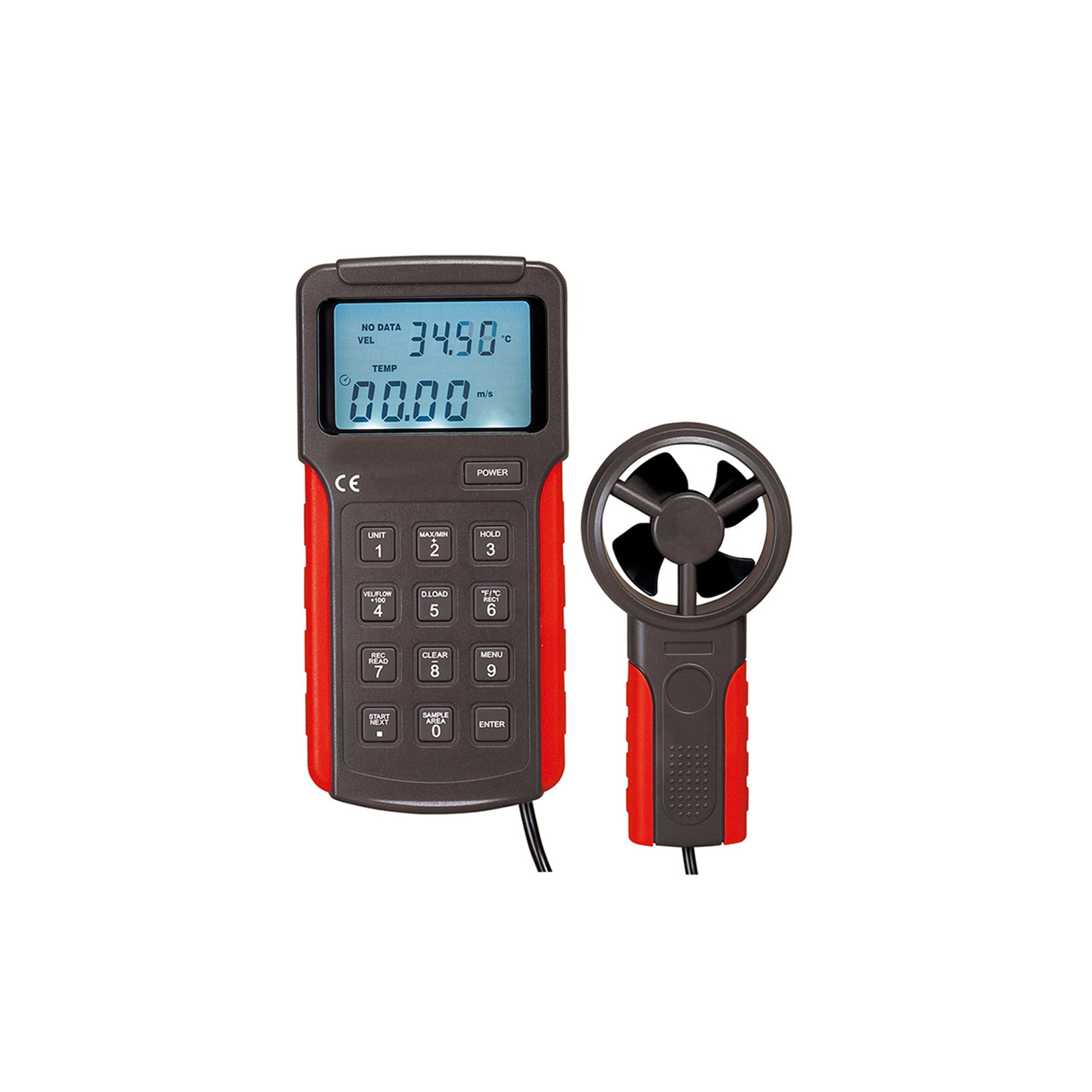

Mini anemometer with fixed fan probe, designed to easily measure temperature, flow rate and air speed.
Product features
- wear-resistant fan structure for greater precision and reliability
- data block function
- MAX/AVG mode
- backlit LCD screen
- automatic shut-down
- overload indication
- low battery indication

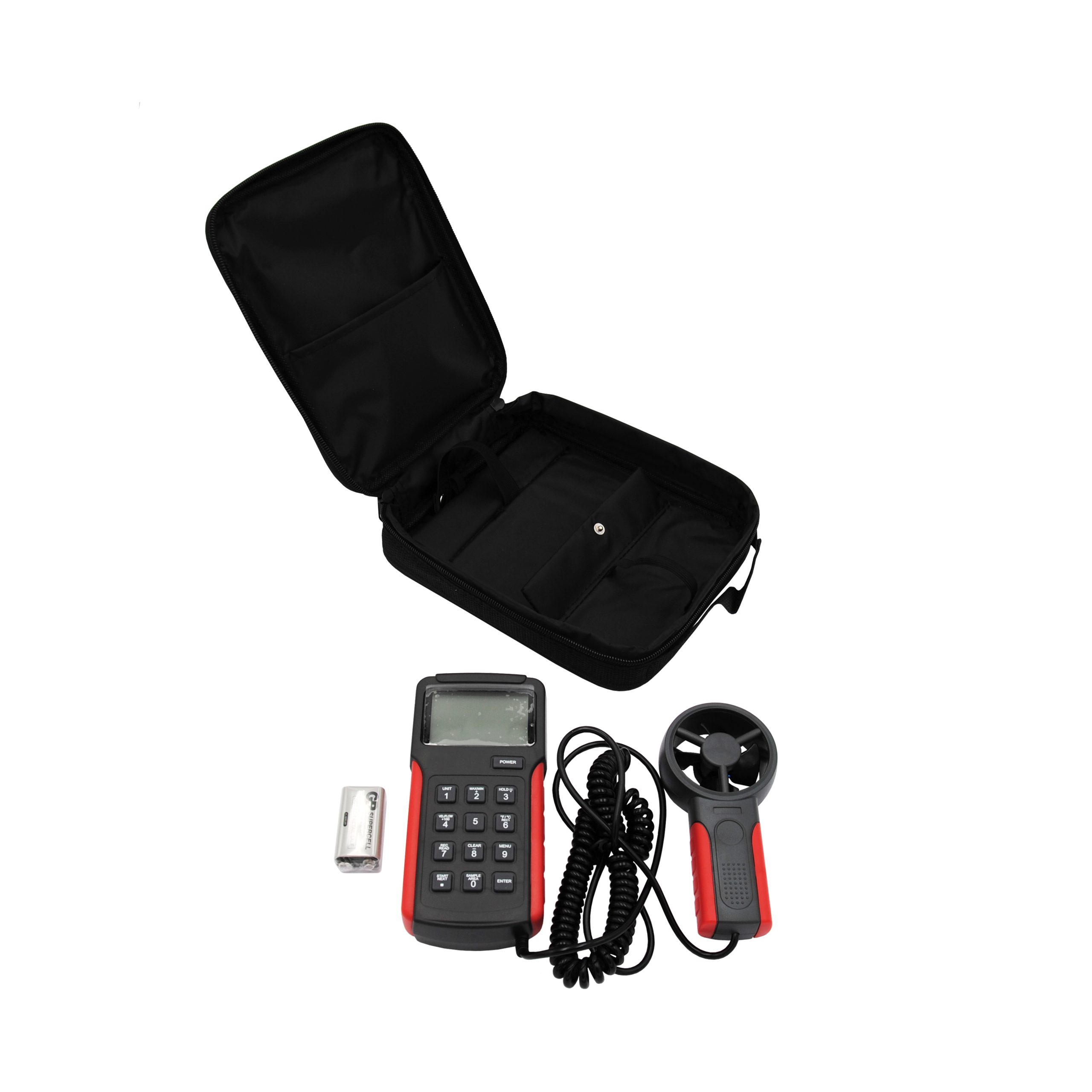

The kit consists of
- mini anemometer
- 3 AAA batteries (R03) 1.5V

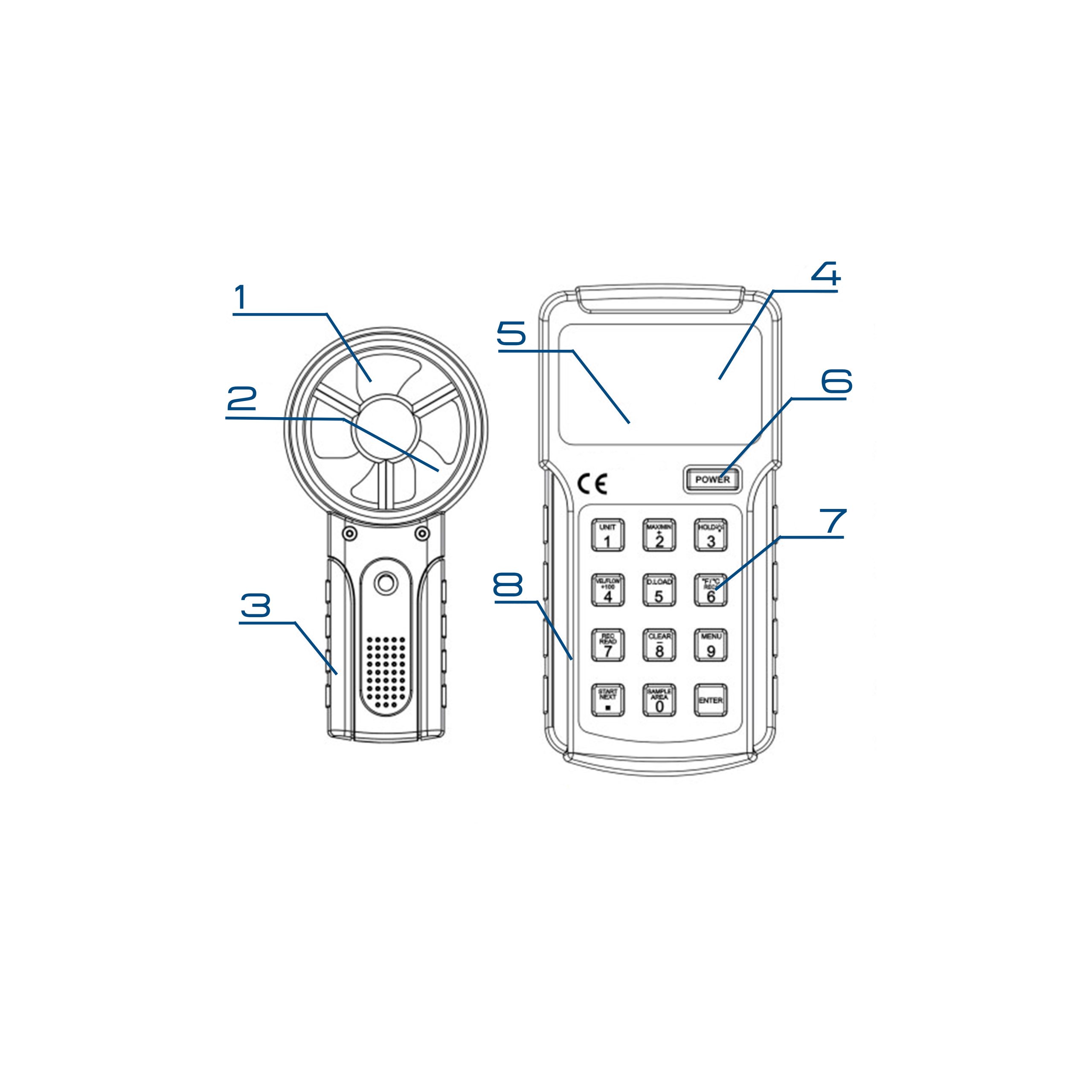

| ANEMOMETER STRUCTURE | |
|---|---|
| 1 | temperature and wind speed sensor |
| 2 | anemometer body |
| 3 | display LCD |
| 4 | ON/OFF button - Bluetooth® activation |
| 5 | button for unit selection (°C/°F) |
| 6 | mode selection button (MAX/AVG) |
| 7 | "HOLD" mode selection button / display backlight activation |

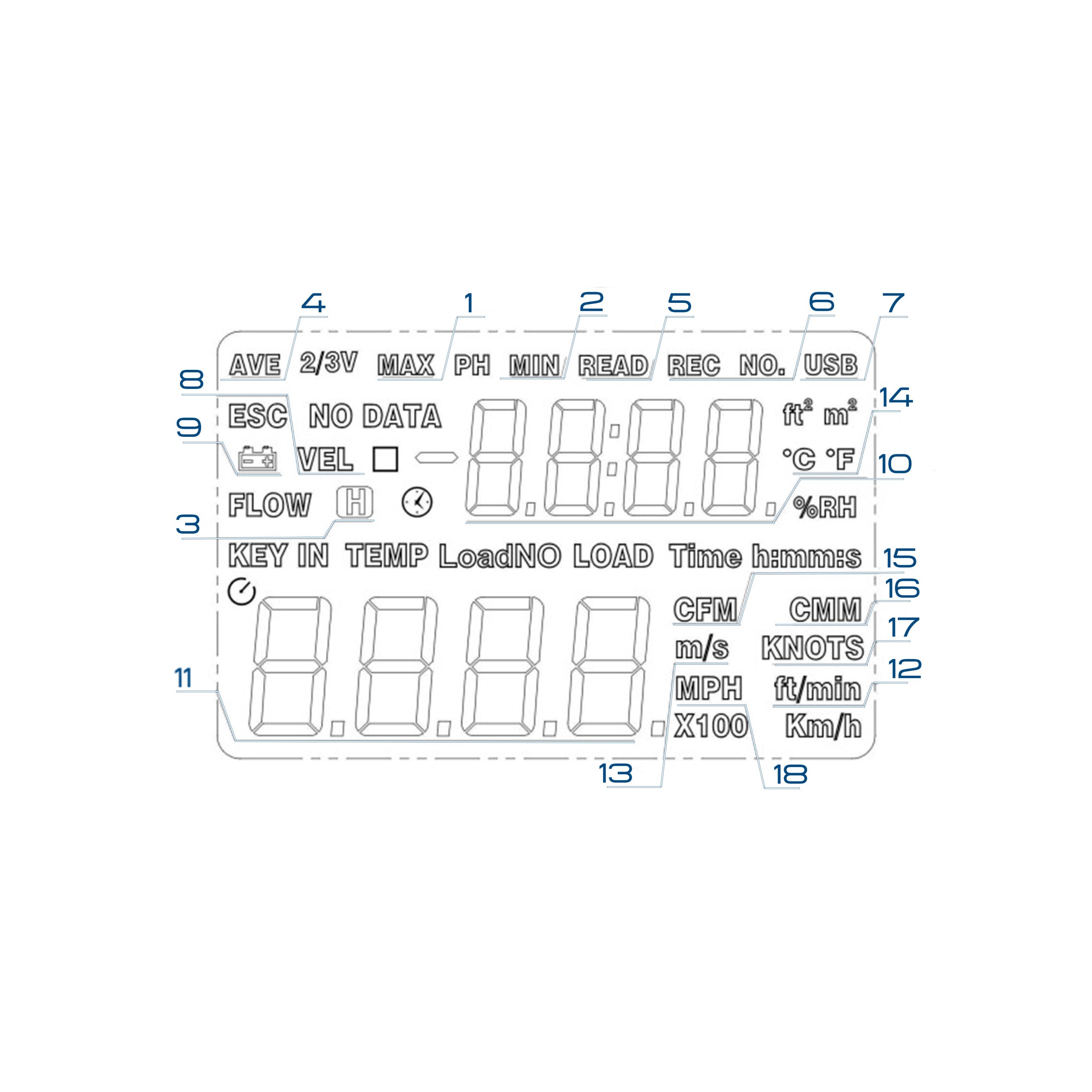

| DISPLAY STRUCTURE | |
|---|---|
| 1 | maximum value |
| 2 | average value |
| 3 | "data hold" function icon active |
| 4 | low battery icon |
| 5 | unit of measurement m/s |
| 6 | unit of measurement km/h |
| 7 | unit of measurement ft/min |
| 8 | unit of measurement Knots |
| 9 | unit of measurement Mph |
| 10 | active temperature unit (°C) |
| 11 | active temperature unit (°F) |
| 12 | measured temperature value |
| 13 | "Wind Chill" warning icon |
| 14 | measured wind speed value |
| 15 | Beaufort scale |
| 16 | Bluetooth® communication icon active |
Technical Features
| FUNCTION | RANGE | RESOLUTION | PRECISION | NOTE |
|---|---|---|---|---|
| WIND SPEED MEASUREMENT | 0 ~ 30 m/s (standard) | 0.1 | ± (5%rdg+0.5) |
|
| 1.4 ~ 108 km/h (reference) | ± (5%rdg+15dgts) | |||
| 0.7 ~ 58 Knots (reference) | ± (5%rdg+10dgts) | |||
| 0.8 ~ 67 mph (reference) | ± (5%rdg+10dgts) | |||
| 78 ~ 5905 ft/min (reference) | 1 | ± (5%rdg+180dgts) | ||
| TEMPERATURE MEASUREMENT | - 10°C ~ 50°C | 0.1°C | ± 2°C | sensor operating temperature |
| 14°F ~ 122°F | 0.2°F | ± 4°F | ||
| WIND RATING | 0 ~ 12 | 1 | ± 1 | wind assessment to be used as a reference |
| SAMPLING FREQUENCY | 0.5 seconds |
|---|---|
| AUTOMATIC SHUT-DOWN | after 5 minutes of inactivity |
| POWER SUPPLY | 3 AAA batteries (R03) 1.5V |
| SCREEN DIMENSIONS | 32x26 mm (WxH) |
| ANEMOMETER DIMENSIONS | 160x50x28 mm (HxWxD) |
| WEIGHT | 118 g |
