TECNOWATER PC-36B Mini Pump
Reliable, silent and compact
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011942 |
 TECNOWATER PC-36B MINI PUMP |
€129,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

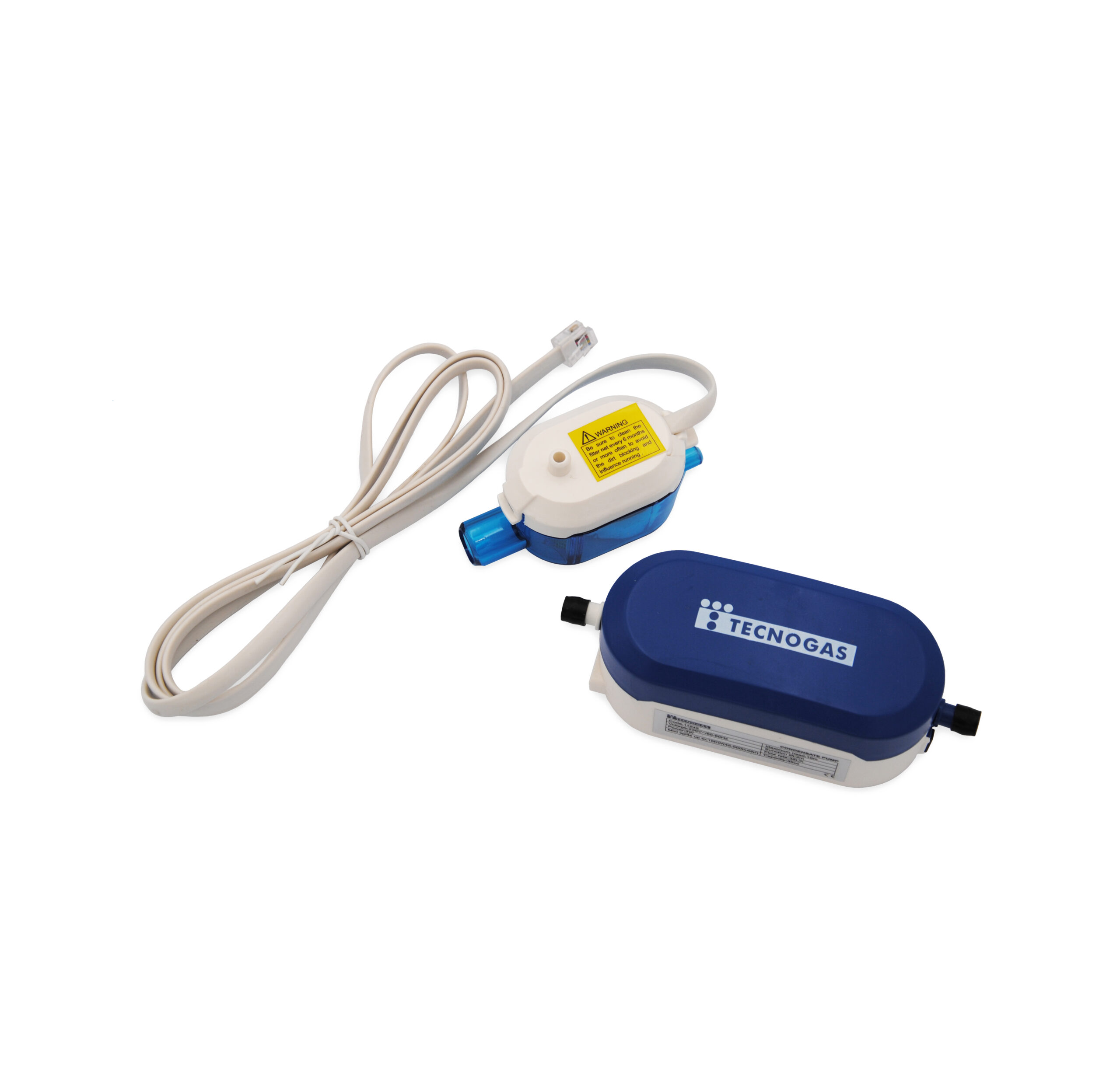

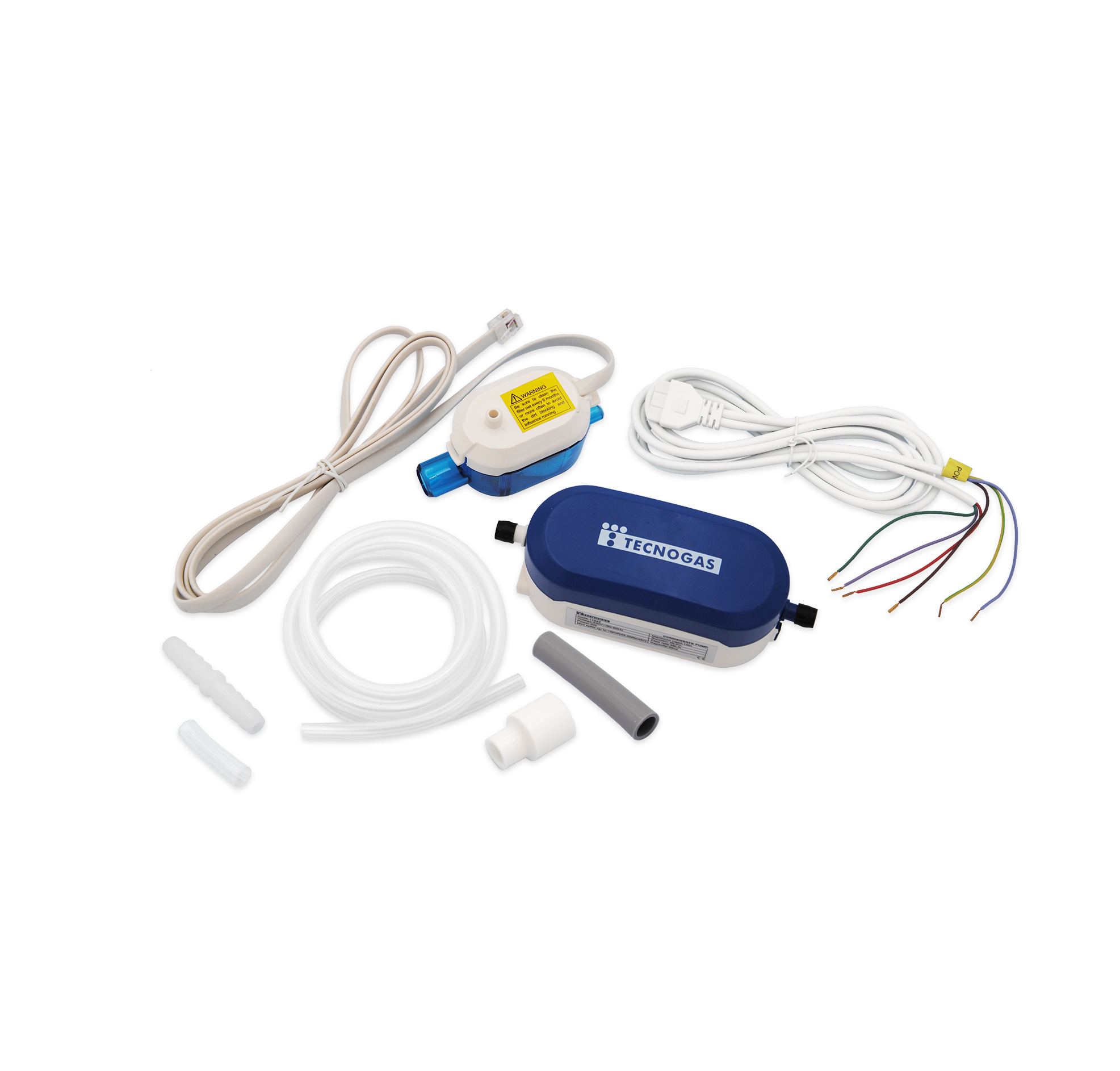

TECNOWATER PC-36B mini pump reliable, silent and compact; complete with accessories for easy installation.

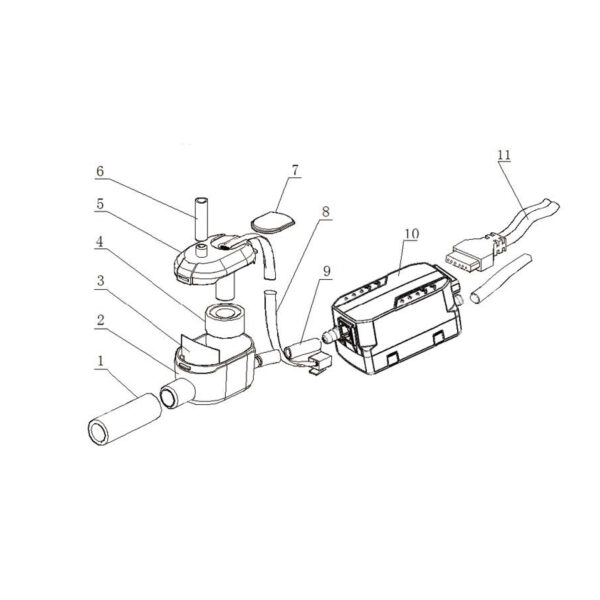

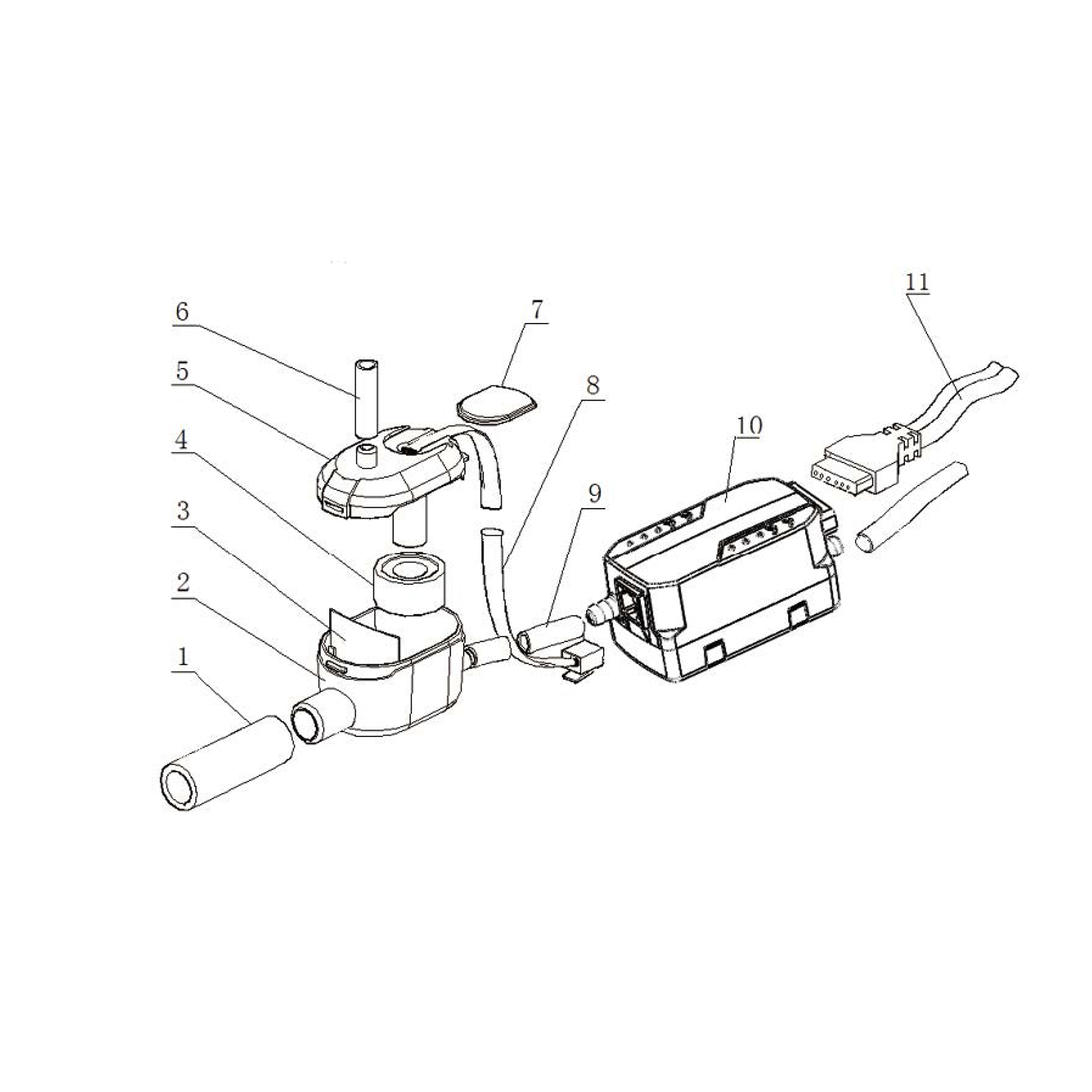

| N° | DESCRIPTION |
|---|---|

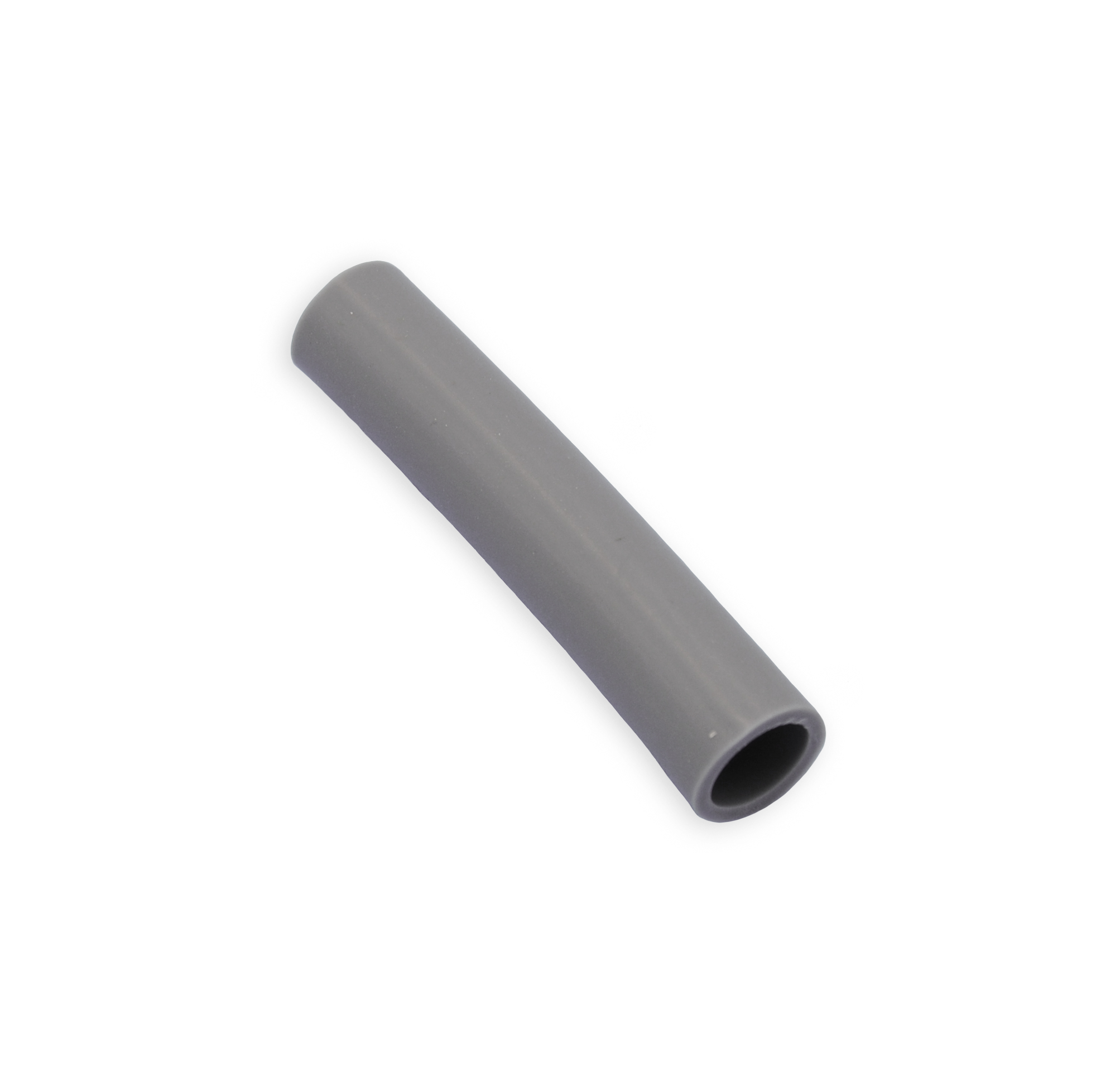

| 1 | silicon pipe |
| 2 | water tank |
| 3 | filter |
| 4 | float |
| 5 | water tank cover |
| 6 | blow hole |
| 7 | tank lid |

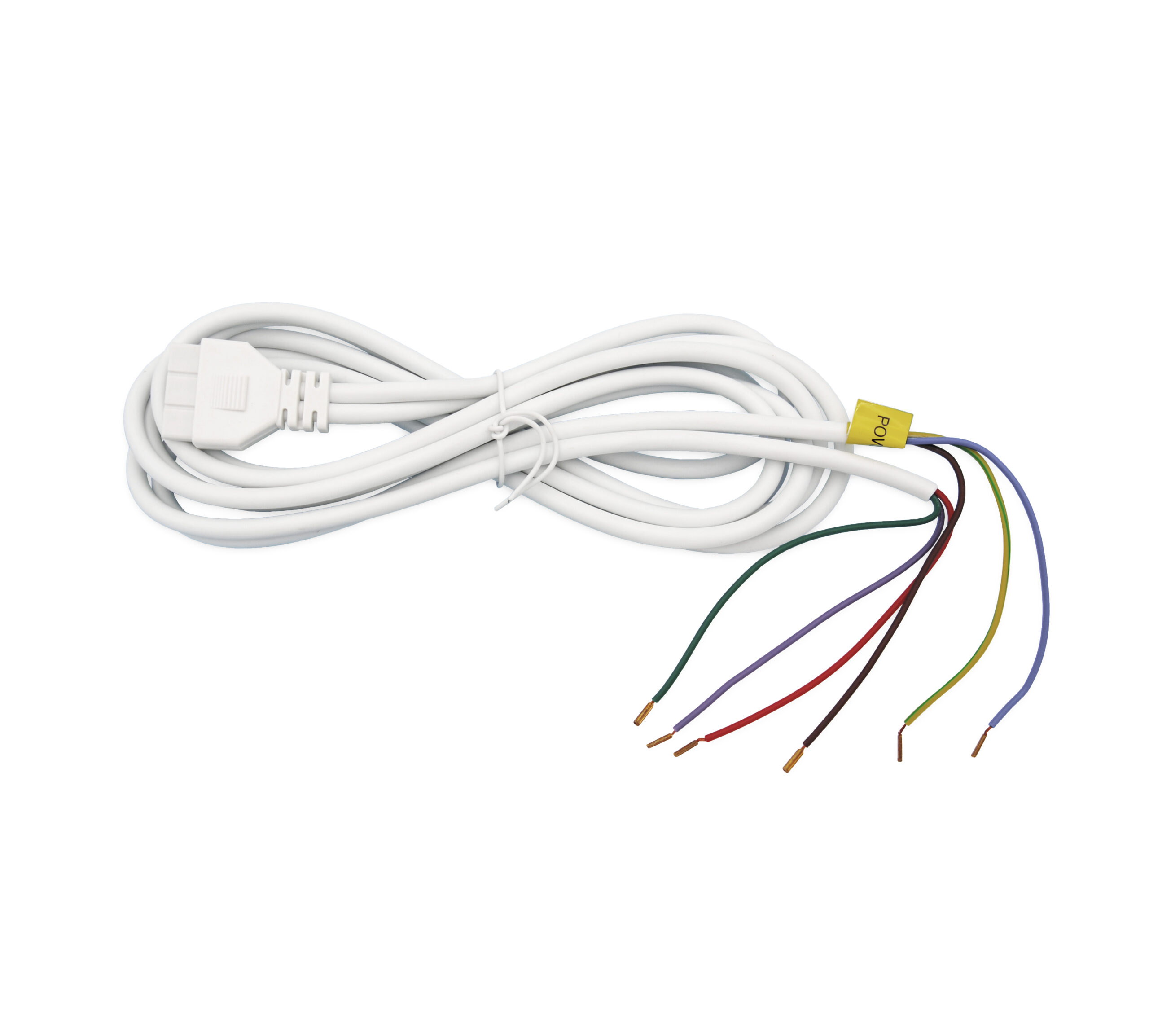

| 8 | sensor cable |

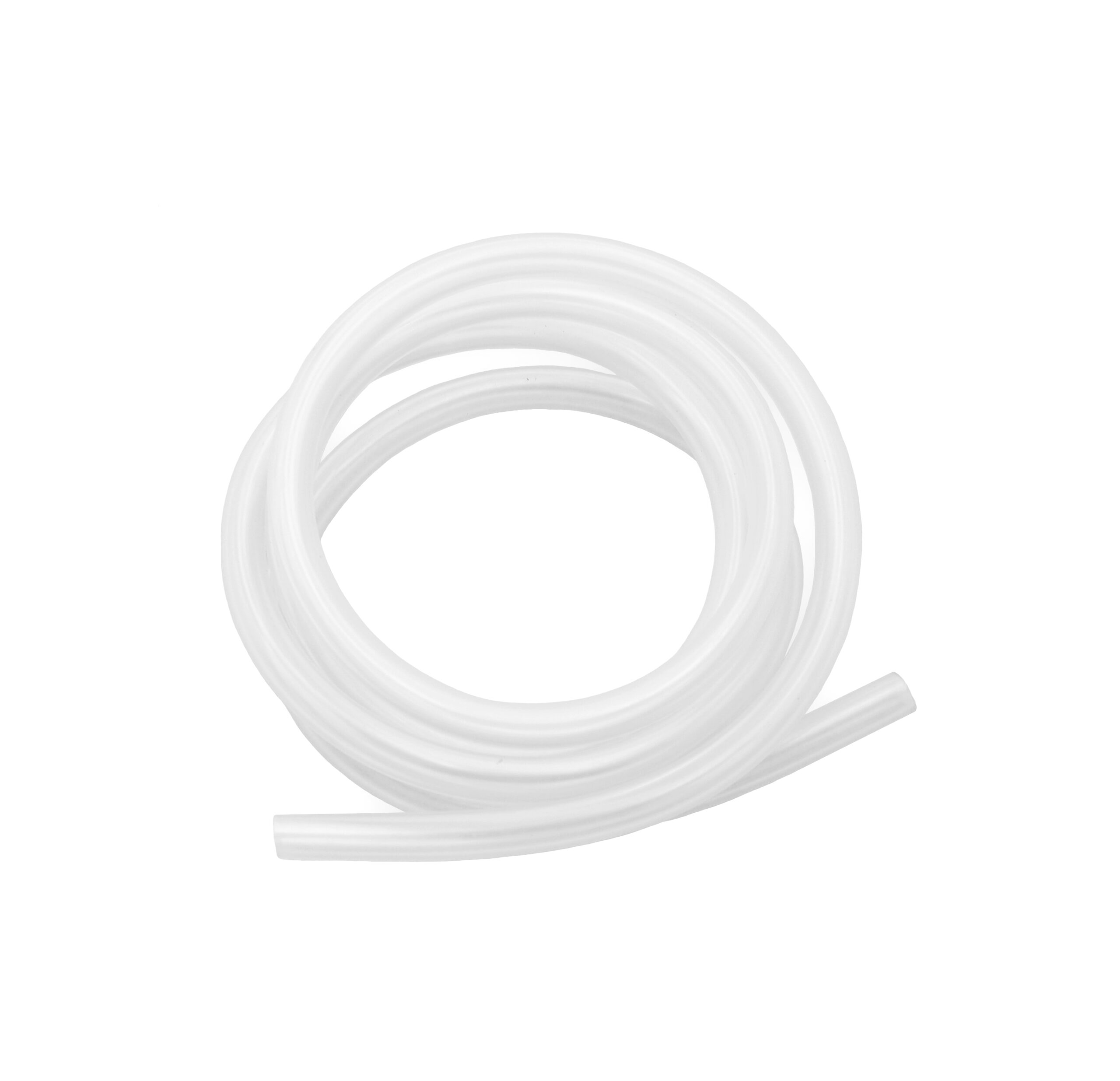

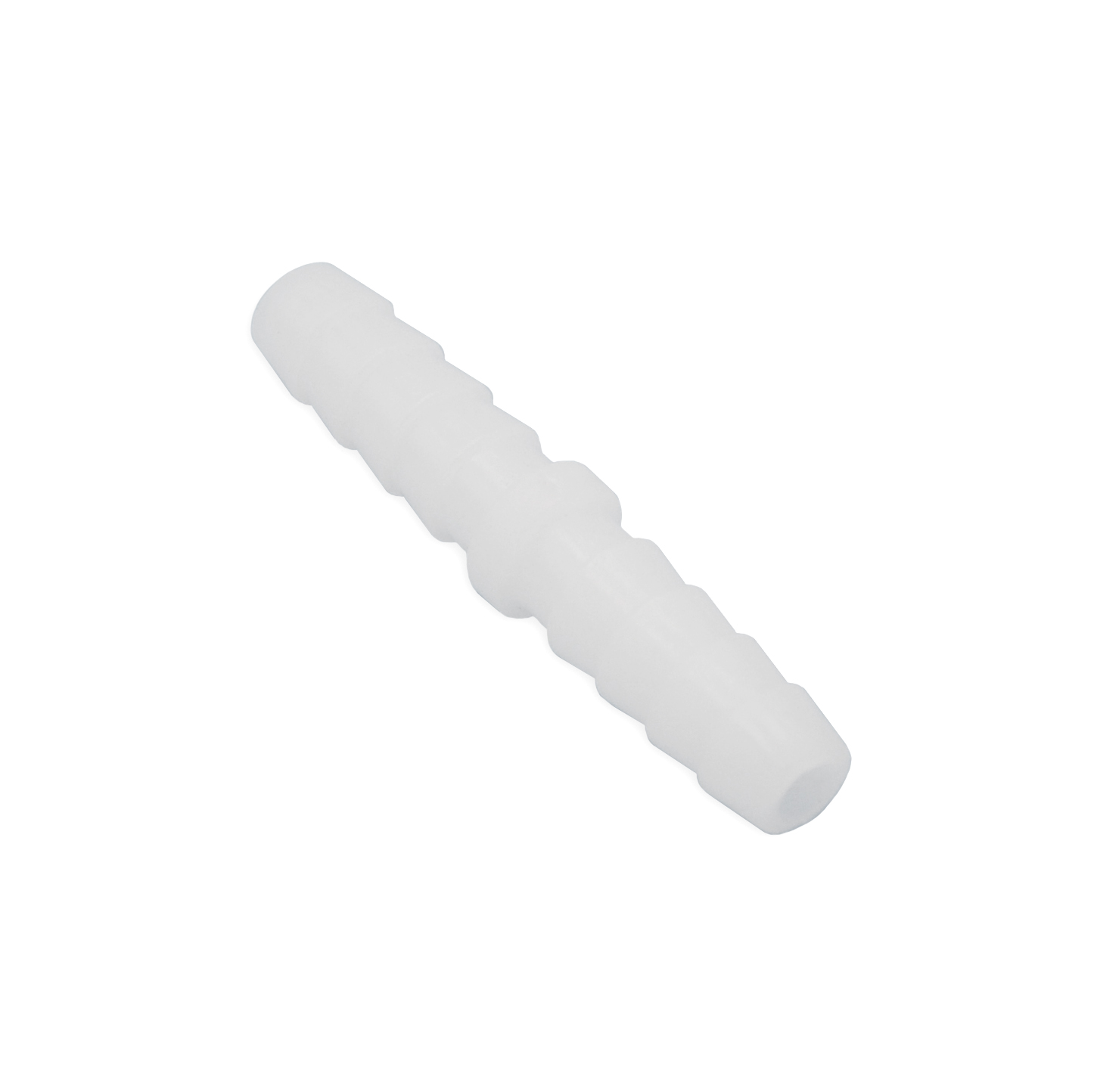

| 9 | connecting pipe |
| 10 | pump cover |
| 11 | 6 pin socket |
Technical Features
| MAXIMUM FLOW RATE | 36 l/h |
|---|---|
| POWER SUPPLY | 230 V 50-60 Hz |
| MAX SPLIT POWER | 10 kW |
| DRAIN LENGHT | 12 m - 40 ft |
| MAX ASPIRATION | 2 m |
| MAX DISCHARGE | 12 m |
| PUMP DIMENSIONS | 105x45x50 mm (LxDxH) |
| SENSOR UNIT DIMENSIONS | 86x40x45 mm (LxDxH) |
| SOUND LEVEL | 32 dbB (A) |
| TANK CAPACITY | 35 cc |
| THERMAL PROTECTION | 100°C |
| WORKING TEMPERATURE | 0°C ÷ + 50°C |
