T-TotalFlex

Plastic polymer flue system

EN EN 14471 - UNI EN 1528 - UNI EN 7129 RULES

sku	model	price	info	add to cart
00000051421	FLEXIBLE PIPE - Ø 50 mm - 30 m	€239,55 Excl. Taxes	Physical data UM Base: RT Dimension: 140 × 140 × 39 cm Volume: 0.7644 m³ Weight: 11,00 kg Minimum Order Quantity: 1 Bulky item: check the cost of transport with our sales department. Customs data Customs Code 39269097	T-TotalFlex quantity Buy Info Request
00000051422	FLEXIBLE PIPE - Ø 60 mm - 30 m	€240,85 Excl. Taxes	Physical data UM Base: RT Dimension: 122 × 120 × 35 cm Volume: 0.5124 m³ Weight: 18,00 kg Minimum Order Quantity: 1 Bulky item: check the cost of transport with our sales department. Customs data Customs Code 39269097	T-TotalFlex quantity Buy Info Request
00000051423	FLEXIBLE PIPE - Ø 80 mm - 30 m	€233,85 Excl. Taxes	Physical data UM Base: RT Dimension: 140 × 142 × 39 cm Volume: 0.7753 m³ Weight: 8,00 kg Minimum Order Quantity: 1 Bulky item: check the cost of transport with our sales department. Customs data Customs Code 39269097	T-TotalFlex quantity Buy Info Request

Product informations

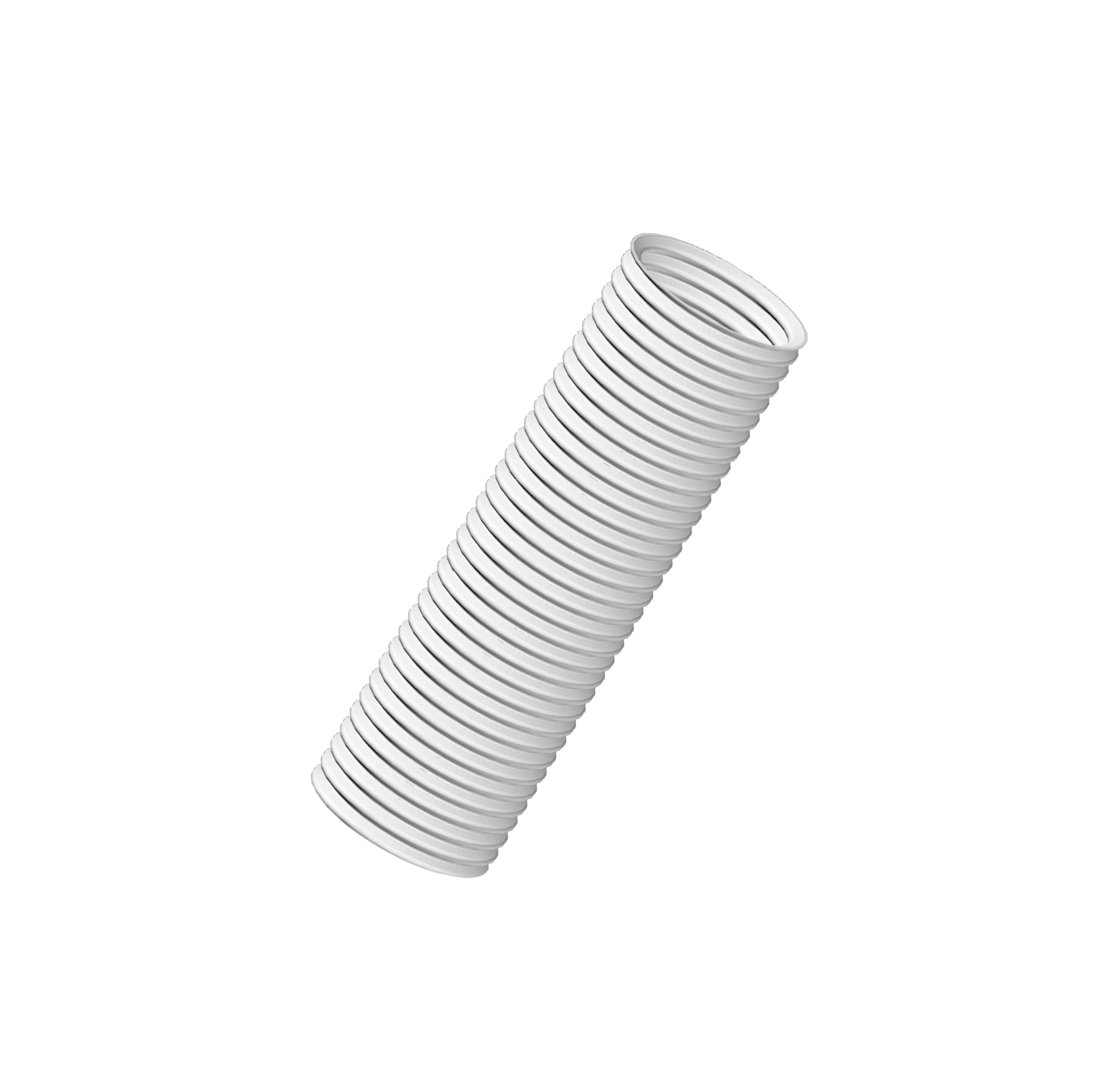

T-TotalFlex is the flue gas exhaust system in completely flexible plastic polymer, without solution of continuity; in fact, the system provides a single and unique joint sleeve with which it is possible to manage three different combinations: rigid-flex, flex-flex and flex-rigid. Ideal for evacuating fumes from the combustion of condensing boilers and kitchen vapors, it must always be placed in a technical cavity/technical loop or inside the thermal power plant.

Product features

made in diameters: Ø 50 mm - Ø 60 mm - Ø 80 mm
composed of modular elements with circular section
matt white finish RAL 9010
each roll is equipped with 6 gaskets
all corrugated, without pre-finishing

Technical Features

*DESIGNATION*	T 120 H1 W 2 O00 LI E U0
*TYPE OF MATERIAL*	Self-extinguishing PPs
*RESISTANCE TO PRESSURE*	with EPDM gaskets
*APPLICATION RANGE*	condensing boilers and cooking steam exhaust
*SUITABLE FUELS*	methane gas
*OPERATING TEMPERATURE*	continuous up to 120°C wet under pressure with EPDM gasket
*REACTION TO FIRE*	class "E" (according to EN 13501-1)
*THICKNESS*	1,5 mm
*DEGREE OF RESISTANCE TO CORROSION*	type 2

*SKU*	D	*ROLL LENGTH*
51421	Ø 50 mm	30 m
51422	Ø 60 mm	30 m
51423	Ø 80 mm	30 m
