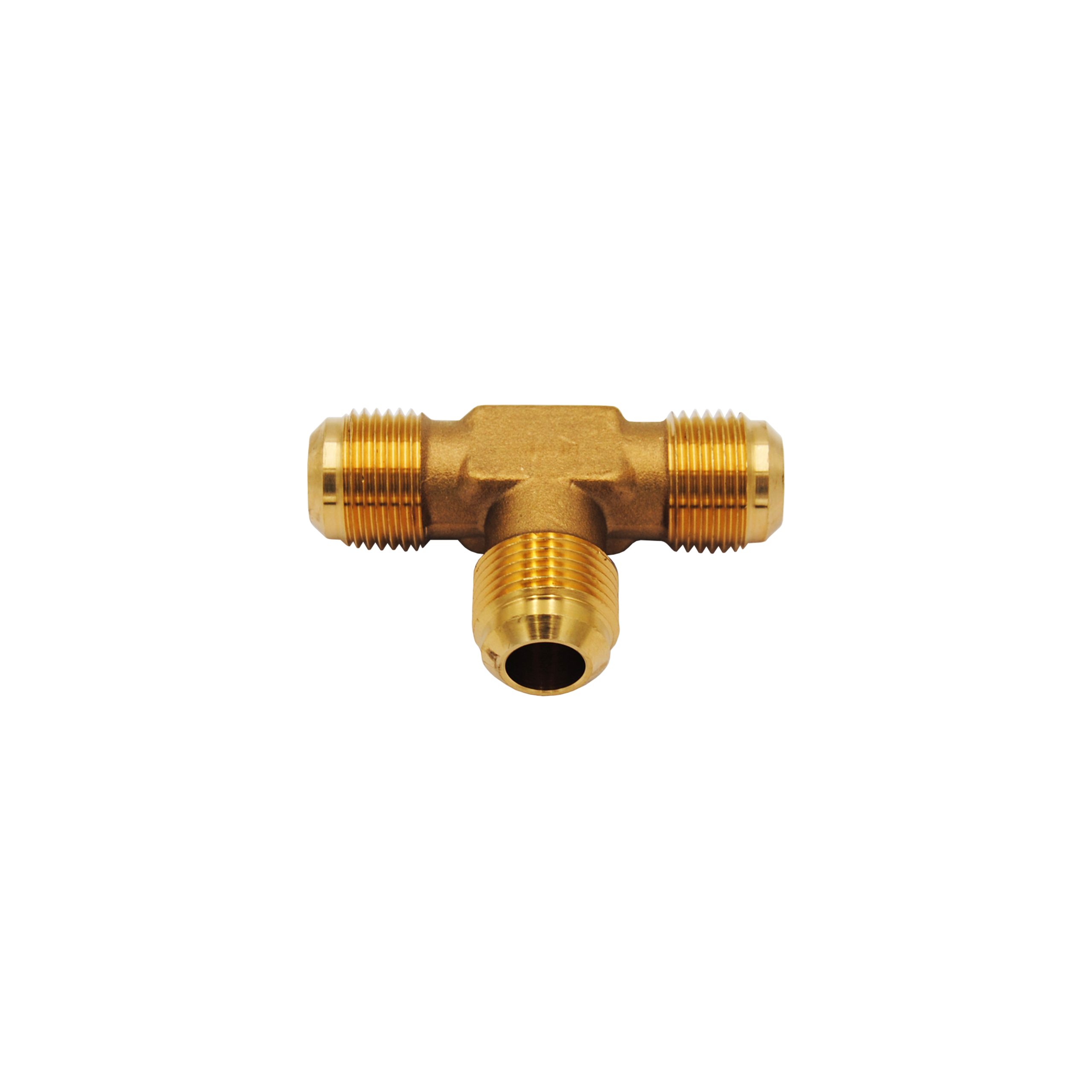

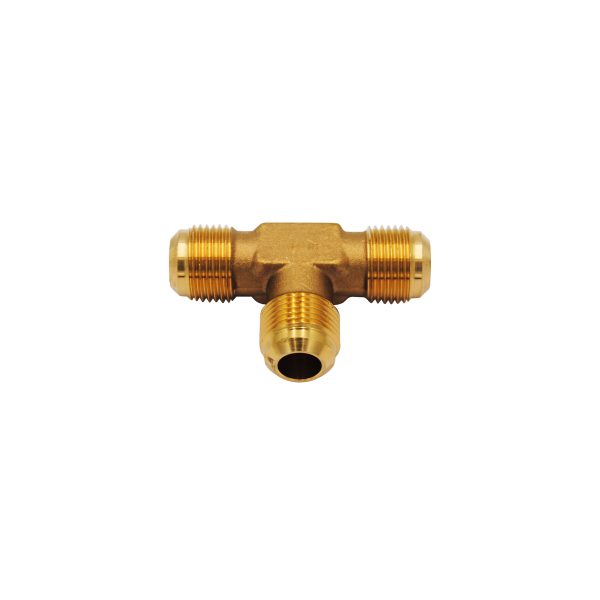

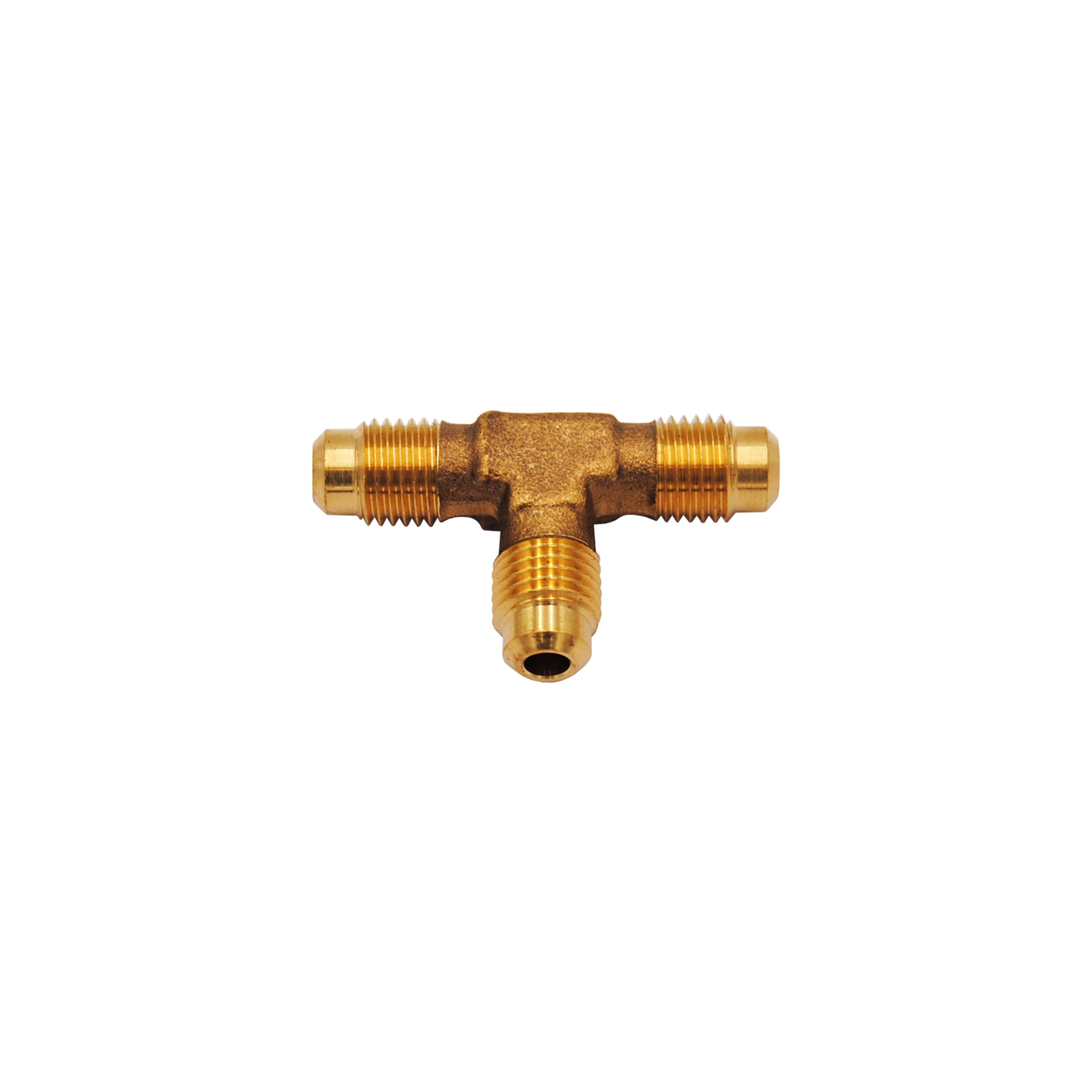

T-connection
For copper pipes
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000019100 |

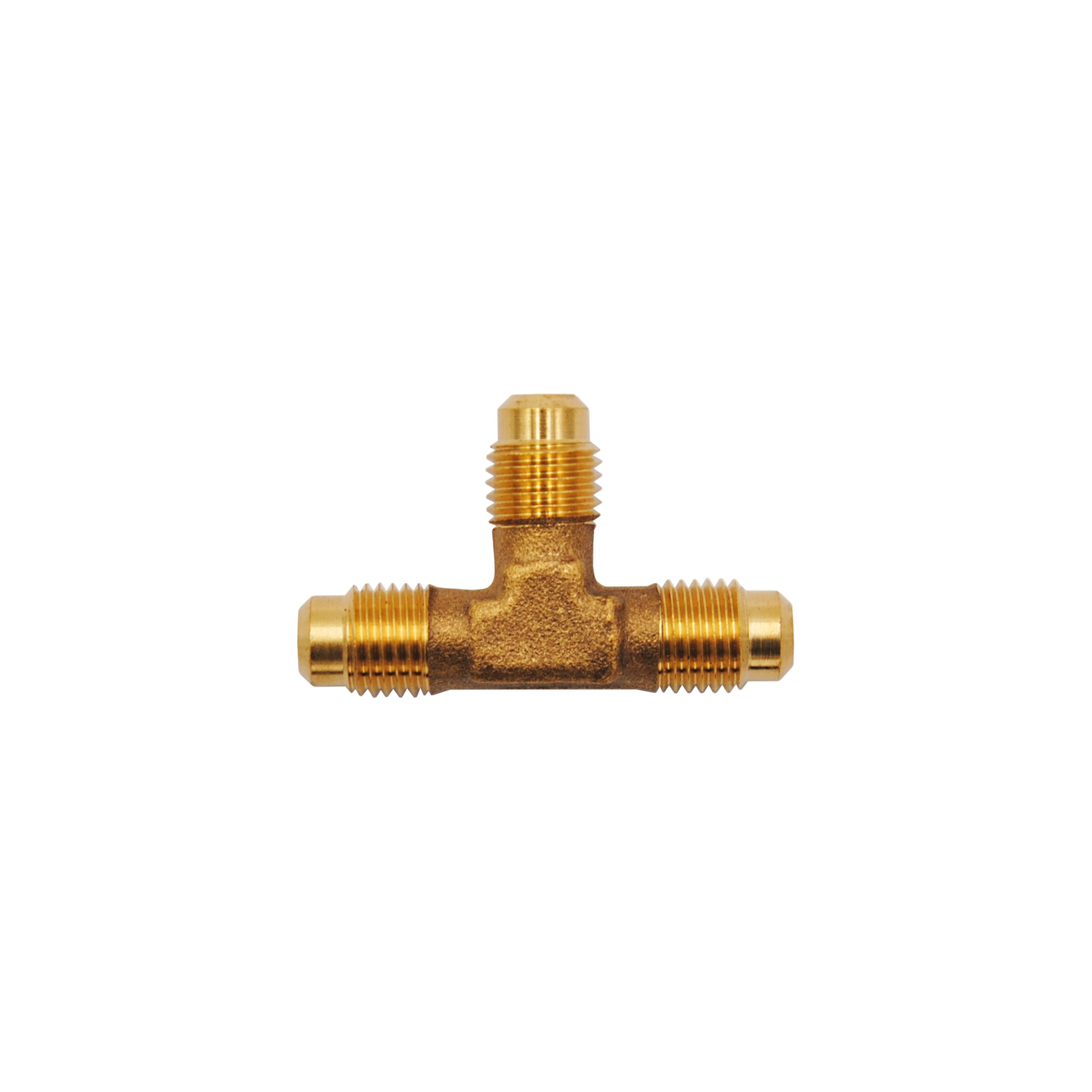

 T-CONNECTION - 1/4" SAE M.M.M. - 10 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000019101 |

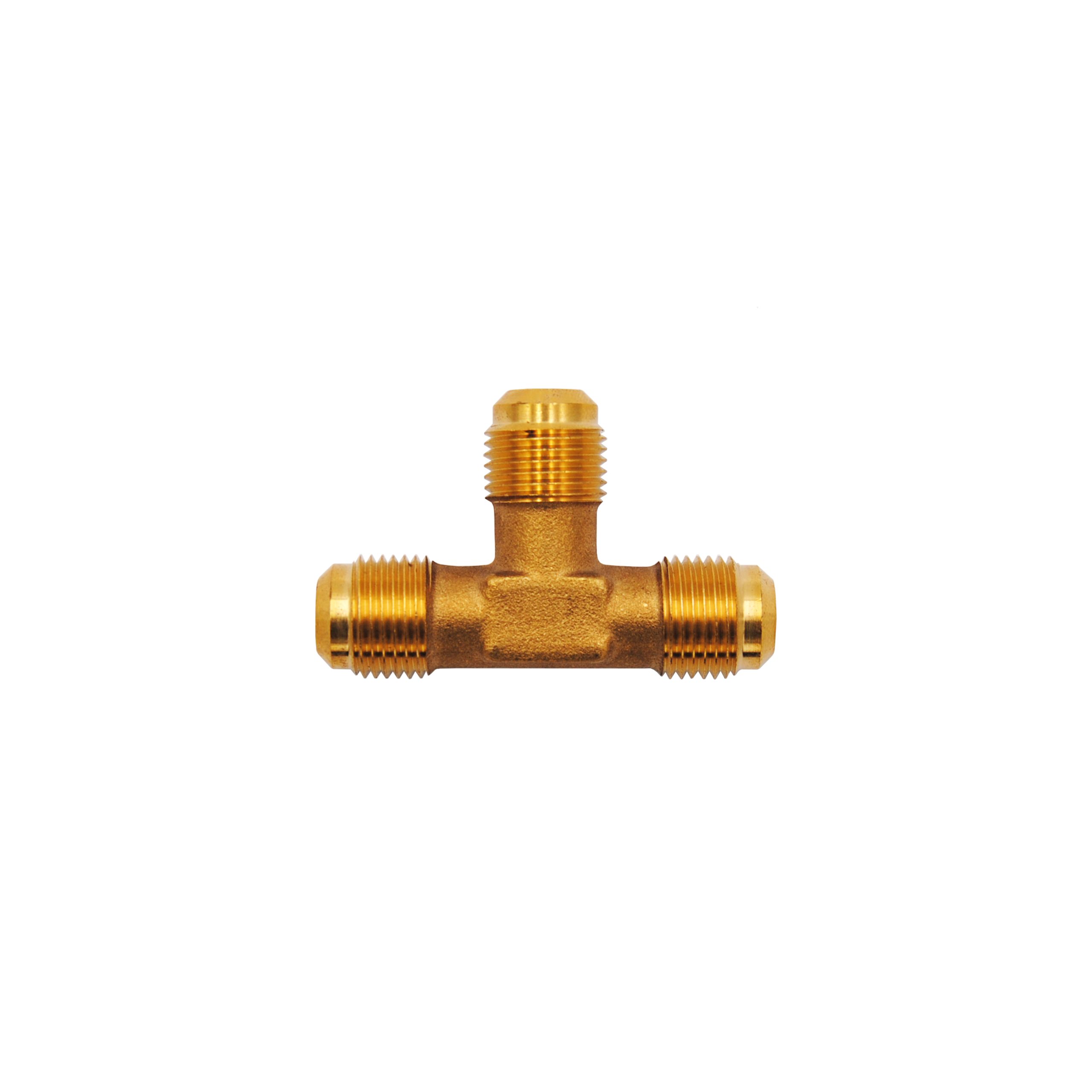

 T-CONNECTION - 3/8" SAE M.M.M. - 10 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000019102 |

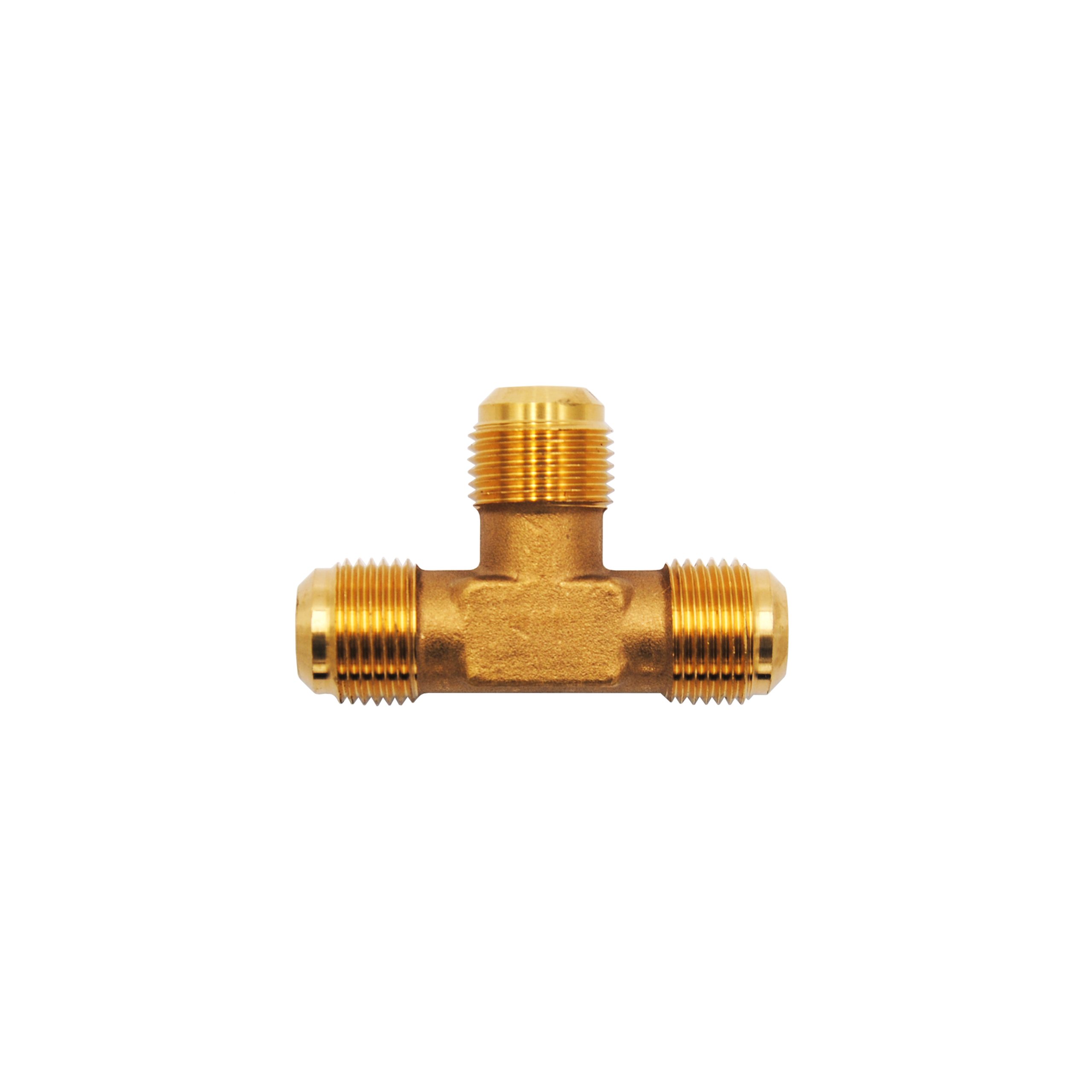

 T-CONNECTION - 1/2" SAE M.M.M. - 10 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000019103 |

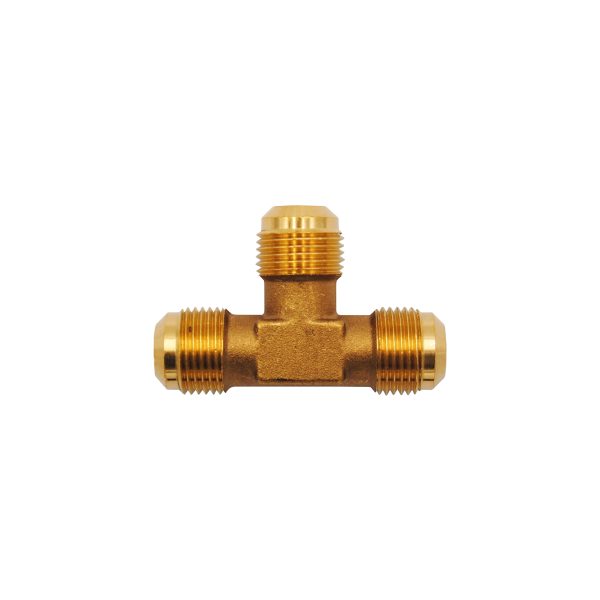

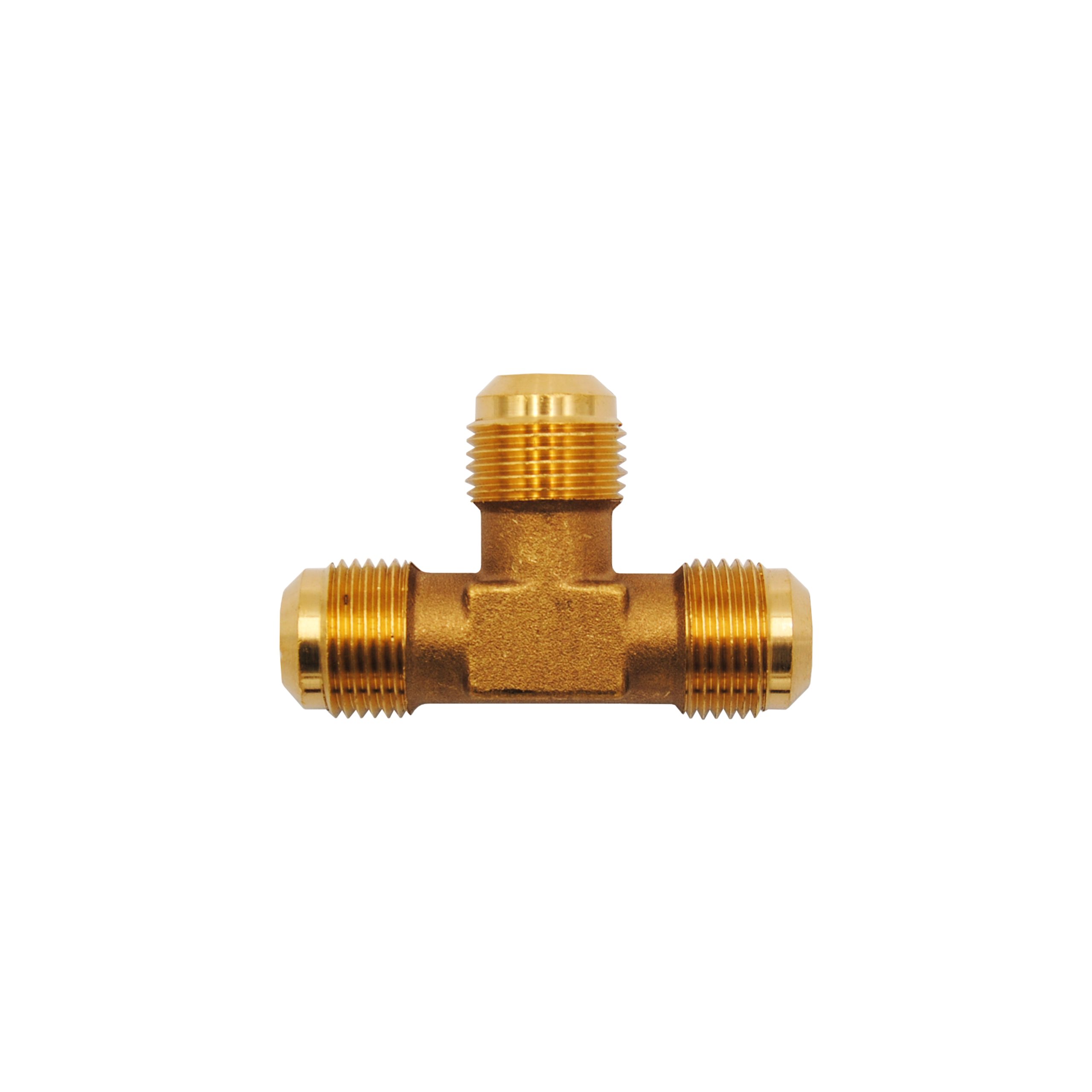

 T-CONNECTION - 5/8" SAE M.M.M. - 10 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000019104 |
T-CONNECTION - 3/4" SAE M.M.M. - 10 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

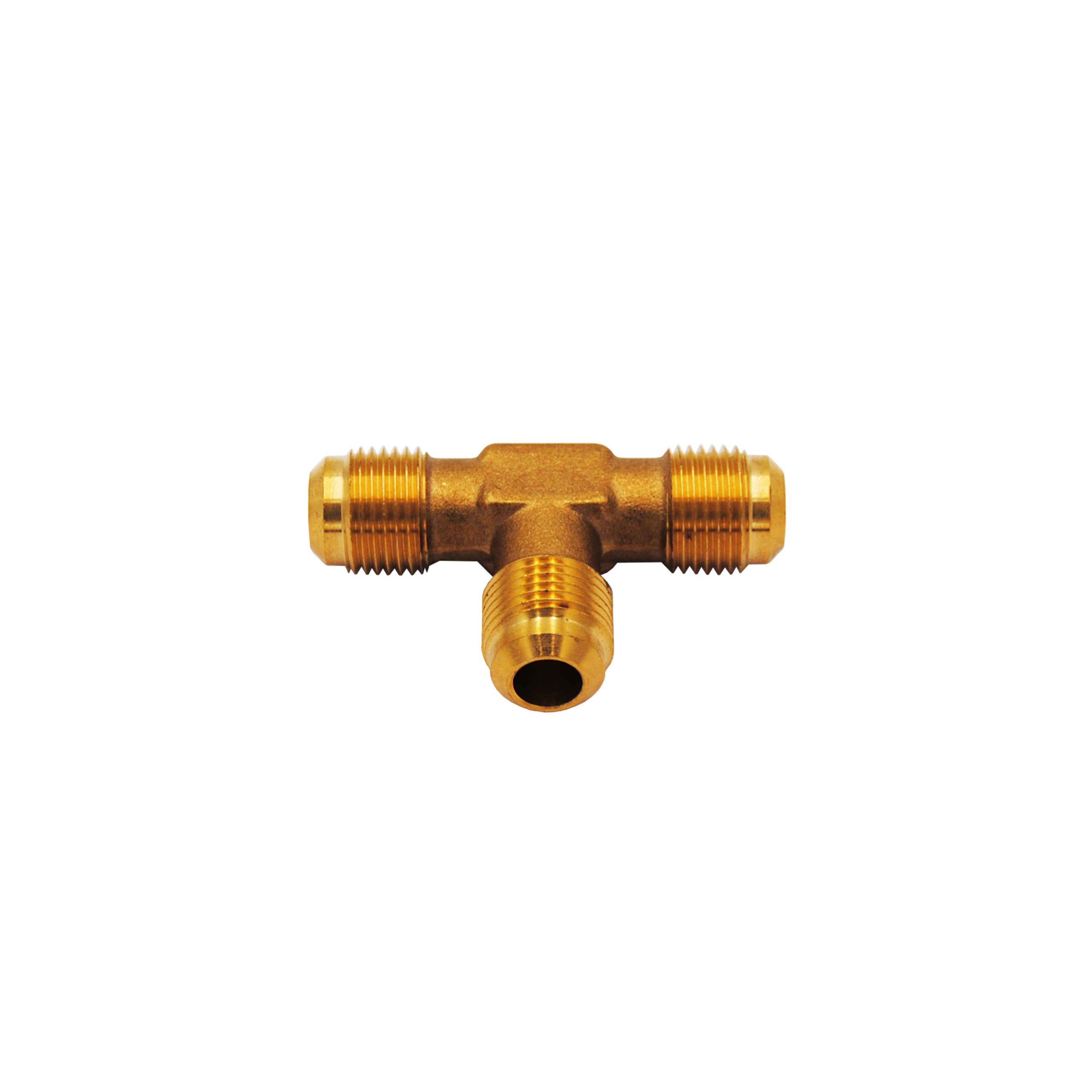

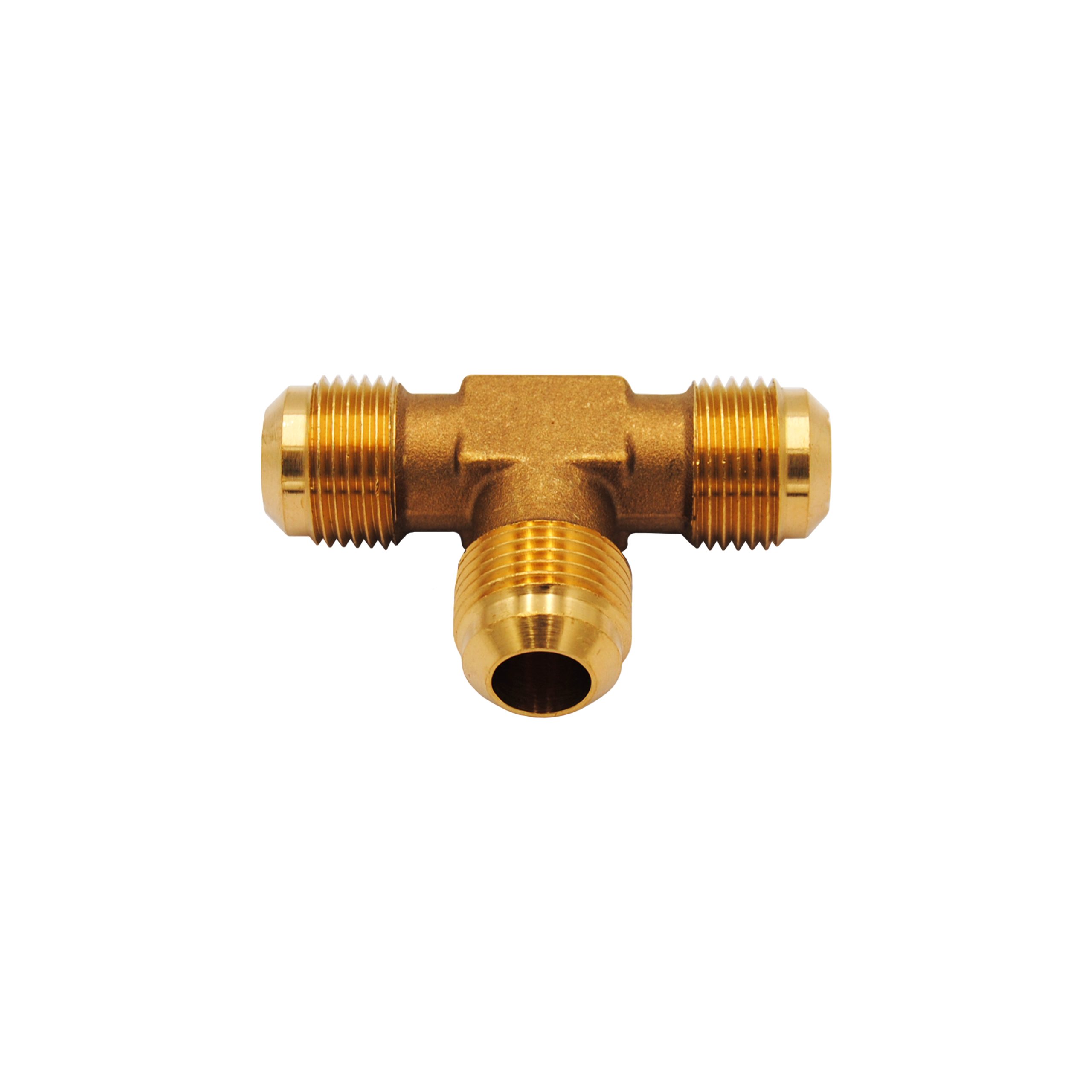

T-connection for copper pipes.
Product features
- forged from forged brass or drawn brass bar that eliminate the possibility of leakage due to porosity in the material
- low-roughness internal mechanical processing to ensure lower pressure drop and higher refrigeration flow rate in joints
- suitable for HCFC, HFC and R744 (CO2) refrigerants, not suitable for ammonia
Technical Features
| SKU | ANSI/ASME B1.1 THREAD (male) | ANSI/ASME B1.1 THREAD (male) | ANSI/ASME B1.1 THREAD (male) | CONNECTIONS |
|---|---|---|---|---|
| 19100 | 7/16" - 20 UNF | 7/16" - 20 UNF | 7/16" - 20 UNF | 1/4" - 1/4" - 1/4" SAE M.M.M |
| 19101 | 5/8" - 18 UNF | 5/8" - 18 UNF | 5/8" - 18 UNF | 3/8" - 3/8" - 3/8" SAE M.M.M |
| 19102 | 3/4" - 16 UNF | 3/4" - 16 UNF | 3/4" - 16 UNF | 1/2" - 1/2" - 1/2" SAE M.M.M |
| 19103 | 7/8" - 14 UNF | 7/8" - 14 UNF | 7/8" - 14 UNF | 5/8" - 5/8" - 5/8" SAE M.M.M |
| 19104 | 1.1/16" - 14 UNS | 1.1/16" - 14 UNS | 1.1/16" - 14 UNS | 3/4" - 3/4" - 3/4" SAE M.M.M |
