Soft Wind
TECNOBREEZE air curtain
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000014220 |
SOFT WIND - 900 mm |
€393,75 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000014221 |
SOFT WIND - 1200 mm |
€589,85 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000014222 |
SOFT WIND - 1500 mm |
€760,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

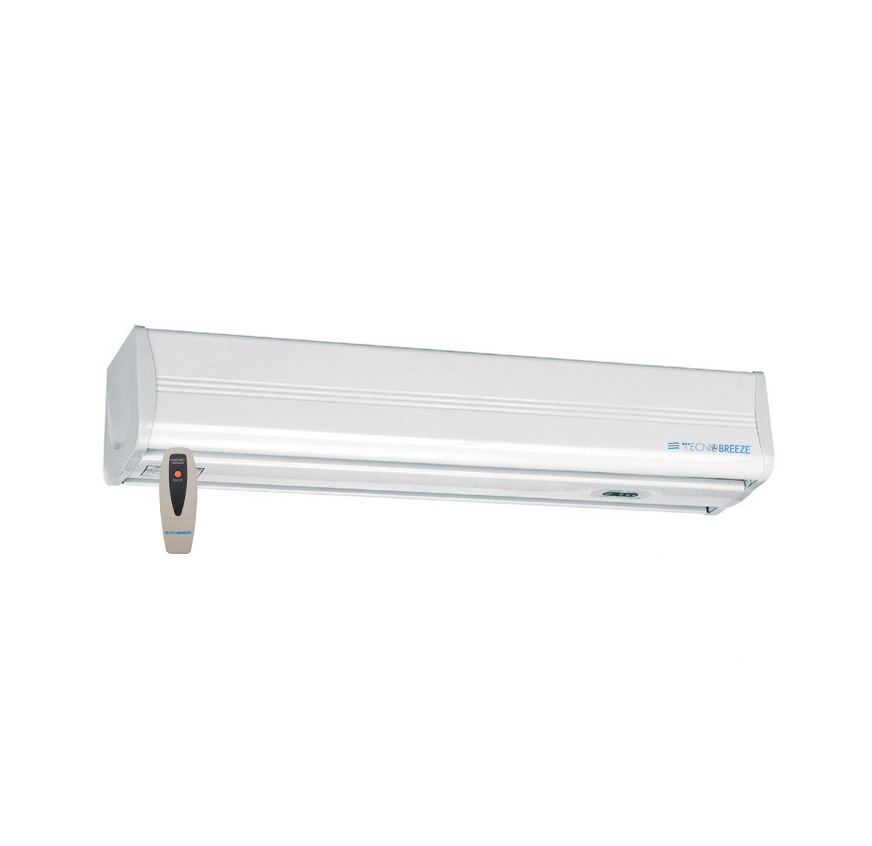

Elegant, compact and silent the air curtain SOFT WIND is suitable for each kind of space.

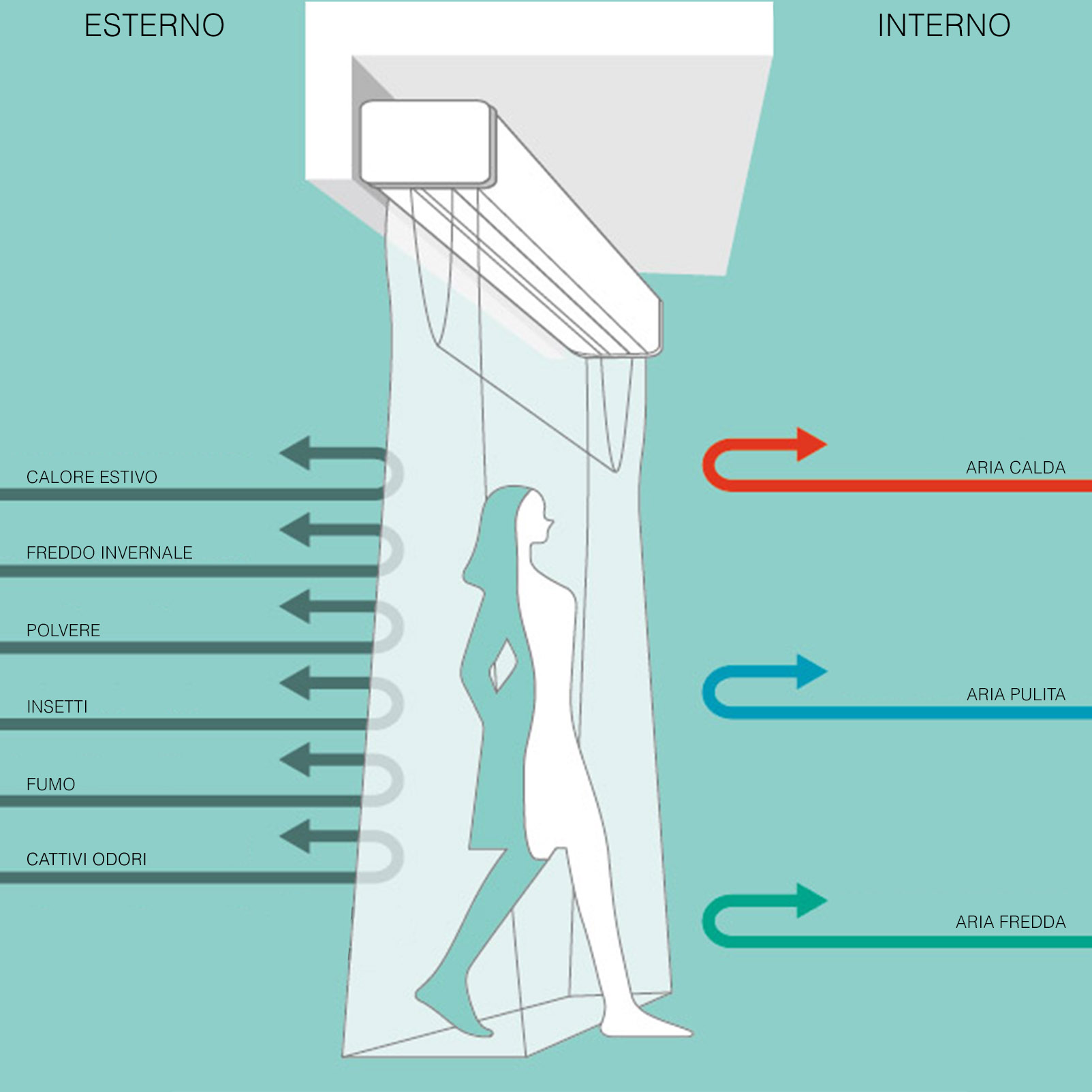

The air curtain allows to keep a constant temperature inside the room, also stopping dumped air from outside.
Energy consumption gets optimized with consequent money saving.
All moving electrical parts are guaranteed for over 5000 hours functioning.
Product features
- Power supply 230 V - 50 Hz
- Available dimensions: 900 - 1200 - 1500 - 2000 mm
- With remote control
- 2 speeds
Technical Features
| TECNICAL DATA | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | VOLTAGE | MOTOR POWER | AIR SPEED | AIR VOLUME LOW | AIR VOLUME HIGH | NOISE LEVEL | LENGTH | WEIGHT | |
| 14220 | 230 V 50 Hz | 130 W | 8.5-9 m/s | 1050 m3/h | 1400 m3/h | 51-52 dB(A) | 900 mm | 11.2 kg | |
| 14221 | 230 V 50 Hz | 160 W | 8.5-9 m/s | 1460 m3/h | 1680 m3/h | 53-54 dB(A) | 1200 mm | 14.5 kg | |
| 14222 | 23 V 50 Hz | 215 W | 8.5-9 m/s | 1680 m3/h | 2240 m3/h | 56-58 dB(A) | 1500 mm | 18 kg | |

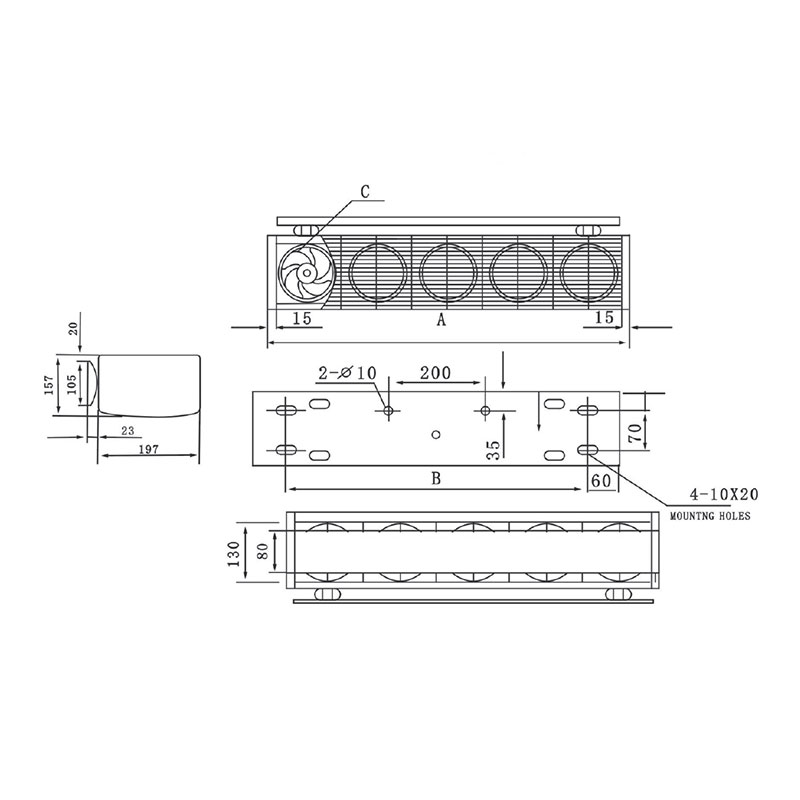

| DIMENSIONS | |||
|---|---|---|---|
| SKU | A | B | C |
| 14220 | 900 mm | 750 mm | 5 mm |
| 14221 | 1200 mm | 1050 mm | 6 mm |
| 14222 | 1500 mm | 1350 mm | 8 mm |
