Sauermann Si-27 Piston Pump
For condensate drain
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011902 |
 SAUERMANN PISTON PUMP SI-27 |
€184,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
The Sauermann Si-27 piston pump is specifically designed for the discharge of condensate from air conditioning systems, suitable for air conditioners up to 20 kW. Thanks to its technology, the Si-27 pump give one of the quietest sound levels, regardless of the volume of condensate to be discharged.
Product features
- patented technology
- noiselessness
- easy installation
- energy saving
- small footprint
- detection block without filter, with minimal maintenance requirements

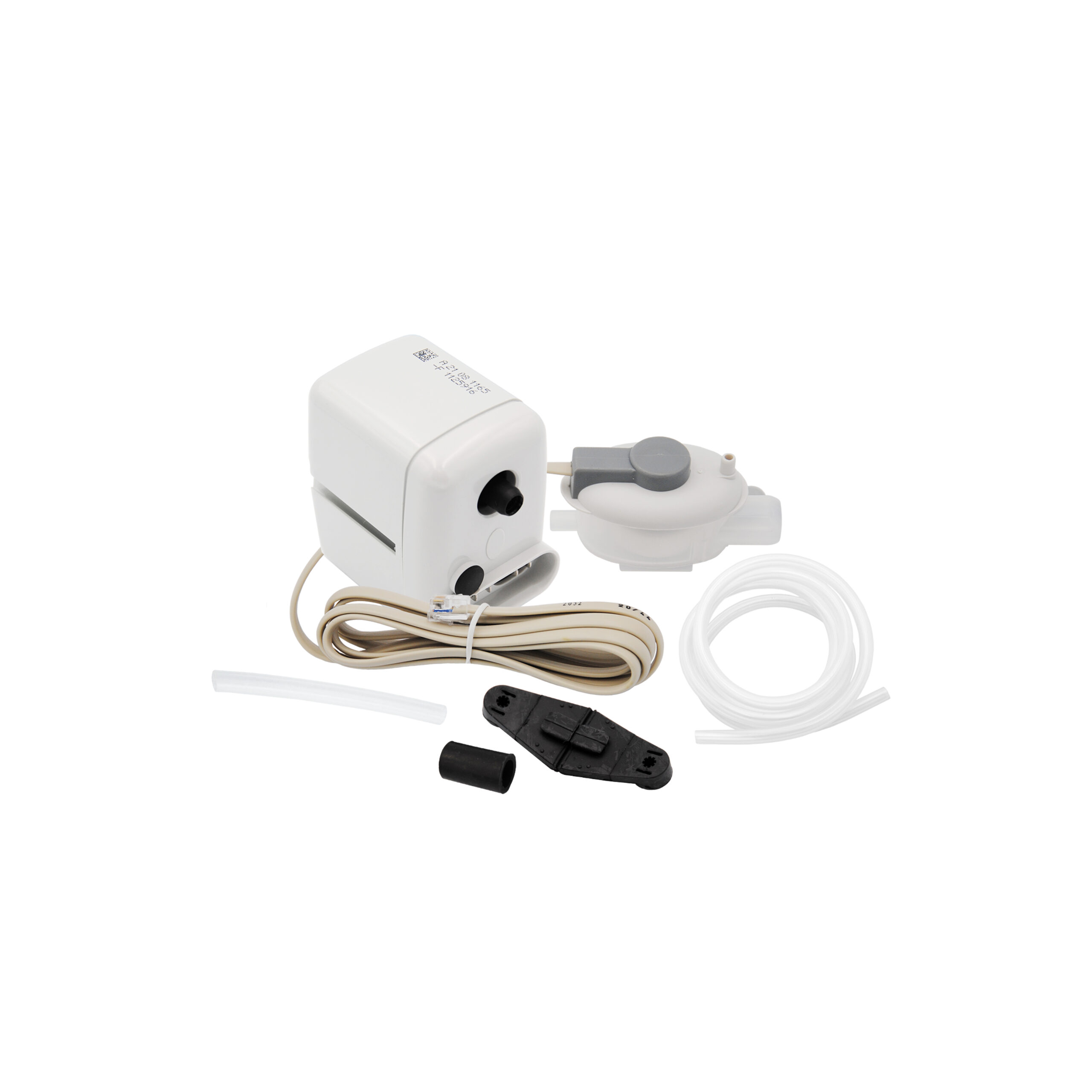

The kit includes

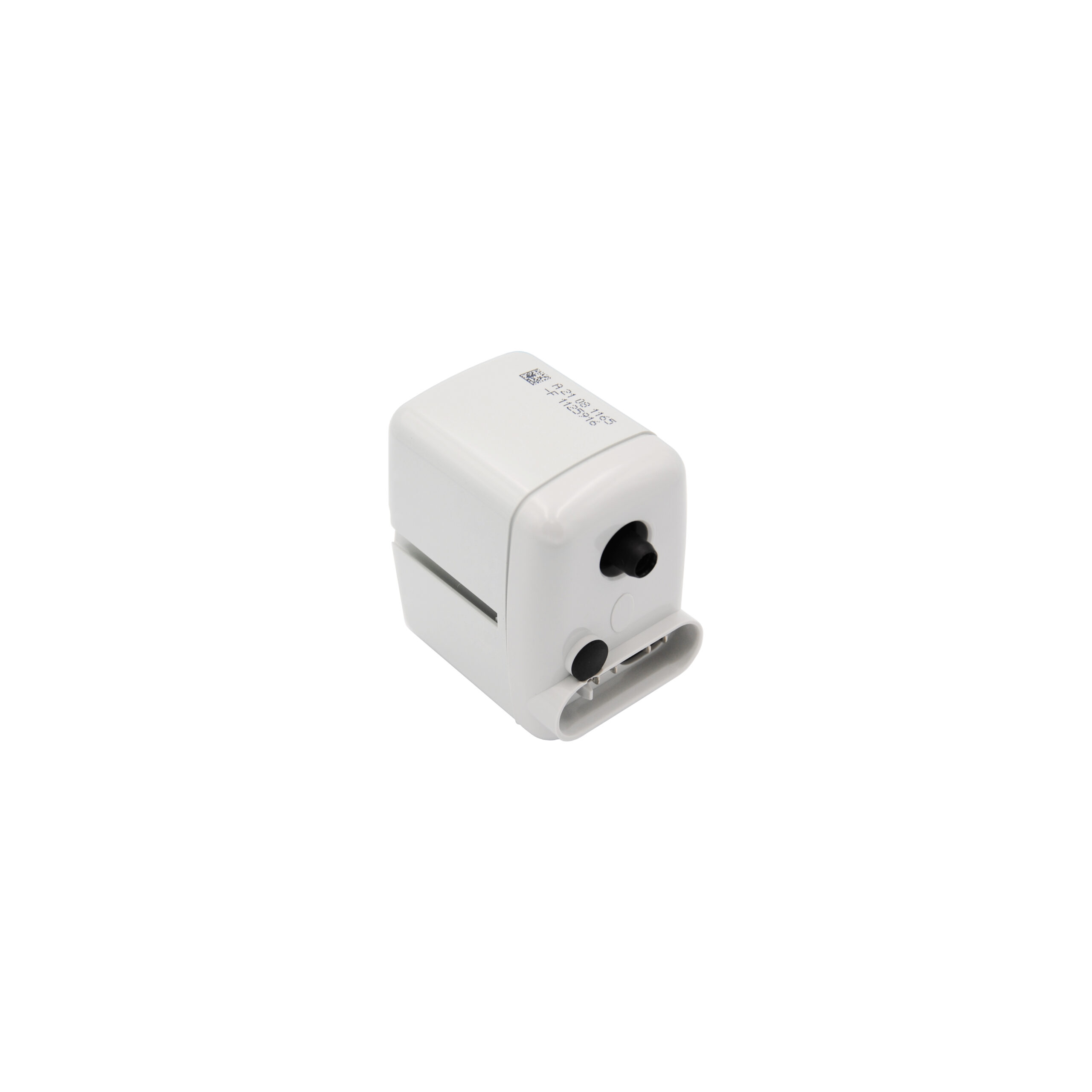

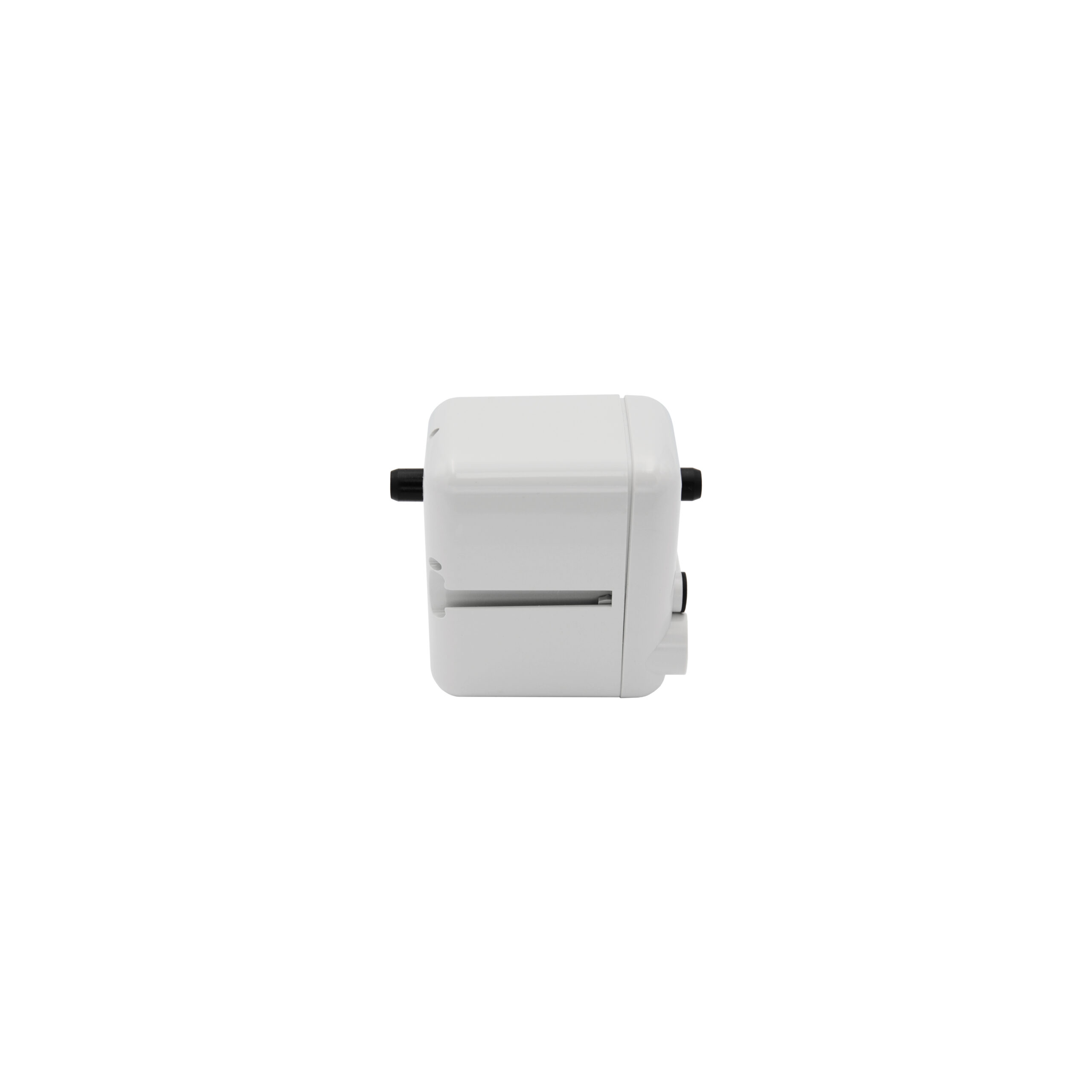

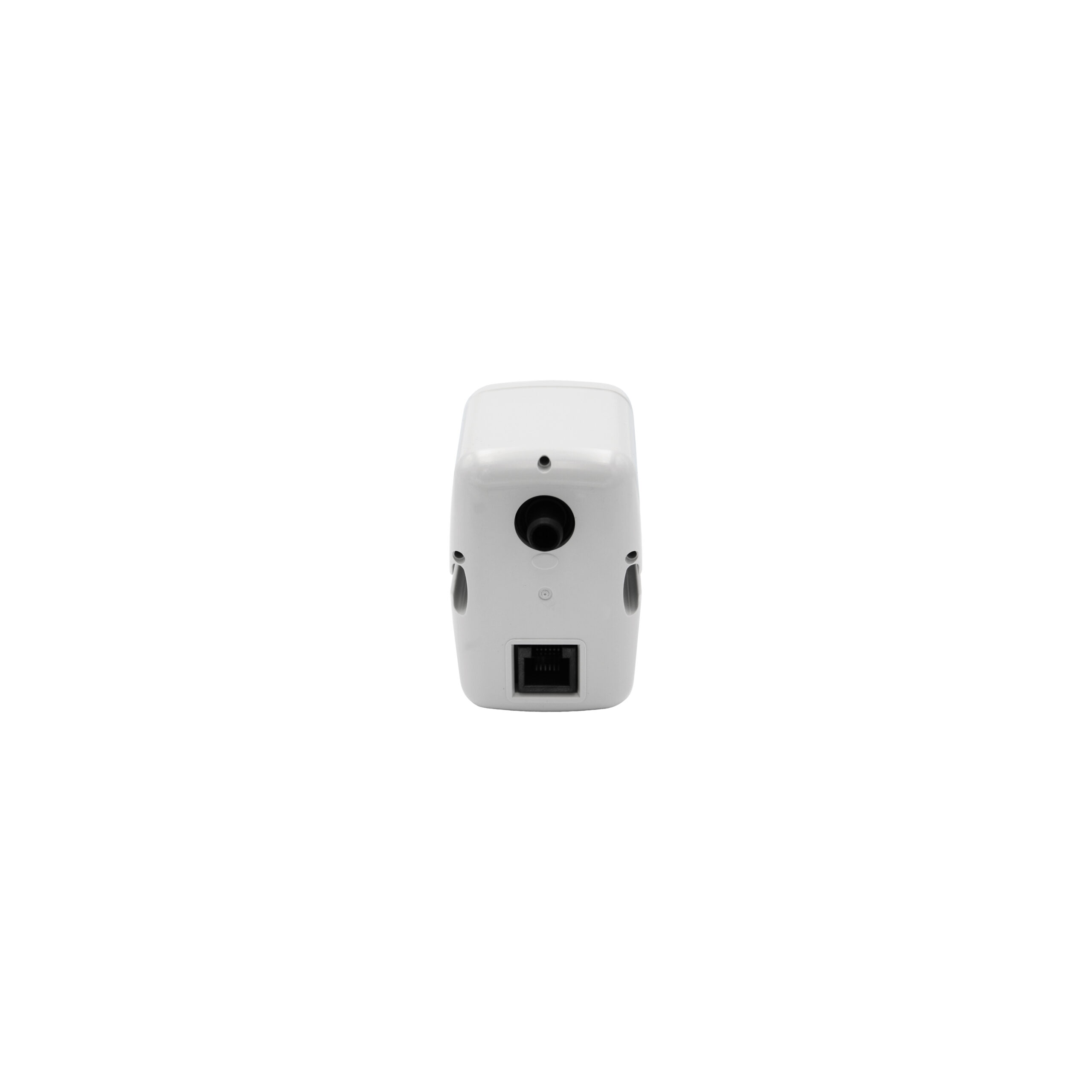

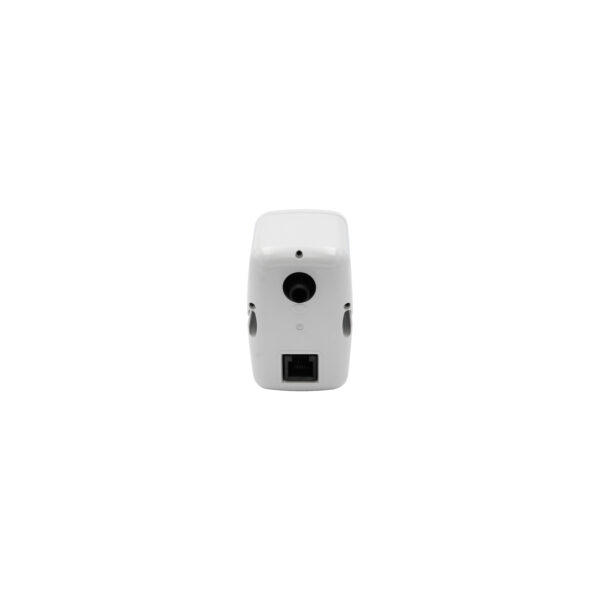

- Sauermann Si - 27 piston pump

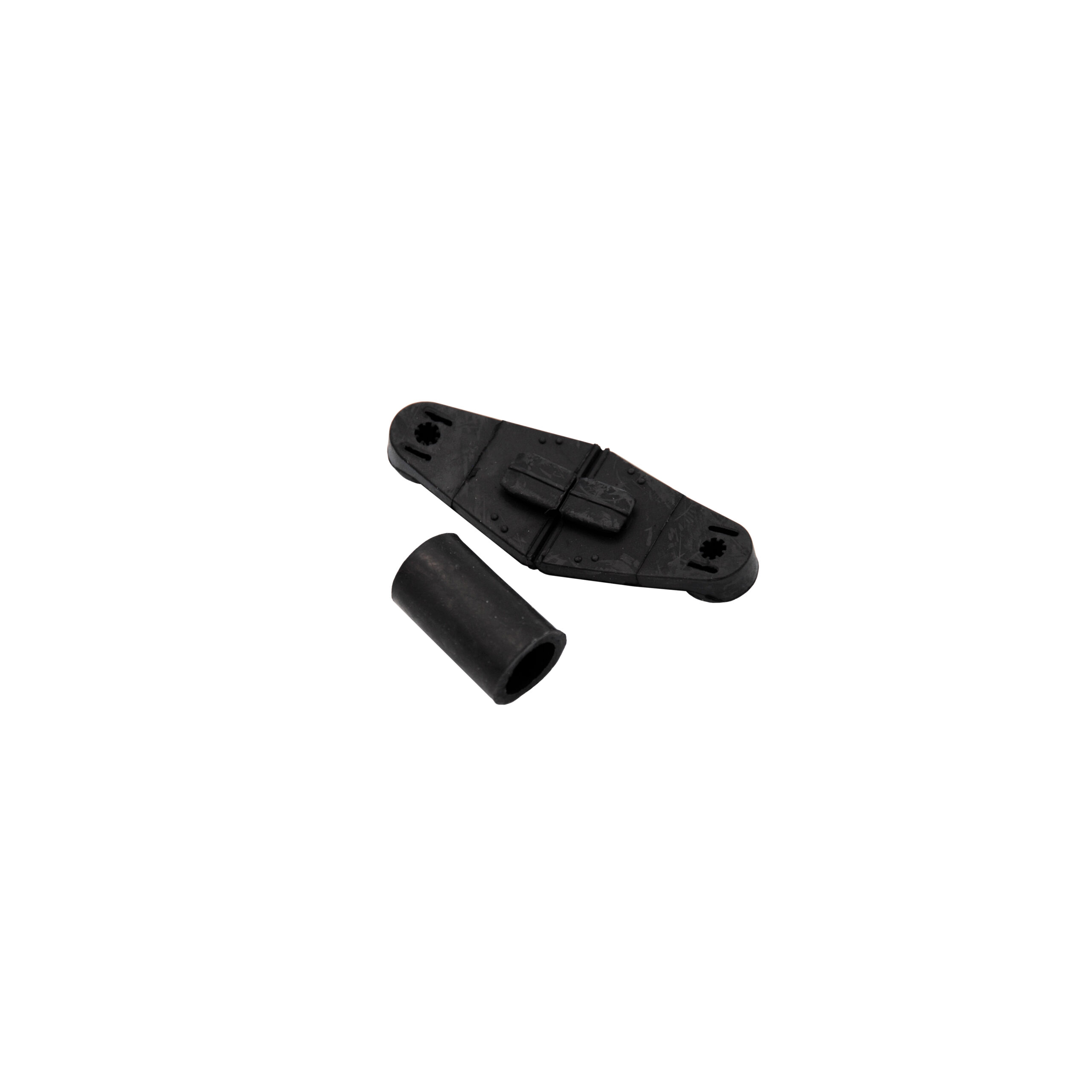

- fixing plate

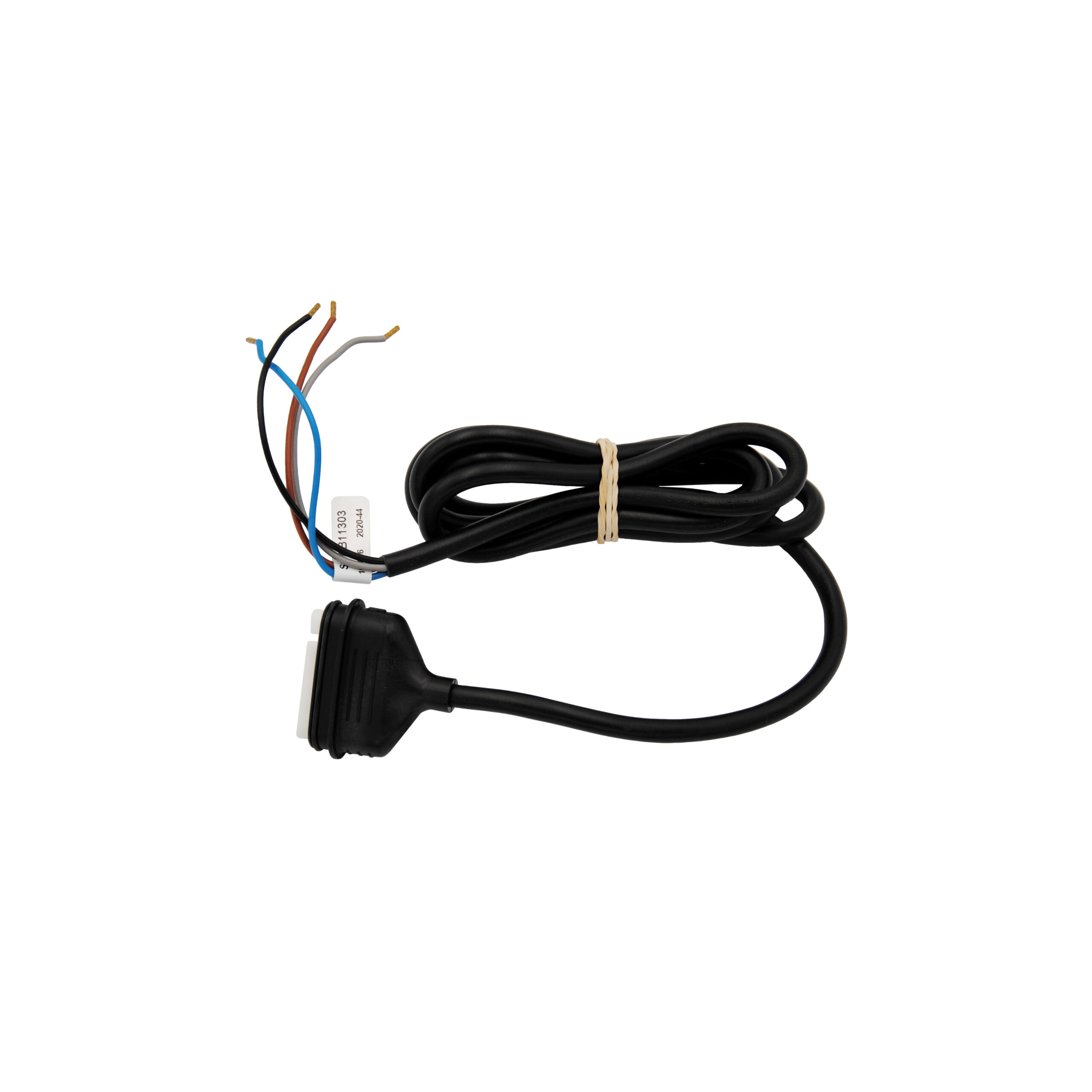

- extractable 1.5m power cable

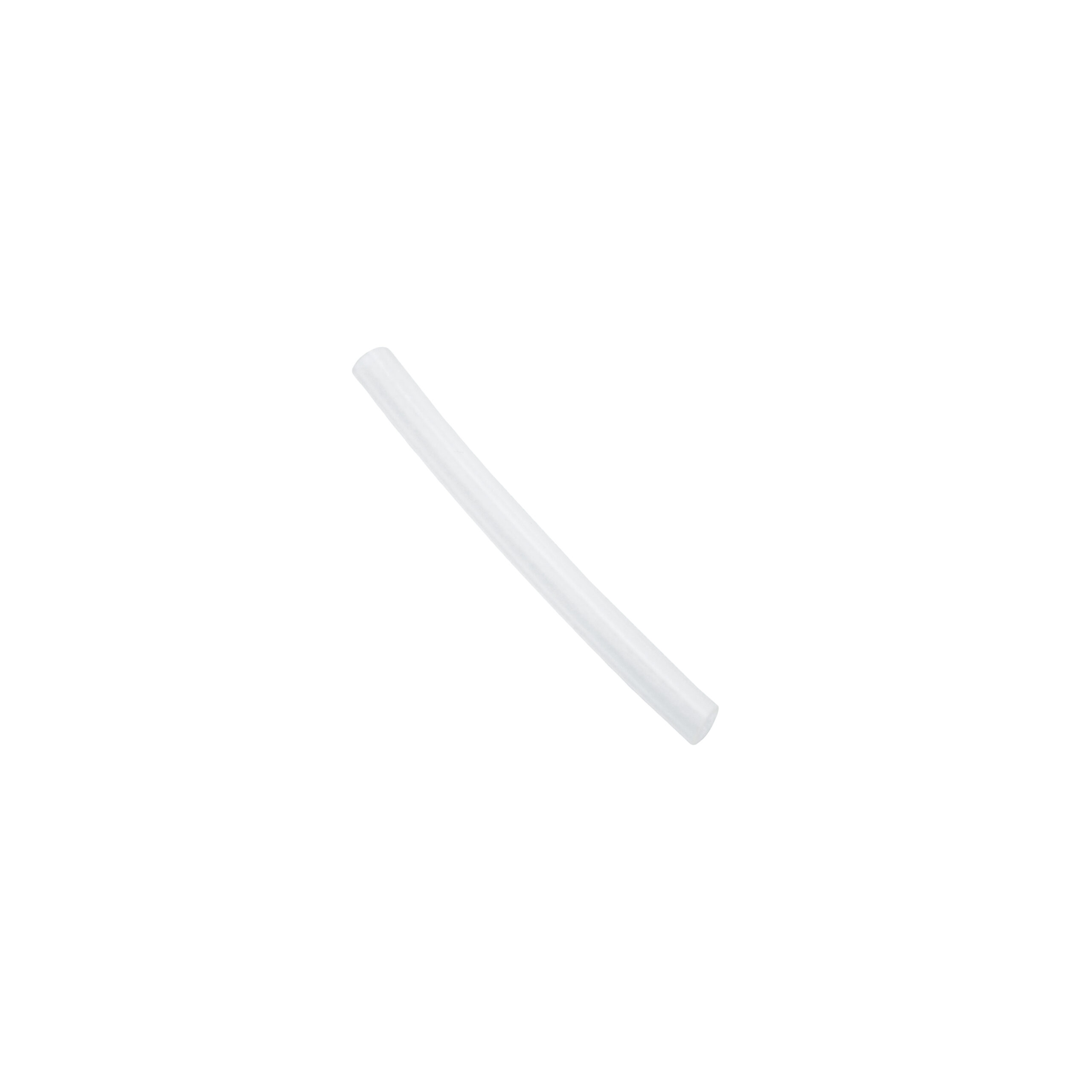

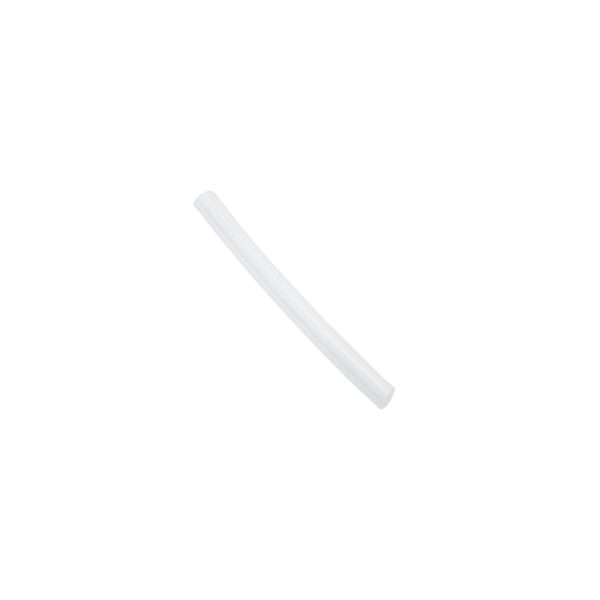

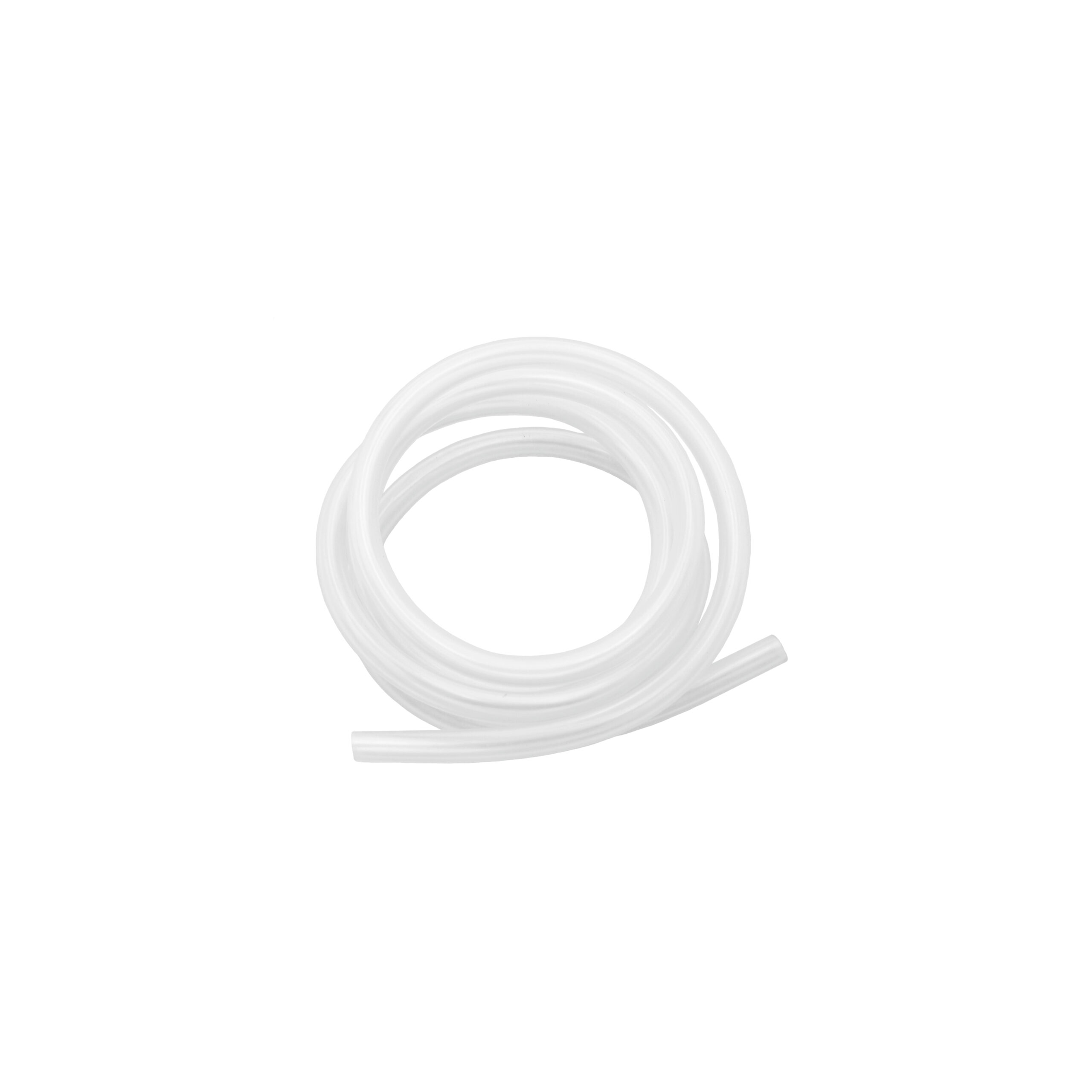

- transparent PVC pipe Ø int. 6 mm, L 1.5 m
- rilsan hose clamp (Polyamide polymer)

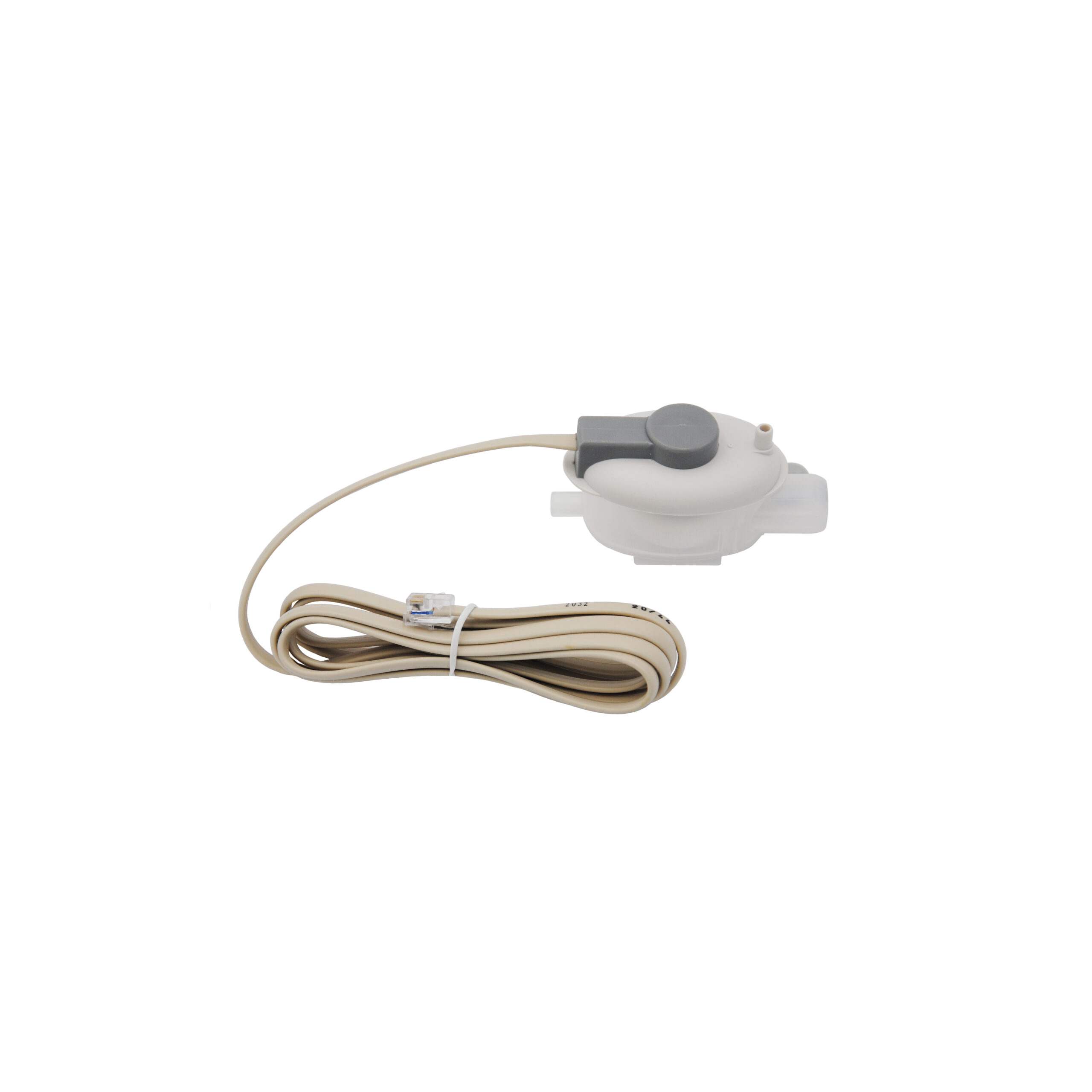

- detection block include: connection Ø int. 15 x L 35 mm - vent pipe Ø int. 4 x L 75 mm - assembly slide - fixing adhesive
Technical Features
| MAXIMUM FLOW RATE | 20 l/h |
|---|---|
| POWER SUPPLY | 230 V 50-60 Hz 14 W |
| MAX ASPIRATION | 3 m |
| MAX PUSH | 14 m |
| SAFETY CONTACT | NC 8 resistive - 250 V |
| SOUND LEVEL TO 1 M | 20 dB(A) |
| THERMAL PROTECTION | 115°C (automatic restart) |
| DETECTION LEVELS |
|
| DEGREE OF PROTECTION | IP20 (Not protected against the ingress of liquids but protected against the ingress of solid objects larger than 12mm) |
| PUMP BLOCK DIMENSIONS | 66x43,5x60 mm (LxDxH) |
| TANK DIMENSIONS | 55x38x37,5 mm (LxDxH) |
