Low Pressure Regulator

Name: Low Pressure Regulator
SKU: M0100008
Availability: InStock

Flow rate 4 kg/h

INSTALLATION ACCORDING TO REGULATIONS

COMPLIANT WITH EN 16129 RULE

sku	model	price	info	add to cart

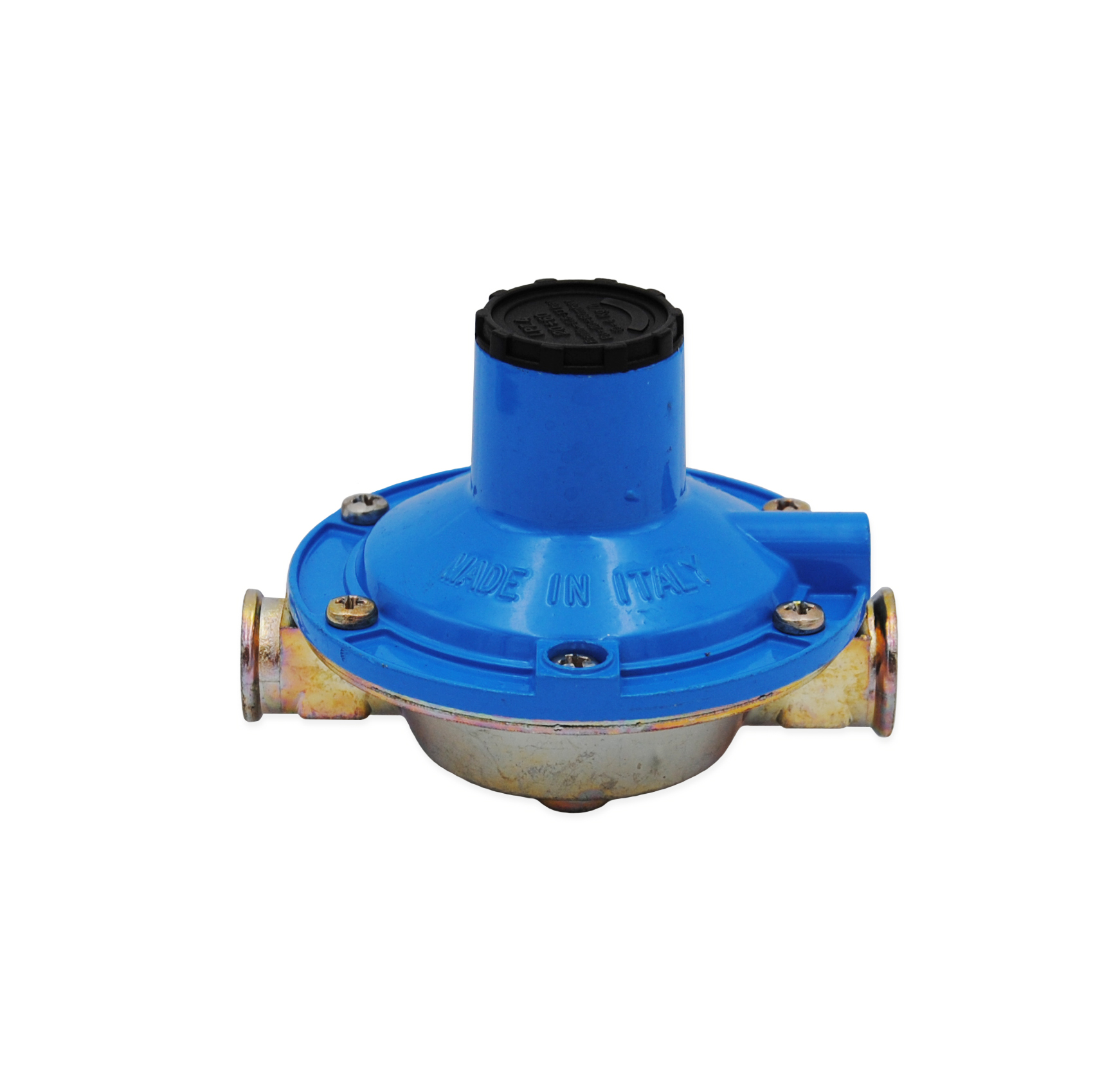

0000000E600	LOW PRESSURE REGULATOR - IN 1/4" F OUT 3/8" F - flow rate 4 kg/h	€14,20 Excl. Taxes	Physical data UM Base: NR Dimension: 11 × 9 × 10 cm Volume: 0.001 m³ Weight: 0,28 kg Minimum Order Quantity: 1 Customs data Customs Code 84818059	Low Pressure Regulator quantity Buy Info Request

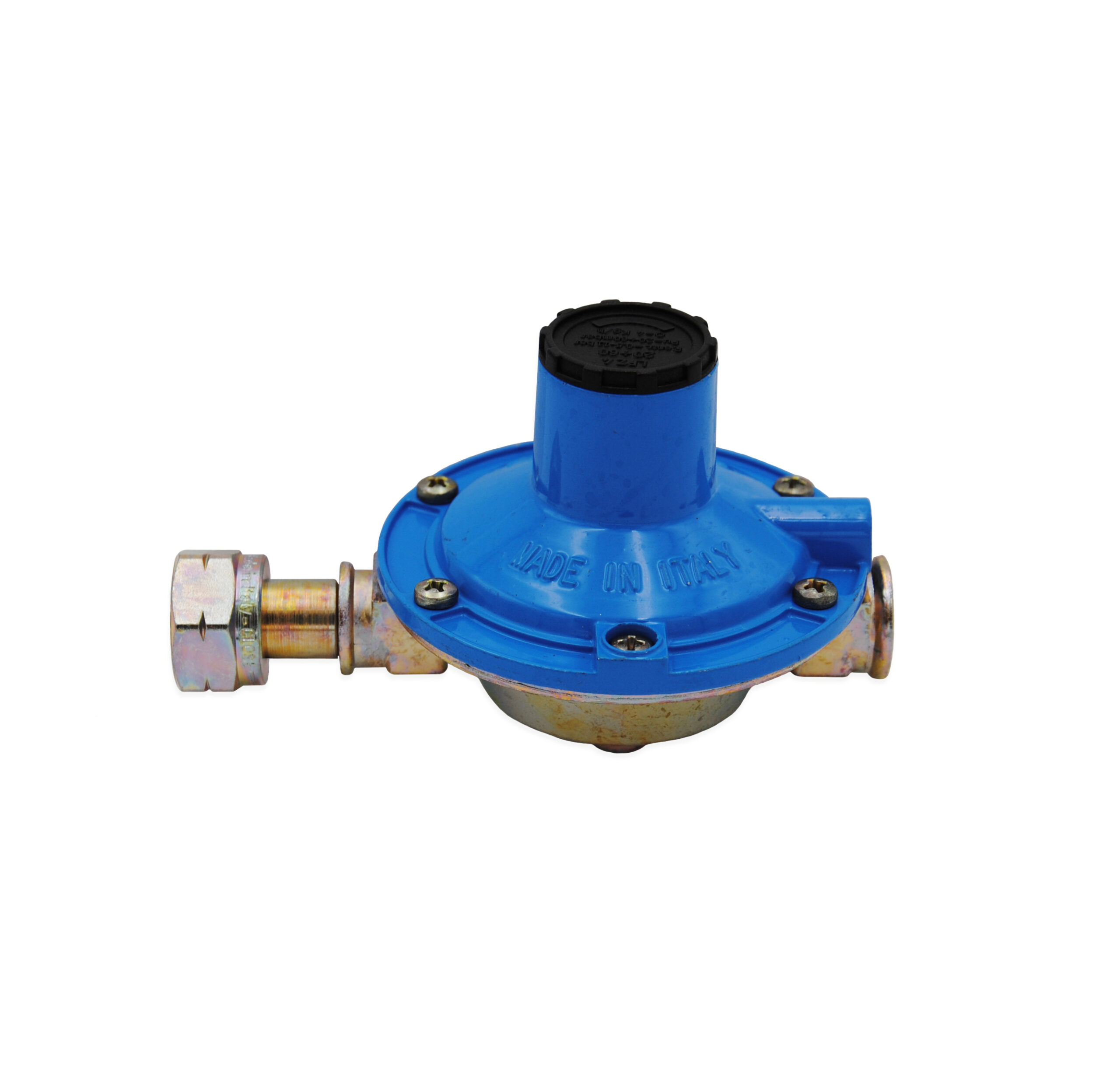

0000000E610	LOW PRESSURE REGULATOR - IN left nut OUT 3/8" F - flow rate 4 kg/h	€16,40 Excl. Taxes	Physical data UM Base: NR Dimension: 13 × 9 × 7 cm Volume: 0.0009 m³ Weight: 0,35 kg Minimum Order Quantity: 1 Customs data Customs Code 84818059	Low Pressure Regulator quantity Buy Info Request

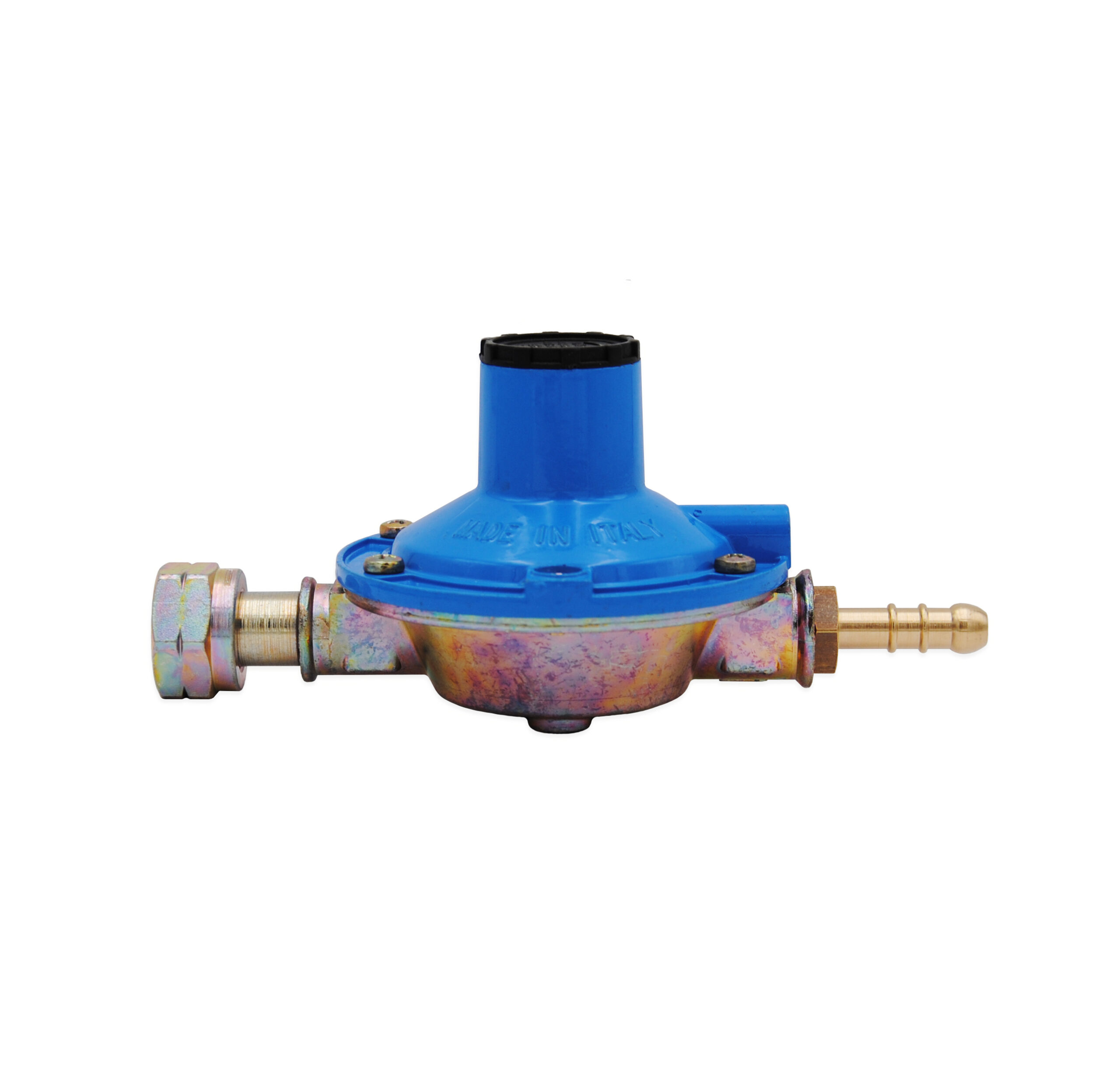

0000000E615	LOW PRESSURE REGULATOR - IN left nut OUT hose nozzle - flow rate 4 kg/h	€19,15 Excl. Taxes	Physical data UM Base: NR Dimension: 12 × 9 × 7 cm Volume: 0.0008 m³ Weight: 0,38 kg Minimum Order Quantity: 1 Customs data Customs Code 84818059	Low Pressure Regulator quantity Buy Info Request

Low pressure regulator for LPG, designed to make the gas pressure at the outlet of a tank suitable for the downstream user.

*TYPES OF GAS*	LPG
*FLOW RATE*	4 kg/h
*OPERATING TEMPERATURE*	- 20°C ÷ + 50°C
*INLET PRESSURE*	0,5 ÷ 10 bar
*OUTLET PRESSURE*	25 - 60 mbar
*CONNECTIONS*	IN 1/4" F - OUT 3/8" F (*sku E600) IN left nut - OUT 3/8" F (sku E610) IN left nut - OUT hose nozzle (sku E615*)
