High Pressure Regulator
Alfa 80 AP series, with balanced direct action regulation
ACCORDING TO THE EN 334 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002636 |
ALFA 80 AP SERIES REGULATOR - DN 80 - DN 80 CONNECTION |
€5.884,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002638 |
ALFA 80 AP SERIES REGULATOR - DN 80 - DN 80 CONNECTION - WITH BLOCK |
€7.206,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

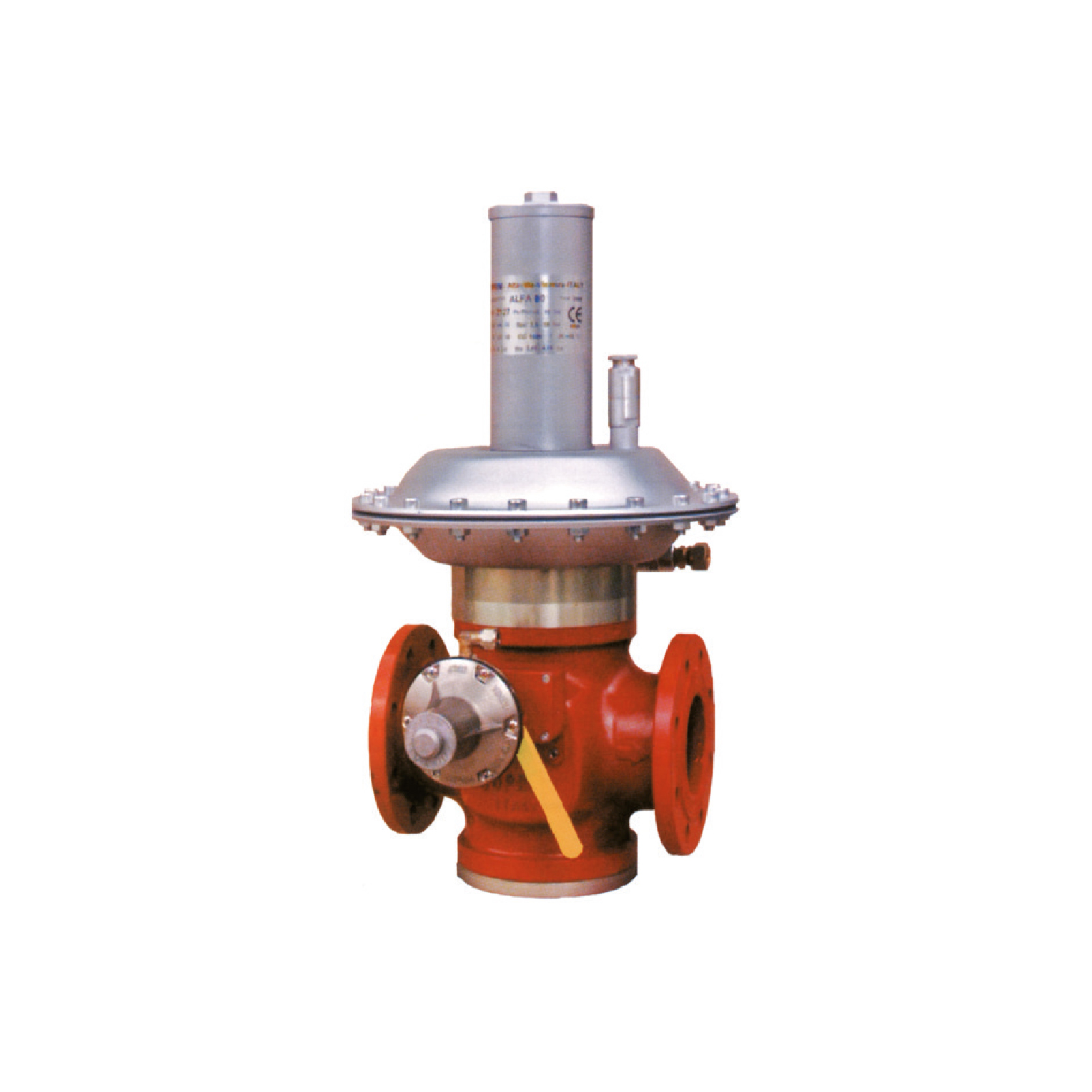

Alfa 80 AP series regulator with balanced direct action, equipped with external sensing line, suitable for the use of not corrosive gases as methane and LPG.
Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2638).
Technical Features
| FLOW RATE | see table underlying |
|---|---|
| INLET CONNECTION | DN 80 |
| OUTPUT CONNECTION | DN 80 |
| INLET PRESSURE | max 18 bar |
| OUTPUT PRESSURE | 0,8 ÷ 4 bar |
| STANDARD OUTPUT PRESSURE | on request |
| WORKING TEMPERATURE | - 20°C ÷ + 60°C |
| EXTERNAL SENSING LINE | Ø 14 |
| MATERIALS |
|

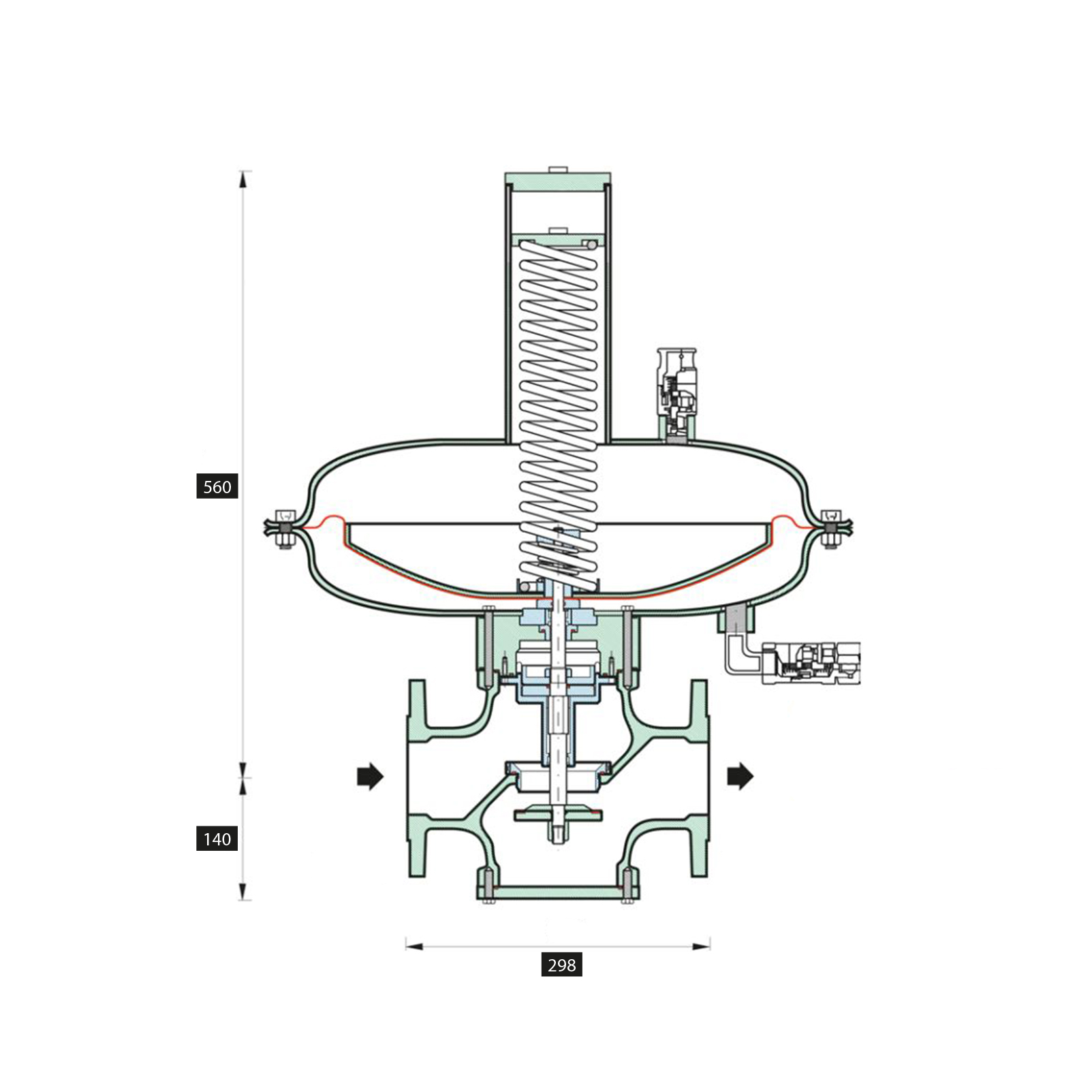

| DIMENSIONS | 560 x 298 x 140 mm |
| FLOW RATE TABLE M3/H | INLET PRESSURE | ||||
|---|---|---|---|---|---|
| 3 Bar | 4 Bar | 5 Bar | 8 Bar | ||
| OUTLET PRESSURE | 0,8 Bar | 4071 m3/h | 4071 m3/h | 4071 m3/h | 4071 m3/h |
| 1 Bar | 4378 m3/h | 5428 m3/h | 5428 m3/h | 5428 m3/h | |
| 1,5 Bar | 4111 m3/h | 5473 m3/h | 6711 m3/h | 6785 m3/h | |
| 2 Bar | 3630 m3/h | 5224 m3/h | 6568 m3/h | 8143 m3/h | |
| 3 Bar | - | 4184 m3/h | 5970 m3/h | 10009 m3/h | |
| 4 Bar | - | - | 4677 m3/h | 9632 m3/h | |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1,42.
