Low Pressure Regulator with Manual Setting

Model with safety relief valve incorporated, flow rate 20 and/or 40 kg/h

REPLACEMENT CAP AND SPRING ALSO AVAILABLE SEPARATELY

COMPLIANT WITH THE EN 16129 RULE

sku model price info add to cart

00000001010

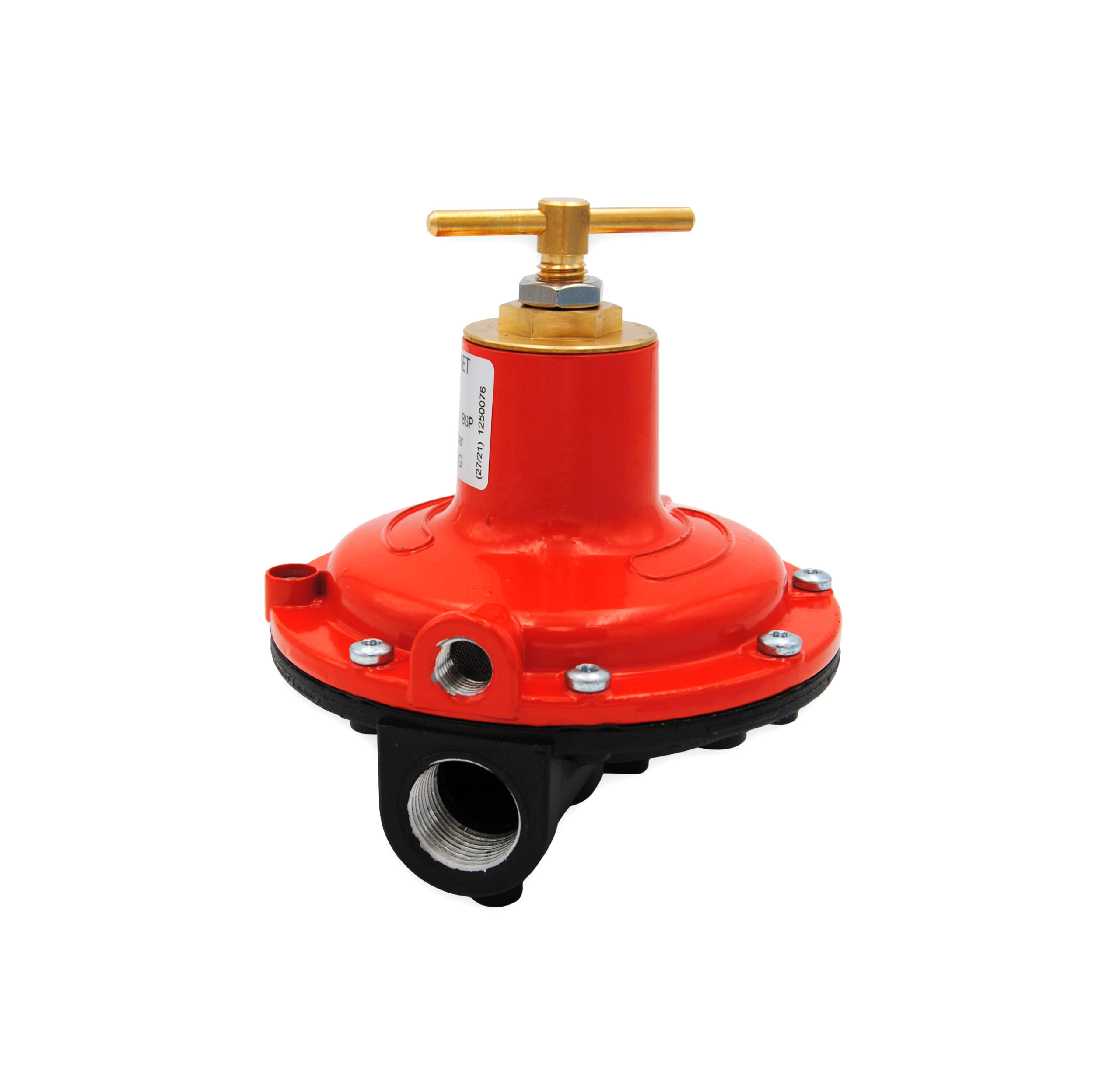

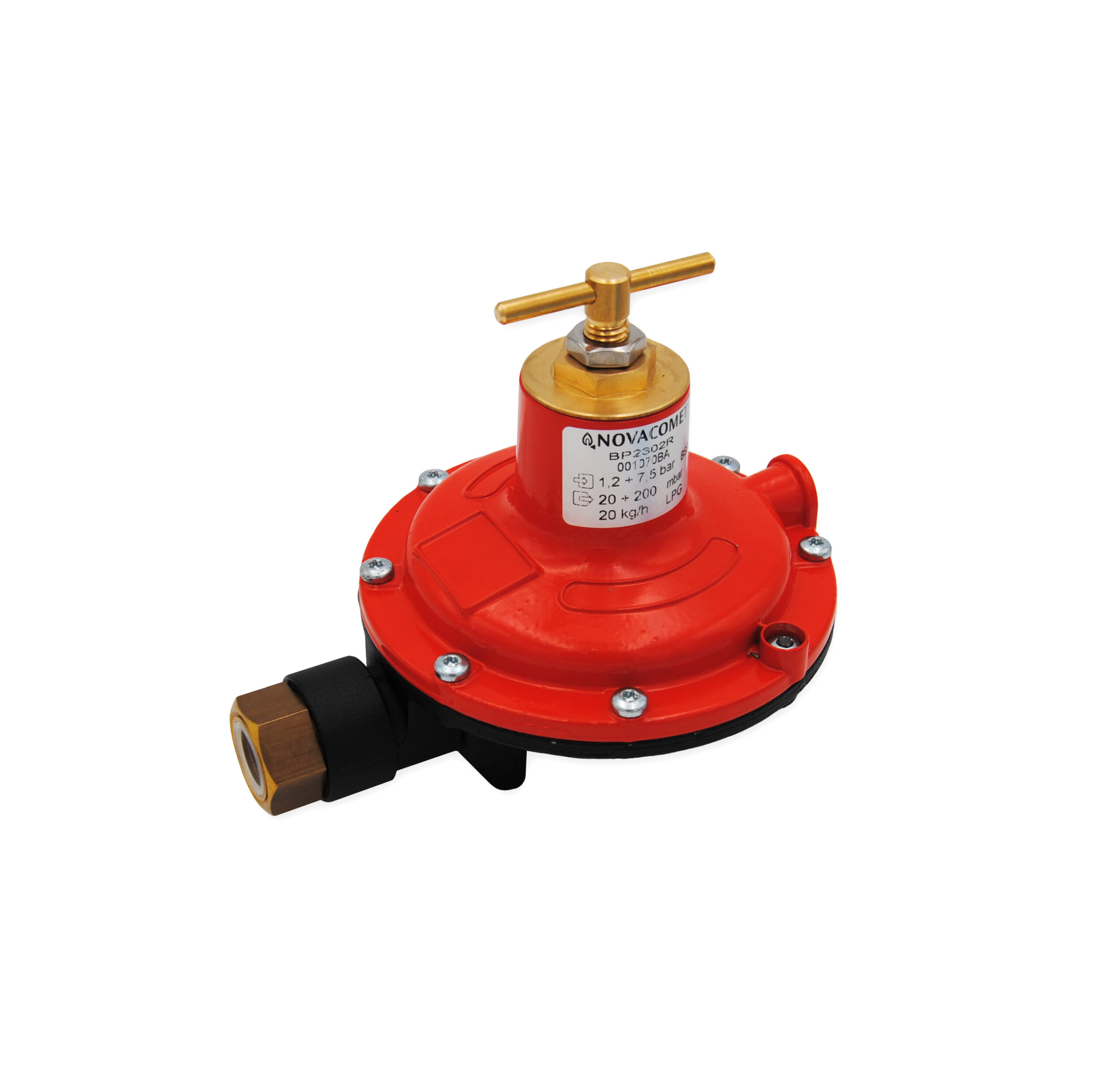

LOW PRESSURE REGULATOR Mod. 2302 - IN 1/2" F - OUT 3/4" F - flow rate 20 kg/h

312,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
22 × 13 × 14 cm

Volume:
0.0043 m3

Weight:
1,12 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099

Buy
Info Request

00000001110

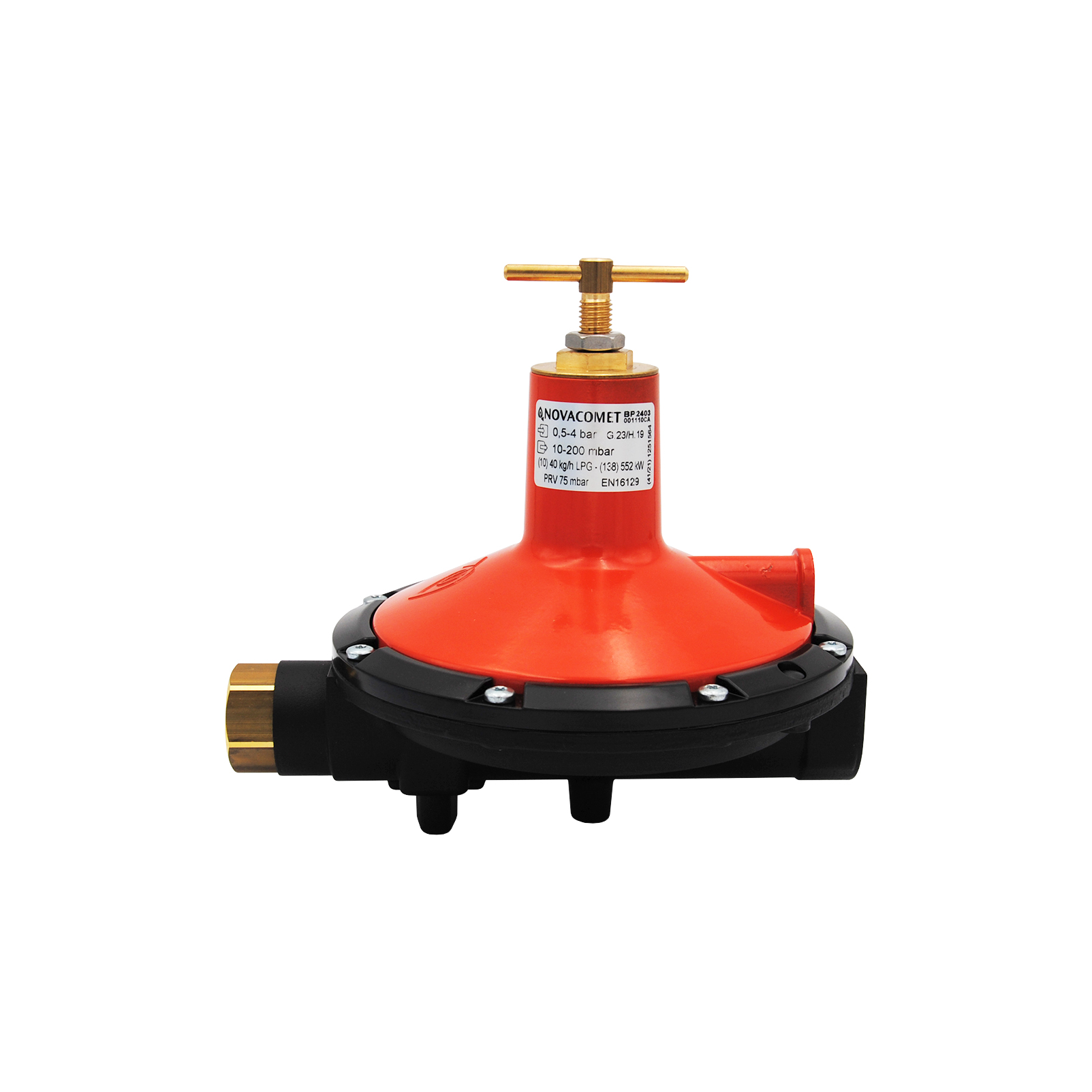

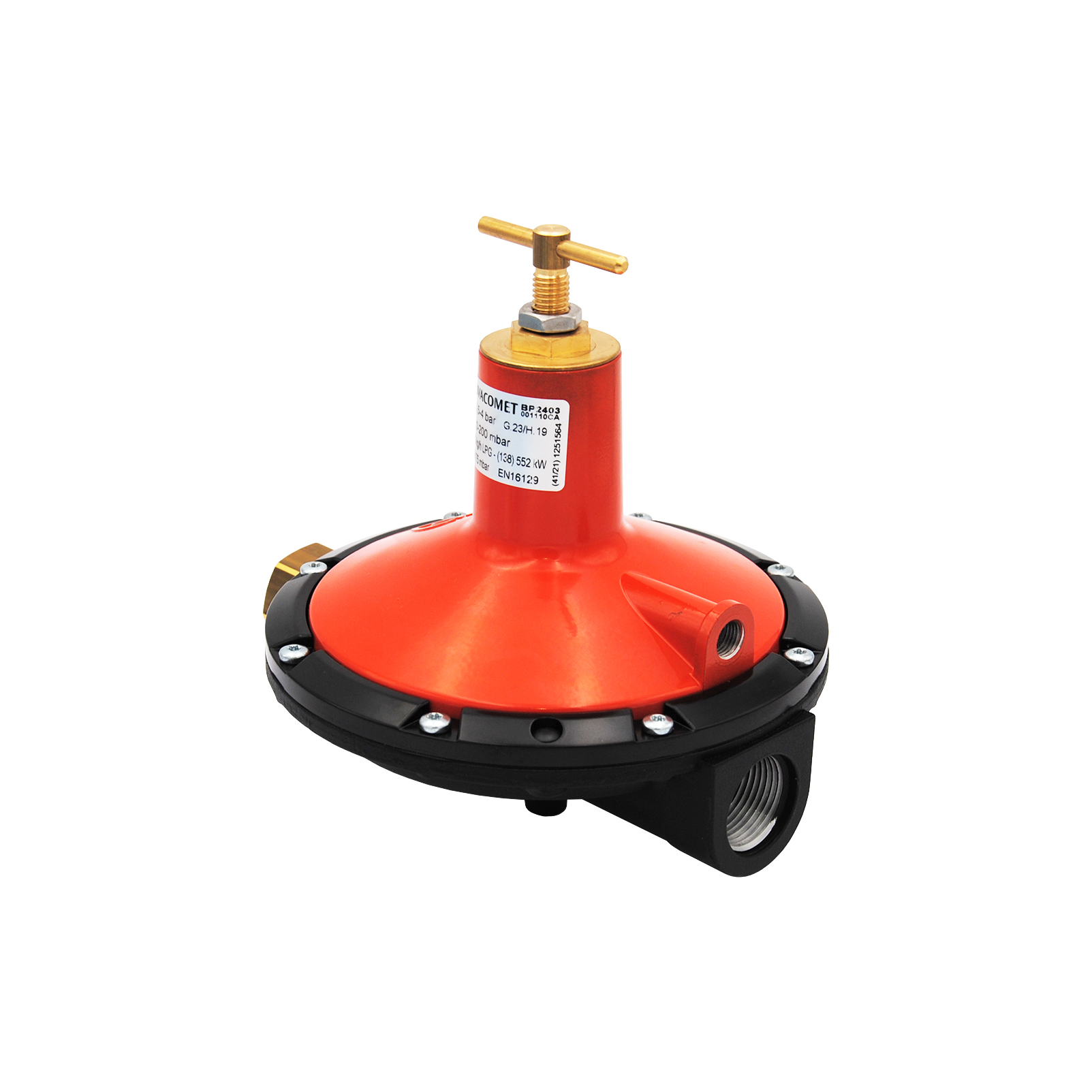

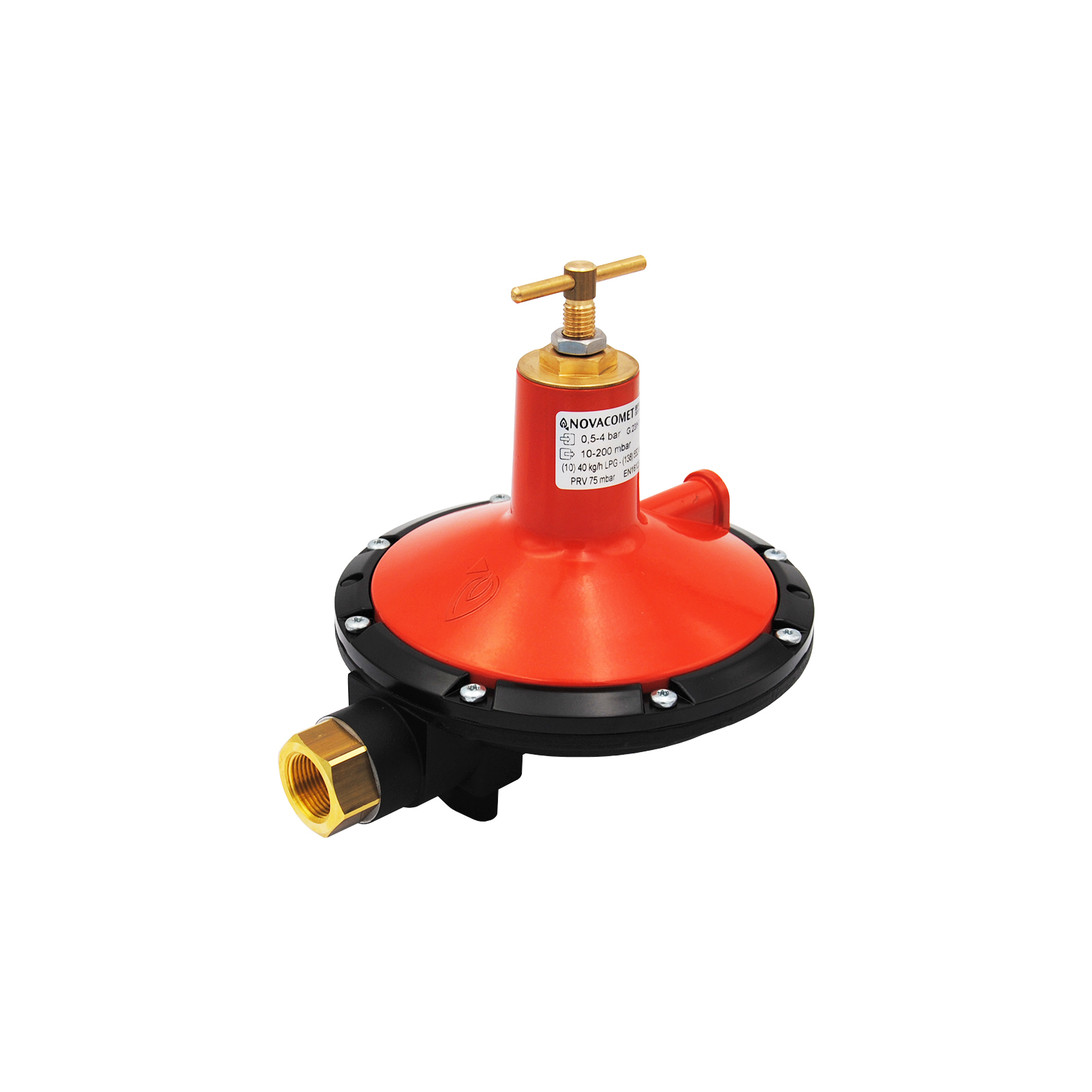

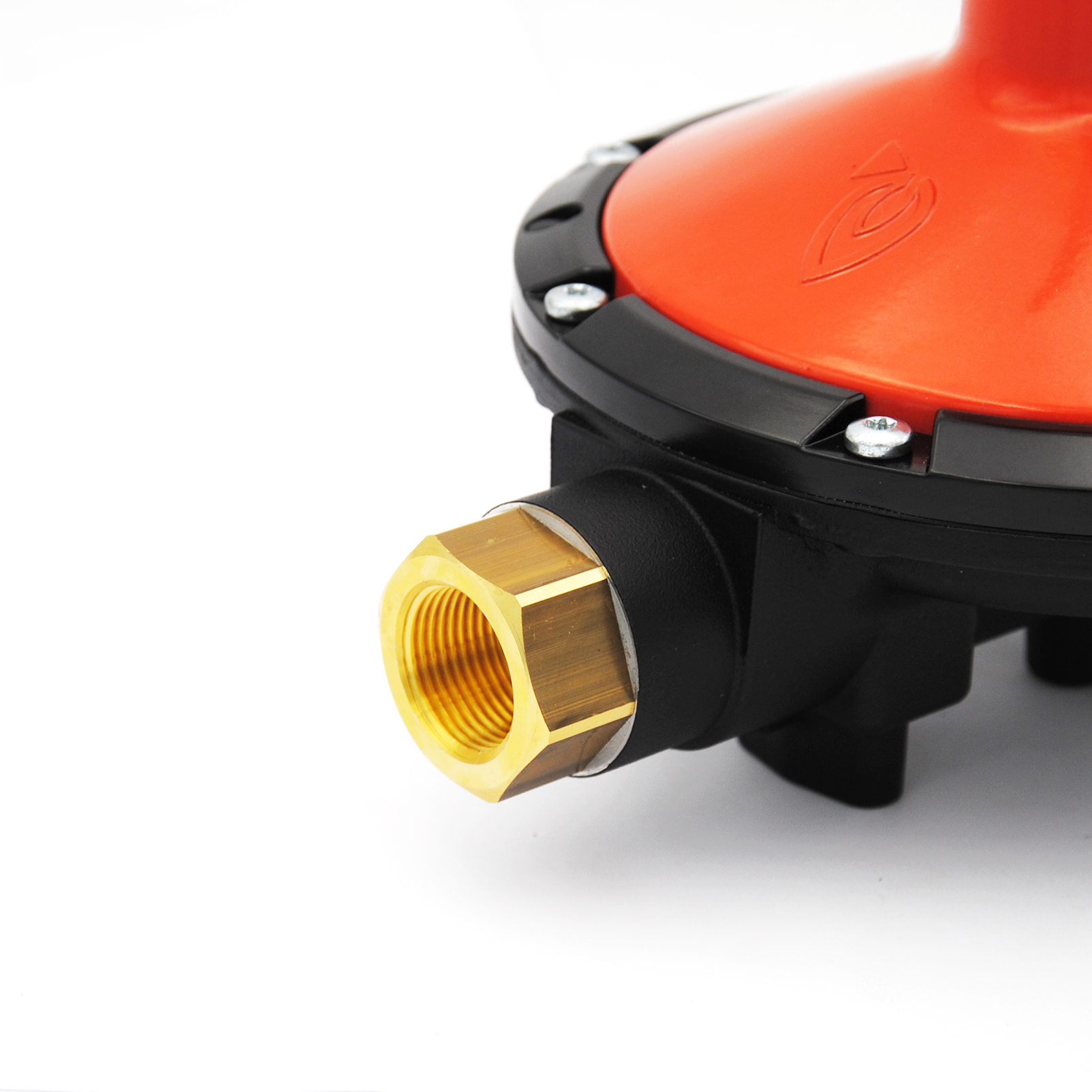

LOW PRESSURE REGULATOR Mod. 2403 - IN 1/2" F - OUT 1" F - flow rate 40 kg/h

367,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
30 × 20 × 20 cm

Volume:
0.012 m3

Weight:
2,11 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099

Buy
Info Request

00000001115

CAP AND SPRING FOR REGULATOR Mod. 2302

70,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099

Buy
Info Request

00000001116

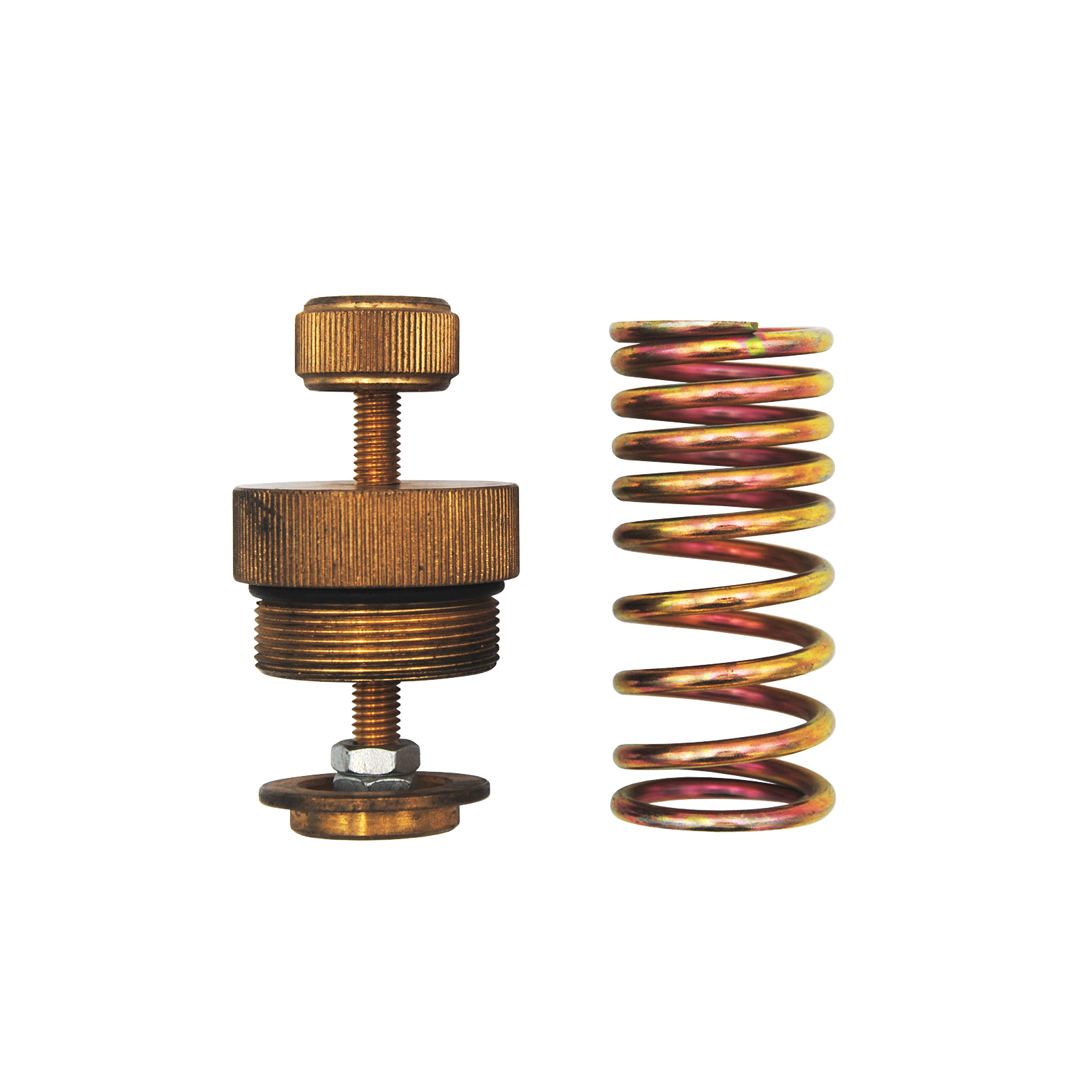

CAP AND SPRING FOR REGULATOR Mod. 2403

70,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,53 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099

Buy
Info Request

Product informations

Low pressure regulator for LPG with manual setting and safety relief valve incorporated; designed to make the gas pressure leaving a tank suitable for the downstream user.

Technical Features

TYPES OF GAS LPG
FLOW RATE
  • 20 kg - sku 1010
  • 40 kg - sku 1110
OPERATING TEMPERATURE - 20°C ÷ + 50°C
INLET PRESSURE
  • 1,2 ÷ 7,5 bar - sku 1010
  • 0,5 ÷ 4 bar - sku 1110
OUTLET PRESSURE
  • 20 ÷ 200 mbar - sku 1010
  • 10 ÷ 200 mbar - sku 1110
CONNECTIONS
  • IN 1/2" F - OUT 3/4" F - sku 1000
  • IN 3/4" F - OUT 1" F - sku 1100
OVERFLOW VALVE CONNECTION G 1/4"
MATERIALS SKU 1010
  • body and cover: aluminum alloy
  • diaphragm and gaskets: LPG resistant elastomer
MATERIALS SKU 1110
  • body and cover: die-cast aluminum alloy, according to EN 1706 rule
  • diaphragm and gaskets: nitrile rubber compliant with EN 549
