Download Product Data Sheet

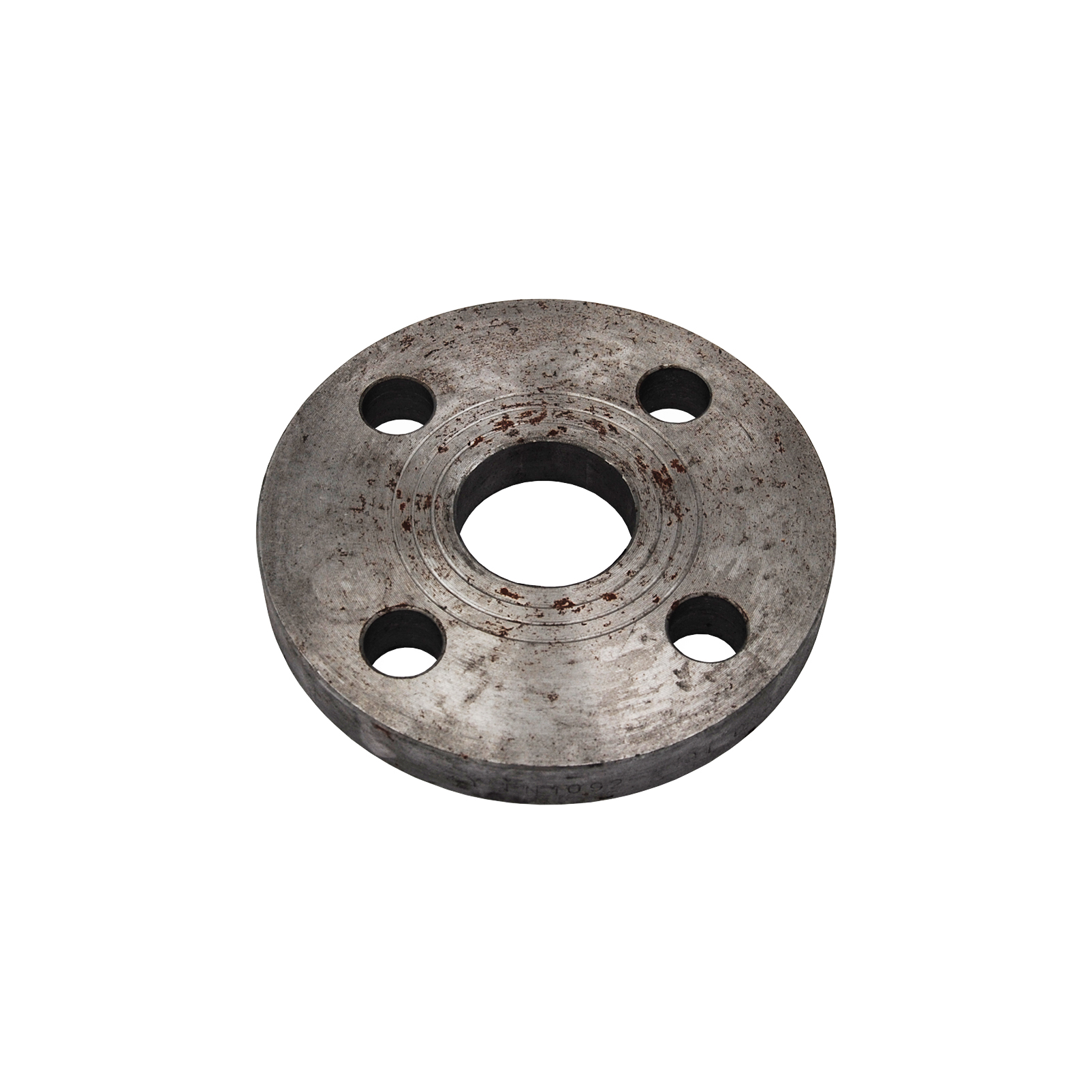

Overlap Welding Flat Flange

Model in carbon steel

COMPLIANT WITH UNI EN 1092-1 RULE

sku model price info add to cart

00000023191

OVERLAP WELDING FLAT FLANGE PN6 - DN25

€5,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023192

OVERLAP WELDING FLAT FLANGE PN6 - DN32

€8,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023193

OVERLAP WELDING FLAT FLANGE PN6 - DN40

€11,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023194

OVERLAP WELDING FLAT FLANGE PN6 - DN50

€11,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023195

OVERLAP WELDING FLAT FLANGE PN6 - DN65

€14,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023196

OVERLAP WELDING FLAT FLANGE PN6 - DN80

€20,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023197

OVERLAP WELDING FLAT FLANGE PN6 - DN100

€24,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023198

OVERLAP WELDING FLAT FLANGE PN6 - DN125

€31,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023199

OVERLAP WELDING FLAT FLANGE PN6 - DN150

€34,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023200

OVERLAP WELDING FLAT FLANGE PN6 - DN200

€50,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023201

OVERLAP WELDING FLAT FLANGE PN6 - DN250

€65,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023202

OVERLAP WELDING FLAT FLANGE PN6 - DN300

€87,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023211

OVERLAP WELDING FLAT FLANGE PN10 - DN65

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100

 Info Request

00000023212

OVERLAP WELDING FLAT FLANGE PN10 - DN80

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100

 Info Request

00000023213

OVERLAP WELDING FLAT FLANGE PN10 - DN100

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100

 Info Request

00000023214

OVERLAP WELDING FLAT FLANGE PN10 - DN125

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100

 Info Request

00000023215

OVERLAP WELDING FLAT FLANGE PN10 - DN150

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100

 Info Request

00000023216

OVERLAP WELDING FLAT FLANGE PN10 - DN200

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100

 Info Request

00000023221

OVERLAP WELDING FLAT FLANGE PN16 - DN20

€5,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
10 × 1 × 10 cm

Volume:
0.0001 m3

Weight:
0,84 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023222

OVERLAP WELDING FLAT FLANGE PN16 - DN25

€6,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023223

OVERLAP WELDING FLAT FLANGE PN16 - DN32

€11,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023224

OVERLAP WELDING FLAT FLANGE PN16 - DN40

€12,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023225

OVERLAP WELDING FLAT FLANGE PN16 - DN50

€15,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 2 × 16 cm

Volume:
0.0005 m3

Weight:
2,39 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023226

OVERLAP WELDING FLAT FLANGE PN16 - DN65

€17,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
18 × 2 × 18 cm

Volume:
0.0007 m3

Weight:
2,84 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023227

OVERLAP WELDING FLAT FLANGE PN16 - DN80

€20,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
20 × 2 × 20 cm

Volume:
0.0008 m3

Weight:
3,17 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023228

OVERLAP WELDING FLAT FLANGE PN16 - DN100

€25,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
22 × 2 × 22 cm

Volume:
0.0012 m3

Weight:
4,28 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023229

OVERLAP WELDING FLAT FLANGE PN16 - DN125

€32,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 2 × 25 cm

Volume:
0.0012 m3

Weight:
4,94 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023230

OVERLAP WELDING FLAT FLANGE PN16 - DN150

€44,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
28 × 2 × 28 cm

Volume:
0.002 m3

Weight:
6,89 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023231

OVERLAP WELDING FLAT FLANGE PN16 - DN200

€60,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023232

OVERLAP WELDING FLAT FLANGE PN16 - DN250

€87,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

00000023233

OVERLAP WELDING FLAT FLANGE PN16 - DN300

€117,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73079100
Buy
Info Request

Product informations

Overlap welding flat flange, made of carbon steel.

Technical Features

FLANGE PN6
FLANGE DRILLING SCREWS
SKU PN DN INTERNAL DIAMETER HEIGHT HOLES
23191 PN6 25 34,5 mm 12 mm 4 M 11
23192 PN6 32 43,5 mm 14 mm 4 M 14
23193 PN6 40 49,5 mm 14 mm 4 M 14
23194 PN6 50 61.5 mm 14 mm 4 M 14
23195 PN6 65 77,7 mm 14 mm 4 M 14
23196 PN6 80 90,5 mm 16 mm 4 M 18
23197 PN6 100 116 mm 16 mm 4 M 18
23198 PN6 125 141,5 mm 18 mm 8 M 18
23199 PN6 150 170,5 mm 20 mm 8 M 18
23200 PN6 200 221,5 mm 22 mm 8 M 18
23201 PN6 250 275,5 mm 24 mm 12 M 18
23202 PN6 300 327,5 mm 24 mm 12 M 22



FLANGE PN10
FLANGE DRILLING SCREWS
SKU PN DN INTERNAL DIAMETER HEIGHT HOLES
23211 PN10 65 77,5 mm 14 mm 8 M 18
23212 PN10 80 90,5 mm 16 mm 8 M 18
23213 PN10 100 116 mm 16 mm 8 M 18
23214 PN10 125 141,5 mm 18 mm 8 M 18
23215 PN10 150 170,5 mm 20 mm 8 M 22
23216 PN10 200 221,5 mm 22 mm 8 M 22



FLANGE PN16
FLANGE DRILLING SCREWS
SKU PN DN INTERNAL DIAMETER HEIGHT HOLES
23221 PN16 20 27.5 mm 16 mm 4 M 14
23222 PN16 25 34,5 mm 16 mm 4 M 14
23223 PN16 32 43,5 mm 18 mm 4 M 18
23224 PN16 40 49,5 mm 18 mm 4 M 18
23225 PN16 50 61.5 mm 20 mm 4 M 18
23226 PN16 65 77,5 mm 20 mm 4 M 18
23227 PN16 80 90,5 mm 20 mm 8 M 18
23228 PN16 100 116 mm 22 mm 8 M 18
23229 PN16 125 141,5 mm

22 mm

 8 M 18
23230 PN16 150 170,5 mm 24 mm 8 M 22
23231 PN16 200 221,5 mm 26 mm 12 M 22
23232 PN16 250 276,5 mm 29 mm 12 M 26
23233 PN16 300 327,5 mm 32 mm 12 M 26
