Professional One Stage Pump
Model MS-1 / 2
F-GAS
IN COMPLIANCE WITH DPR 146/2018, OUR PRODUCTS ARE SUPPLIED, UPON REQUEST, WITH THE RELATIVE CALIBRATION REPORT; THIS REPORT MAY ALSO BE REQUESTED ON USED PRODUCTS, EVEN FROM NOT TECNOGAS ORIGINS
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011161 |
 ONE STAGE PUMP Mod. MS-1 |
€202,85 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011163 |
 ONE STAGE PUMP Mod. MS-2 |
€238,35 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

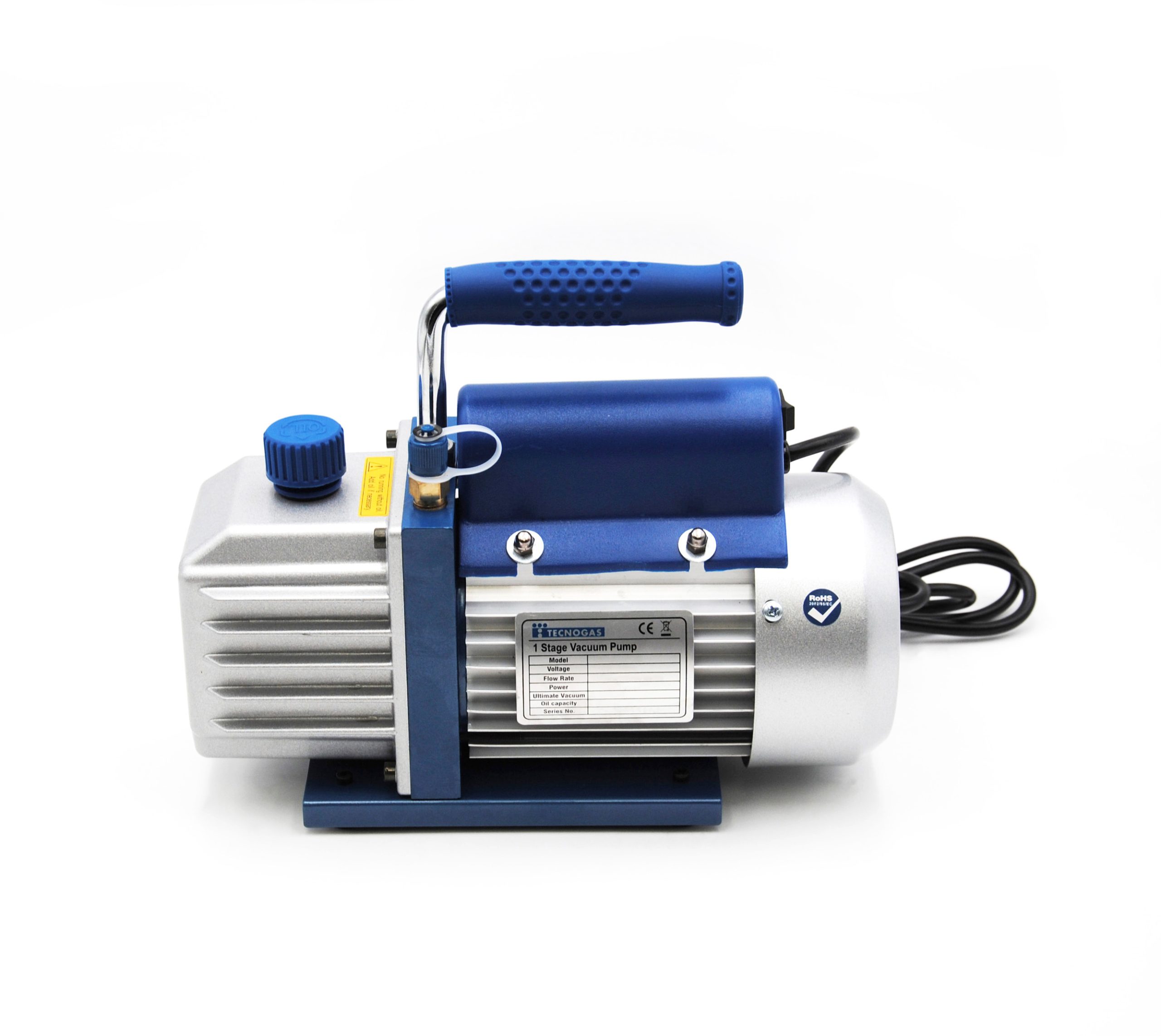

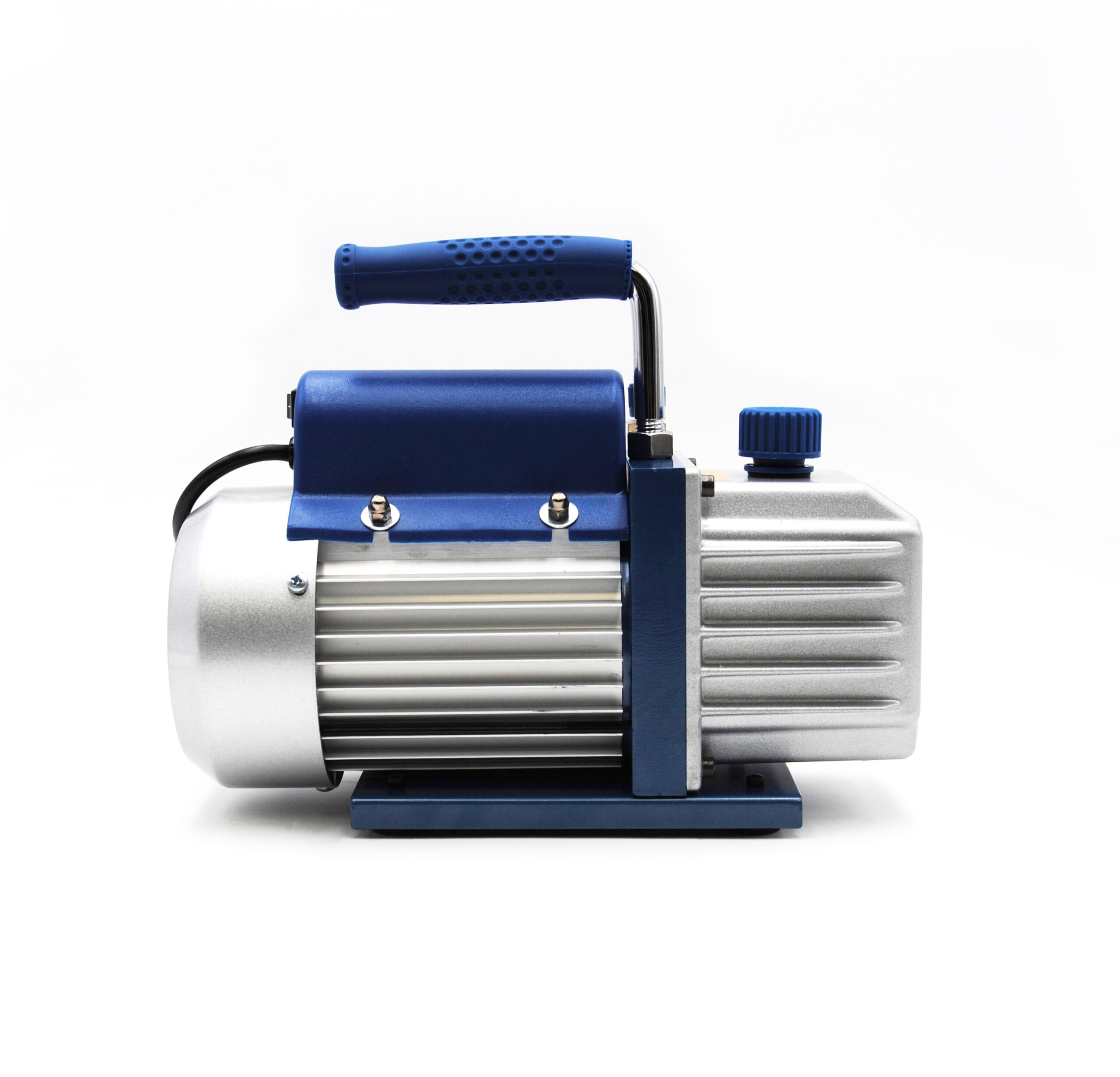

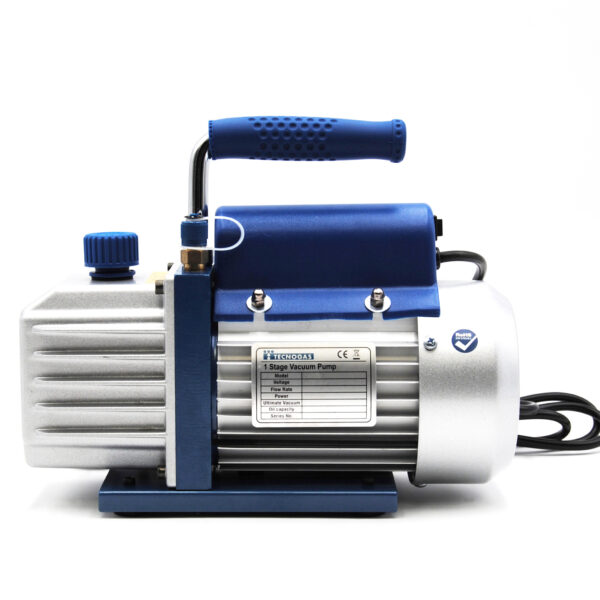

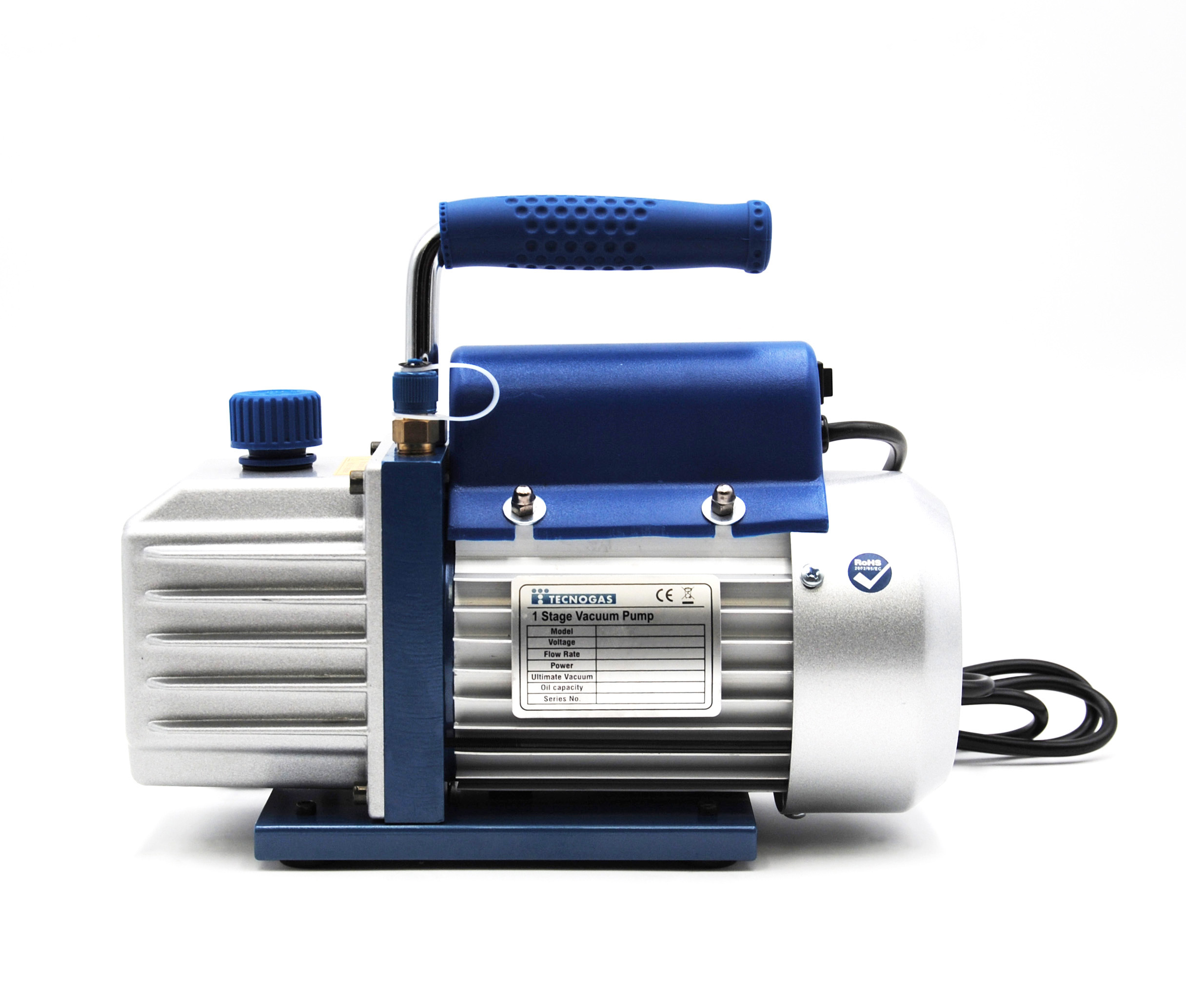

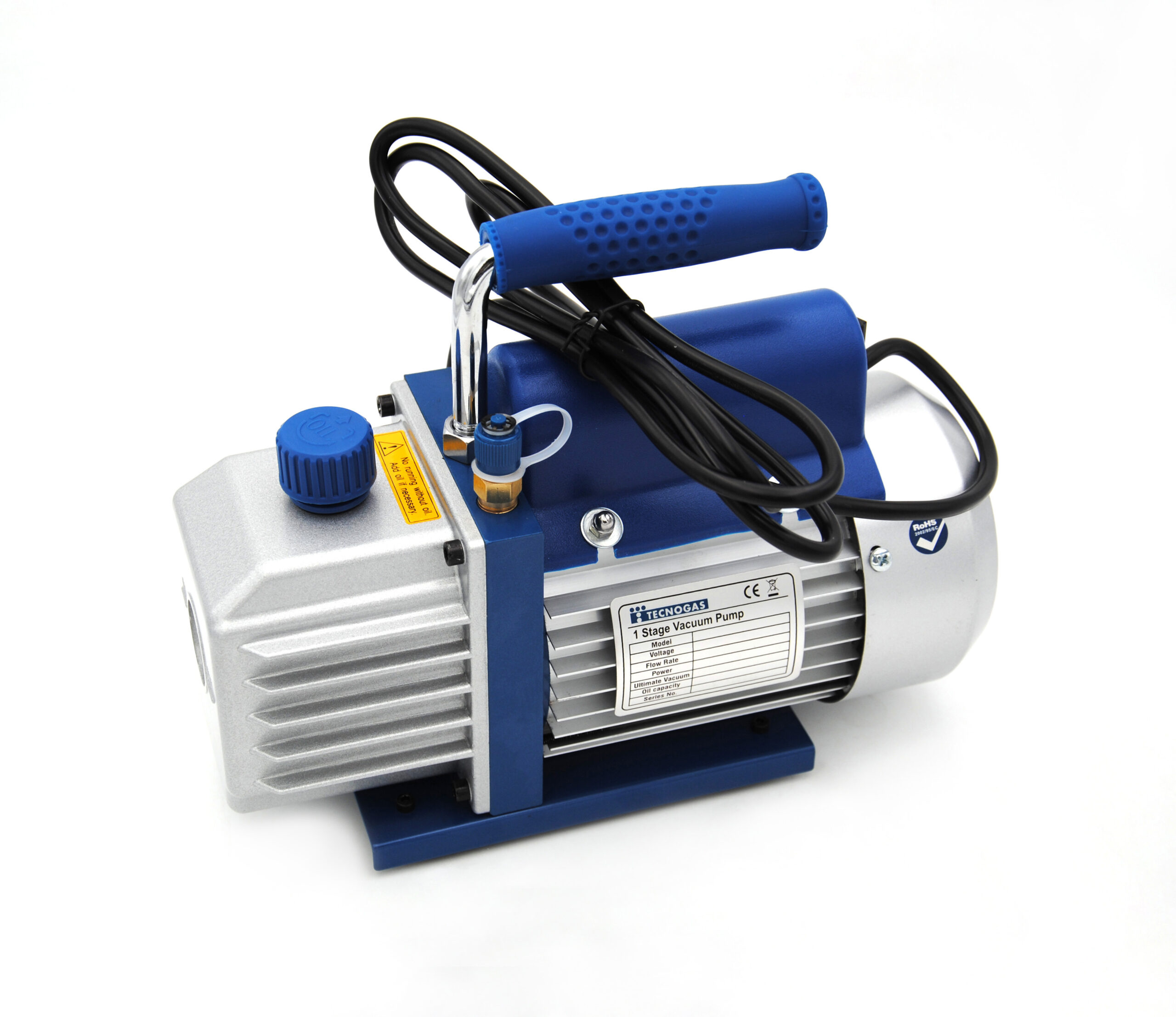

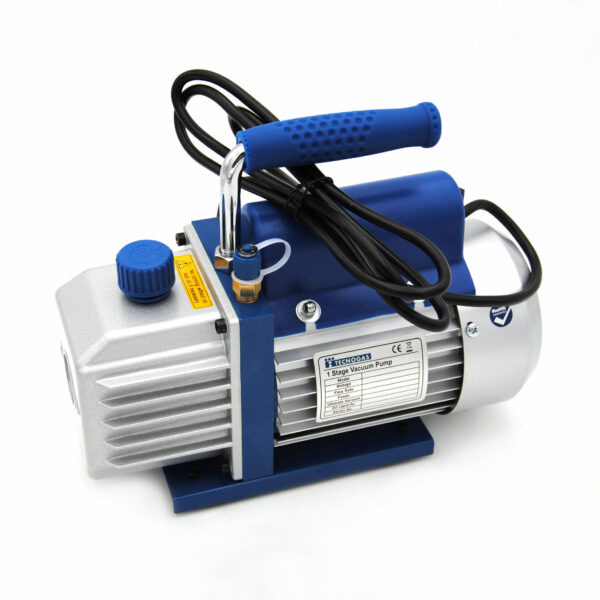

Professional one stage pump Mod. MS-1 / 2 suitable for all plants where vacuum operation is needed.
Product features
- ON/OFF switch

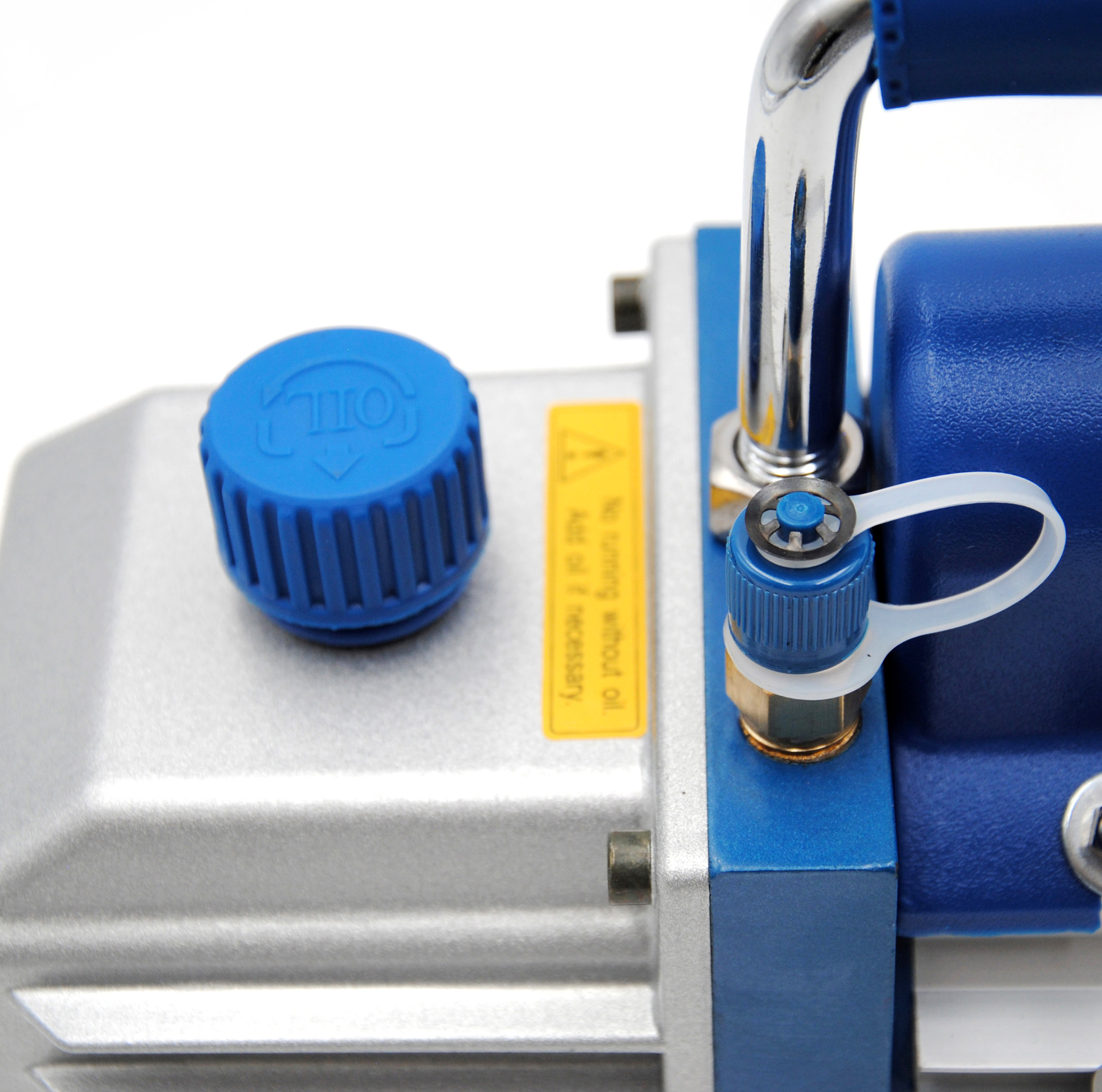

- oil level indicator
- plug feeding cable
- transport ergonomic handle

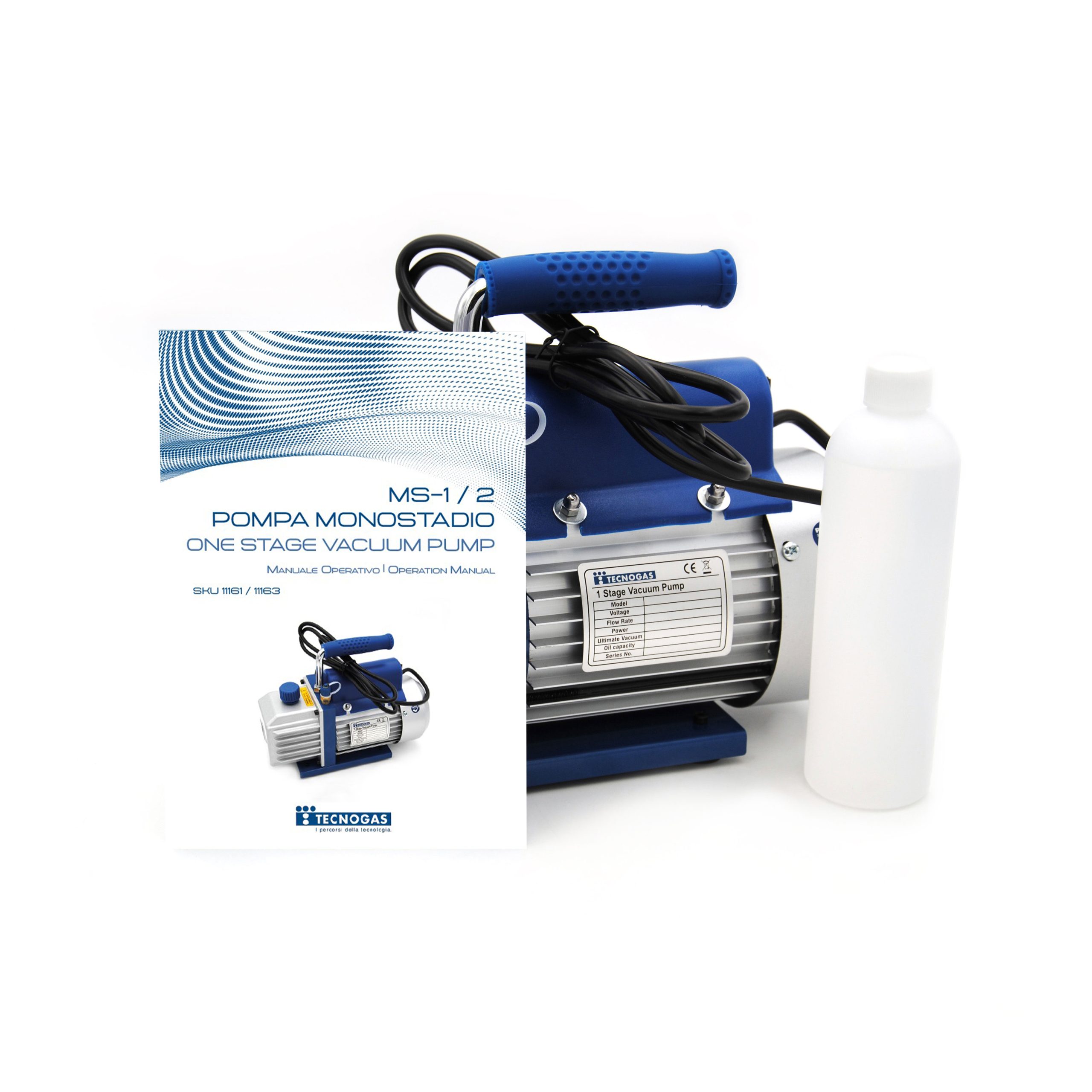

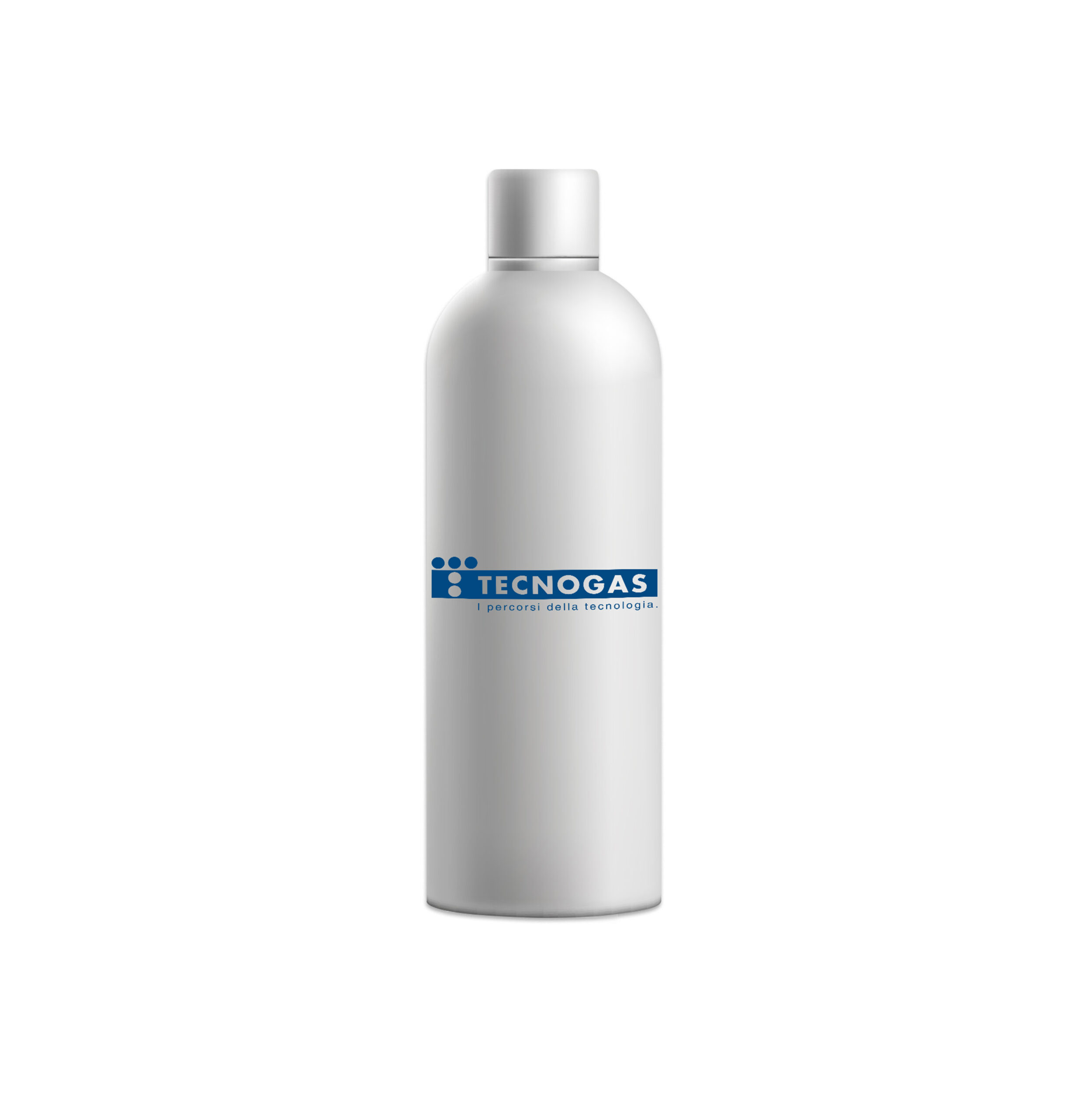

- oil bottle

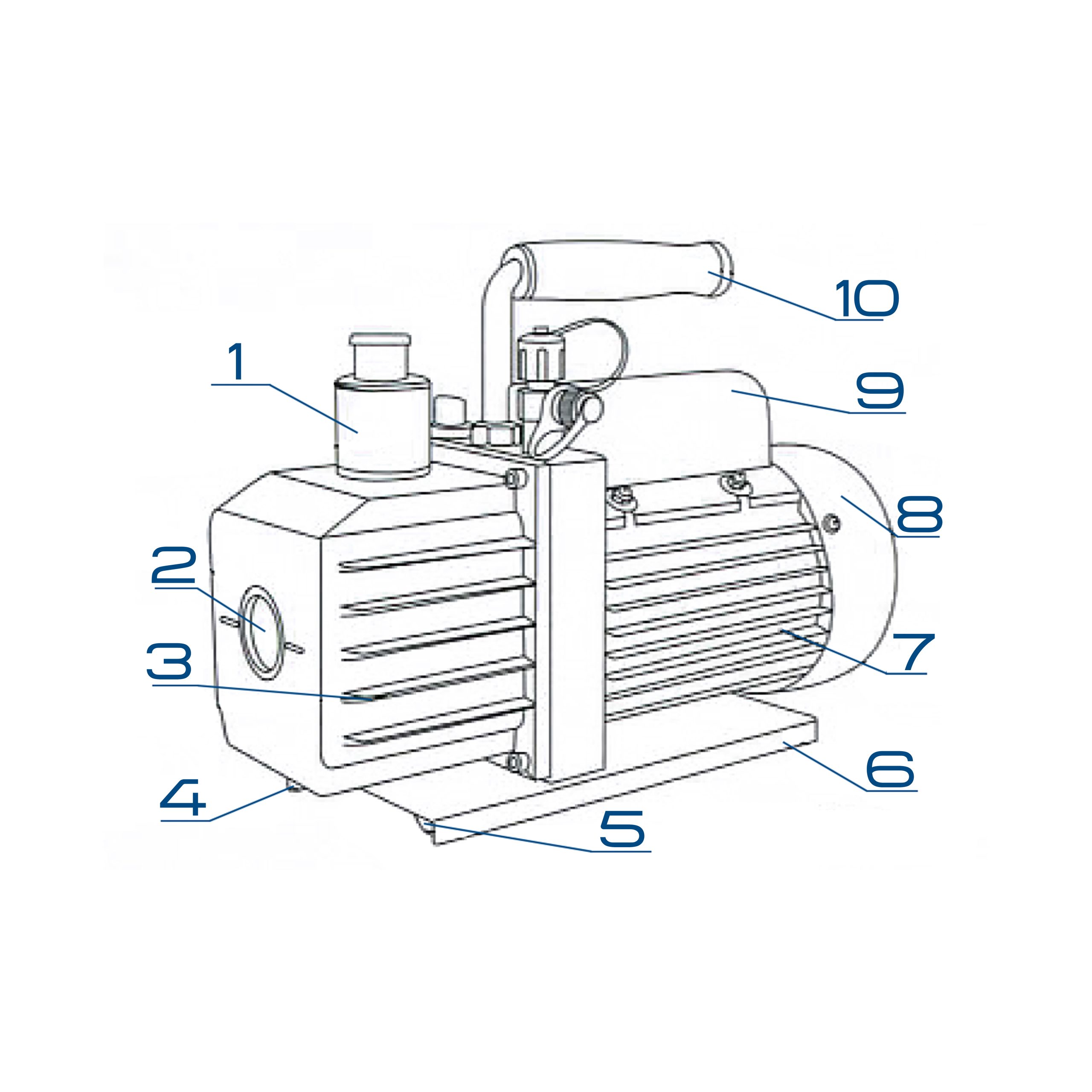

| PUMP COMPONENTS | |
|---|---|
| 1 | oil filling and overpressure cap |

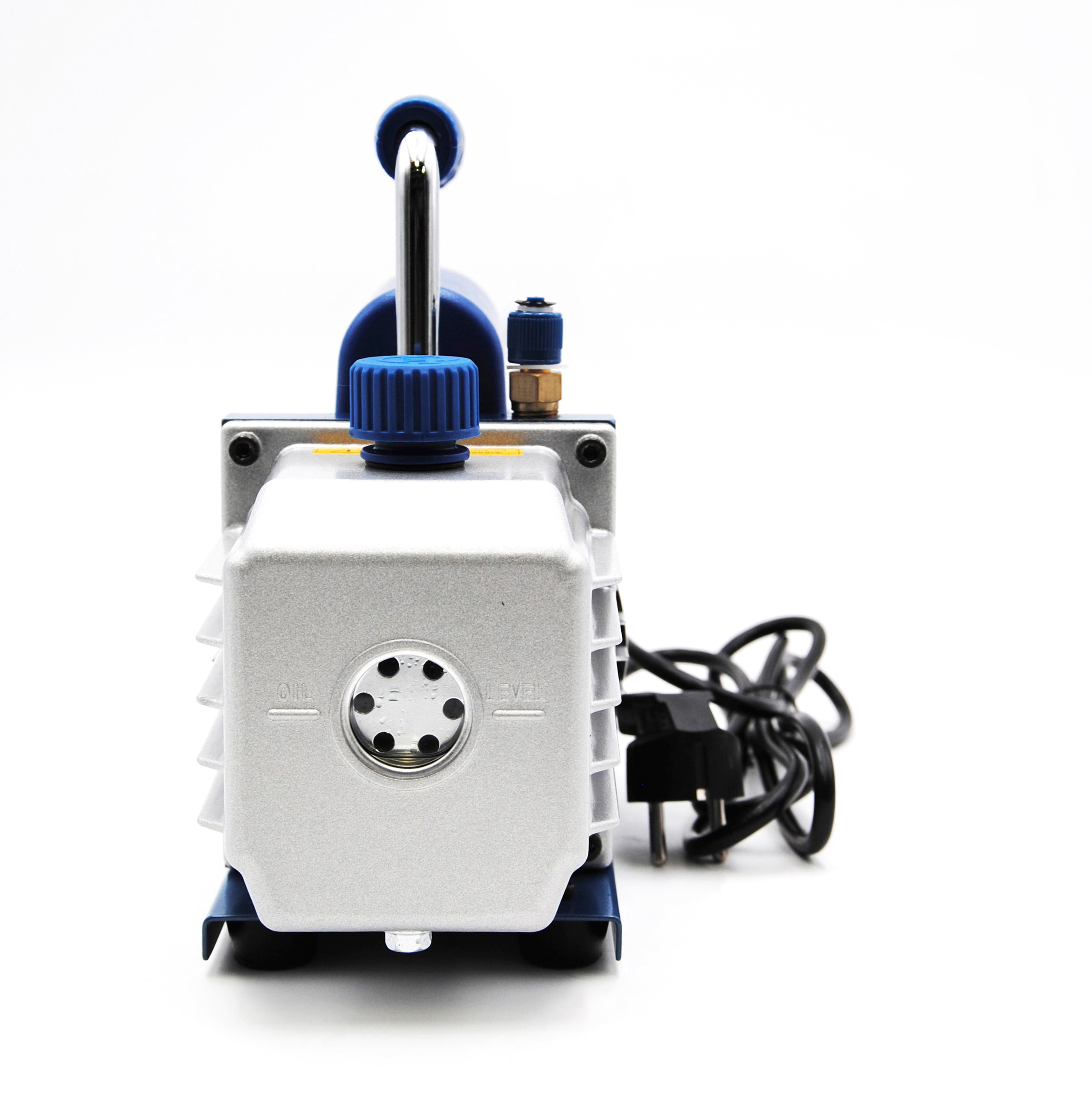

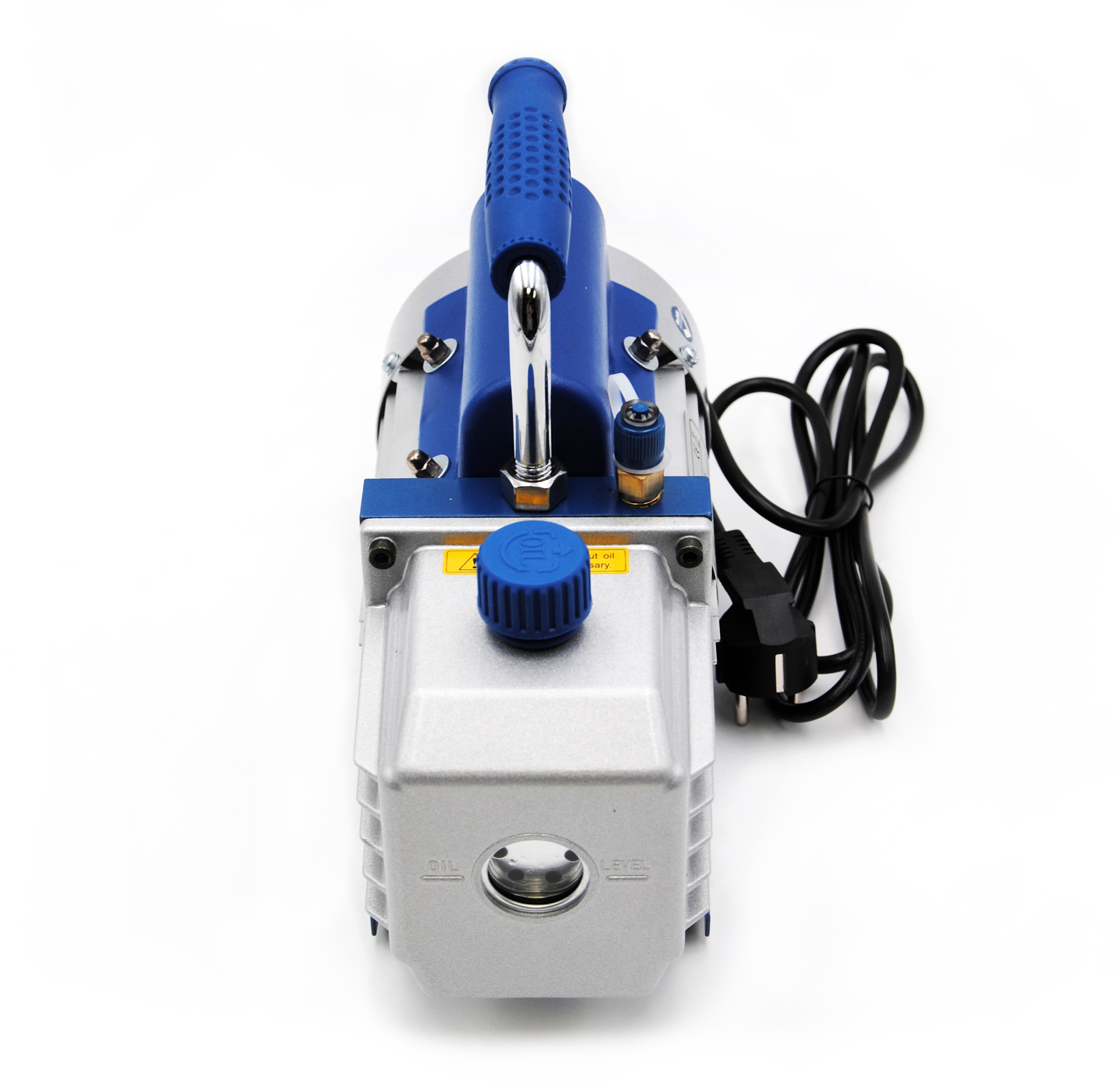

| 2 | checking glass (oil level) |
| 3 | die-cast alluminium shell |
| 4 | oil drain cap |
| 5 | rubber gasket |
| 6 | base |
| 7 | motor |
| 8 | fan cover |
| 9 | power switch |
| 10 | handle |
Technical Features
| MS-1 (sku 11161) | MS-2 (sku 11162) | |
|---|---|---|
| POWER SUPPLY | 230V - 50Hz | |
| STAGES | 1 | |
| MAXIMUM FLOW RATE | 42 l/min | 70 l/min |
| FINAL VACUUM | 5 Pa | |
| INLET CONNECTIONS | 1/4" SAE | |
| POWER | 1/4 HP (340W Max) | |
| OIL CAPACITY | 310 ml | |
| DIMENSIONS | 285x124x230 mm (WxHxD) | |
| WEIGHT | 6,3 kg | 7,1 kg |
| COMPATIBLE GASES | A1 - A2L | A1 - A2L |
Download
You may also be interested in
-
Flexible Pipe for Vacuum
To be used for the connection between the pump and the manifold
3 products
view -
Kit of Flexible Hoses for Vacuum and/or Charging
Without tap, for gas TR422B (R22) - R407C - R404C - R0404A - R134a - R410A - R32
2 products
view -
Charge Oil Pump
Piston model
1 product
view -

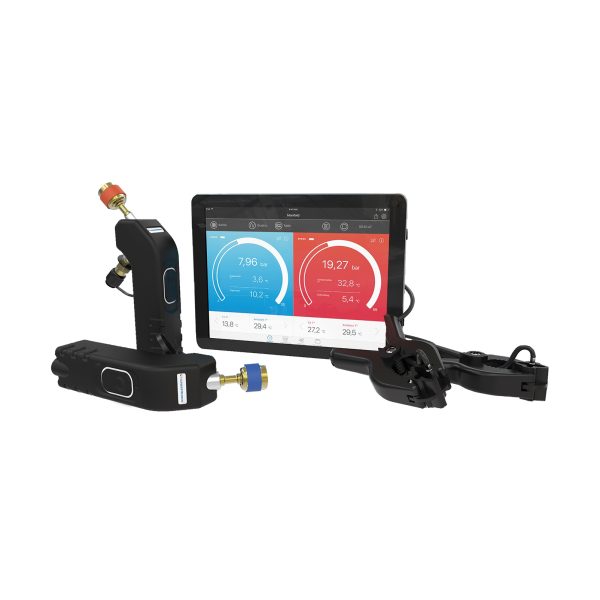

SI – RV3
