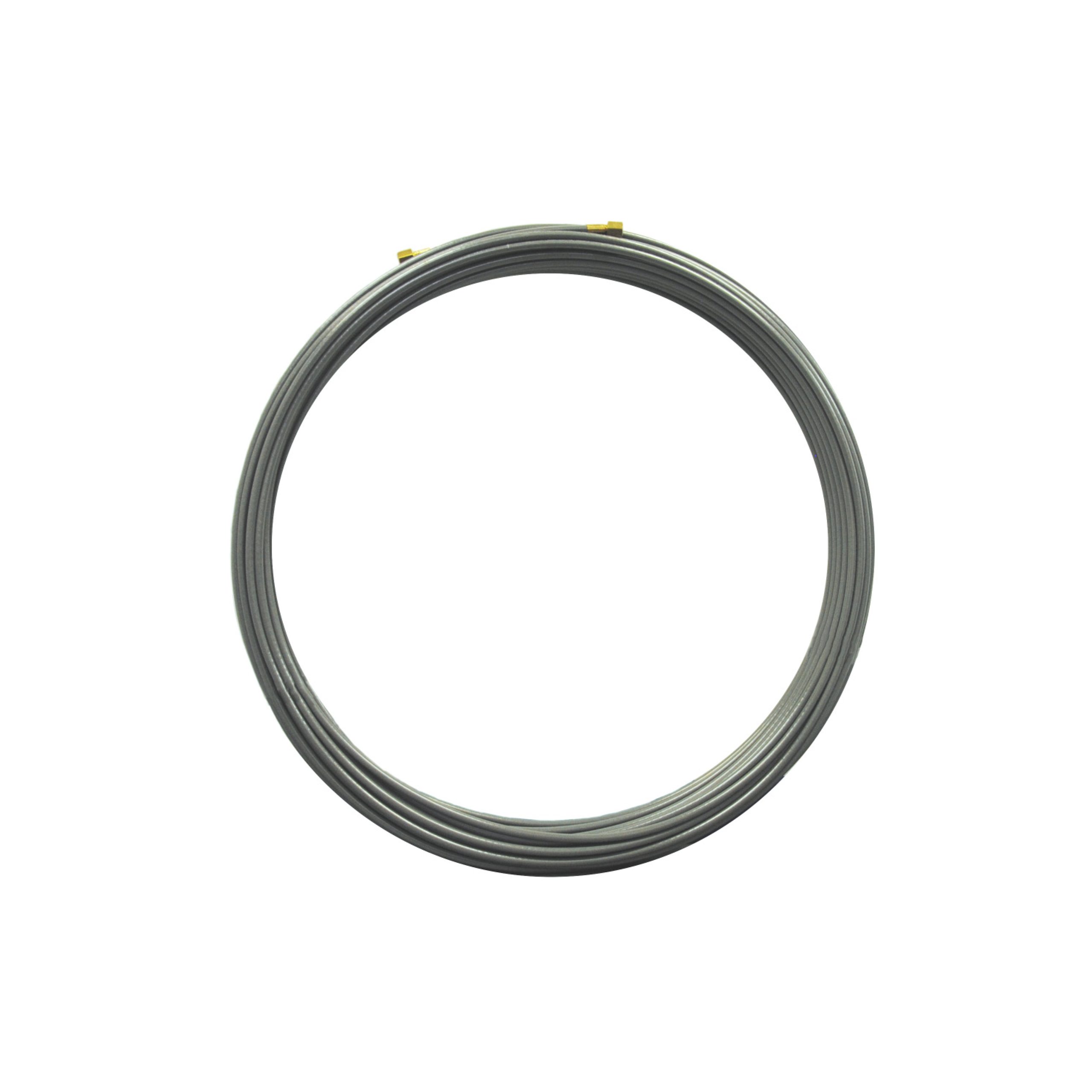

Matassa Tubo senza Rivestimento
Component of the FastPipe® SYSTEM
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000012160 |
FastPipe® TUBE COIL WITHOUT COATING Ø 1/4" - 50 m - 1 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000012161 |
FastPipe® TUBE COIL WITHOUT COATING Ø 3/8" - 50 m - 1 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000012162 |
FastPipe® TUBE COIL WITHOUT COATING Ø 1/2" - 50 m - 1 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000012163 |
FastPipe® TUBE COIL WITHOUT COATING Ø 5/8" - 50 m - 1 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
The heart of FastPipe® SYSTEM is the pipe, available in different configurations with which it is possible to best design and customize a system.
The coiled tube is available in different configurations
- without coating (50 m coils)
- with 6 mm white coating
- with 6 mm UV-Pro coating (grey)
The hose also complies with the following regulations
- Global compliance with regulations: UNI EN 1736:2009 (EN 1736:2008)
- Coating (thermal conductivity): UNI 8457 - UNI 9174
- Coating (fire resistance): UNI EN 1382:2014 - UL 94:2001
- Resistance to permeation: EN 1736 Top Performer Classe 1
Technical Features
| COMPATIBLE GASES | R407c - R410a - R32 - TR422b - R134a - R404 (not compatible with R22 gas) |
|---|---|
| OPERATING TEMPERATURE | - 30°C ÷ + 110°C (also withstands non-continuous 130°C spikes) |
| MAXIMUM OPERATING PRESSURE | 60 bar |
| MINIMUM BENDING RADIUS | |||
|---|---|---|---|
| 1/4" | 3/8" | 1/2" | 5/8" |
| 65 mm | 95 mm | 130 mm | 170 mm |
| TIGHTENING TORQUE | |||
|---|---|---|---|
| 1/4" | 3/8" | 1/2" | 5/8" |
| 15-17 Nm (Max. 20 Nm) | 28-32 Nm (Max. 35 Nm) | 38-42 Nm (Max. 45 Nm) | 60-68 Nm (Max. 80 Nm) |
