Isolated plenum for square ceiling diffuser
with rear connection
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000066235 |
ISOLATED PLENUM "A" - 150 x 150 mm - Ø 122 mm |
€72,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066236 |
ISOLATED PLENUM "A" - 225 x 225 mm - Ø 147 mm |
€79,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066237 |
ISOLATED PLENUM "A" - 300 x 300 mm - Ø 197 mm |
€87,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066238 |
ISOLATED PLENUM "A" - 375 x 375 mm - Ø 197 mm |
€117,45 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066239 |
INSULATED PLENUM "A" - 450 x 450 mm - Ø 247 mm |
€127,05 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066240 |
INSULATED PLENUM "A" - 600 x 600 mm - Ø 297 mm |
€218,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

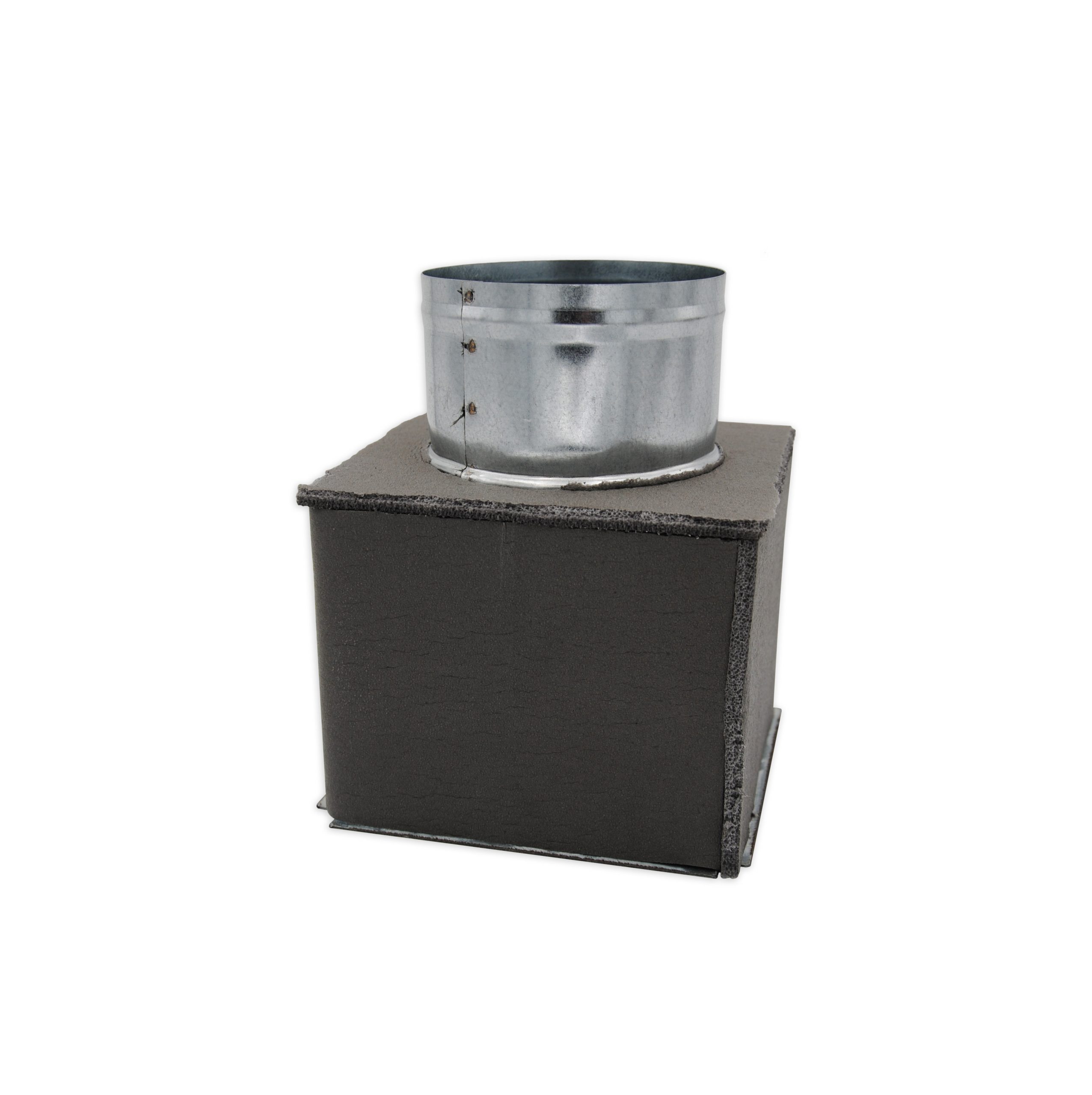

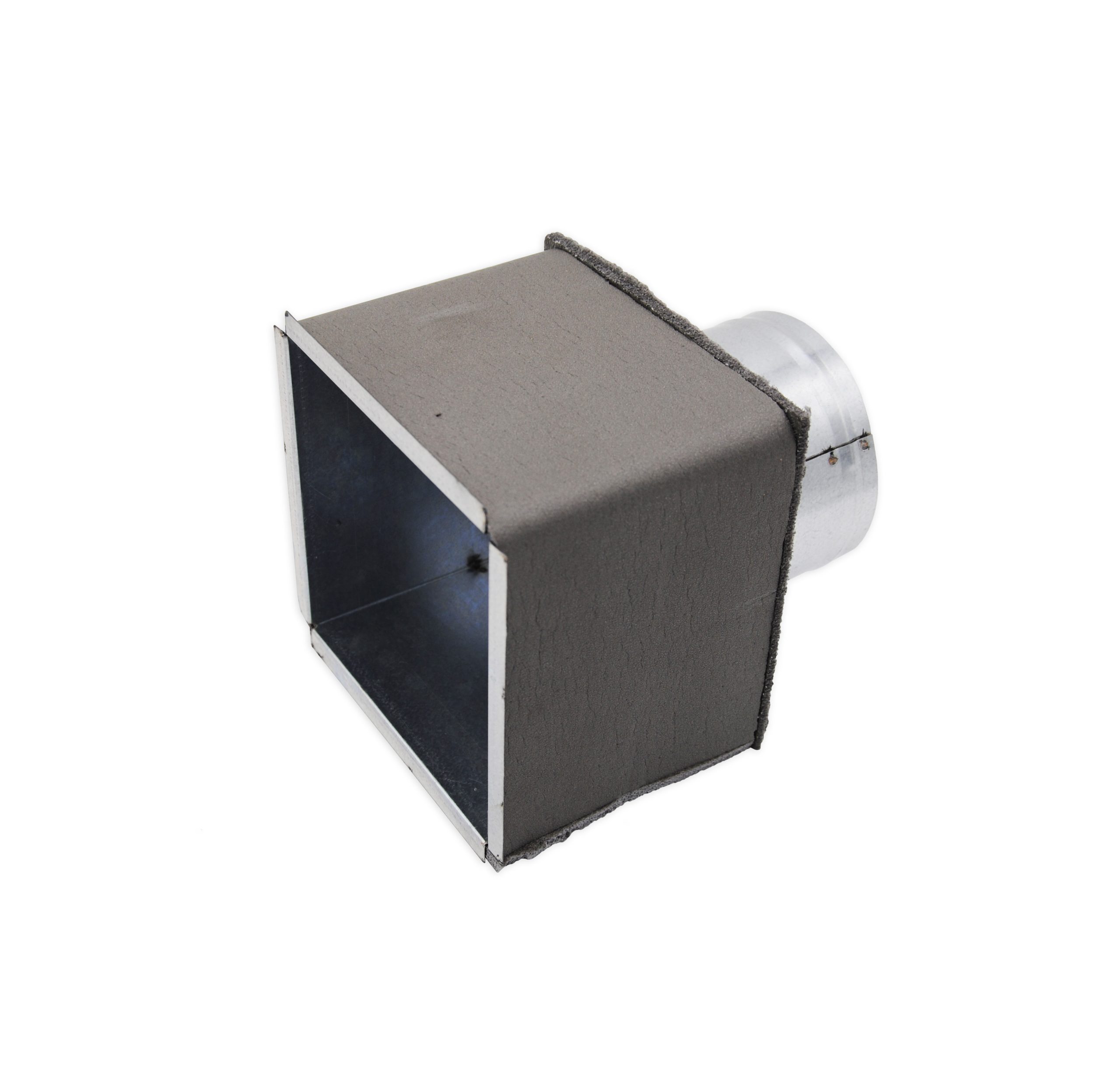

The insulated plenum with rear connection is suitable for square ceiling diffusers (exposed installation and tile replacing) and can be supplied with:
Technical Features
| DIFFUSER SKU | DIFFUSER DIMENSIONS | DAMPER SKU | "A" INSULATED PLENUM SKU | "B" INSULATED PLENUM SKU |
|---|---|---|---|---|
| 66070 | 150 x 150 mm | 66225 | 66235 | 66245 |
| 66071 | 225 x 225 mm | 66226 | 66236 | 66246 |
| 66072 | 300 x 300 mm | 66227 | 66237 | 66247 |
| 66073 | 375 x 375 mm | 66228 | 66238 | 66248 |
| 66074 | 450 x 450 mm | 66229 | 66239 | 66249 |
| 66075 | 600 x 600 mm | 66230 | 66240 | 66250 |

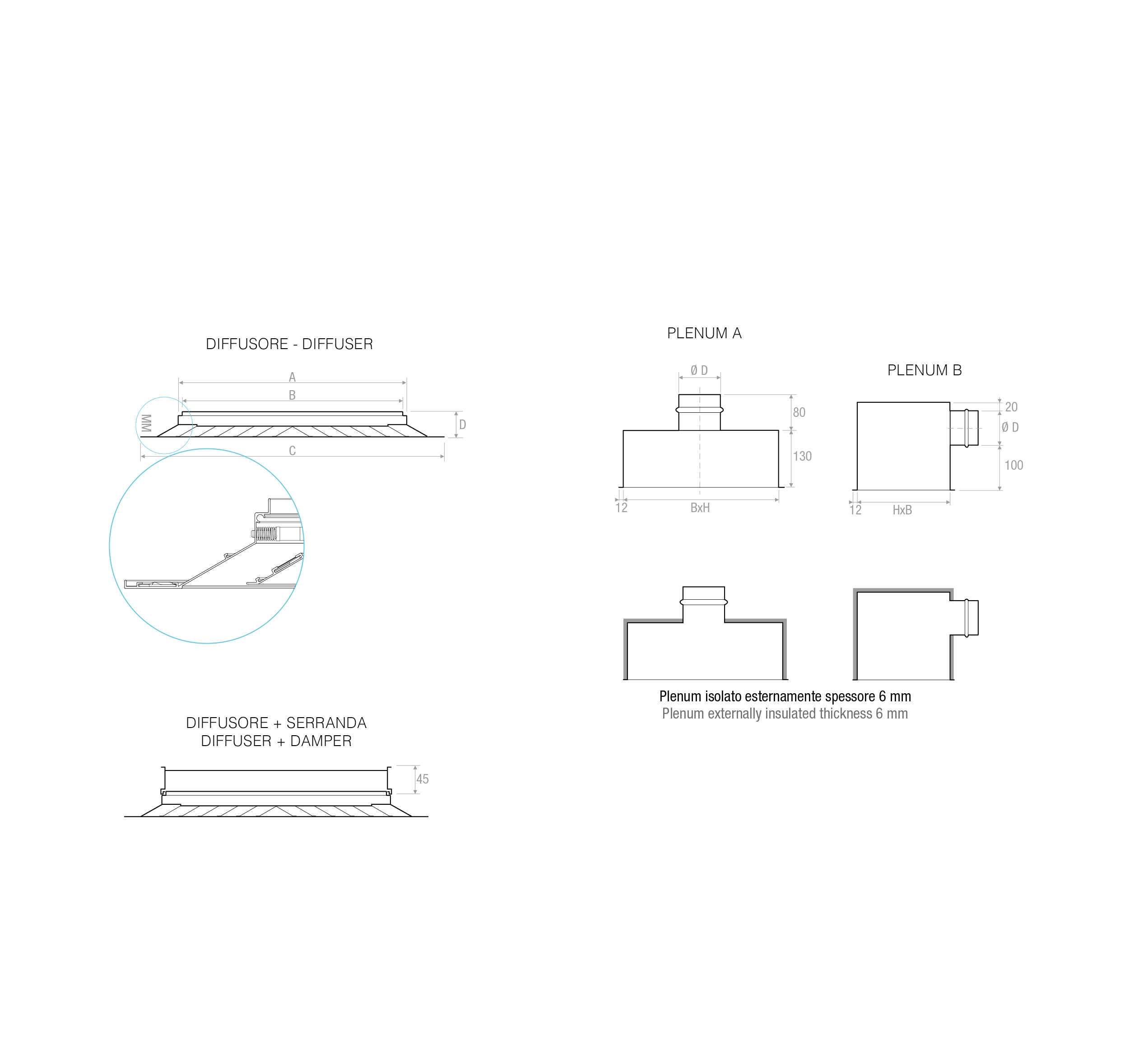

| PLENUM A / B MEASURES | |||||
|---|---|---|---|---|---|
| B x H (mm) | A (mm) | B (mm) | C (mm) | D (mm) | CONNECTION PLENUM (mm) |
| 150 x 150 mm | 128 mm | 144 mm | 294 mm | 50 mm | Ø 122 mm |
| 225 x 225 mm | 203 mm | 219 mm | 369 mm | 50 mm | Ø 147 mm |
| 300 x 300 mm | 278 mm | 294 mm | 444 mm | 50 mm | Ø 197 mm |
| 375 x 375 mm | 353 mm | 369 mm | 519 mm | 50 mm | Ø 197 mm |
| 450 x 450 mm | 428 mm | 444 mm | 594 mm | 50 mm | Ø 247 mm |
| 600 x 600 m | 580 mm | 597 mm | 745 mm | 50 mm | Ø 297 mm |
