Insulating Fixing
For walls with coat insulation
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011884 |
INSULATING FIXING FOR WALLS WITH COAT INSULATION |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Professional fixing ideal fixing for blocking external units or suspended loads on buildings insulated with thermal insulation from 80 to 160 mm.
Product features
- fiberglass-reinforced nylon insulation body, has its inside a barrier that interrupts thermal bridging by preventing condensation and drip points inside the masonry
- ideal for securing climate machines and suspended loads in general in buildings insulated with insulation
- suitable for different types of masonry, such as concrete, solid brick masonry or perforated masonry (when used with TCH, PE165 and THC PE300 injection resins)

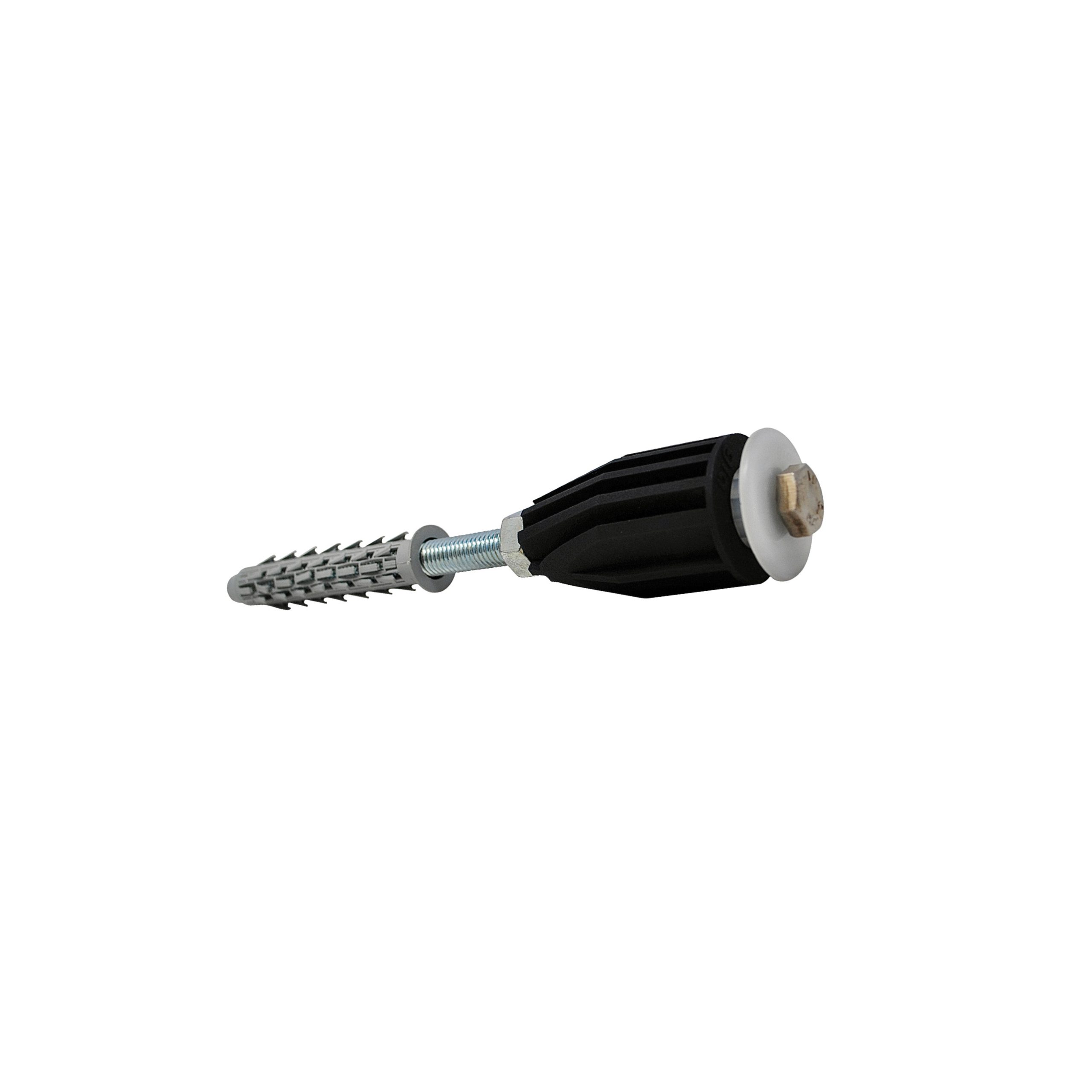

- equipped with TOP ultra-performance meshed sleeve with anti-rotation and anti-unthreading fins, M12x200 threaded rod, plastic support washer, lock nut and M10x25 INOX fastening bolt

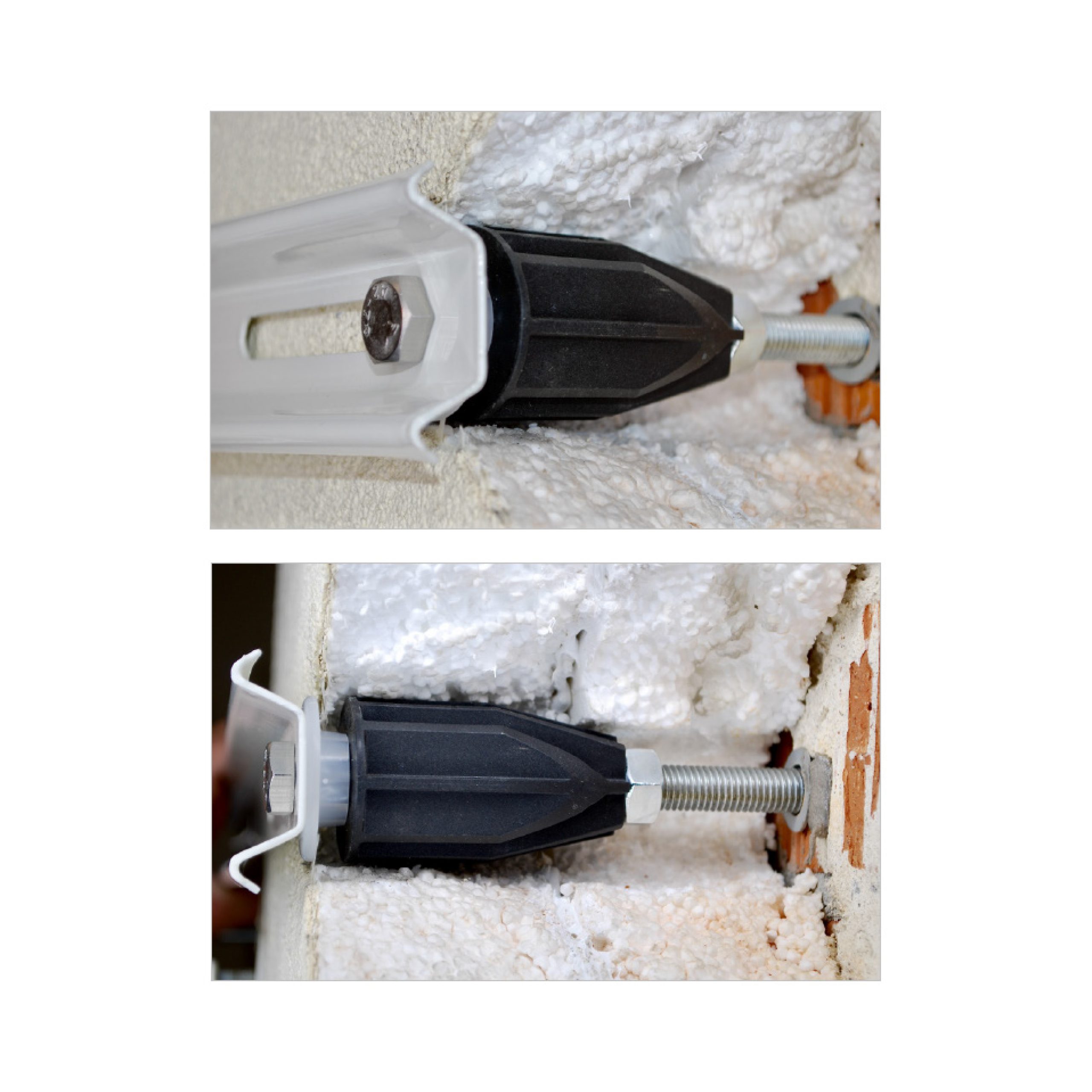

- for the hanging fixing of air conditioning unit, it is always recommended to use 4 fixings: 2 on the crossbeam and 2 on the vertical metal struts
Technical Features
| THREADED ROD MATERIAL | steel 4.8 EN ISO 898-1 electrolytic galvanizing 7-8 µm |
|---|---|
| MESHED COMPASS MATERIAL | PE polyethylene |
| WASHER MATERIAL | PP polypropylene |
| BOLT MATERIAL | stainless steel AISI 304 - EN 10088 |
| CIRCUIT BREAKER MATERIAL | PA6 glass fiber filled polyamide |
| TYPE OF COATS | 80-160 mm |
| MINIMUM DRILLING DEPTH | 180 mm |

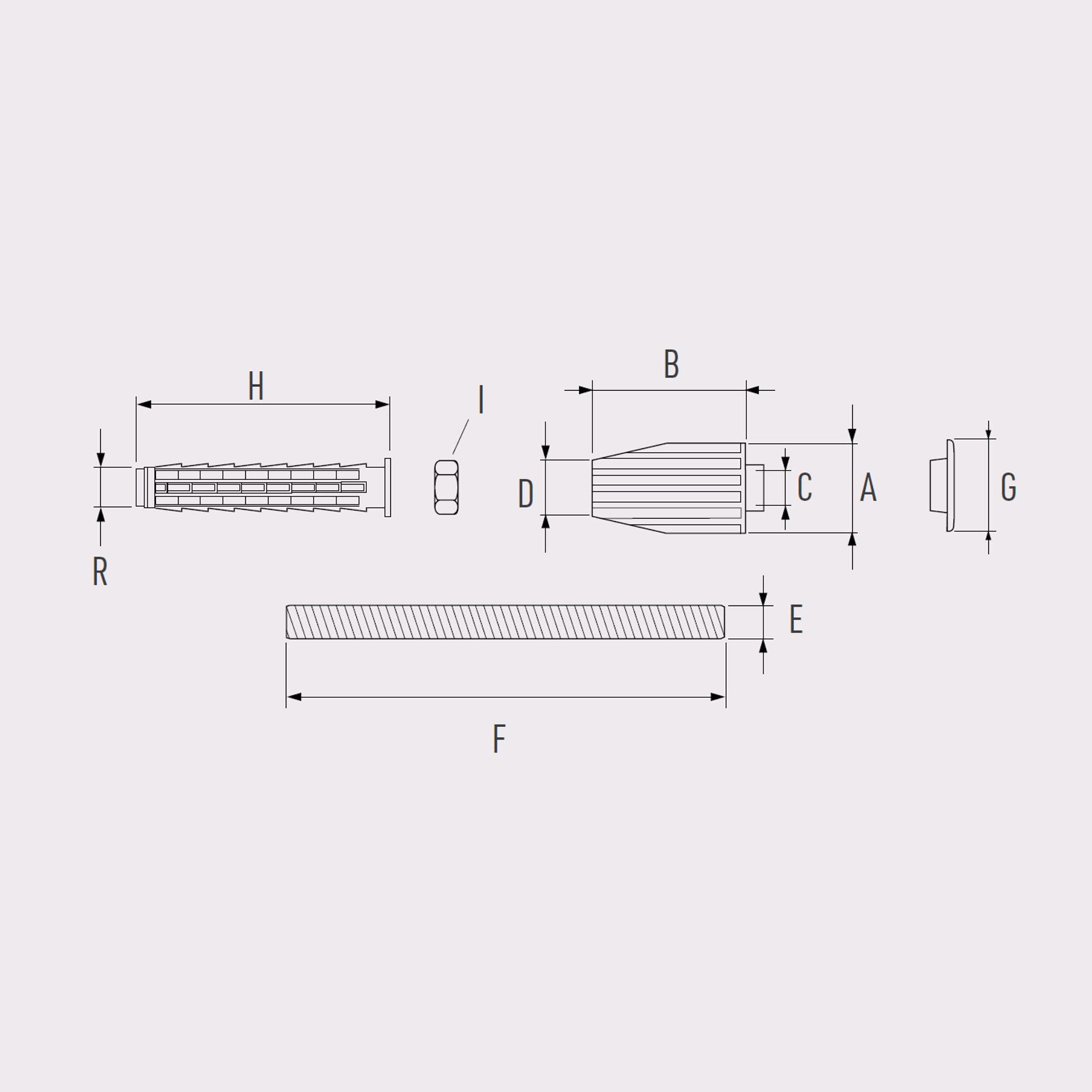

| A | 40 mm |
| B | 76 mm |
| C | M10 |
| D | M12 |
| E | M12 |
| F | 200 mm |
| G | 40 mm |
| H | 100 mm |
| I | M12 |
| R | 16 mm |
