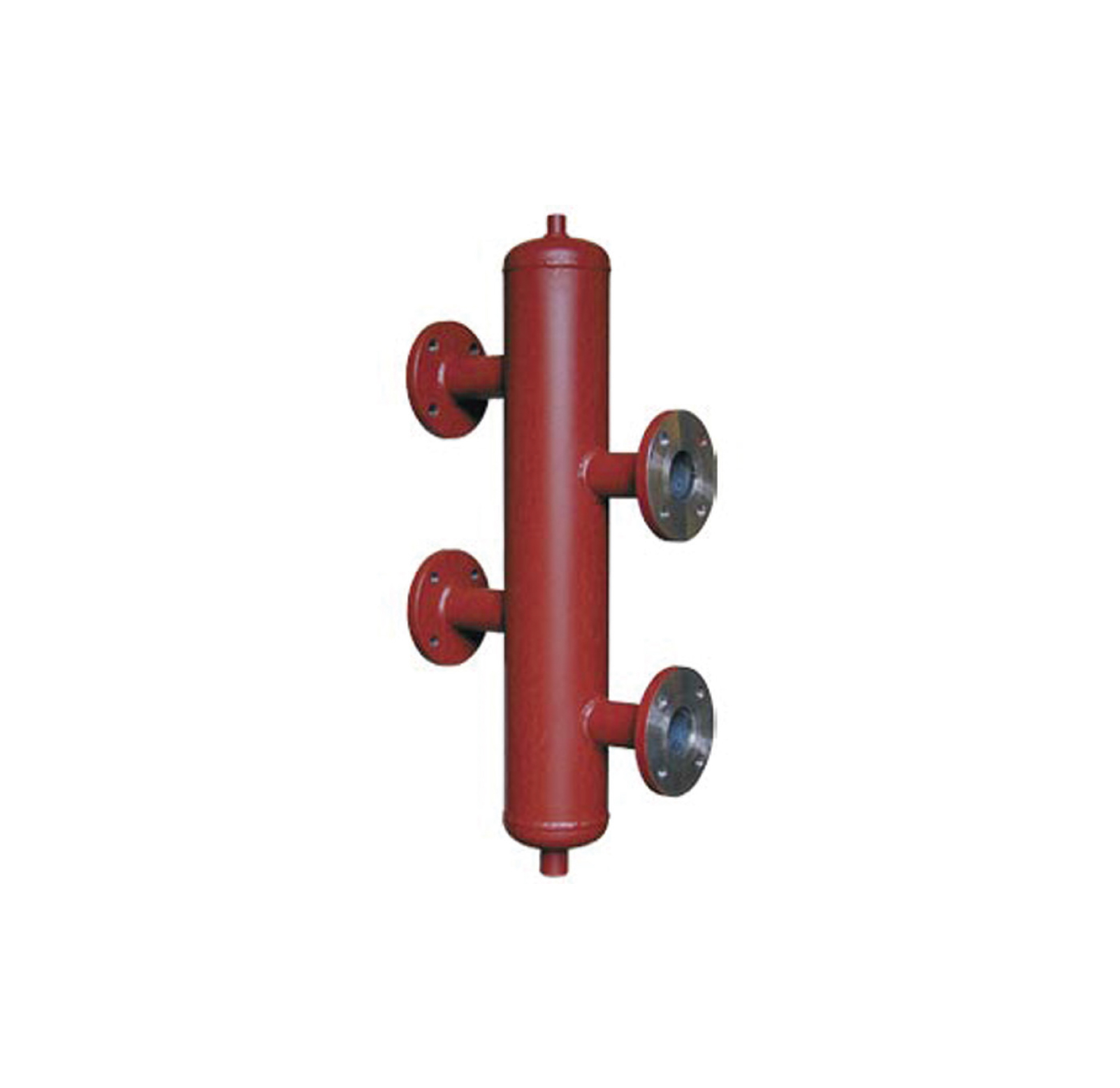

Hydraulic Compensator in Painted Steel
For applications on centralized and underfloor heating systems
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070050 |
THREADED HYDRAULIC CONDENSER 1" - 2 m3/h |
€364,95 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070051 |
THREADED HYDRAULIC CONDENSER 1" 1/4 - 3.5 m3/h |
€383,70 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070052 |
THREADED HYDRAULIC CONDENSER 1" 1/2 - 5 m3/h |
€505,65 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070053 |
THREADED HYDRAULIC CONDENSER 2" - 8 m3/h |
€513,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070055 |
FLANGED HYDRAULIC CONDENSER DN 65 - 12 m3/h |
€1.137,10 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070056 |
FLANGED HYDRAULIC CONDENSER DN 80 - 18 m3/h |
€1.380,25 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Hydraulic compensator designed to hydraulically separate the generation circuit from the circuit to be used, when the two circuits are characterized by different water flow requirements; moreover, the compensator is necessary when the anti-condensation function is required, since thanks to the mixing between delivery and return, the return temperature rises before entering the boiler.
Product features
- creates a vertical path at low speed in order to facilitate the separation of the air upwards and the accumulation of any impurities or sludge in the lower part, to facilitate discharge
- the position of the bindings has been carefully studied to favor the previously mentioned functions
- available on request polyurethane insulation
Technical Features
| MAXIMUM TEMPERATURE OF THE FLUID | 90°C |
|---|---|
| MINIMUM TEMPERATURE OF THE FLUID | 5°C |
| MAXIMUM FLUID PRESSURE | 5 bar |
| MATERIAL | EN10255 carbon steel |
| PAINTING | water-based primer, red colour |

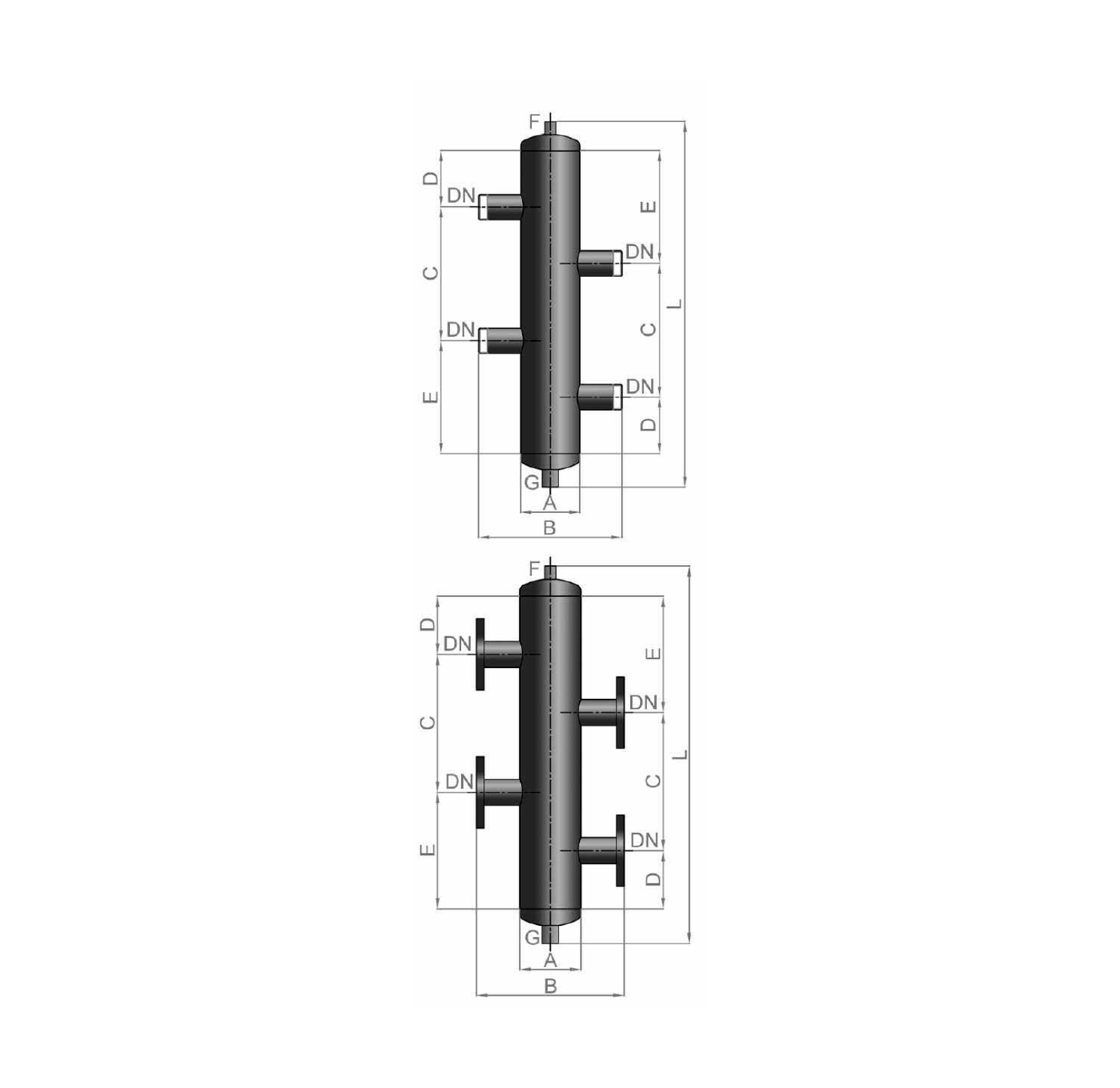

| SKU | Ø | A | B | C | D | E | F | G | L | INDICATIVE FLOW RATE |
|---|---|---|---|---|---|---|---|---|---|---|
| 70050 | 1" | DN 80 | 289 | 150 | 65 | 125 | 1/2" F | 3/4" F | 450 | 2 m3/h |
| 70051 | 1" 1/4 | DN 100 | 314 | 220 | 90 | 180 | 1/2" F | 3/4" F | 625 | 3.5 m3/h |
| 70052 | 1" 1/2 | DN 100 | 314 | 255 | 105 | 210 | 1/2" F | 3/3" F | 705 | 5 m3/h |
| 70053 | 2" | DN 125 | 341 | 320 | 135 | 270 | 1/2" F | 1" F | 875 | 8 m3/h |
| 70055 | DN 65 | DN 150 | 418 | 415 | 175 | 350 | 1/2" F | 1" F | 1090 | 12 m3/h |
| 70056 | DN 80 | DN 200 | 469 | 485 | 205 | 410 | 1/2" F | 1" F | 1280 | 18 m3/h |
